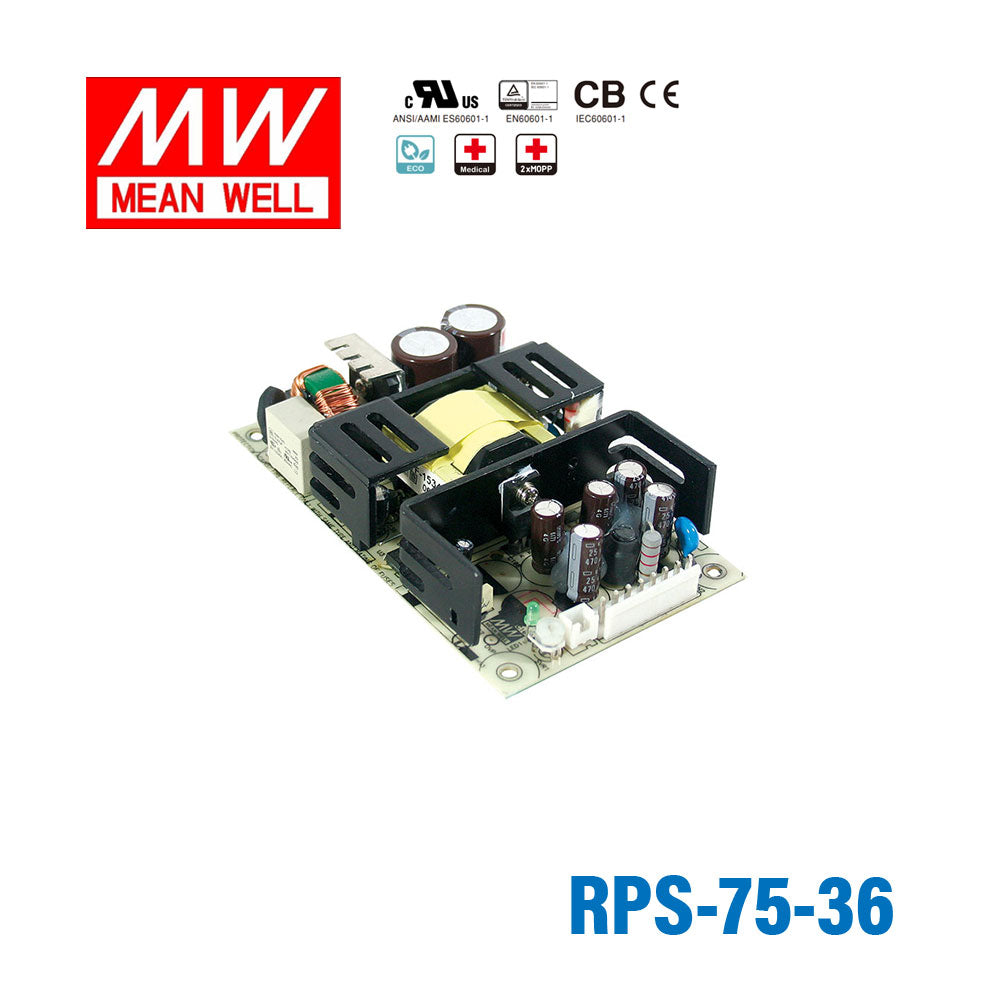

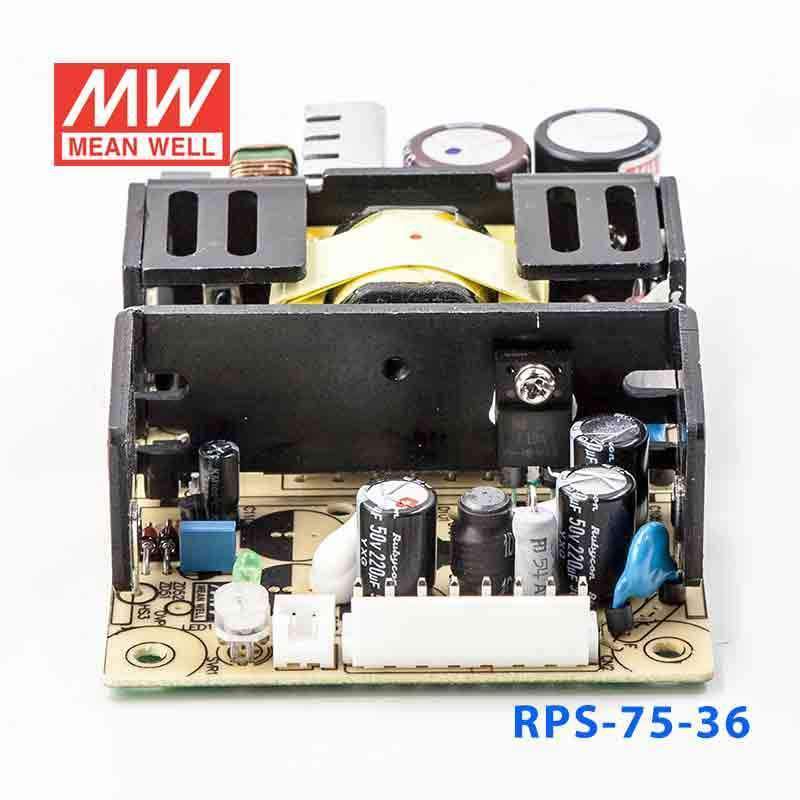

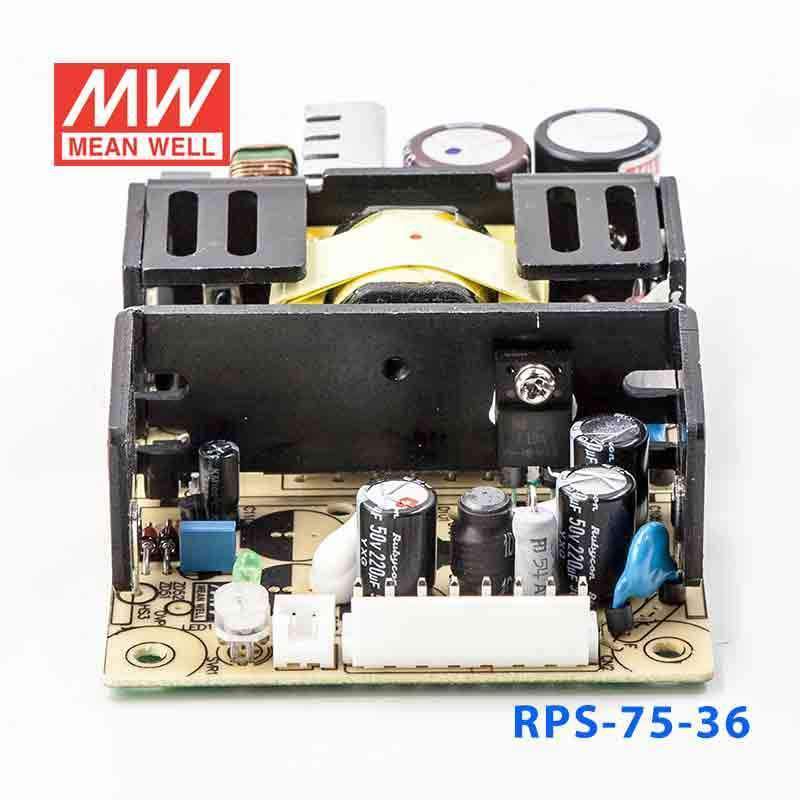

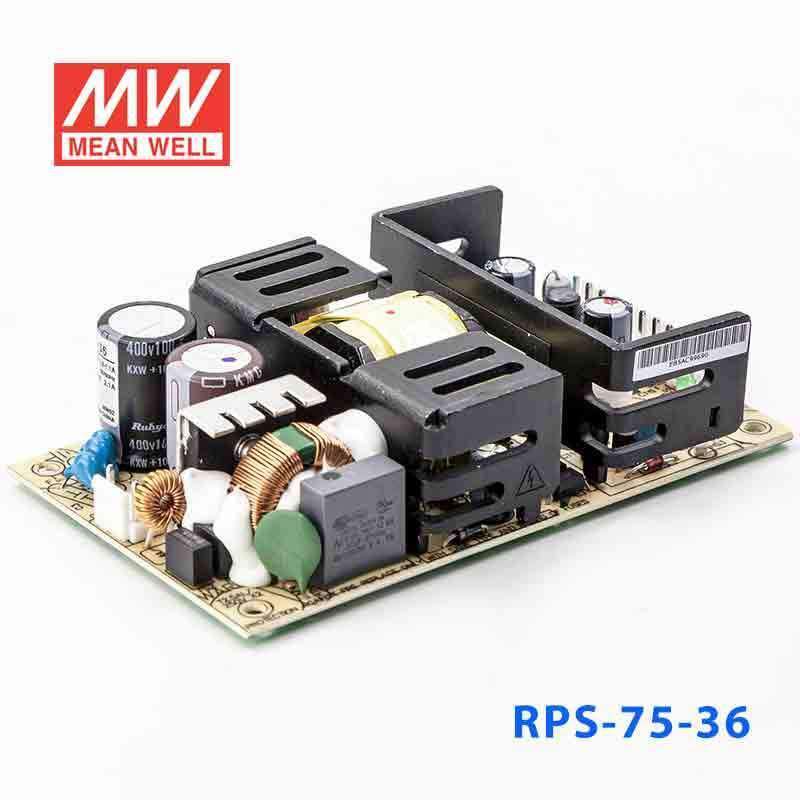

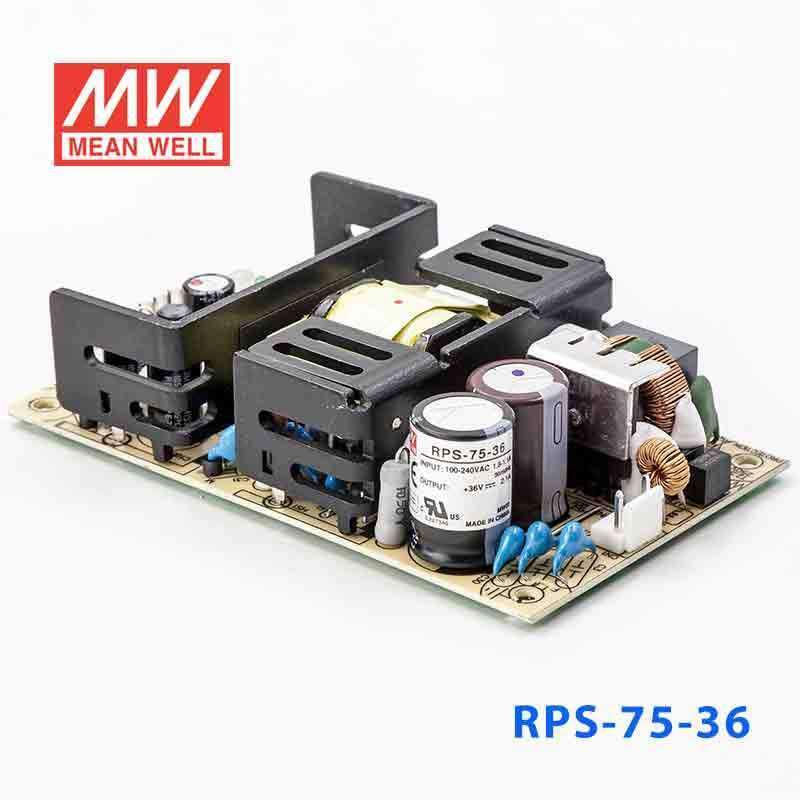

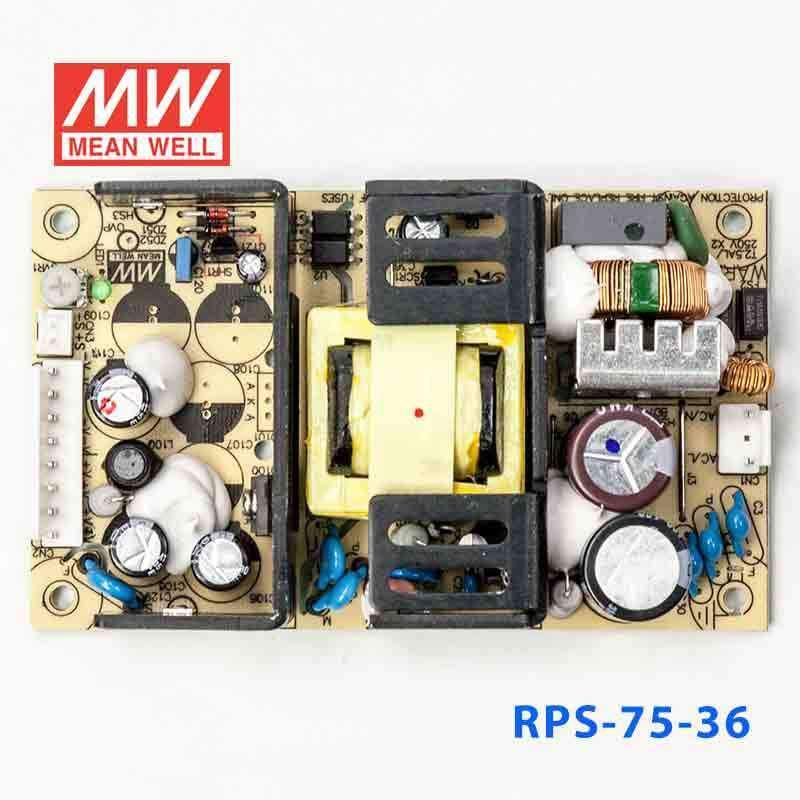

Mean Well RPS-75-36 Green Power Supply W 36V 2.1A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-75-36 Green Power Supply W 36V 2.1A - Medical Power S...
The RPS-75 is a 75W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating75.6 Watt
-
Output Voltage36 Volt
-
Rated Current2.1 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.22 in
-
Weight0.57 lb
::specification::
Frequently Asked Questions
Can I use the RPS-75-36 for 36V automation or industrial control equipment?
Yes, if the equipment requires 36V constant voltage and draws no more than 2.1A or 75.6W. It is better matched to lighter-current 36V control loads than to higher-current 36V systems.
Is the RPS-75-36 suitable for 36V test, measurement, or instrumentation devices?
It can be used for instrumentation or measurement equipment that specifies 36V DC input and stays within the 2.1A output limit. The wide 90-264VAC input range also supports installations across different AC supply standards.
Can this model power compact medical or laboratory equipment that needs 36V DC?
Yes, for devices that require a 36V constant voltage source and consume up to 75.6W. Its medical safety approval is relevant for medical or lab designs, but the load still has to remain within the 2.1A rating.
How does the RPS-75-36 differ from other RPS-75 output versions?
The RPS-75 lineup includes 3.3V 15A 49.5W, 5V 14A 70W, 12V 6.3A 75.6W, 15V 5A 75W, 24V 3.2A 76.8W, 36V 2.1A 75.6W, and 48V 1.6A 76.8W models. The RPS-75-36 is the 36V member and is rated for 2.1A output.
Is the RPS-75-36 appropriate for outdoor or washdown environments?
The unit is specified for operation from -20°C to +70°C, so the temperature range is wide. No IP rating is provided, so it should be considered for protected indoor or enclosed use rather than exposed outdoor or washdown locations.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other RPS-75 Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well RPS-75-5 Green Power Supply W 5V 14A - Medical Power Supply | 70W | 5V | 14A | Indoor | $23.50 | View |
| Mean Well RPS-75-48 Green Power Supply W 48V 1.6A - Medical Power Supply | 76.8W | 48V | 1.6A | Indoor | $23.50 | View |
| Mean Well RPS-75-3.3 Green Power Supply W 3.3V 15A - Medical Power Supply | 49.5W | 3.3V | 15A | Indoor | $23.50 | View |
| Mean Well RPS-75-24 Green Power Supply W 24V 3.2A - Medical Power Supply | 76.8W | 24V | 3.2A | Indoor | $23.51 | View |
| Mean Well RPS-75-15 Green Power Supply W 15V 5A - Medical Power Supply | 75W | 15V | 5A | Indoor | $23.51 | View |
| Mean Well RPS-75-12 Green Power Supply W 12V 6.3A - Medical Power Supply | 75.6W | 12V | 6.3A | Indoor | $23.51 | View |
