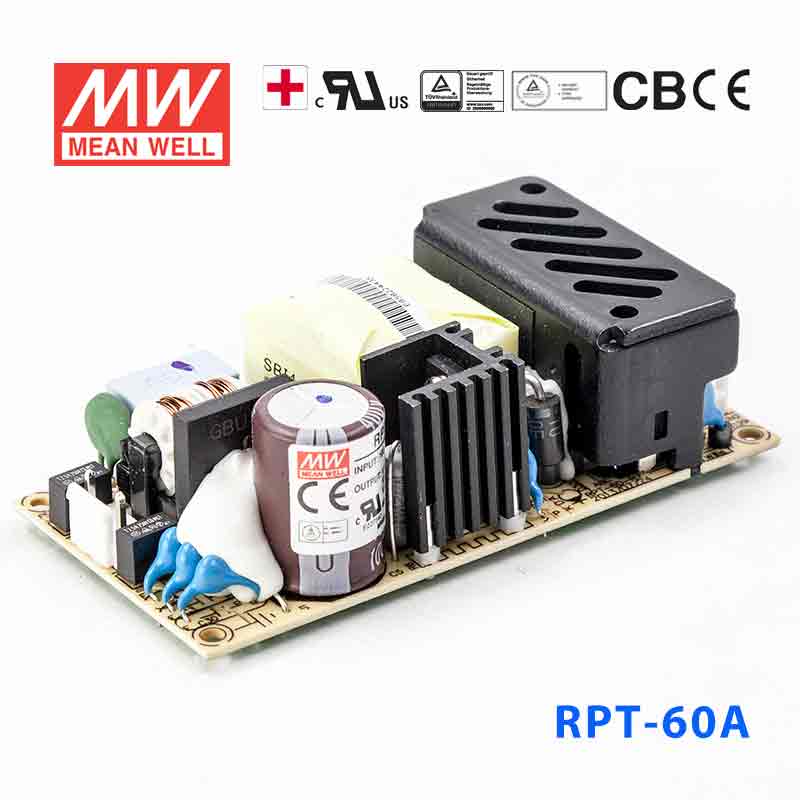

Mean Well RPT-60A Power Supply 60W 5V 12V -5V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPT-60A Power Supply 60W 5V 12V -5V
<150 μA/264VAC
Key Features
- ✓4"x2" compact size
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓Cooling by free air convection
- ✓EMI Class B for class I configuration
- ✓Extremely low leakage current
- ✓Protections: Short circuit/ Overload/ Over voltage
- ✓3 years warranty
-
BrandMean Well
-
SeriesRPT Series
-
Power Rating46.5 Watt
-
Output Voltage5 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~264V
-
No of Output3
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~65°C
-
Warranty3 Year
-
Length4 in
-
Width2 in
-
Height1.14 in
-
Weight0.33 lb
::specification::
Frequently Asked Questions
Can I use the RPT-60A in medical or lab equipment that needs multiple DC rails?
This model is described as a triple output medical safety approved power supply. The product name lists 5V, 12V, and -5V outputs, and the main listed output is 5V at 4A with total power of 46.5W.
Is the RPT-60A suitable for embedded systems that require positive and negative voltage rails?
It can be considered for embedded or control electronics where the design calls for triple output rails. The published outputs are 5V, 12V, and -5V, with a listed total power of 46.5W and a main 5V output rated at 4A.
Can the RPT-60A be used in compact industrial control hardware?
Its compact 101.6 x 50.8 x 29.0 mm size can help where board space is limited in industrial or instrument-style equipment. Buyers still need to confirm the load fits the available 46.5W total power and the listed 5V 4A main output.
Is the RPT-60A for indoor use only?
The specified operating temperature range is -20°C to +65°C, which supports use across common equipment operating environments. No IP rating is listed, so the provided specs do not establish outdoor or moisture-exposed use.
How does the RPT-60A compare with nearby RPT multi-output models?
Among the listed related models, RPT-60A is 46.5W with 5V 4A and outputs of 5V, 12V, and -5V, while RPT-60B is 50W with 5V 4A, RPT-60C is 50W with 5V 4A, RPT-60D is 46.5W, RPT-75A is 68.5W with 5V 6A, RPT-75B is 72W with 5V 6A, RPT-75C is 72W with 5V 6A, and RPT-75D is 75W with 5V 6A. The family mainly varies by total wattage and output combination.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other RPT Series Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well RPT-60B Power Supply 60W 5V 12V -12V | 50W | 5V | 4A | Indoor | $18.31 | View |
| Mean Well RPT-75D Triple Output Medical Grade | 75W | 5V | 6A | Indoor | $28.23 | View |
| Mean Well RPT-75C Power Supply 75W 5V 15V -15V | 72W | 5V | 6A | Indoor | $30.97 | View |
| Mean Well RPT-75B Power Supply 75W 5V 12V -12V | 72W | 5V | 6A | Indoor | $30.96 | View |
| Mean Well RPT-75A Power Supply 75W 5V 12V -5V | 68.5W | 5V | 6A | Indoor | $30.96 | View |
| Mean Well RPT-60C Power Supply 60W 5V 15V -15V | 50W | 5V | 4A | Indoor | $20.26 | View |
