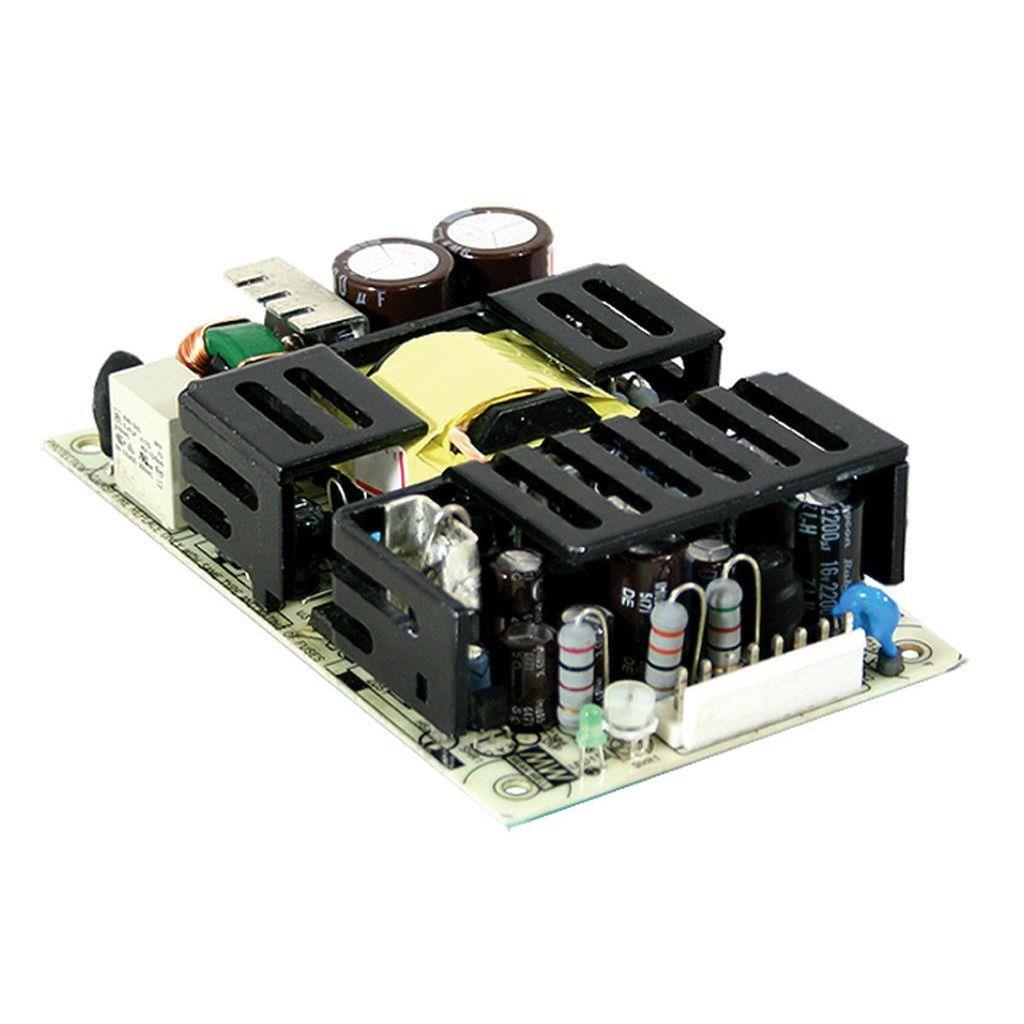

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well RPT-75D Triple Output Medical Grade

Name: Mean Well RPT-75D Triple Output Medical Grade
Brand: Mean Well
SKU: RPT-75D
Price: 28.23 USD
Availability: InStock

5" x 3" compact size, medical safety approved, extremely low leakage current, triple output, lifetime > 140K hours

$28.23 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

5"x3" compact size

Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1

Suitable for BF application with appropriate system consideration

72W convection, 100W force air

EMI Class B for class I configuration

Extremely low leakage current

Protections: Short circuit/ Overload/ Over voltage
Lifetime > 140K hours

3 years warranty

General Specification

AC input voltage range	90~264VAC; 127~370VDC
AC inrush current	Cold start 25A/230VAC
Leakage current	<150 μA/264VAC
Overload protection	140 ~ 180% rated output power
Over-voltage protection	114%~136% rated output voltage
Setup, rise, hold up time	500ms, 30ms, 90ms
Withstand voltage	I/P-O/P:4KVAC, I/P-FG:2KVAC, O/P-FG:1.5KVAC
Working temperature	-20~+70°C
Vibration	10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes
Safety standards	IEC60601-1, UL ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved, EAC TP TC 004,TUV BS EN/EN60601-1 approved
EMC standards	EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection	I/P: 3 Pin JST B3P-VH, O/P: 6 Pin JST B6P-VH
Dimension (LxWxH)	127x76.2x31
Packing	63pcs / 17.3kg

Specifications

Brand

Mean Well
Series

RPT Series
Power Rating

75 Watt
Output Voltage

5 Volt
Rated Current

6 Ampere
No of Output

3
Dimming Control

None
Standards Met

CB,CE,EAC,EN
Operation Mode

Constant Voltage
Operating Temperature

-20°C~70°C
Warranty

3 Year
Length

5 in
Width

3 in
Height

1.22 in
Weight

0.55 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Features

5"x3" compact size

Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1

Suitable for BF application with appropriate system consideration

72W convection, 100W force air

EMI Class B for class I configuration

Extremely low leakage current

Protections: Short circuit/ Overload/ Over voltage
Lifetime > 140K hours

3 years warranty

General Specification

AC input voltage range

90~264VAC; 127~370VDC

AC inrush current

Cold start 25A/230VAC

Leakage current

<150 μA/264VAC

Overload protection

140 ~ 180% rated output power

Over-voltage protection

114%~136% rated output voltage

Setup, rise, hold up time

500ms, 30ms, 90ms

Withstand voltage

I/P-O/P:4KVAC, I/P-FG:2KVAC, O/P-FG:1.5KVAC

Working temperature

-20~+70°C

Vibration

10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes

Safety standards

IEC60601-1, UL ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved, EAC TP TC 004,TUV BS EN/EN60601-1 approved

EMC standards

EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11

Connection

I/P: 3 Pin JST B3P-VH, O/P: 6 Pin JST B6P-VH

Dimension (LxWxH)

127x76.2x31

Packing

63pcs / 17.3kg
