Mean Well

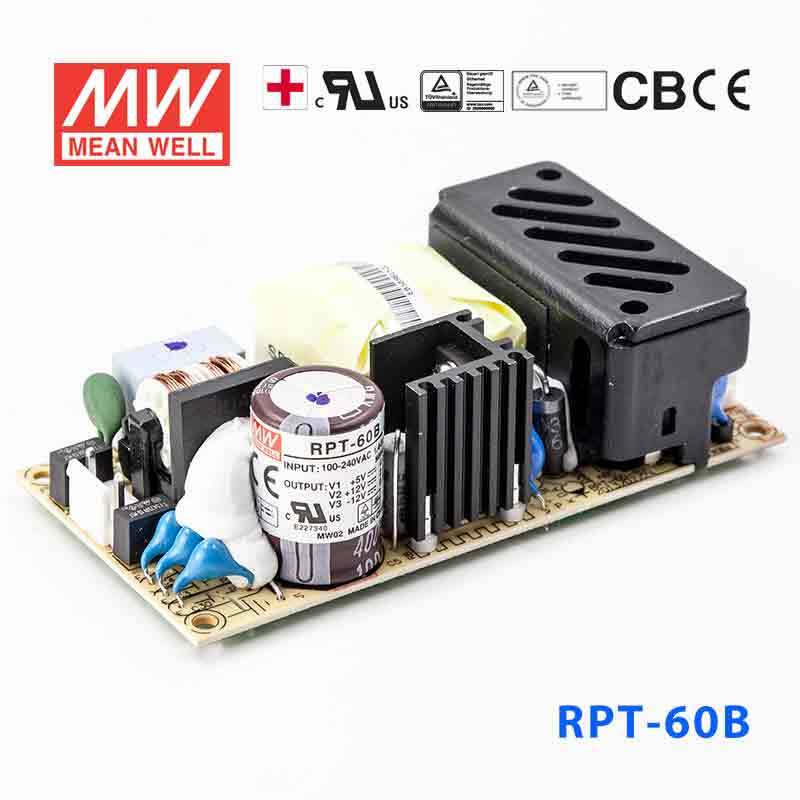

Mean Well RPT-60B Power Supply 60W 5V 12V -12V 4A

4" x 2" compact sizemedical safety approvedextremely low leakage currenttriple output
SKU RPT-60B
$18.31 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Overview

RPT-60B is the 5V 12V -12V output model of this series: rated current 4A 2A 0.5A, rated power 50W, typical efficiency 78%.

RPT-60 is a 60W highly reliable green PCB type medical power supply with a high power density on the 4” by 2” footprint. It accepts 90~264VAC input and offers dual output voltages . RPT-60 is able to be used for ClassⅠ (with FG) system design. The extremely low leakage current is less than 150μA. In addition, it conforms to international medical regulations (2*MOPP) and EMC BS EN/EN55011.

Features

  • 4"×2" compact size
  • Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
  • Suitable for BF application with appropriate system consideration
  • Cooling by free air convection
  • EMI class B for class Ⅰ configuration
  • Extremely low leakage current
  • Protections: Short circuit / Overload / Over voltage
  • 3 years warranty

Specifications

RPT-60BSpecifications from the official datasheet (2024-11-22 edition)

OUTPUT

OUTPUT NUMBER
CH1 CH2 CH3
DC VOLTAGE
5V 12V -12V
RATED CURRENT
4A 2A 0.5A
CURRENT RANGE
0.5 ~ 4.4A 0.1 ~ 2.2A 0.1 ~ 0.55A
RATED POWER
50W
PEAK LOAD(10sec.)Note.2
55W
RIPPLE & NOISE (max.)Note.3
80mVp-p 80mVp-p 100mVp-p
VOLTAGE TOLERANCENote.4
+3,-2% ±6.0% +10,-6%
LINE REGULATION
±0.5% ±1.0% ±2.0%
LOAD REGULATION
±1.5% ±2.0% ±5.0%
SETUP, RISE TIME
300ms, 15ms/230VAC 300ms, 15ms/115VAC at full load
HOLD UP TIME (Typ.)
70ms/230VAC 15ms/115VAC at full load

INPUT

VOLTAGE RANGE
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
78%
AC CURRENT (Typ.)
1.1A/115VAC 0.7A/230VAC
INRUSH CURRENT (Typ.)
COLD START 60A/230VAC 30A/115VAC
LEAKAGE CURRENTNote.5
Earth leakage current < 150μA/264VAC , Touch current < 100μA/264VAC

PROTECTION

OVERLOAD
115 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
CH1: 5.75 ~ 6.75V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-20 ~ +65℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 45℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDENote.6
3000 meters

SAFETY & EMC

SAFETY STANDARDS
IEC 60601-1:2005+A1+A2, TUV BS EN/ EN 60601-1:2006+A1+A12+A2, ANSI/AAMI ES60601-1:2005+A2, CAN/CSA C22.2 No. 60601-1:2014+A2, IEC 62368-1:2014, UL 62368-1, 2nd Ed, CSA C22.2 No. 62368-1-14, 2nd Ed, TUV BS EN/ EN 62368-1:2014+A11, EAC TP TC 004 approved
ISOLATION LEVEL
Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP
WITHSTAND VOLTAGE
I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
ParameterStandardTest Level
Conducted emissionBS EN/EN55011 (CISPR11)Class B
Radiated emissionBS EN/EN55011 (CISPR11)Class B
Harmonic currentBS EN/EN61000-3-2Class A
Voltage flickerBS EN/EN61000-3-3
EMC IMMUNITY

BS EN/EN55035, BS EN/EN60601-1-2

ParameterStandardTest Level
ESDBS EN/EN61000-4-2Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibilityBS EN/EN61000-4-3Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT burstsBS EN/EN61000-4-4Level 3, 2KV
Surge susceptibilityBS EN/EN61000-4-5Level 4, 4KV/Line-FG; 2KV/Line-Line
Conducted susceptibilityBS EN/EN61000-4-6Level 3, 10V
Magnetic field immunityBS EN/EN61000-4-8Level 4, 30A/m
Voltage dip, interruptionBS EN/EN61000-4-11100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

OTHERS

MTBF
4415.3K hrs min. Telcordia SR-332 (Bellcore) ; 677.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION (L*W*H)
101.6*50.8*29mm or 4" * 2" *1.14" inch
PACKING
0.15Kg; 96pcs/15.4Kg/0.89CUFT
Test conditions and notes9
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
  3. 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor.
  4. 4. Tolerance : includes set up tolerance, line regulation and load regulation.
  5. 5. Touch current was measured from primary input to DC output.
  6. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  7. 7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
  8. 8. Heat Sink HS1,HS2 can not be shorted.
  9. 9. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

RPT-60B Block Diagram
Block Diagram
RPT-60B Mechanical Specification
Mechanical Specification

Typical applications

  • Oral irrigator
  • Hemodialysis machine
  • Medical computer monitors
  • Sleep apnea devices

Downloads

FAQ

Can I use the RPT-60B for medical electronics that need 5V, 12V, and -12V rails?

This product is identified as a triple output, medical safety approved power supply. The product name lists 5V, 12V, and -12V outputs, while the main published output is 5V at 4A and the total rated power is 50W.

Is the RPT-60B suitable for analog and digital embedded systems in one enclosure?

It can fit embedded systems that need multiple regulated rails from one supply rather than only a single voltage. The listed output set is 5V, 12V, and -12V, and the unit is rated for 50W total with a 5V 4A main output.

Can the RPT-60B be used in compact test and measurement equipment?

The 101.6 x 50.8 x 29.0 mm form factor supports compact equipment layouts where space matters. For test and measurement use, the design should stay within the 50W total rating and the specified 5V 4A main output capability.

Is the RPT-60B appropriate for outdoor or exposed conditions?

The operating temperature range is -20°C to +65°C, which gives a defined temperature window for equipment operation. No IP rating is listed in the specs, so the product data does not confirm outdoor or sealed-enclosure suitability.

What is the difference between the RPT-60B and other RPT power supplies in this group?

The listed nearby models include RPT-60A at 46.5W with 5V 4A, RPT-60B at 50W with 5V 4A, RPT-60C at 50W with 5V 4A, RPT-60D at 47.5W, RPT-6003 at 39.9W. This places RPT-60B in the lower-wattage part of the family with triple-output design and a 5V 4A main output.
