Mean Well

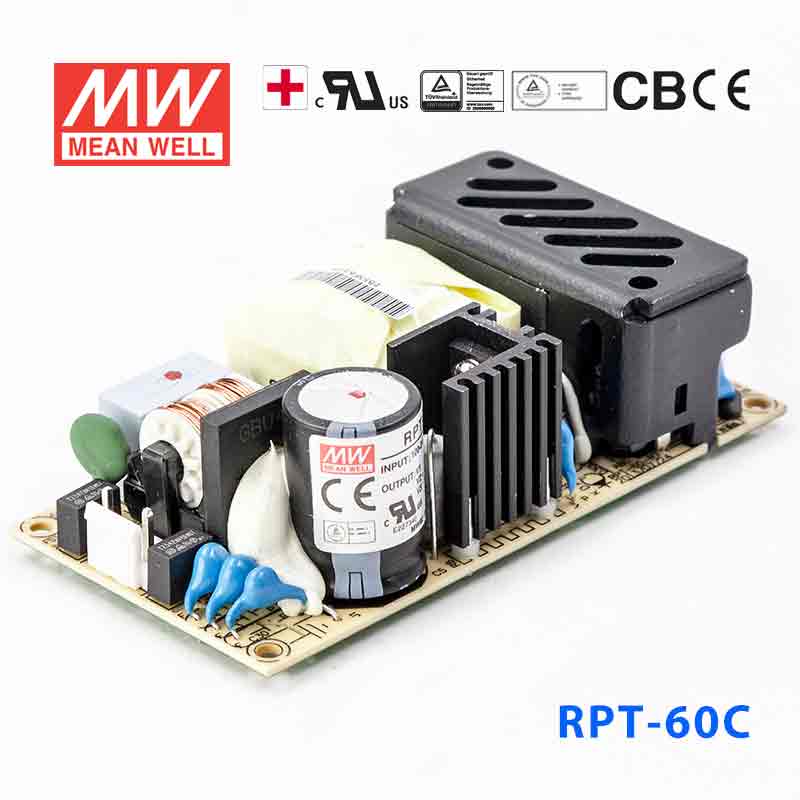

Mean Well RPT-60C Power Supply 60W 5V 15V -15V 4A

4" x 2" compact sizemedical safety approvedextremely low leakage currenttriple output
SKU RPT-60C
$20.26 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Overview

RPT-60C is the 5V 15V -15V output model of this series: rated current 4A 1.5A 0.5A, rated power 50W, typical efficiency 79%.

RPT-60 is a 60W highly reliable green PCB type medical power supply with a high power density on the 4” by 2” footprint. It accepts 90~264VAC input and offers dual output voltages . RPT-60 is able to be used for ClassⅠ (with FG) system design. The extremely low leakage current is less than 150μA. In addition, it conforms to international medical regulations (2*MOPP) and EMC BS EN/EN55011.

Features

  • 4"×2" compact size
  • Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
  • Suitable for BF application with appropriate system consideration
  • Cooling by free air convection
  • EMI class B for class Ⅰ configuration
  • Extremely low leakage current
  • Protections: Short circuit / Overload / Over voltage
  • 3 years warranty

Specifications

RPT-60CSpecifications from the official datasheet (2024-11-22 edition)

OUTPUT

OUTPUT NUMBER
CH1 CH2 CH3
DC VOLTAGE
5V 15V -15V
RATED CURRENT
4A 1.5A 0.5A
CURRENT RANGE
0.5 ~ 4.4A 0.1 ~ 1.65A 0.1 ~ 0.55A
RATED POWER
50W
PEAK LOAD(10sec.)Note.2
55W
RIPPLE & NOISE (max.)Note.3
80mVp-p 100mVp-p 150mVp-p
VOLTAGE TOLERANCENote.4
+3,-2% ±6.0% ±8.0%
LINE REGULATION
±0.5% ±2.0% ±2.0%
LOAD REGULATION
±1.5% ±3.0% ±4.0%
SETUP, RISE TIME
300ms, 15ms/230VAC 300ms, 15ms/115VAC at full load
HOLD UP TIME (Typ.)
70ms/230VAC 15ms/115VAC at full load

INPUT

VOLTAGE RANGE
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
79%
AC CURRENT (Typ.)
1.1A/115VAC 0.7A/230VAC
INRUSH CURRENT (Typ.)
COLD START 60A/230VAC 30A/115VAC
LEAKAGE CURRENTNote.5
Earth leakage current < 150μA/264VAC , Touch current < 100μA/264VAC

PROTECTION

OVERLOAD
115 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
CH1: 5.75 ~ 6.75V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-20 ~ +65℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 45℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDENote.6
3000 meters

SAFETY & EMC

SAFETY STANDARDS
IEC 60601-1:2005+A1+A2, TUV BS EN/ EN 60601-1:2006+A1+A12+A2, ANSI/AAMI ES60601-1:2005+A2, CAN/CSA C22.2 No. 60601-1:2014+A2, IEC 62368-1:2014, UL 62368-1, 2nd Ed, CSA C22.2 No. 62368-1-14, 2nd Ed, TUV BS EN/ EN 62368-1:2014+A11, EAC TP TC 004 approved
ISOLATION LEVEL
Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP
WITHSTAND VOLTAGE
I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
ParameterStandardTest Level
Conducted emissionBS EN/EN55011 (CISPR11)Class B
Radiated emissionBS EN/EN55011 (CISPR11)Class B
Harmonic currentBS EN/EN61000-3-2Class A
Voltage flickerBS EN/EN61000-3-3
EMC IMMUNITY

BS EN/EN55035, BS EN/EN60601-1-2

ParameterStandardTest Level
ESDBS EN/EN61000-4-2Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibilityBS EN/EN61000-4-3Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT burstsBS EN/EN61000-4-4Level 3, 2KV
Surge susceptibilityBS EN/EN61000-4-5Level 4, 4KV/Line-FG; 2KV/Line-Line
Conducted susceptibilityBS EN/EN61000-4-6Level 3, 10V
Magnetic field immunityBS EN/EN61000-4-8Level 4, 30A/m
Voltage dip, interruptionBS EN/EN61000-4-11100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

OTHERS

MTBF
4415.3K hrs min. Telcordia SR-332 (Bellcore) ; 677.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION (L*W*H)
101.6*50.8*29mm or 4" * 2" *1.14" inch
PACKING
0.15Kg; 96pcs/15.4Kg/0.89CUFT
Test conditions and notes9
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
  3. 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor.
  4. 4. Tolerance : includes set up tolerance, line regulation and load regulation.
  5. 5. Touch current was measured from primary input to DC output.
  6. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  7. 7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
  8. 8. Heat Sink HS1,HS2 can not be shorted.
  9. 9. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

RPT-60C Block Diagram
Block Diagram
RPT-60C Mechanical Specification
Mechanical Specification

Typical applications

  • Oral irrigator
  • Hemodialysis machine
  • Medical computer monitors
  • Sleep apnea devices

Downloads

FAQ

Can I use the RPT-60C for embedded control equipment that needs 5V and +/-15V rails?

It is a triple output power supply and the product name lists 5V, 15V, and -15V outputs. The main published output is 5V at 4A and the total rated power is 50W, so it suits designs that need those rails within that power budget.

Is the RPT-60C a fit for medical or instrumentation systems with multiple voltage rails?

The features list medical safety approval and triple output, which aligns with equipment that needs more than one regulated DC rail. The published output set is 5V, 15V, and -15V, with 50W total power and a 5V 4A main output.

Can the RPT-60C work in compact industrial or laboratory devices?

Its 101.6 x 50.8 x 29.0 mm size is suited to compact equipment layouts where space is limited. Any industrial or lab device should be matched to the listed 50W total power and the specified 5V 4A main output.

Is the RPT-60C meant for indoor environments only?

The specified operating temperature range is -20°C to +65°C, so the product has a defined thermal operating window. Since no IP rating is provided, the published specs do not verify outdoor, washdown, or weather-exposed use.

How does the RPT-60C compare with other models in the same RPT family?

The RPT-60C is a 50W triple output model with 5V, 15V, and -15V rails. Other models in the RPT-60 series include the RPT-60A (46.5W, 5V/12V/-5V), RPT-60B (50W, 5V/12V/-12V), and RPT-60D (47.5W, 5V/24V/12V). The RPT-60C is distinguished by its specific 15V/-15V secondary rails and 50W rated power.
