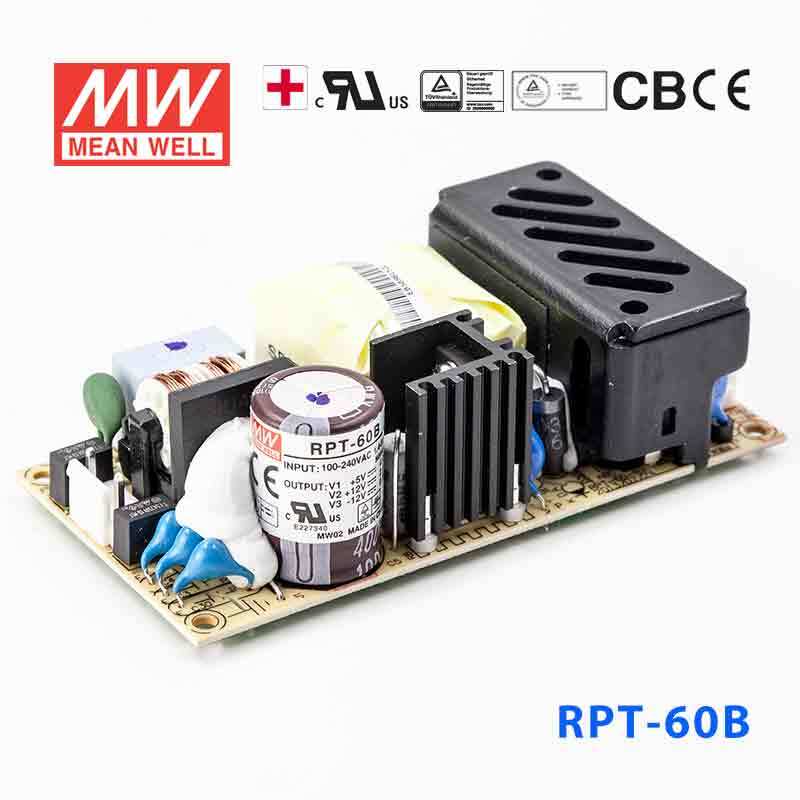

Mean Well RPT-60B Power Supply 60W 5V 12V -12V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPT-60B Power Supply 60W 5V 12V -12V
<150 μA/264VAC
Key Features
- ✓4"x2" compact size
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓Cooling by free air convection
- ✓EMI Class B for class I configuration
- ✓Extremely low leakage current
- ✓Protections: Short circuit/ Overload/ Over voltage
- ✓3 years warranty
-
BrandMean Well
-
SeriesRPT Series
-
Power Rating50 Watt
-
Output Voltage5 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~264V
-
No of Output3
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~65°C
-
Warranty3 Year
-
Length4 in
-
Width2 in
-
Height1.14 in
-
Weight0.33 lb
::specification::
Frequently Asked Questions
Can I use the RPT-60B for medical electronics that need 5V, 12V, and -12V rails?
This product is identified as a triple output, medical safety approved power supply. The product name lists 5V, 12V, and -12V outputs, while the main published output is 5V at 4A and the total rated power is 50W.
Is the RPT-60B suitable for analog and digital embedded systems in one enclosure?
It can fit embedded systems that need multiple regulated rails from one supply rather than only a single voltage. The listed output set is 5V, 12V, and -12V, and the unit is rated for 50W total with a 5V 4A main output.
Can the RPT-60B be used in compact test and measurement equipment?
The 101.6 x 50.8 x 29.0 mm form factor supports compact equipment layouts where space matters. For test and measurement use, the design should stay within the 50W total rating and the specified 5V 4A main output capability.
Is the RPT-60B appropriate for outdoor or exposed conditions?
The operating temperature range is -20°C to +65°C, which gives a defined temperature window for equipment operation. No IP rating is listed in the specs, so the product data does not confirm outdoor or sealed-enclosure suitability.
What is the difference between the RPT-60B and other RPT power supplies in this group?
The listed nearby models include RPT-60A at 46.5W with 5V 4A, RPT-60B at 50W with 5V 4A, RPT-60C at 50W with 5V 4A, RPT-60D at 46.5W, RPT-65E at 62.5W, RPT-65F at 62.5W, RPT-65G at 62.5W, RPT-75A at 68.5W with 5V 6A, RPT-75B at 72W with 5V 6A, RPT-75C at 72W with 5V 6A, and RPT-75D at 75W with 5V 6A. This places RPT-60B in the lower-wattage part of the family with triple-output design and a 5V 4A main output.
