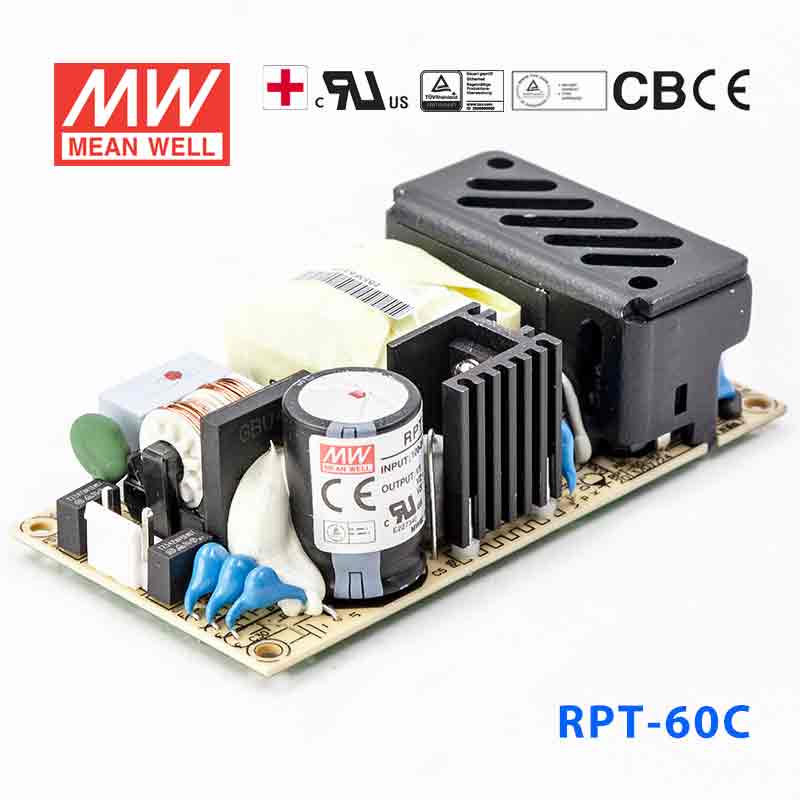

Mean Well RPT-60C Power Supply 60W 5V 15V -15V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPT-60C Power Supply 60W 5V 15V -15V
<150 μA/264VAC
Key Features
- ✓4"x2" compact size
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓Cooling by free air convection
- ✓EMI Class B for class I configuration
- ✓Extremely low leakage current
- ✓Protections: Short circuit/ Overload/ Over voltage
- ✓3 years warranty
-
BrandMean Well
-
SeriesRPT Series
-
Power Rating50 Watt
-
Output Voltage5 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~264V
-
No of Output3
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~65°C
-
Warranty3 Year
-
Length4 in
-
Width2 in
-
Height1.14 in
-
Weight0.33 lb
::specification::
Frequently Asked Questions
Can I use the RPT-60C for embedded control equipment that needs 5V and +/-15V rails?
It is a triple output power supply and the product name lists 5V, 15V, and -15V outputs. The main published output is 5V at 4A and the total rated power is 50W, so it suits designs that need those rails within that power budget.
Is the RPT-60C a fit for medical or instrumentation systems with multiple voltage rails?
The features list medical safety approval and triple output, which aligns with equipment that needs more than one regulated DC rail. The published output set is 5V, 15V, and -15V, with 50W total power and a 5V 4A main output.
Can the RPT-60C work in compact industrial or laboratory devices?
Its 101.6 x 50.8 x 29.0 mm size is suited to compact equipment layouts where space is limited. Any industrial or lab device should be matched to the listed 50W total power and the specified 5V 4A main output.
Is the RPT-60C meant for indoor environments only?
The specified operating temperature range is -20°C to +65°C, so the product has a defined thermal operating window. Since no IP rating is provided, the published specs do not verify outdoor, washdown, or weather-exposed use.
How does the RPT-60C compare with other models in the same RPT family?
The listed related models include RPT-60A at 46.5W with 5V 4A, RPT-60B at 50W with 5V 4A, RPT-60C at 50W with 5V 4A, RPT-60D at 46.5W, RPT-65E at 62.5W, RPT-65F at 62.5W, RPT-65G at 62.5W, RPT-75A at 68.5W with 5V 6A, RPT-75B at 72W with 5V 6A, RPT-75C at 72W with 5V 6A, and RPT-75D at 75W with 5V 6A. Compared with those siblings, RPT-60C is one of the 50W, 5V 4A options in the series.
