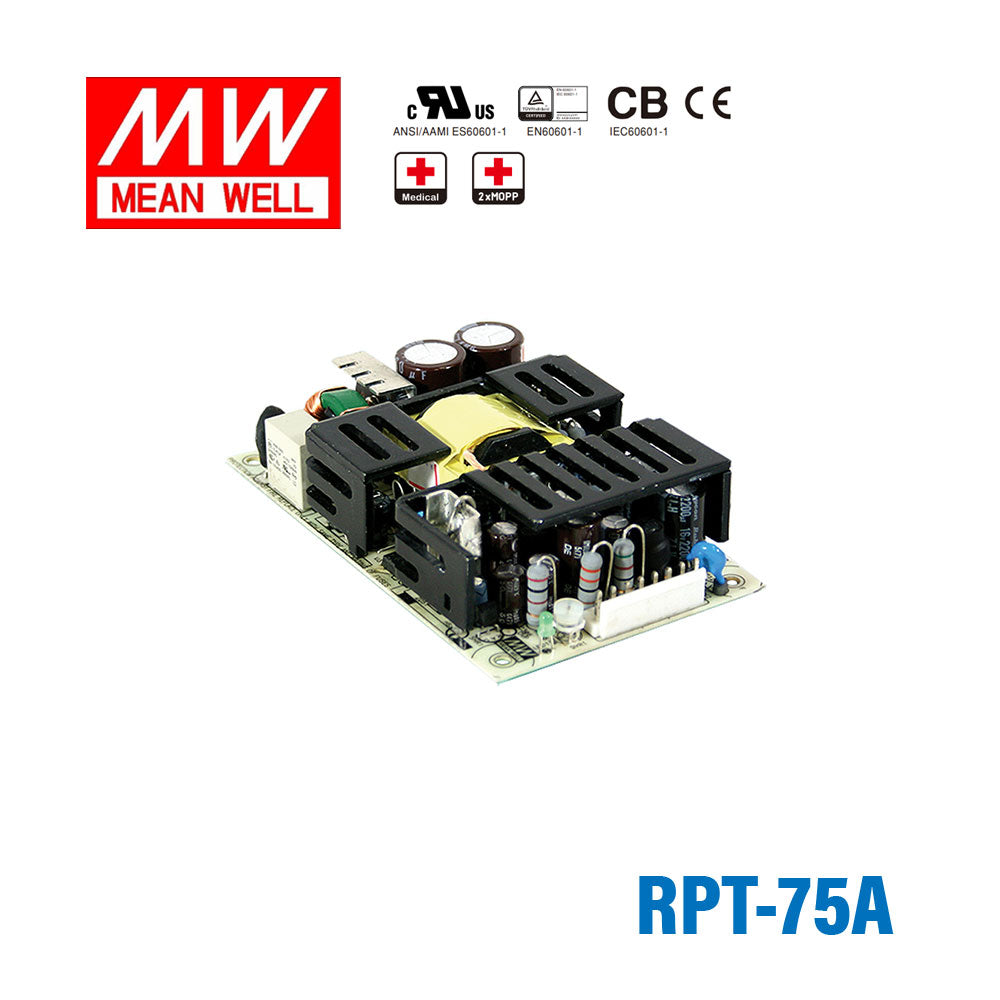

Mean Well RPT-75A Power Supply 75W 5V 12V -5V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPT-75A Power Supply 75W 5V 12V -5V
<150 μA/264VAC
Key Features
- ✓5"x3" compact size
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓72W convection, 100W force air
- ✓EMI Class B for class I configuration
- ✓Extremely low leakage current
- ✓Protections: Short circuit/ Overload/ Over voltageLifetime > 140K hours
- ✓3 years warranty
-
BrandMean Well
-
SeriesRPT Series
-
Power Rating68.5 Watt
-
Output Voltage5 Volt
-
Rated Current6 Ampere
-
Input Voltage90V~264V
-
No of Output3
-
Dimming ControlNone
-
Standards MetCE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.22 in
-
Weight0.55 lb
::specification::
Frequently Asked Questions
Can I use the RPT-75A for a 5V industrial controller that also needs +12V and -5V rails?
Yes, this model is a triple output supply with 5V, 12V, and -5V outputs. Its main 5V output is rated for 6A, and the unit is designed for constant voltage operation. That makes it a reasonable fit for mixed-rail control electronics that center on a 5V logic load.
Is the RPT-75A suitable for embedded test equipment with a heavy 5V logic load?
It can fit embedded or bench equipment built around a 5V rail up to 6A. The total rated power is 68.5W, so it is better suited to compact mixed-voltage electronics than to larger systems. The triple output design can help when the same product also needs 12V and -5V rails.
Can this power supply be used in medical or laboratory electronics?
The published features state that it is medical safety approved and has extremely low leakage current. With 68.5W total power and a 5V 6A main output, it can fit medical or lab electronics that need a compact triple output supply. Buyers should still match the equipment's exact electrical requirements to the listed outputs.
Is the RPT-75A rated for outdoor or harsh-temperature use?
The operating temperature range is -20C to +70C. No IP rating is listed in these specs, so outdoor, wet-location, or washdown suitability is not specified here. Based on the published data, temperature capability is defined, but ingress protection is not.
How does the RPT-75A compare with other RPT series siblings?
Within the listed siblings, RPT-6003 and RPT-7503 are 46.5W and 68.5W. RPT-60A is 46.5W with 5V and 4A, RPT-60B is 50W with 5V and 4A, RPT-60C is 50W with 5V and 4A, RPT-60D is 46.5W, RPT-65E is 62.5W, RPT-65E-C is 62.5W, RPT-65F is 62.5W, RPT-65G is 62.5W, RPT-65G-C is 62.5W, RPT-75B is 72W with 5V and 6A, RPT-75C is 72W with 5V and 6A, and RPT-75D is 75W with 5V and 6A. The smallest listed siblings are RPT-160A, RPT-160B, RPT-160C, and RPT-160D at 3W, while RPT-65F-C is listed without a wattage in the provided data.
