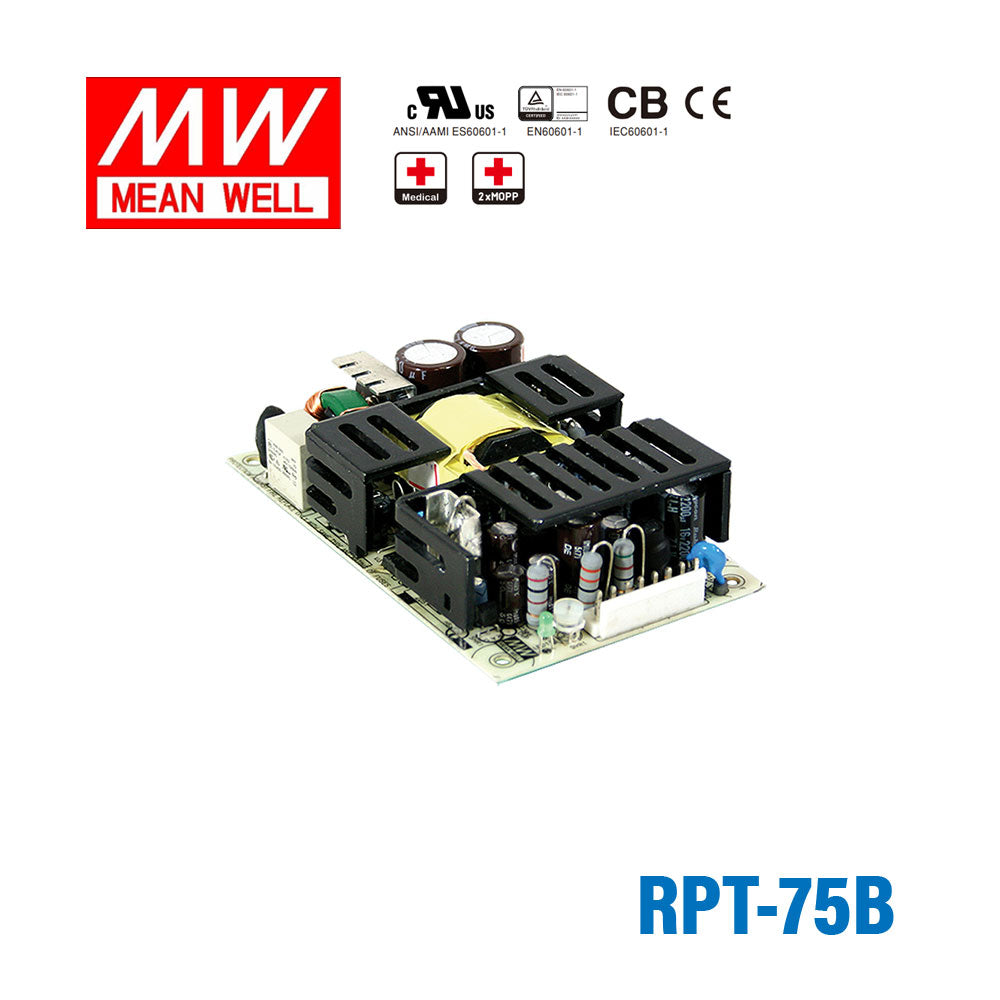

Mean Well RPT-75B Power Supply 75W 5V 12V -12V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPT-75B Power Supply 75W 5V 12V -12V
<150 μA/264VAC
Key Features
- ✓5"x3" compact size
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓72W convection, 100W force air
- ✓EMI Class B for class I configuration
- ✓Extremely low leakage current
- ✓Protections: Short circuit/ Overload/ Over voltageLifetime > 140K hours
- ✓3 years warranty
-
BrandMean Well
-
SeriesRPT Series
-
Power Rating72 Watt
-
Output Voltage5 Volt
-
Rated Current6 Ampere
-
Input Voltage90V~264V
-
No of Output3
-
Dimming ControlNone
-
Standards MetCE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.22 in
-
Weight0.55 lb
::specification::
Frequently Asked Questions
Can I use the RPT-75B in an automation system that needs 5V logic and +/-12V rails?
Yes, this triple output model provides 5V, 12V, and -12V outputs. The main 5V output is rated for 6A, and total output power is 72W. That makes it relevant for control or signal-processing hardware built around a 5V primary rail with symmetrical 12V support rails.
Is the RPT-75B a fit for industrial instrumentation with analog sections that use -12V?
It can be a fit when the equipment's power architecture requires a 5V main rail and also calls for 12V and -12V outputs from one supply. The unit is constant voltage, rated at 72W total, and provides up to 6A on the 5V output. That profile is more aligned with mixed-signal electronics than with single-rail loads.
Can this model support embedded computing hardware plus auxiliary +/-12V circuits?
For embedded systems centered on 5V, the 6A main output gives more headroom than lower-current siblings in the same family. Because it is a triple output supply with 12V and -12V rails as well, it can suit compact electronics that combine digital logic and support circuitry. The total rated output is 72W.
Is the RPT-75B suitable for outdoor cabinets or unprotected environments?
The specified operating range is -20C to +70C. However, no IP rating is provided in the published specs, so the product's resistance to rain, dust ingress, or direct outdoor exposure is not defined here. Based on this data alone, temperature capability is stated but enclosure protection is not.
What are the main differences between the RPT-75B and the other RPT family options listed here?
The listed RPT siblings range from 3W to 75W. RPT-6003 and RPT-7503 are 46.5W and 68.5W, RPT-60A is 46.5W with 5V and 4A, RPT-60B is 50W with 5V and 4A, RPT-60C is 50W with 5V and 4A, RPT-60D is 46.5W, RPT-65E is 62.5W, RPT-65E-C is 62.5W, RPT-65F is 62.5W, RPT-65G is 62.5W, RPT-65G-C is 62.5W, RPT-75A is 68.5W with 5V and 6A, RPT-75C is 72W with 5V and 6A, and RPT-75D is 75W with 5V and 6A; RPT-160A, RPT-160B, RPT-160C, and RPT-160D are 3W. RPT-65F-C appears in the list without a wattage in the provided data.
