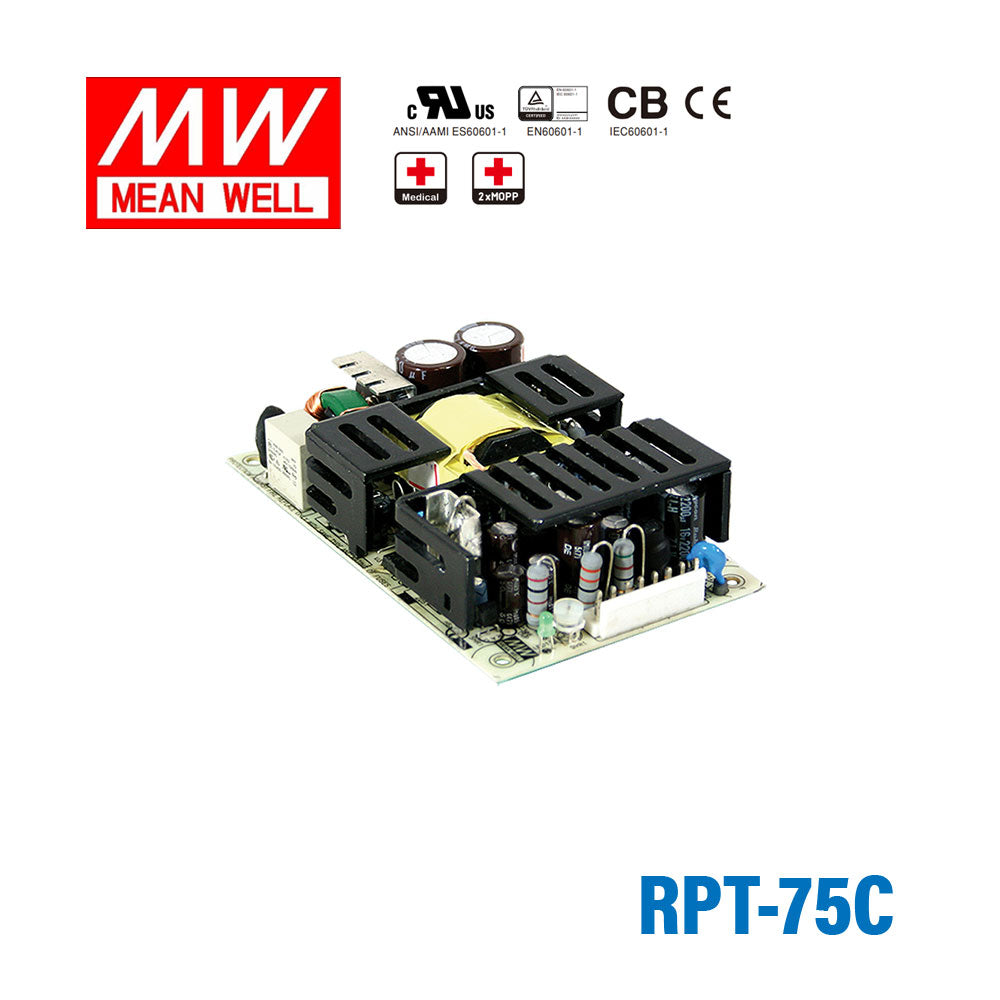

Mean Well RPT-75C Power Supply 75W 5V 15V -15V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPT-75C Power Supply 75W 5V 15V -15V
<150 μA/264VAC
Key Features
- ✓5"x3" compact size
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓72W convection, 100W force air
- ✓EMI Class B for class I configuration
- ✓Extremely low leakage current
- ✓Protections: Short circuit/ Overload/ Over voltageLifetime > 140K hours
- ✓3 years warranty
-
BrandMean Well
-
SeriesRPT Series
-
Power Rating72 Watt
-
Output Voltage5 Volt
-
Rated Current6 Ampere
-
Input Voltage90V~264V
-
No of Output3
-
Dimming ControlNone
-
Standards MetCE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.22 in
-
Weight0.55 lb
::specification::
Frequently Asked Questions
Can I use the RPT-75C for industrial electronics that need 5V logic and +/-15V rails?
Yes, this triple output unit provides 5V, 15V, and -15V outputs. Its main 5V output is rated for 6A, and the total power rating is 72W. That combination suits equipment built around a 5V digital core with 15V and -15V support rails.
Is the RPT-75C suitable for test and measurement equipment with analog front ends?
It can be suitable where the product needs a 5V main rail and also requires 15V and -15V rails from the same supply. The constant voltage design, 72W total power, and 6A on 5V align with compact mixed-signal equipment rather than higher-power platforms. The triple output format is the main reason to choose this variant.
Would this power supply work for embedded control hardware with op-amp or sensor interface rails?
This model can fit embedded hardware when the primary load is 5V up to 6A and the design also needs 15V and -15V rails. The published total output is 72W, so it is intended for electronics-level loads rather than large actuators. Its compact dimensions of 127.0 x 76.2 x 31.0 mm also support tight internal layouts.
Can the RPT-75C be used in cold or hot indoor equipment compartments?
The listed operating temperature range is -20C to +70C. No IP rating is included in the provided specifications, so the data does not define outdoor or sealed-enclosure protection against water or dust. From the published specs, thermal range is clear, while ingress protection is not.
How does the RPT-75C sit within the RPT series power range?
Among the listed siblings, the range starts with RPT-160A, RPT-160B, RPT-160C, and RPT-160D at 3W and goes up to RPT-75D at 75W. Other listed options are RPT-6003 at 46.5W, RPT-60A at 46.5W with 5V and 4A, RPT-60B at 50W with 5V and 4A, RPT-60C at 50W with 5V and 4A, RPT-60D at 46.5W, RPT-65E at 62.5W, RPT-65E-C at 62.5W, RPT-65F at 62.5W, RPT-65G at 62.5W, RPT-65G-C at 62.5W, RPT-7503 at 68.5W, RPT-75A at 68.5W with 5V and 6A, and RPT-75B at 72W with 5V and 6A. RPT-65F-C is listed without a wattage in the supplied sibling data.
