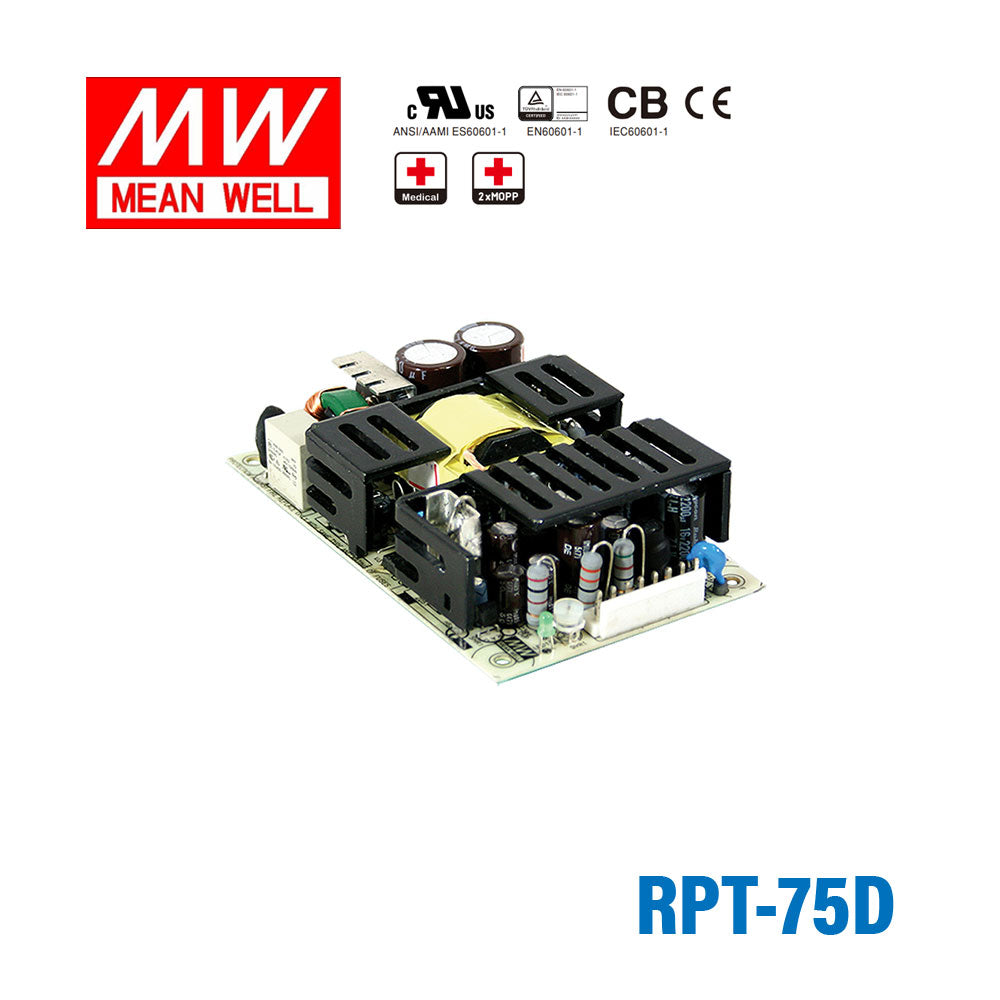

Mean Well RPT-75D Triple Output Medical Grade
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPT-75D Triple Output Medical Grade
<150 μA/264VAC
Key Features
- ✓5"x3" compact size
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓72W convection, 100W force air
- ✓EMI Class B for class I configuration
- ✓Extremely low leakage current
- ✓Protections: Short circuit/ Overload/ Over voltageLifetime > 140K hours
- ✓3 years warranty
-
BrandMean Well
-
SeriesRPT Series
-
Power Rating75 Watt
-
Output Voltage5 Volt
-
Rated Current6 Ampere
-
No of Output3
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EN
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.22 in
-
Weight0.55 lb
::specification::
Frequently Asked Questions
Can I use the RPT-75D for a 5V medical or laboratory device?
This model has a 5V main output rated for 6A and a total power rating of 75W. Its features list medical safety approval and extremely low leakage current, which makes it relevant for medical or lab electronics that need a compact triple output supply. The dimensions are 127.0 x 76.2 x 31.0 mm.
Is the RPT-75D suitable for embedded control electronics with a 5V primary rail?
It can fit embedded control hardware that runs from a regulated 5V rail and needs up to 6A on that main output. The supply operates in constant voltage mode and is rated for 75W total. Its triple output format may also help in designs that need more than one rail from a single unit.
Would the RPT-75D work in a compact industrial control enclosure?
The power level is 75W, and the form factor is 127.0 x 76.2 x 31.0 mm with a weight of 0.25 kg. That makes it more suitable for compact electronics enclosures than for bulkier high-power systems. The universal input range is 90-264VAC.
Is the RPT-75D rated for outdoor use or only temperature-tested?
The specified operating temperature range is -20C to +70C. No IP rating is listed in the provided specifications, so these details do not establish outdoor or wet-environment suitability. Based on the published data, the environmental guidance here is limited to temperature range.
How does the RPT-75D compare with the other RPT siblings listed here?
The listed family spans from 3W to 75W. Specifically, RPT-160A, RPT-160B, RPT-160C, and RPT-160D are 3W; RPT-6003 is 46.5W; RPT-60A is 46.5W with 5V and 4A; RPT-60B is 50W with 5V and 4A; RPT-60C is 50W with 5V and 4A; RPT-60D is 46.5W; RPT-65E is 62.5W; RPT-65E-C is 62.5W; RPT-65F is 62.5W; RPT-65G is 62.5W; RPT-65G-C is 62.5W; RPT-7503 is 68.5W; RPT-75A is 68.5W with 5V and 6A; RPT-75B is 72W with 5V and 6A; and RPT-75C is 72W with 5V and 6A. RPT-65F-C is included in the sibling list without a wattage in the supplied data.
