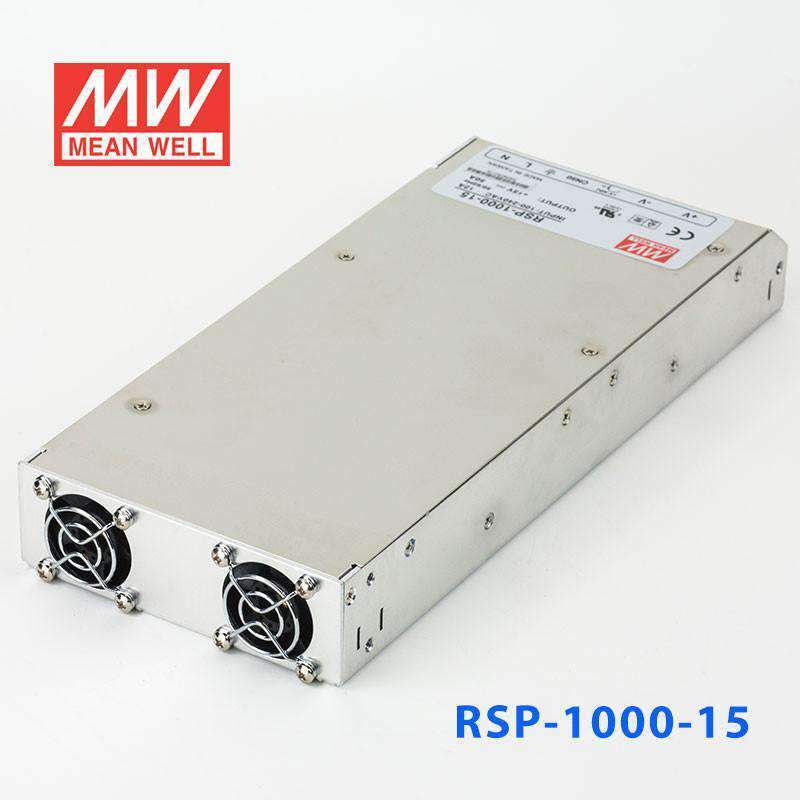

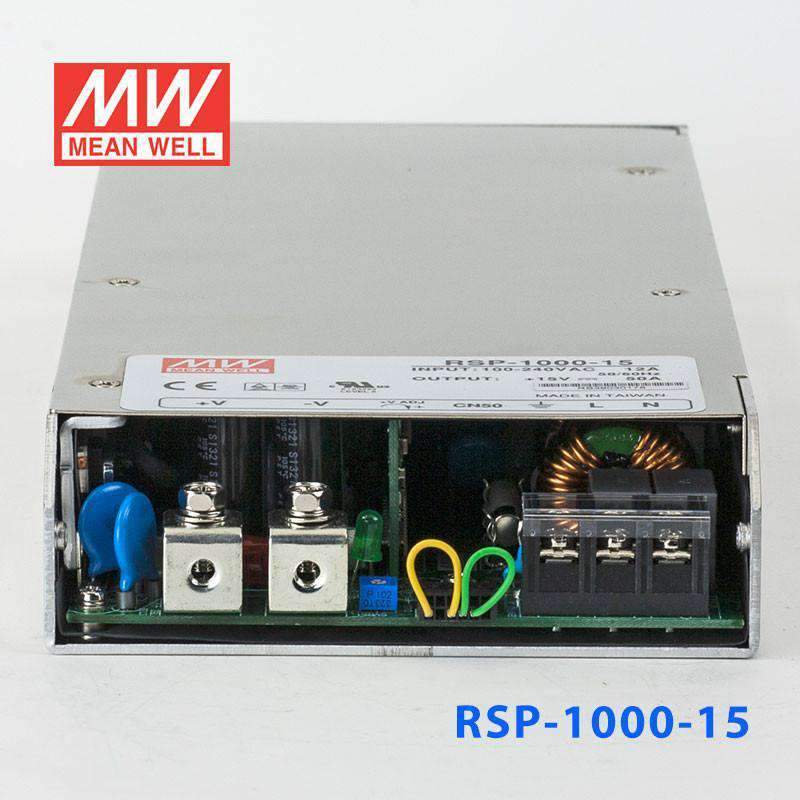

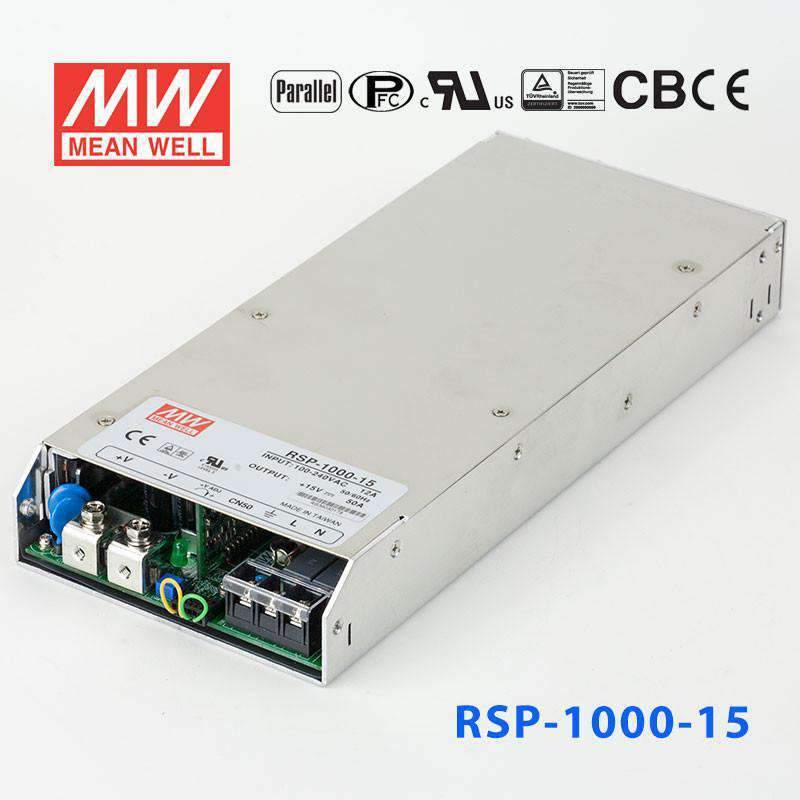

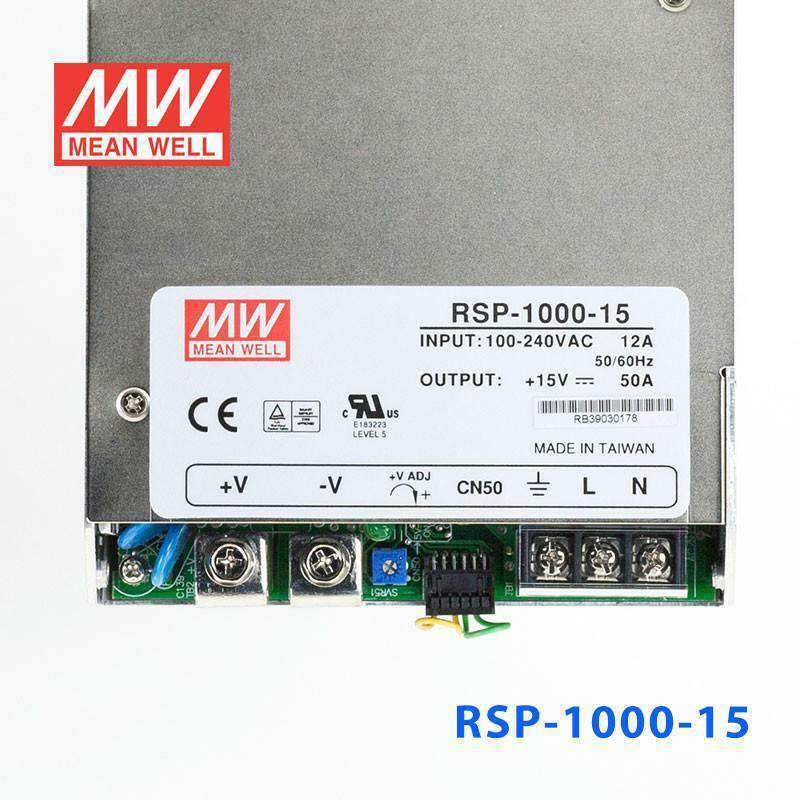

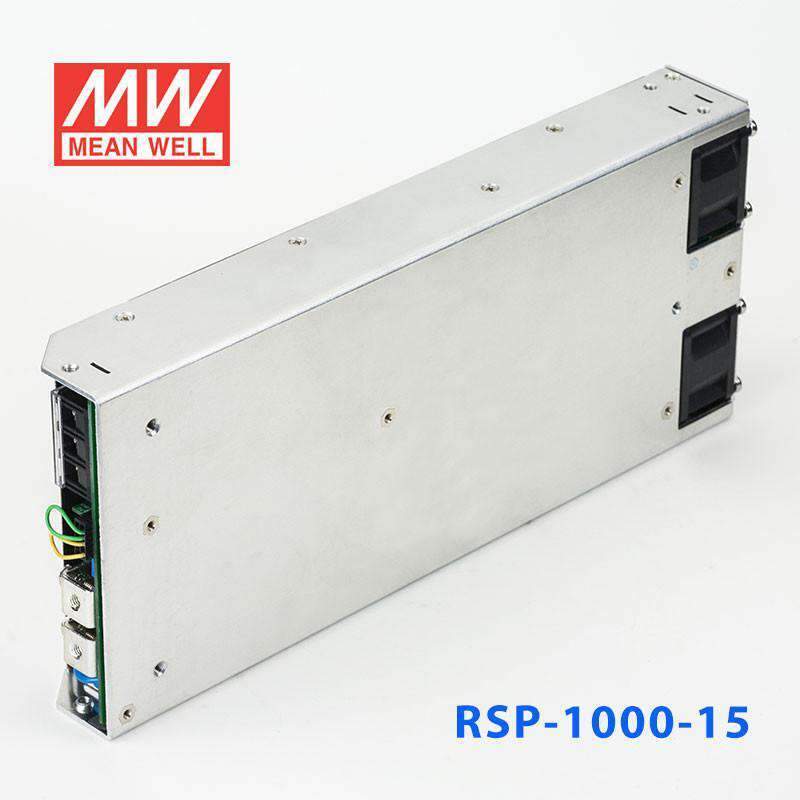

Mean Well RSP-1000-15 Power Supply 750W 15V 50A
The RSP-1000 is a 750W Mean Well power supply (input: 90~264VAC, operating temperature: -20~+60°C).
Key Features
- ✓ Input voltage: 90~264VAC
- ✓ Output voltage (max): 15V
- ✓ Rated output current: 50A
- ✓ Operating temperature: -20~+60°C
- ✓ Active PFC — meets international energy efficiency standards
- ✓ Safety certifications: BSMI, CB, CCC, CE, EAC, TÜV, UL
- ✓ 5 year warranty
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating750 Watt
-
Output Voltage15 Volt
-
Rated Current50 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty5 Year
-
Length11.61 in
-
Width5 in
-
Height1.61 in
-
Weight4.3 lb
::specification::
Frequently Asked Questions
What types of loads benefit from the RSP-1000-15's 15V 50A output?
The RSP-1000-15 delivers 15V at 50A (750W) and is suited for high-current 15V DC bus systems such as servo drive auxiliary supplies, industrial heating element controllers, or battery management systems that require a regulated 15V rail at substantial current. The 90–264VAC input covers all single-phase supply voltages.
Can multiple RSP-1000-15 units be paralleled for higher current?
Yes. The RSP-1000-15 supports active current sharing (3+1), allowing up to three units to operate in parallel with balanced load sharing and a fourth unit for N+1 redundancy. This enables up to 150A at 15V from three paralleled units.
How does the RSP-1000-15 differ from the RSP-1000-12 and RSP-1000-24?
All RSP-1000 variants share the 295.0 × 127.0 × 41.0 mm chassis, 90–264VAC input, -20°C to +60°C temperature range, and 5-year warranty. The differences are: RSP-1000-12 (720W/12V/60A), RSP-1000-15 (750W/15V/50A), RSP-1000-24 (960W/24V/40A), RSP-1000-27 (999W/27V/37A), RSP-1000-48 (1008W/48V/21A). The RSP-1000-15 is the mid-range voltage option between 12V and 24V.
What are the environmental operating limits for the RSP-1000-15?
The RSP-1000-15 operates from -20°C to +60°C ambient. No IP rating is specified, so the unit must be installed in an enclosure appropriate for its environment. The +60°C upper limit is more restrictive than smaller RSP-series models, and enclosure ventilation should be verified for hot environments.
What certifications does the RSP-1000-15 carry?
The RSP-1000-15 holds BSMI, CB, CCC, CE, EAC, TÜV, and UL certifications, covering major global markets including North America, Europe, China, Taiwan, and the Eurasian Economic Union.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other RSP-1000 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well RSP-1000-48 Power Supply 1008W 48V 21A | 1008W | 48V | 21A | Indoor | $209.55 | View |
| Mean Well RSP-1000-12 Power Supply 720W 12V 60A | 720W | 12V | 60A | Indoor | $225.55 | View |
| Mean Well RSP-1000-24 Power Supply 960W 24V 40A | 960W | 24V | 40A | Indoor | $210.55 | View |
| Mean Well RSP-1000-27 Power Supply 999W 27V 37A | 999W | 27V | 37A | Indoor | $271.44 | View |
