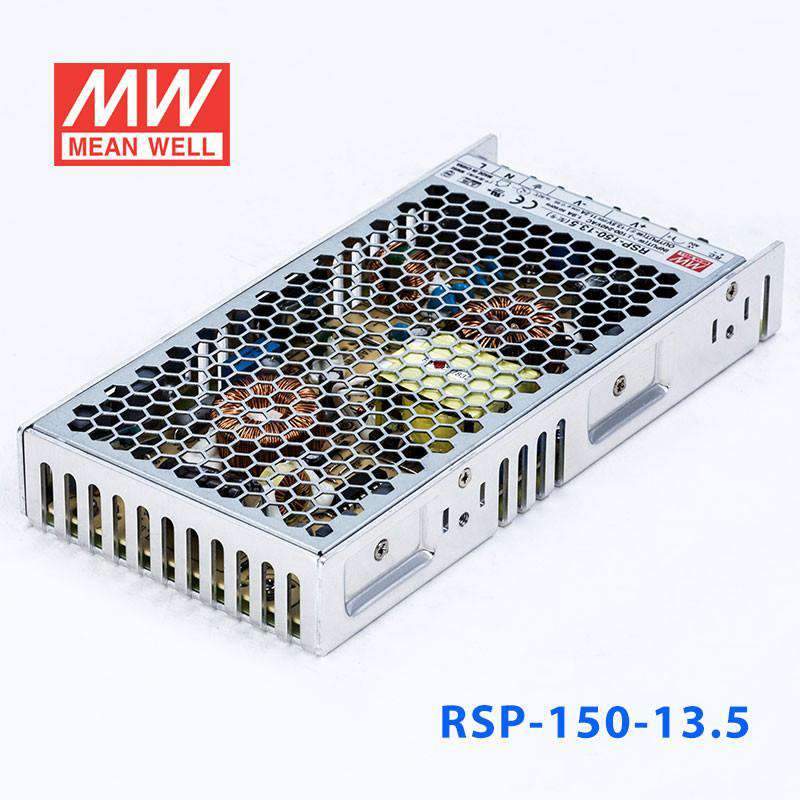

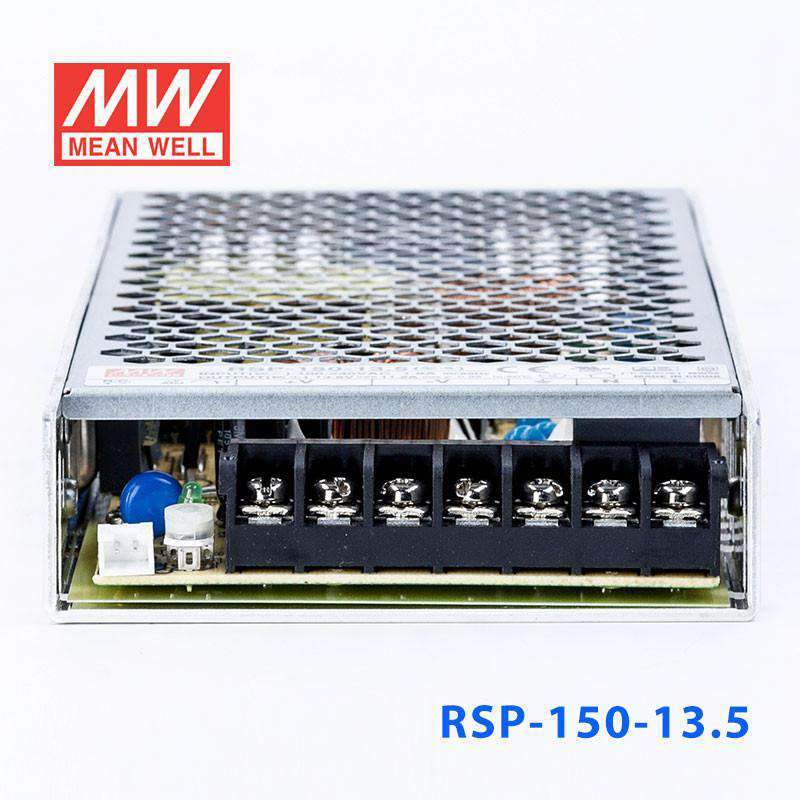

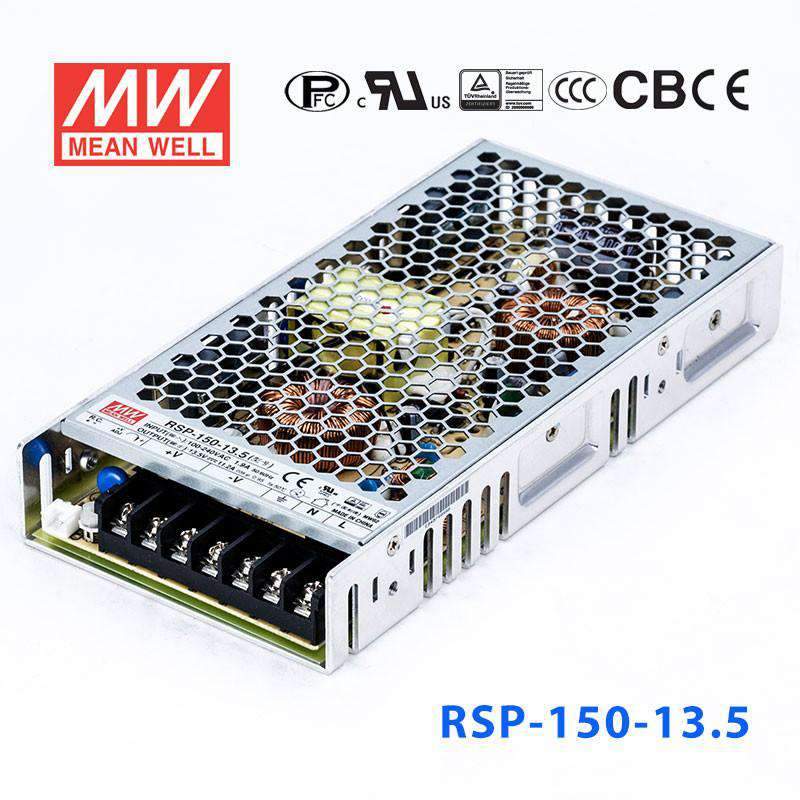

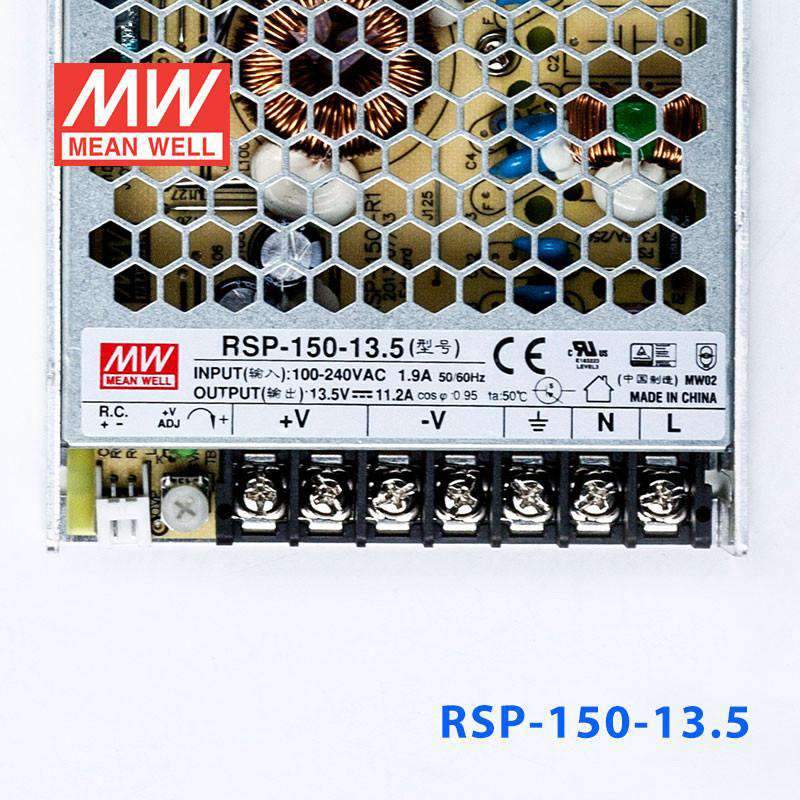

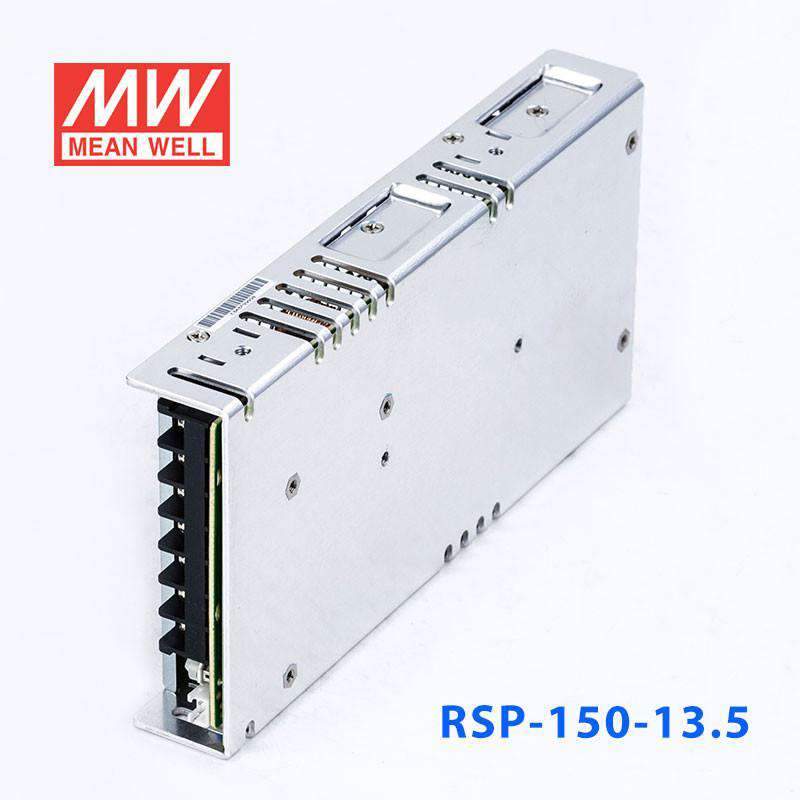

Mean Well RSP-150-13.5 Power Supply 150W 13.5V
EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024
Key Features
- ✓Universal AC input / Full range
- ✓Built-in active PFC function
- ✓Built-in constant current limiting circuit
- ✓Protections:Short circuit/ Overload / Over voltage / Over temperature
- ✓Cooling by free air convection
- ✓1U low profile 30mm
- ✓Remote ON-OFF control
- ✓LED indicator for power on
- ✓100% full load burn-in test
- ✓3 years warranty
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating151.2 Watt
-
Output Voltage13.5 Volt
-
Rated Current11.2 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.83 in
-
Width3.9 in
-
Height1.18 in
-
Weight1.32 lb
::specification::
Frequently Asked Questions
When would a designer choose the RSP-150-13.5 over the RSP-150-12 or RSP-150-15?
The RSP-150-13.5 provides 13.5V at 11.2A (151.2W), positioned between the 12V (12.5A) and 15V (10A) options. A 13.5V output is appropriate for battery float charging of 12V lead-acid batteries, certain motor controllers with mid-range voltage requirements, and telecom auxiliary circuits that specify a 13.5V nominal supply.
How does the RSP-150-13.5 compare to the RSP-100-13.5?
The RSP-100-13.5 delivers 13.5V at 7.5A (101.25W) in a 179.0 × 99.0 × 30.0 mm chassis. The RSP-150-13.5 delivers 13.5V at 11.2A (151.2W) in a 199.0 × 99.0 × 30.0 mm chassis. If your 13.5V load requires more than 7.5A, the RSP-150-13.5 is the appropriate upgrade. The RSP-150-13.5 also adds c_rcm certification for the Australia/New Zealand market.
Can the RSP-150-13.5 operate in an outdoor enclosure in a cold climate?
The RSP-150-13.5 is rated from -30°C to +70°C ambient. For outdoor deployment, it must be housed in a sealed enclosure with an appropriate IP rating, since the unit itself has no IP ingress protection. The -30°C lower limit supports cold-climate operation when the enclosure maintains this minimum.
What certifications does the RSP-150-13.5 hold?
The RSP-150-13.5 holds BSMI, CB, CCC, CE, EAC, c_rcm, TÜV, and UL certifications. This covers Taiwan, China, Europe, North America, Australia/New Zealand, and the Eurasian Economic Union.
What is the form factor of the RSP-150-13.5 and is it rack-mountable?
The RSP-150-13.5 measures 199.0 × 99.0 × 30.0 mm (30 mm height, 1U profile) and weighs 0.6 kg. It fits in a standard 1U rack space and can be mounted alongside other 1U equipment in 19-inch cabinets.
