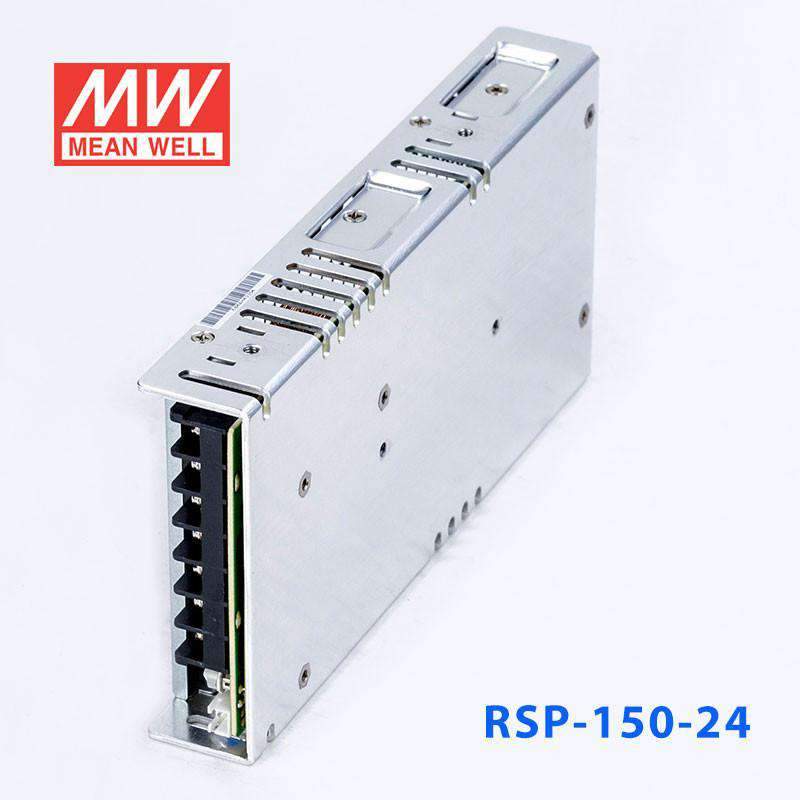

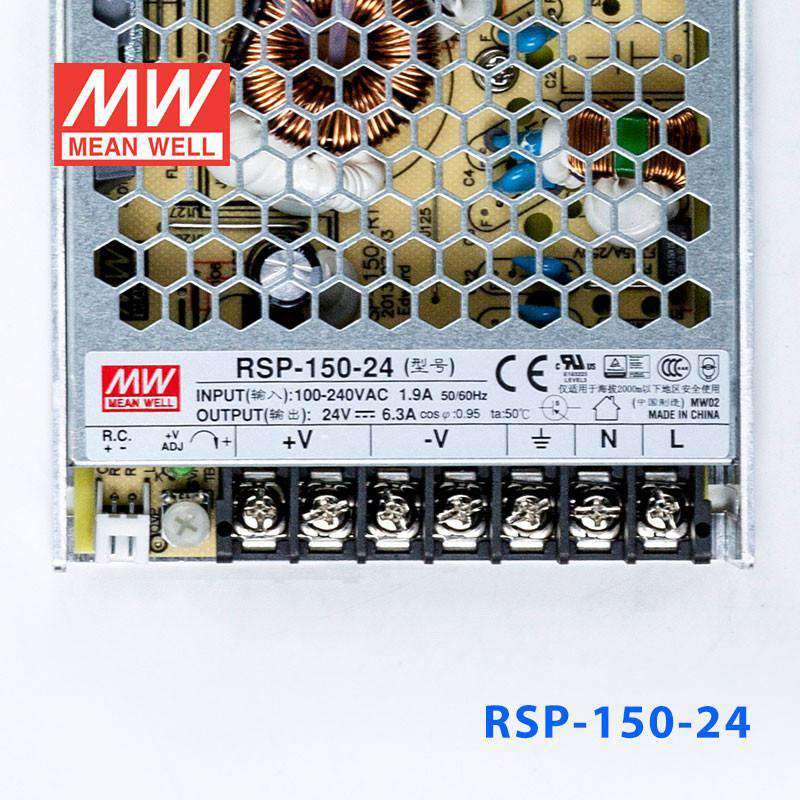

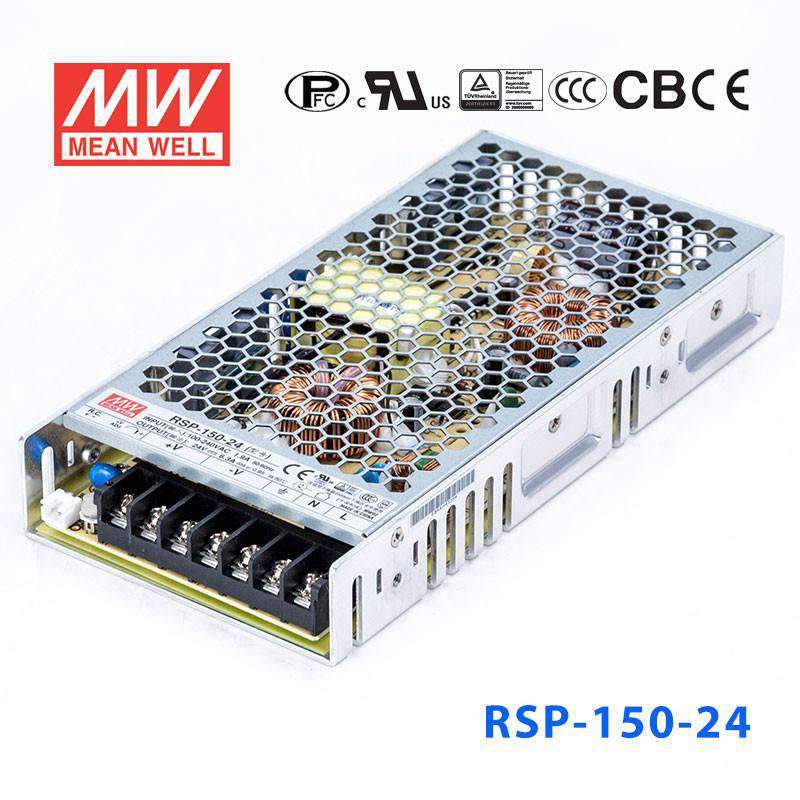

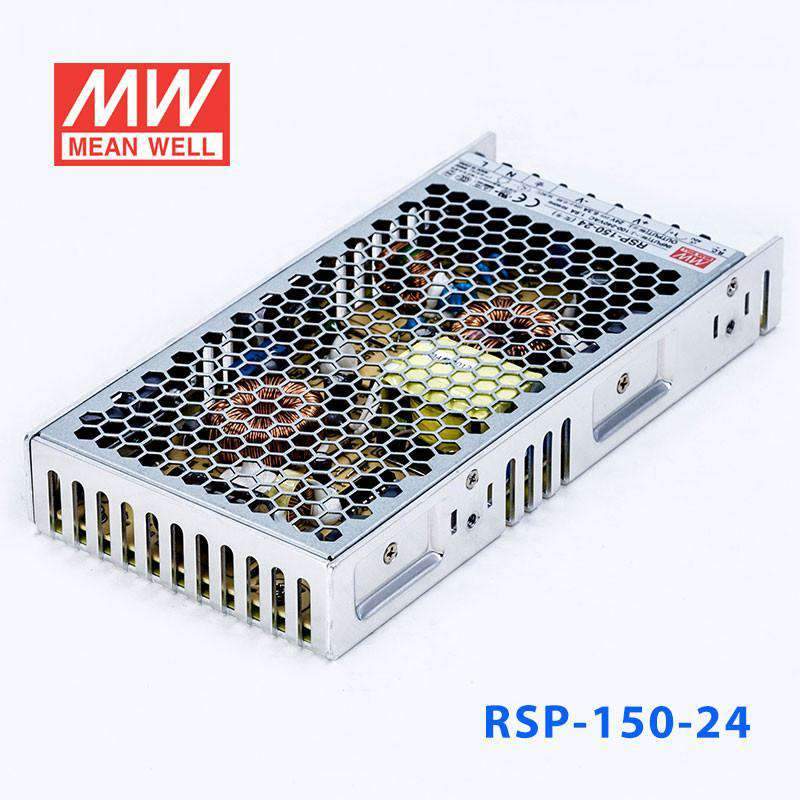

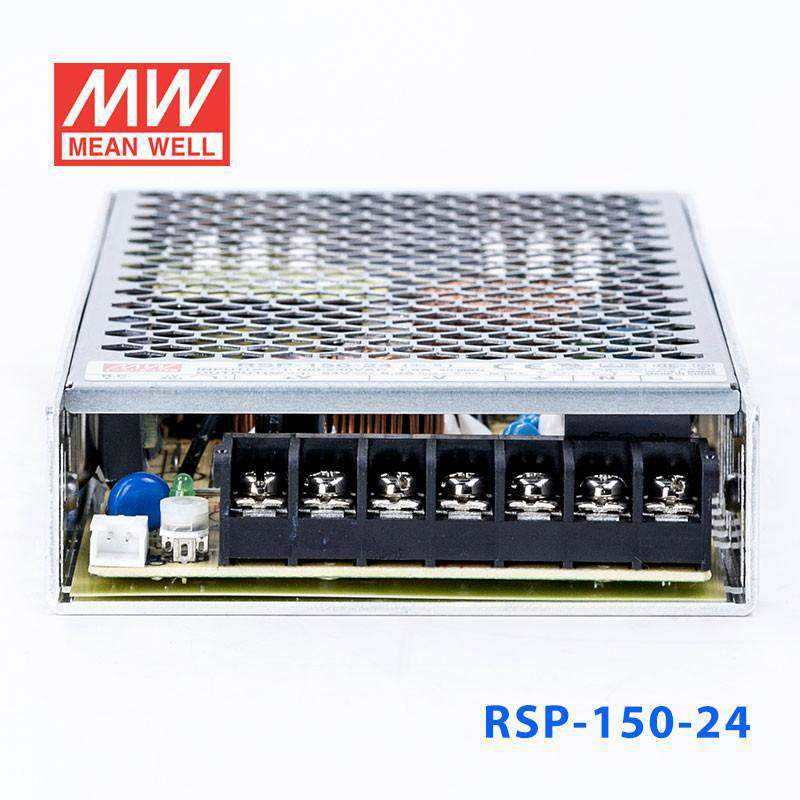

Mean Well RSP-150-24 Power Supply 150W 24V
Description
Description
EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024
Key Features
- ✓Universal AC input / Full range
- ✓Built-in active PFC function
- ✓Built-in constant current limiting circuit
- ✓Protections:Short circuit/ Overload / Over voltage / Over temperature
- ✓Cooling by free air convection
- ✓1U low profile 30mm
- ✓Remote ON-OFF control
- ✓LED indicator for power on
- ✓100% full load burn-in test
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating151.2 Watt
-
Output Voltage24 Volt
-
Rated Current6.3 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.83 in
-
Width3.9 in
-
Height1.18 in
-
Weight1.32 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What 24V systems can the RSP-150-24 power in an industrial setting?
The RSP-150-24 delivers 24V at 6.3A (151.2W) and is suited for 24V DC control bus applications including PLC output cards, industrial Ethernet switches, field sensor networks, and solenoid valve panels. The 85–264VAC universal input simplifies integration into diverse plant electrical systems.
How does the RSP-150-24 compare to the RSP-100-24 and RSP-200-24?
The RSP-100-24 outputs 24V at 4.2A (100.8W, 179mm chassis). The RSP-150-24 outputs 24V at 6.3A (151.2W, 199mm chassis). The RSP-200-24 outputs 24V at 8.4A (200W, 215mm chassis). Selecting between them depends on the total 24V current demand of your application.
Is the RSP-150-24 appropriate for outdoor signage or access control panels?
The RSP-150-24 operates from -30°C to +70°C but has no IP rating for moisture ingress. For outdoor enclosures, it must be installed inside a sealed IP54 or higher-rated cabinet. Within that constraint, its temperature range supports outdoor applications in temperate and cold climates.
What certifications does the RSP-150-24 carry?
The RSP-150-24 holds BSMI, CB, CCC, CE, EAC, c_rcm, TÜV, and UL certifications. The c_rcm mark extends coverage to Australia and New Zealand beyond the standard global set.
Can the RSP-150-24 be mounted in a 1U rack panel?
Yes. At 199.0 × 99.0 × 30.0 mm (30 mm = 1U height) and 0.6 kg, the RSP-150-24 fits within a standard 1U rack slot. It is well suited for 24V power distribution in rack-mounted automation or networking equipment.
Other RSP-150 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well RSP-150-15 Power Supply 150W 15V | 150W | 15V | 10A | Indoor | $42.80 | View |
| Mean Well RSP-150-48 Power Supply 150W 48V | 153.6W | 48V | 3.2A | Indoor | $40.24 | View |
| Mean Well RSP-150-12 Power Supply 150W 12V | 150W | 12V | 12.5A | Indoor | $36.79 | View |
