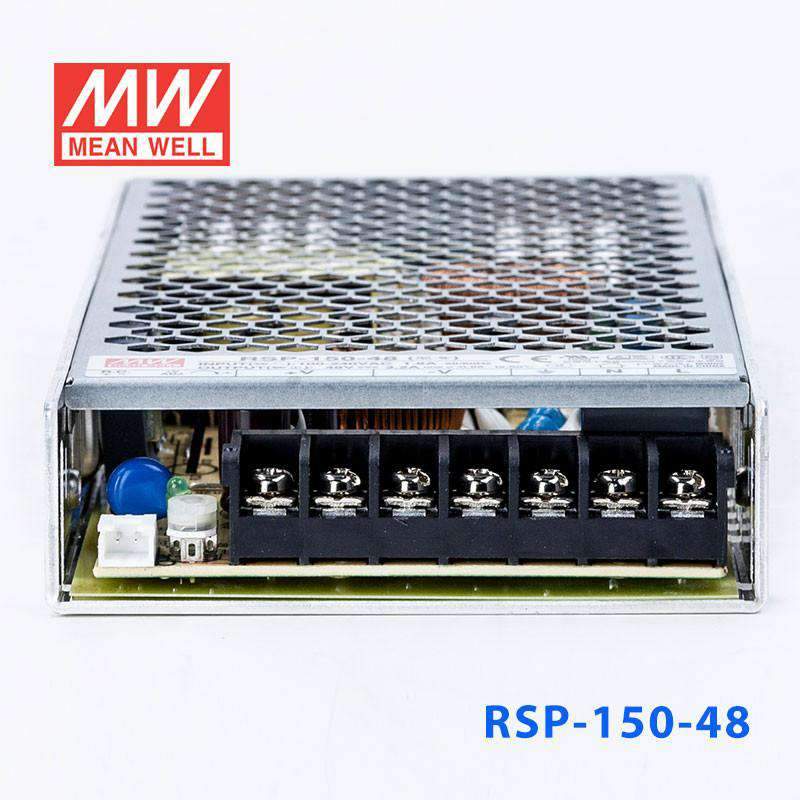

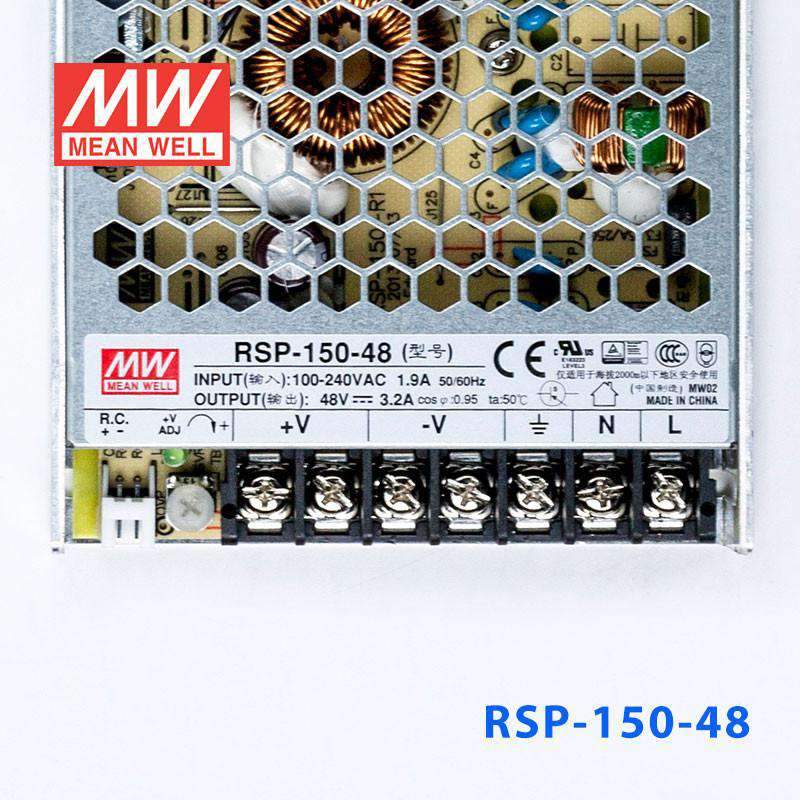

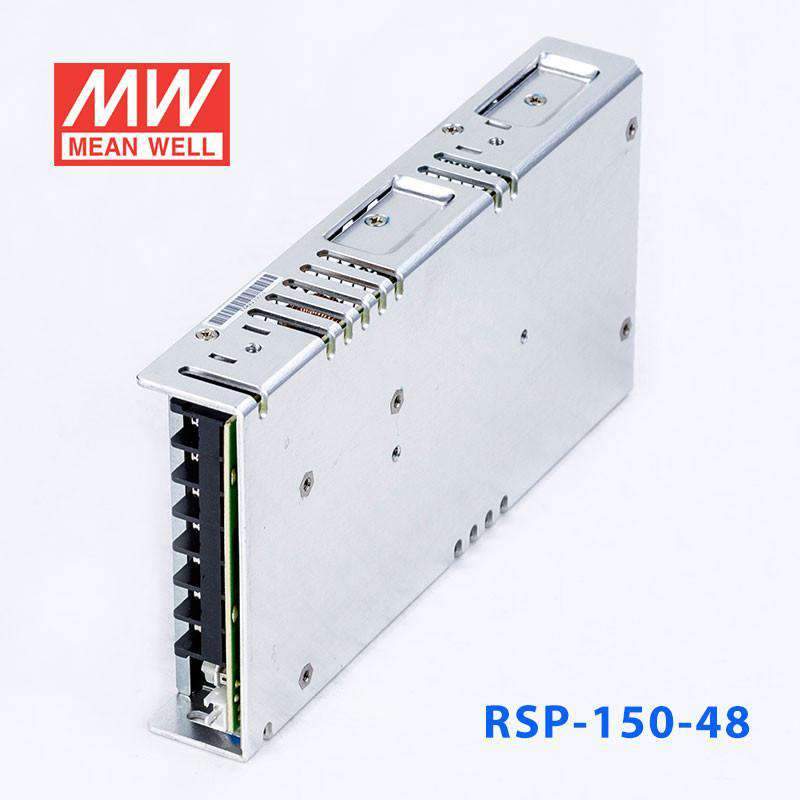

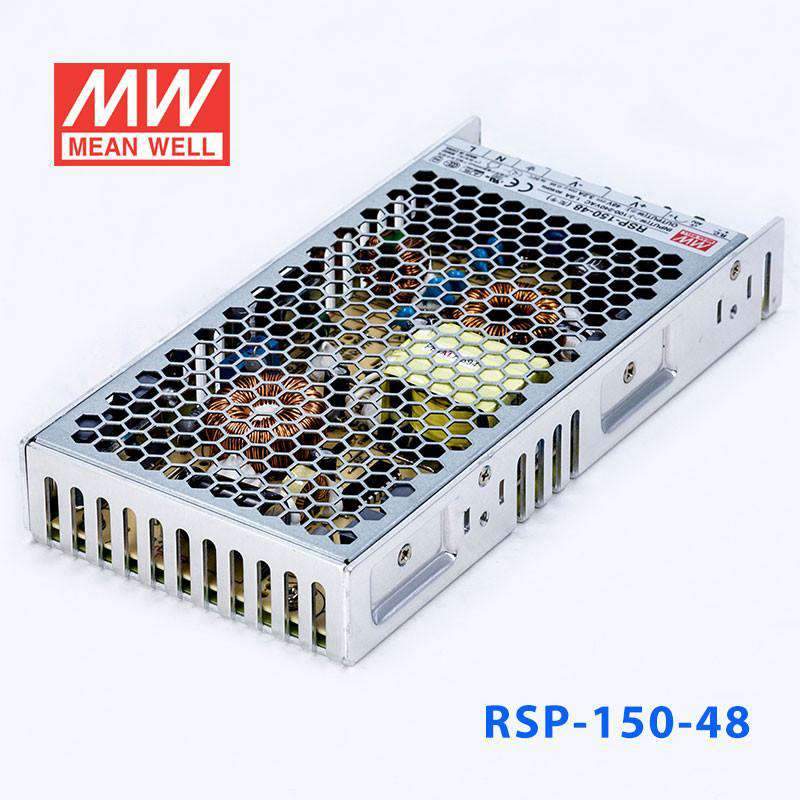

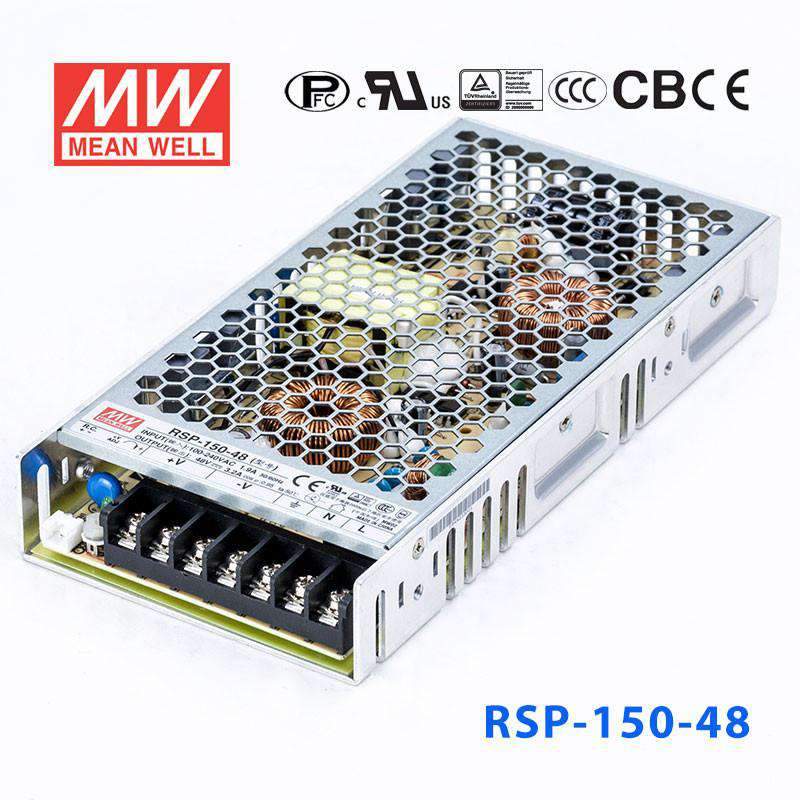

Mean Well RSP-150-48 Power Supply 150W 48V
Description
Description
EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024
Key Features
- ✓Universal AC input / Full range
- ✓Built-in active PFC function
- ✓Built-in constant current limiting circuit
- ✓Protections:Short circuit/ Overload / Over voltage / Over temperature
- ✓Cooling by free air convection
- ✓1U low profile 30mm
- ✓Remote ON-OFF control
- ✓LED indicator for power on
- ✓100% full load burn-in test
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating153.6 Watt
-
Output Voltage48 Volt
-
Rated Current3.2 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.83 in
-
Width3.9 in
-
Height1.18 in
-
Weight1.32 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What 48V DC applications can the RSP-150-48 serve?
The RSP-150-48 delivers 48V at 3.2A (153.6W) and is suited for 48V loads such as telecom auxiliary circuits, industrial Ethernet switches, PoE injector supplies, and automation cabinet 48V bus segments requiring up to 153.6W. The 85–264VAC input covers all single-phase AC supply voltages.
How does the RSP-150-48 compare to the RSP-100-48 and RSP-200-48?
The RSP-100-48 delivers 48V at 2.1A (100.8W, 179mm chassis). The RSP-150-48 delivers 48V at 3.2A (153.6W, 199mm chassis). The RSP-200-48 delivers 48V at 4.2A (200W, 215mm chassis). Choose based on the maximum current your 48V load requires.
Is the RSP-150-48 appropriate for installation in heated outdoor cabinets?
The RSP-150-48 operates from -30°C to +70°C and has no IP rating. It may be used in a thermally controlled outdoor cabinet that maintains ambient within this range. The sealed enclosure must provide the moisture and dust protection, as the unit itself has no ingress protection.
What certifications does the RSP-150-48 hold?
The RSP-150-48 holds BSMI, CB, CCC, CE, EAC, c_rcm, TÜV, and UL. The c_rcm mark adds Australia/New Zealand compliance to the standard global certification set.
What are the RSP-150 series voltage options at higher voltages?
Higher-voltage RSP-150 variants include: RSP-150-24 (151.2W/24V/6.3A), RSP-150-27 (151.2W/27V/5.6A), RSP-150-48 (153.6W/48V/3.2A). The complete series is: RSP-150-3.3 (99W/3.3V/30A), RSP-150-5 (150W/5V/30A), RSP-150-7.5 (150W/7.5V/20A), RSP-150-12 (150W/12V/12.5A), RSP-150-13.5 (151.2W/13.5V/11.2A), RSP-150-15 (150W/15V/10A), RSP-150-24 (151.2W/24V/6.3A), RSP-150-27 (151.2W/27V/5.6A), RSP-150-48 (153.6W/48V/3.2A).
