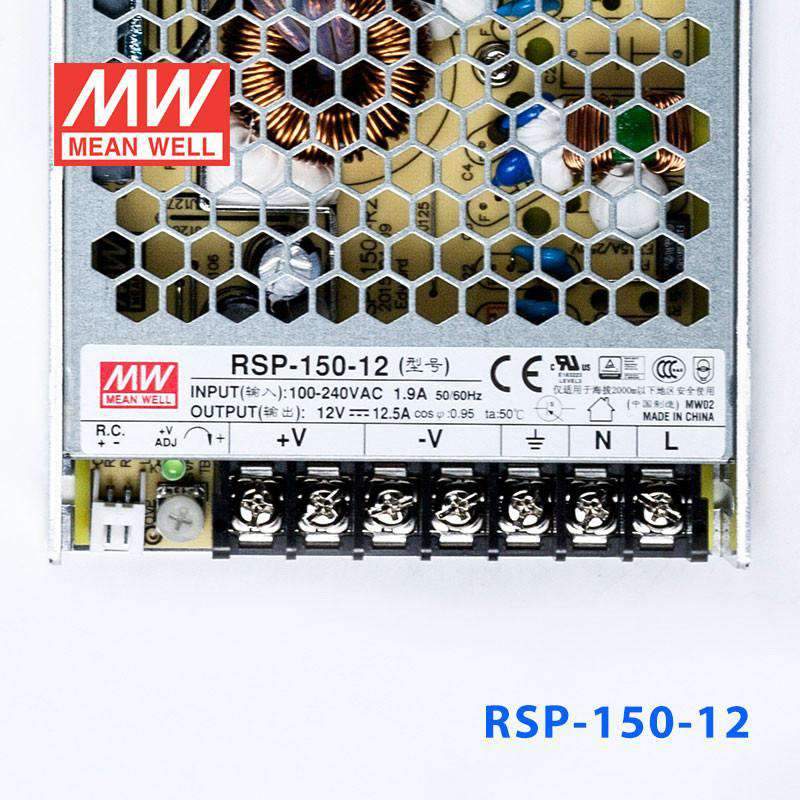

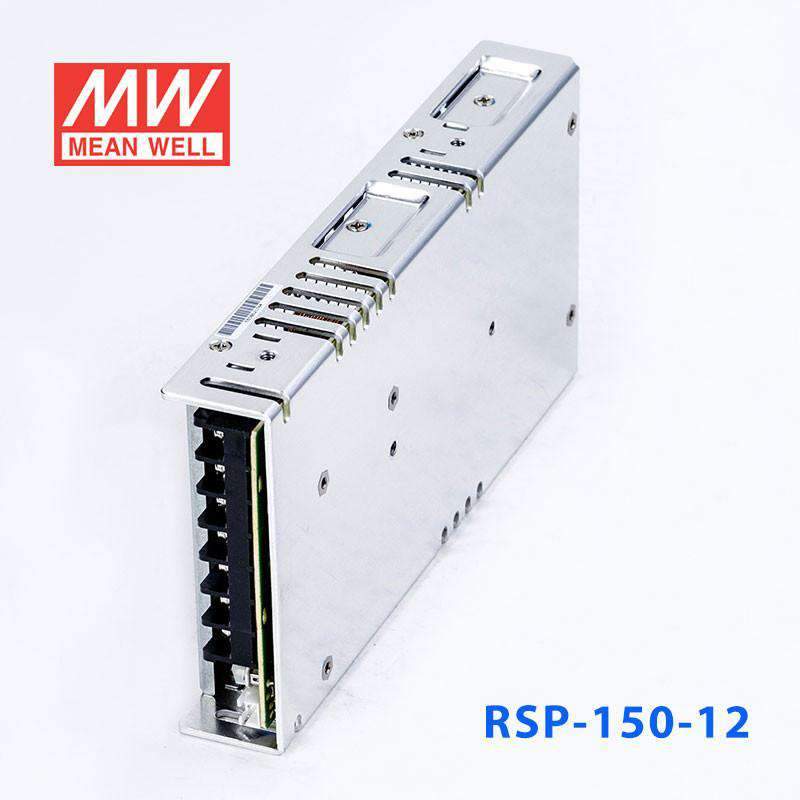

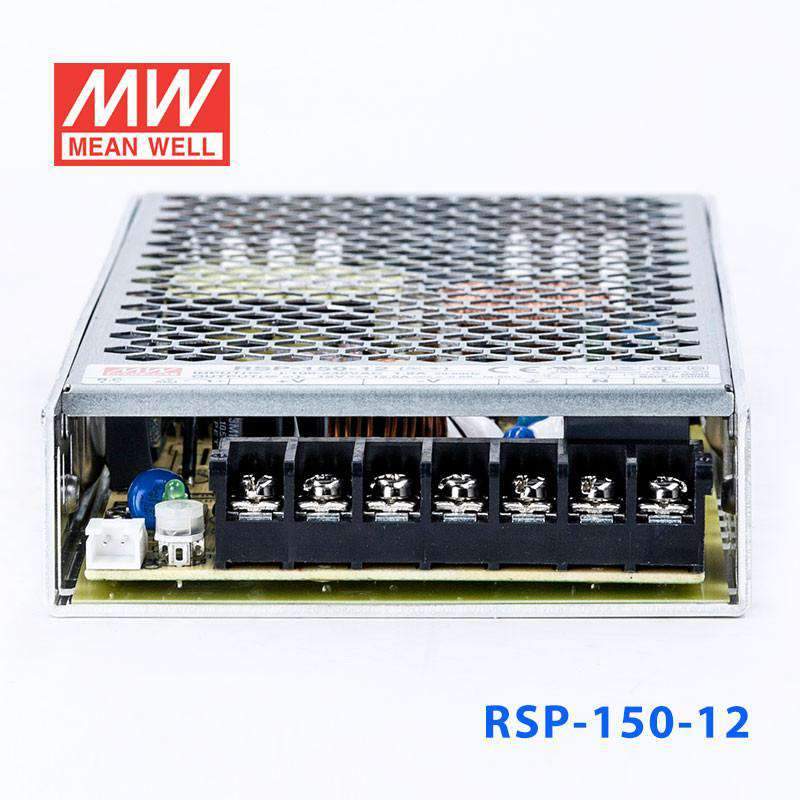

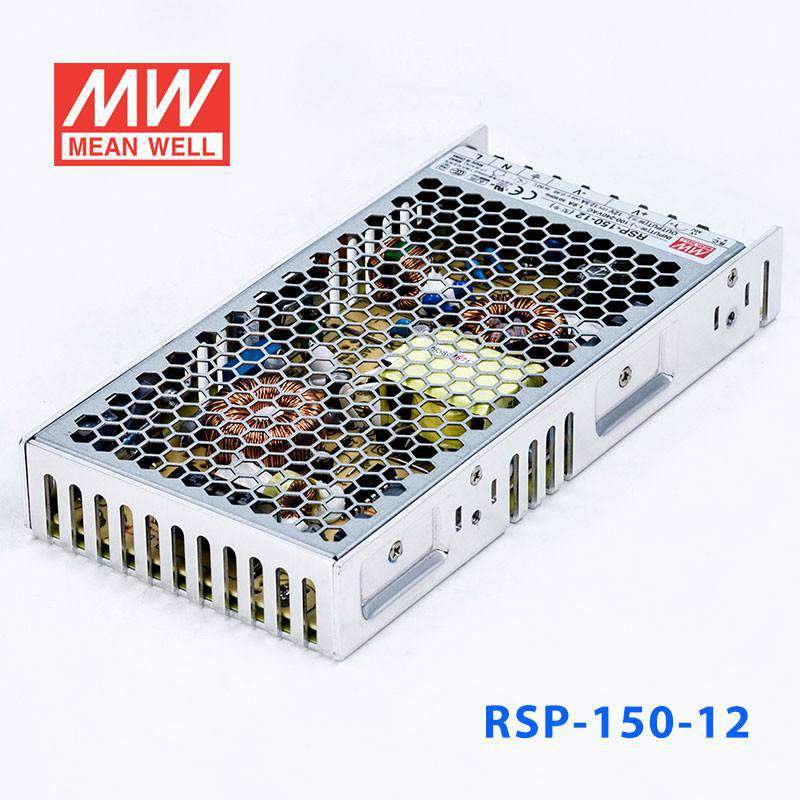

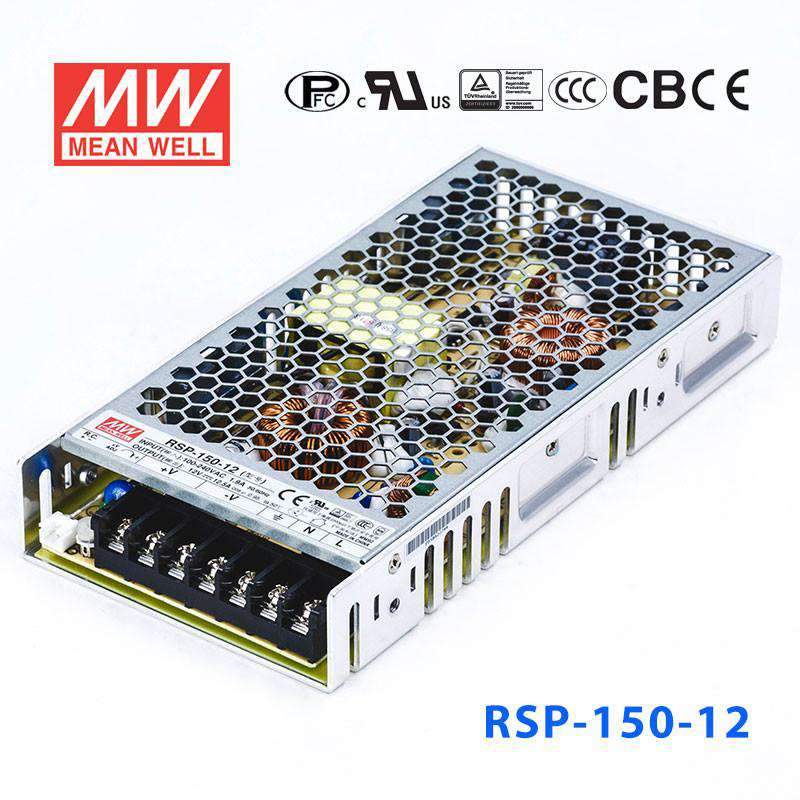

Mean Well RSP-150-12 Power Supply 150W 12V
Description
Description
EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024
Key Features
- ✓Universal AC input / Full range
- ✓Built-in active PFC function
- ✓Built-in constant current limiting circuit
- ✓Protections:Short circuit/ Overload / Over voltage / Over temperature
- ✓Cooling by free air convection
- ✓1U low profile 30mm
- ✓Remote ON-OFF control
- ✓LED indicator for power on
- ✓100% full load burn-in test
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating150 Watt
-
Output Voltage12 Volt
-
Rated Current12.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.83 in
-
Width3.9 in
-
Height1.18 in
-
Weight1.32 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What industrial applications match the RSP-150-12's 12V 12.5A output?
The RSP-150-12 delivers 12V at 12.5A (150W), making it suitable for 12V DC bus applications that require more current than a 100W supply provides. Typical uses include 12V DC motor drives in small machines, multi-node embedded control systems, 12V lighting in control rooms, and panel-level 12V distribution. The 85–264VAC input covers worldwide AC supply voltages.
How does the RSP-150-12 compare to the RSP-100-12 and RSP-200-12?
The RSP-100-12 delivers 12V at 8.5A (102W) in a 179.0 × 99.0 × 30.0 mm chassis. The RSP-150-12 delivers 12V at 12.5A (150W) in a 199.0 × 99.0 × 30.0 mm chassis. The RSP-200-12 delivers 12V at 16.7A (200.4W) in a 215.0 × 115.0 × 30.0 mm chassis. Select based on the current requirement of your 12V load.
What are the RSP-150 voltage variants available?
The RSP-150 series offers these voltage options: RSP-150-3.3 (99W/3.3V/30A), RSP-150-5 (150W/5V/30A), RSP-150-7.5 (150W/7.5V/20A), RSP-150-12 (150W/12V/12.5A), RSP-150-13.5 (151.2W/13.5V/11.2A), RSP-150-15 (150W/15V/10A), RSP-150-24 (151.2W/24V/6.3A), RSP-150-27 (151.2W/27V/5.6A), RSP-150-48 (153.6W/48V/3.2A). All share the 199.0 × 99.0 × 30.0 mm chassis and 85–264VAC input.
Is the RSP-150-12 rated for operation at both high and low extremes of industrial temperature?
Yes. The RSP-150-12 operates from -30°C to +70°C, matching the full industrial temperature range for most indoor applications. The unit has no IP rating and should be enclosed for dusty or wet environments.
What additional certifications does the RSP-150-12 carry compared to the RSP-100-12?
The RSP-150-12 holds BSMI, CB, CCC, CE, EAC, c_rcm, TÜV, and UL. The c_rcm mark (Australia/New Zealand RCM) is an addition compared to the RSP-100-12 certification set, broadening market coverage to include Australia and New Zealand.
