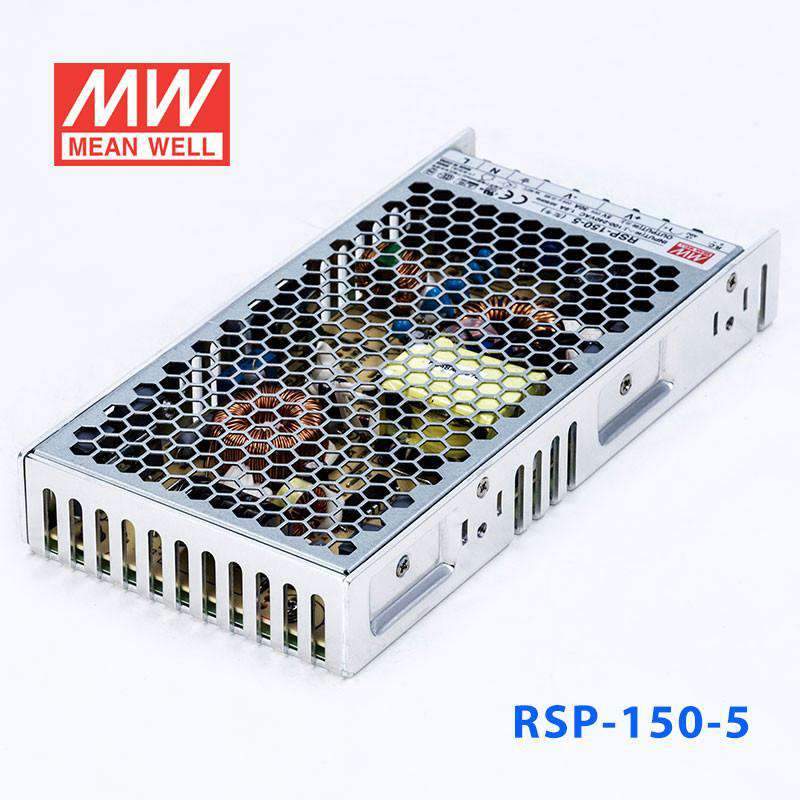

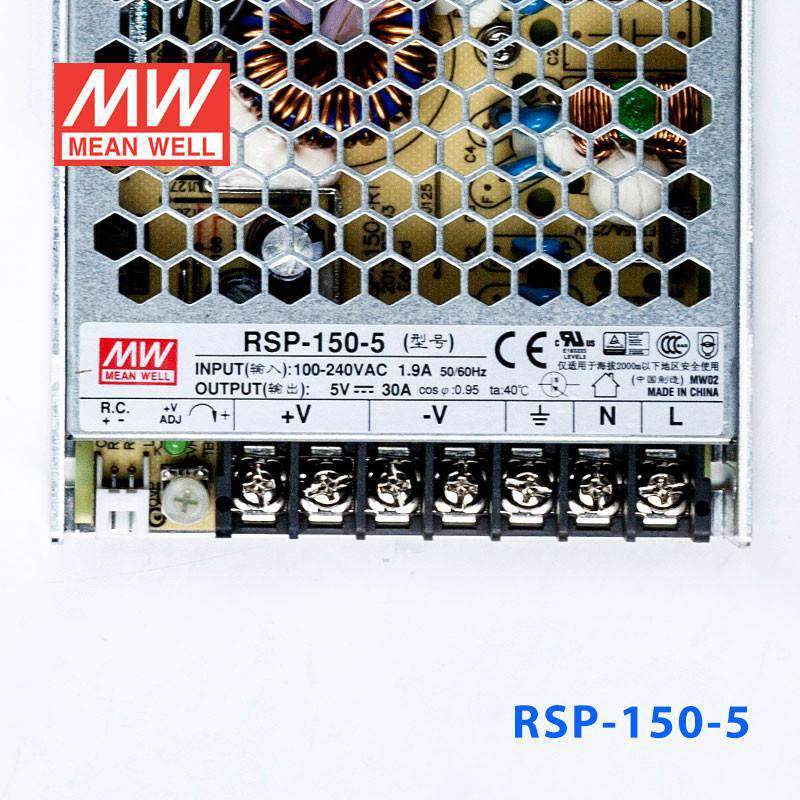

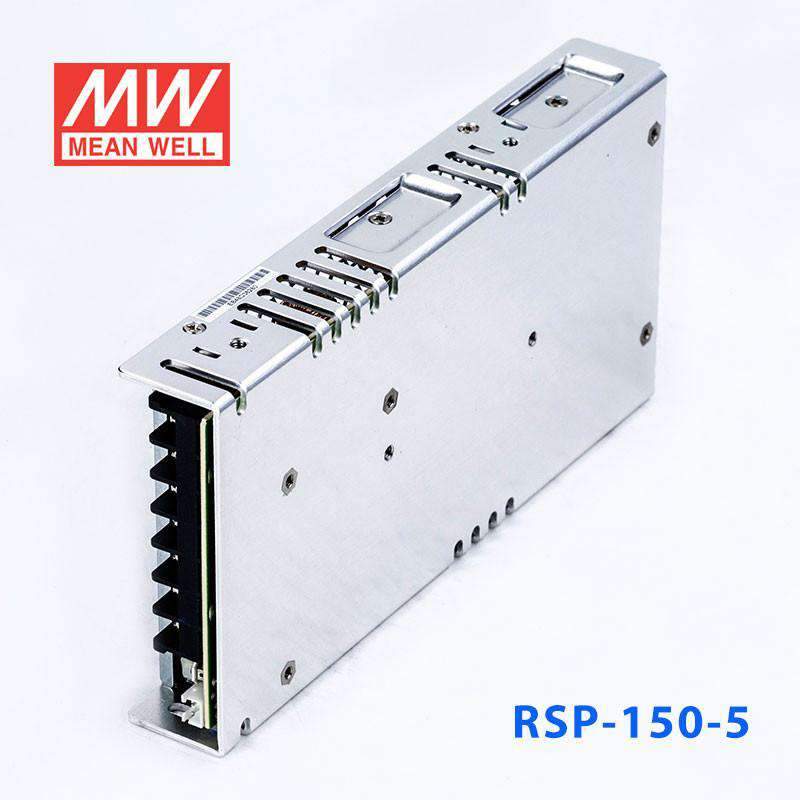

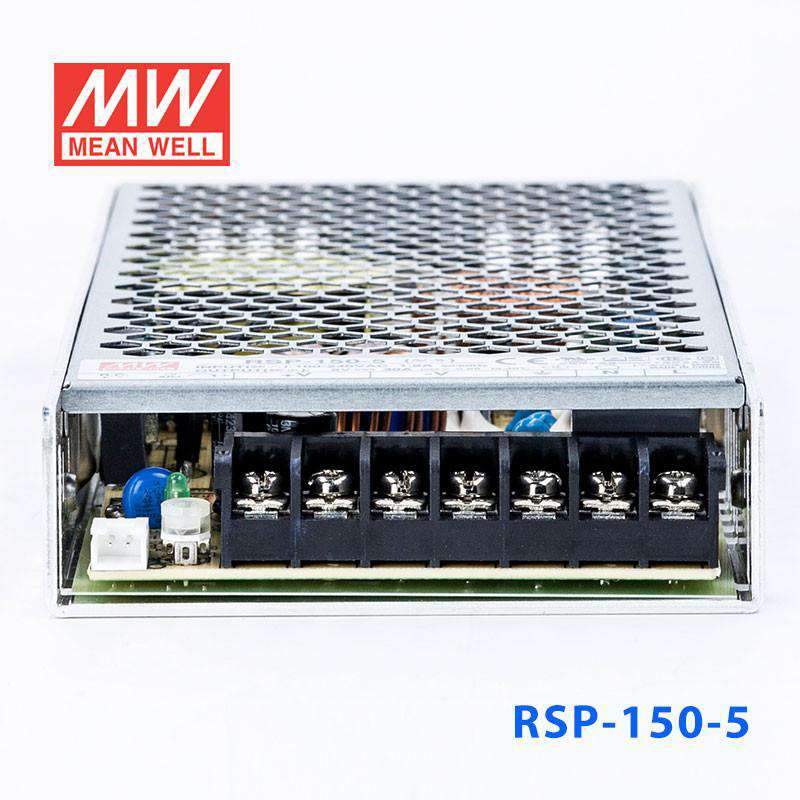

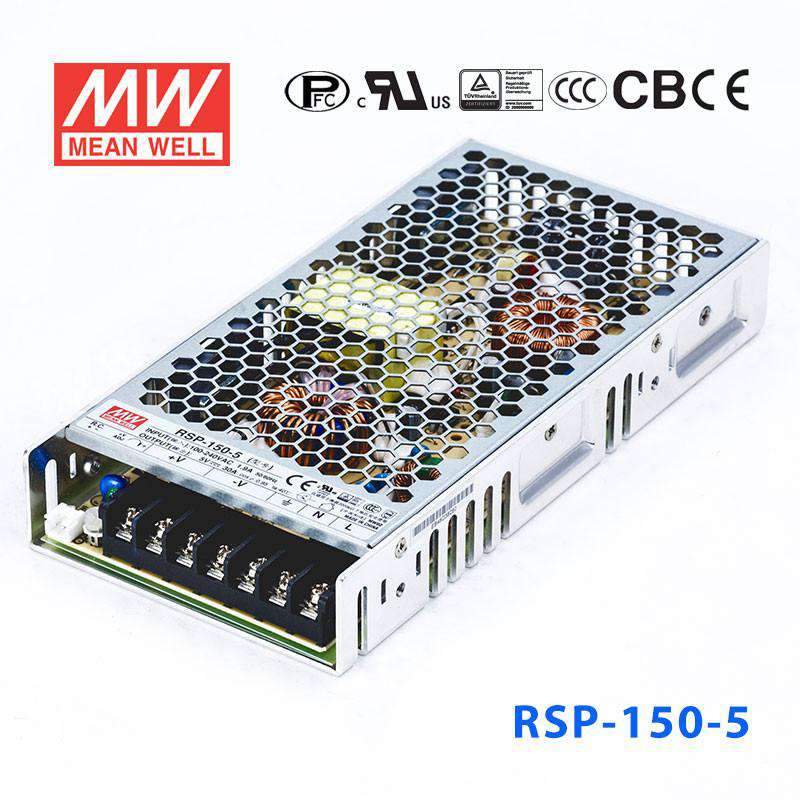

Mean Well RSP-150-5 Power Supply 150W 5V
EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024
Key Features
- ✓Universal AC input / Full range
- ✓Built-in active PFC function
- ✓Built-in constant current limiting circuit
- ✓Protections:Short circuit/ Overload / Over voltage / Over temperature
- ✓Cooling by free air convection
- ✓1U low profile 30mm
- ✓Remote ON-OFF control
- ✓LED indicator for power on
- ✓100% full load burn-in test
- ✓3 years warranty
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating150 Watt
-
Output Voltage5 Volt
-
Rated Current30 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.83 in
-
Width3.9 in
-
Height1.18 in
-
Weight1.32 lb
::specification::
Frequently Asked Questions
What applications can the RSP-150-5 serve at 5V 30A?
The RSP-150-5 delivers 5V at 30A (150W) and is suited for 5V logic systems requiring substantial current, such as multi-board microcontroller panels, Raspberry Pi or similar SBC clusters, 5V relay control panels, and embedded HMI power rails. The 85–264VAC universal input simplifies deployment on any standard mains supply.
How does the RSP-150-5 compare to the RSP-100-5 and RSP-200-5?
The RSP-100-5 delivers 5V at 20A (100W, 179mm chassis). The RSP-150-5 delivers 5V at 30A (150W, 199mm chassis). The RSP-200-5 delivers 5V at 40A (200W, 215mm chassis). All are 1U low-profile units. Choose the RSP-150-5 when 20A is insufficient but 40A is more than needed.
Can the RSP-150-5 power multiple SBCs or low-voltage computing nodes simultaneously?
At 30A output the RSP-150-5 can supply multiple 5V boards simultaneously. For example, a system of boards each drawing 2A could support up to 15 boards from a single RSP-150-5. The active PFC ensures clean power delivery to sensitive digital loads.
What is the operating temperature range of the RSP-150-5?
The RSP-150-5 is rated from -30°C to +70°C ambient. It carries no IP rating and must be enclosed appropriately for the deployment environment. The wide temperature range covers cold storage to hot factory conditions.
What certifications does the RSP-150-5 hold?
The RSP-150-5 carries BSMI, CB, CCC, CE, EAC, c_rcm, TÜV, and UL certifications, covering Taiwan, China, Europe, Australia/NZ, North America, and EAC markets.
