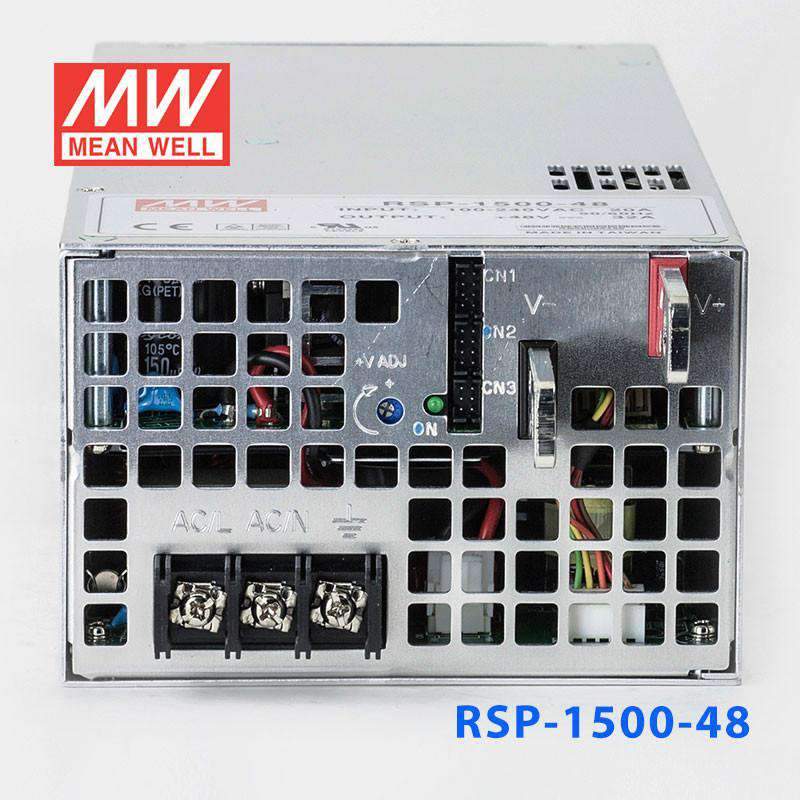

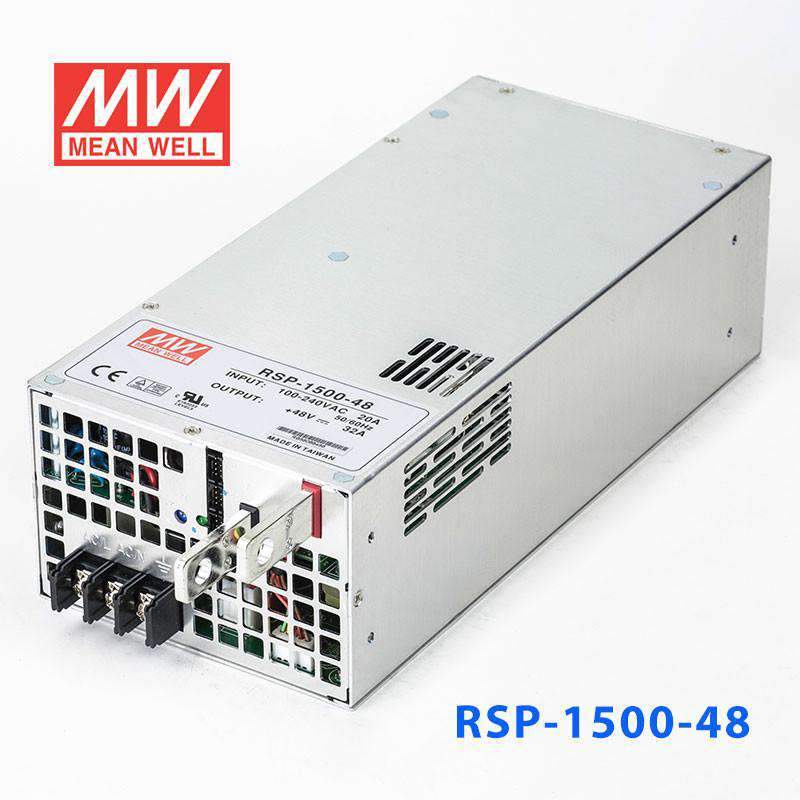

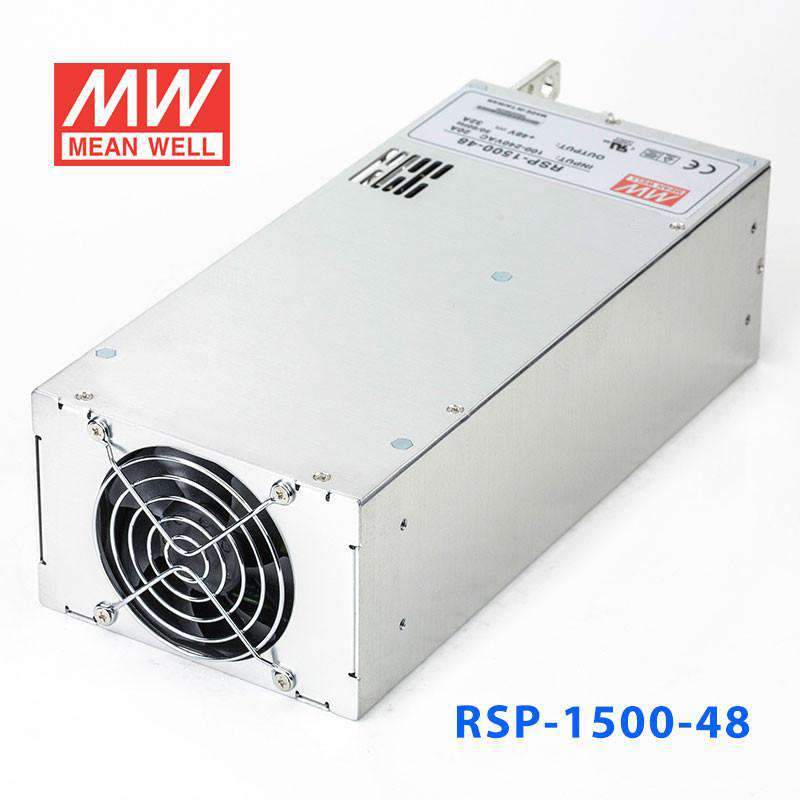

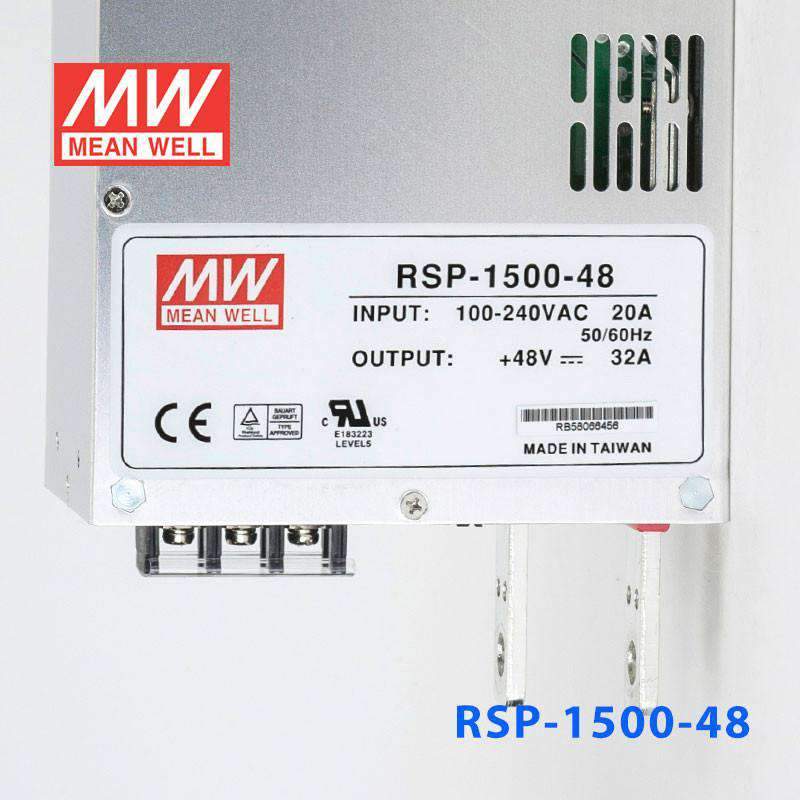

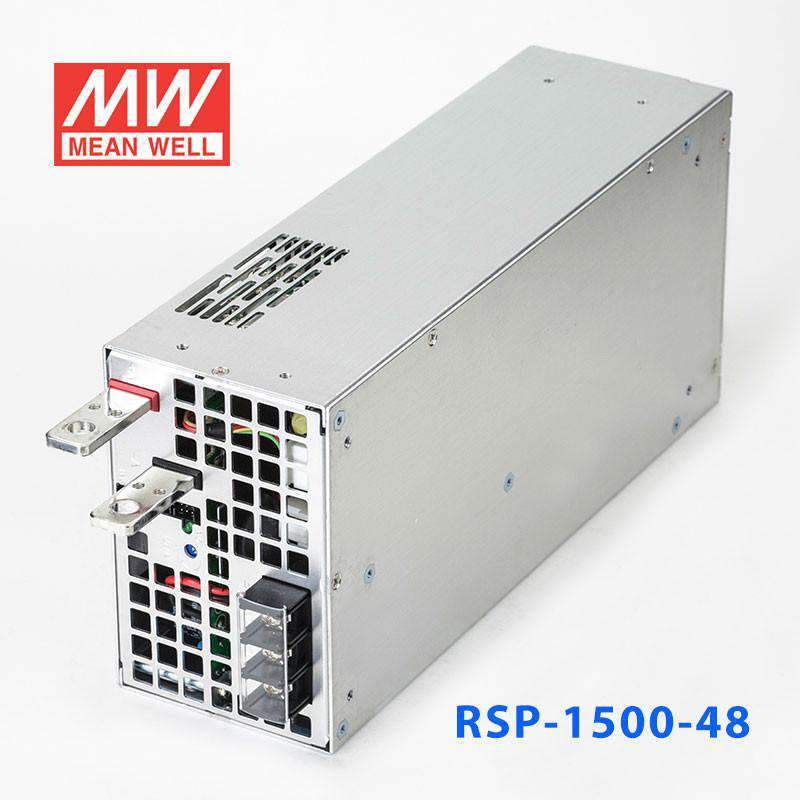

Mean Well RSP-1500-48 Power Supply 1536W 48V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RSP-1500-48 Power Supply 1536W 48V
The RSP-1500 is a 1500W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating1536 Watt
-
Output Voltage48 Volt
-
Rated Current32 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty5 Year
-
Length10.94 in
-
Width5 in
-
Height3.29 in
-
Weight6.61 lb
::specification::
Frequently Asked Questions
What 48V DC loads can the RSP-1500-48 support at 1536W?
The RSP-1500-48 delivers 48V at 32A (1536W) and is suited for high-power 48V applications including large telecom rectifier systems, industrial 48V motor drives, data center UPS input converters, and battery energy storage system DC buses. The 90–264VAC input supports worldwide single-phase supply.
How does the RSP-1500-48 compare to the RSP-1000-48 and RSP-1600-48?
The RSP-1000-48 delivers 48V/21A/1008W in a 295 × 127 × 41 mm chassis. The RSP-1500-48 delivers 48V/32A/1536W in a 278 × 127 × 83.5 mm chassis. The RSP-1600-48 delivers 48V/33.5A/1608W in a 300 × 85 × 41 mm chassis with 93% efficiency versus 91% for the RSP-1500-48.
Does the RSP-1500-48 support parallel operation?
Yes. The RSP-1500-48 supports active current sharing (3+1), enabling up to three units in parallel for 96A at 48V with a fourth unit available as N+1 hot standby. This allows fault-tolerant 48V bus design at very high power levels.
What is the operating temperature range of the RSP-1500-48?
The RSP-1500-48 operates from -20°C to +70°C. This is a broader range than the RSP-1000-48 (-20°C to +60°C) and makes the RSP-1500-48 better suited for warmer enclosure environments. No IP rating is specified; an enclosure is required for moisture/dust protection.
What certifications does the RSP-1500-48 hold?
The RSP-1500-48 carries BSMI, CB, CE, EAC, TÜV, and UL certifications. CCC certification for mainland China is not included in the RSP-1500 series.
