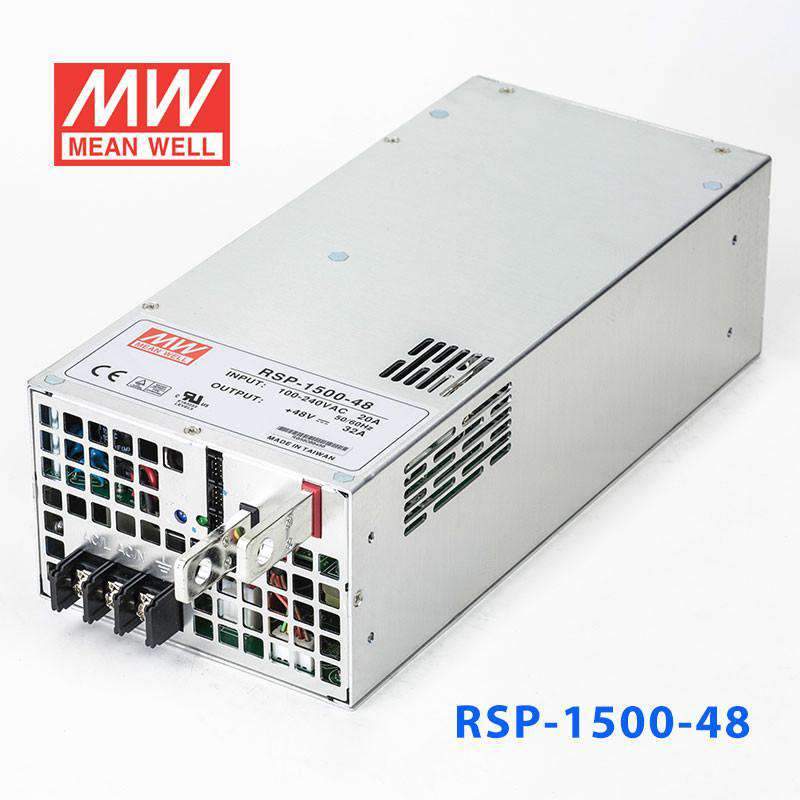

Mean Well RSP-1500-48 Power Supply 1536W 48V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RSP-1500-48 Power Supply 1536W 48V
Description
Description
Features
| Universal AC input / Full range |
| Built-in active PFC function |
| Protections: Short circuit / Overload / Over voltage / Over temperature |

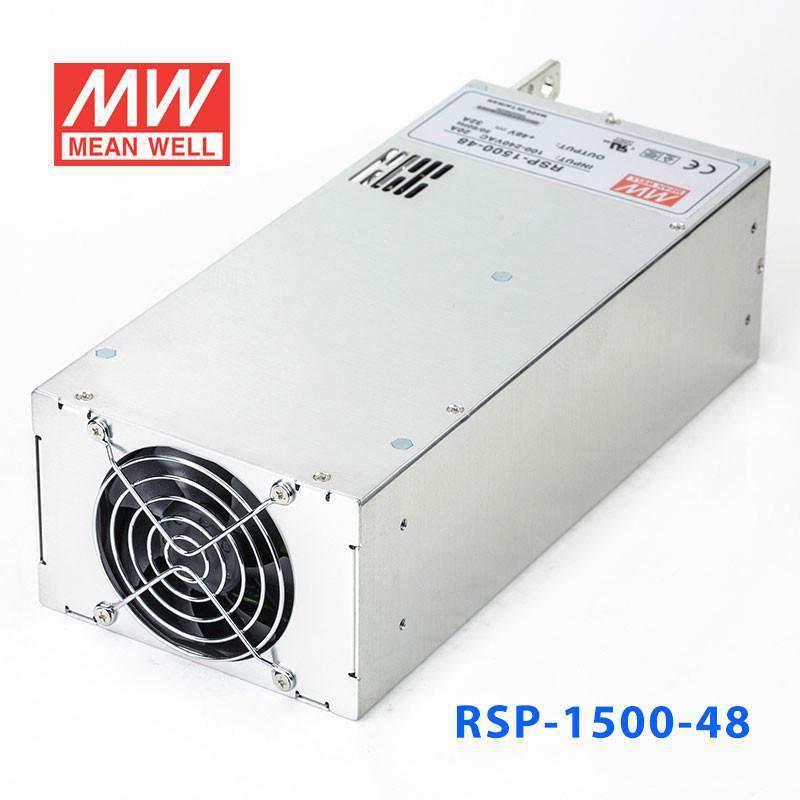

| Forced air cooling by built-in DC fan |
| Vo can be trimmed by external resistor or external control signal |
| Built-in current sharing |
| Built-in remote sense and ON/OFF control |
| Built-in auxiliary power |
| Alarm signal output |
| 5 years warranty |
General Specification
| AC input voltage range | 90~264VAC; 127~370VDC |
| AC inrush current (max.) | Cold start, 60A at 230VAC |
| DC adjustment range | -30%~+10% rated output voltage |
| Overload protection Range | 105%~135% |
| Overload protection Type | Constant current limiting, shut off after 5 sec., re-power on to recover |
| Over voltage protection Range | 115%~140% |
| Over voltage protection Type | Shut down O/P voltage, re-power on to recover |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -20~+70°C |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |

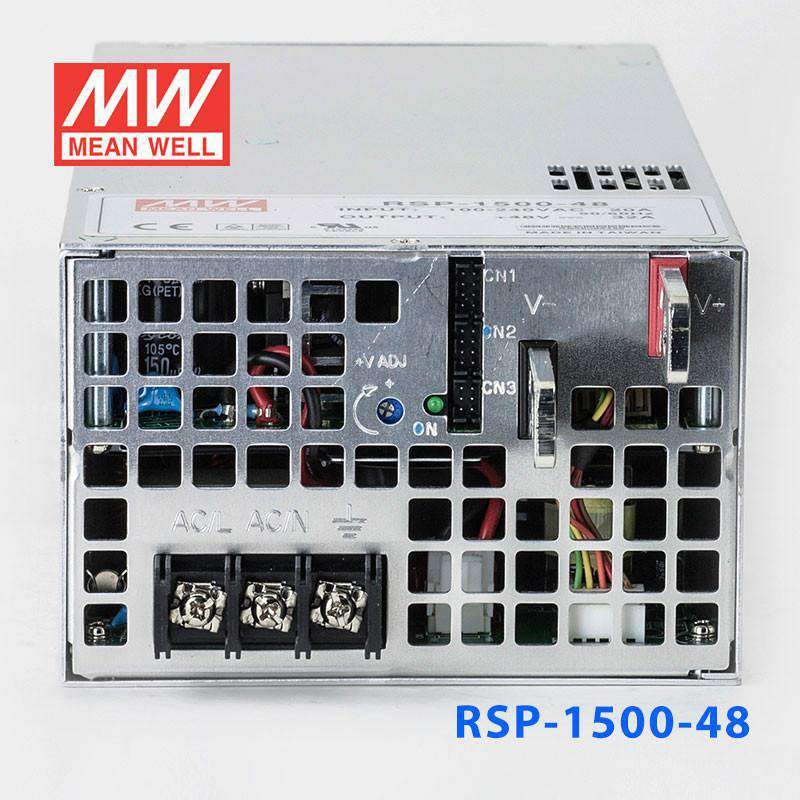

| Connection Input | 3P/13mm pitch terminal block with cover |
| Connection Output | Copper pillars |
| Dimension (LxWxH) | 278x127x83.5 |
| Case No. | 943A |
| Packing | 3.0kg; 4pcs / 13kg / 1.19CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating1536 Watt
-
Output Voltage48 Volt
-
Rated Current32 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty5 Year
-
Length10.94 in
-
Width5 in
-
Height3.29 in
-
Weight6.61 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What 48V DC loads can the RSP-1500-48 support at 1536W?
The RSP-1500-48 delivers 48V at 32A (1536W) and is suited for high-power 48V applications including large telecom rectifier systems, industrial 48V motor drives, data center UPS input converters, and battery energy storage system DC buses. The 90–264VAC input supports worldwide single-phase supply.
How does the RSP-1500-48 compare to the RSP-1000-48 and RSP-1600-48?
The RSP-1000-48 delivers 48V/21A/1008W in a 295 × 127 × 41 mm chassis. The RSP-1500-48 delivers 48V/32A/1536W in a 278 × 127 × 83.5 mm chassis. The RSP-1600-48 delivers 48V/33.5A/1608W in a 300 × 85 × 41 mm chassis with 93% efficiency versus 91% for the RSP-1500-48.
Does the RSP-1500-48 support parallel operation?
Yes. The RSP-1500-48 supports active current sharing (3+1), enabling up to three units in parallel for 96A at 48V with a fourth unit available as N+1 hot standby. This allows fault-tolerant 48V bus design at very high power levels.
What is the operating temperature range of the RSP-1500-48?
The RSP-1500-48 operates from -20°C to +70°C. This is a broader range than the RSP-1000-48 (-20°C to +60°C) and makes the RSP-1500-48 better suited for warmer enclosure environments. No IP rating is specified; an enclosure is required for moisture/dust protection.
What certifications does the RSP-1500-48 hold?
The RSP-1500-48 carries BSMI, CB, CE, EAC, TÜV, and UL certifications. CCC certification for mainland China is not included in the RSP-1500 series.
