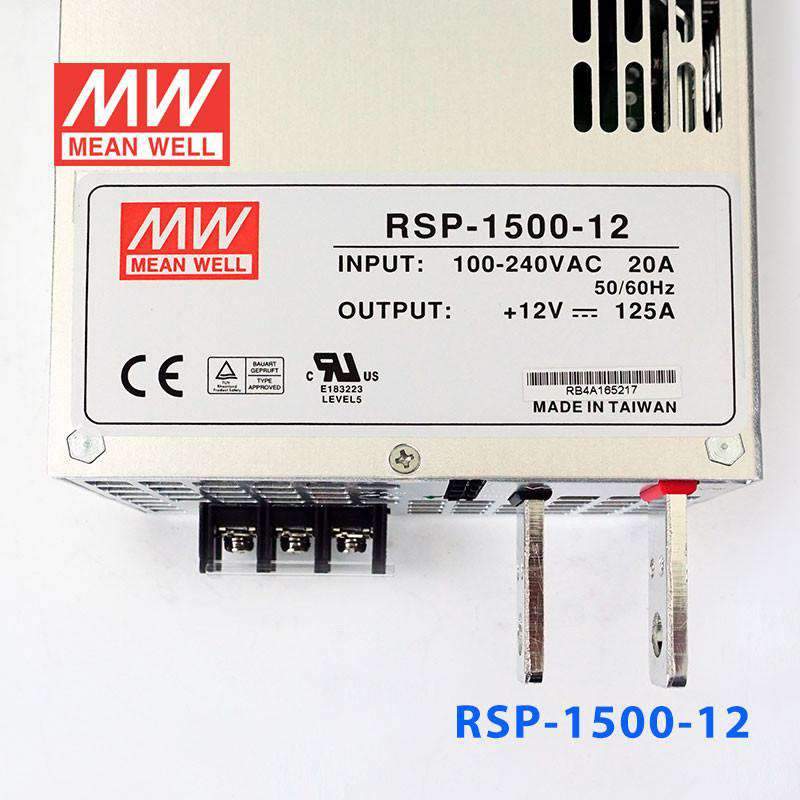

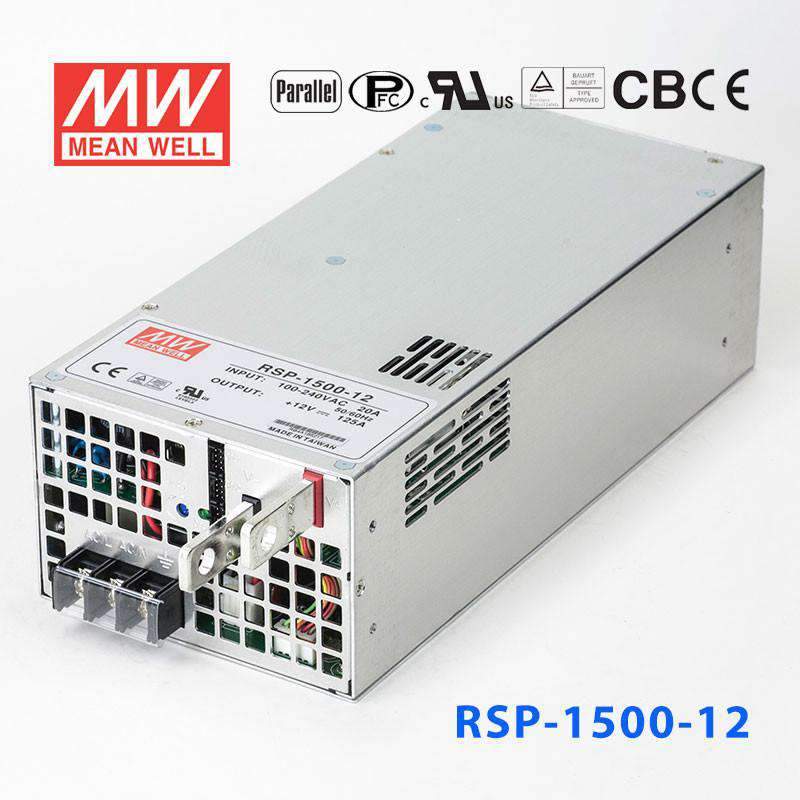

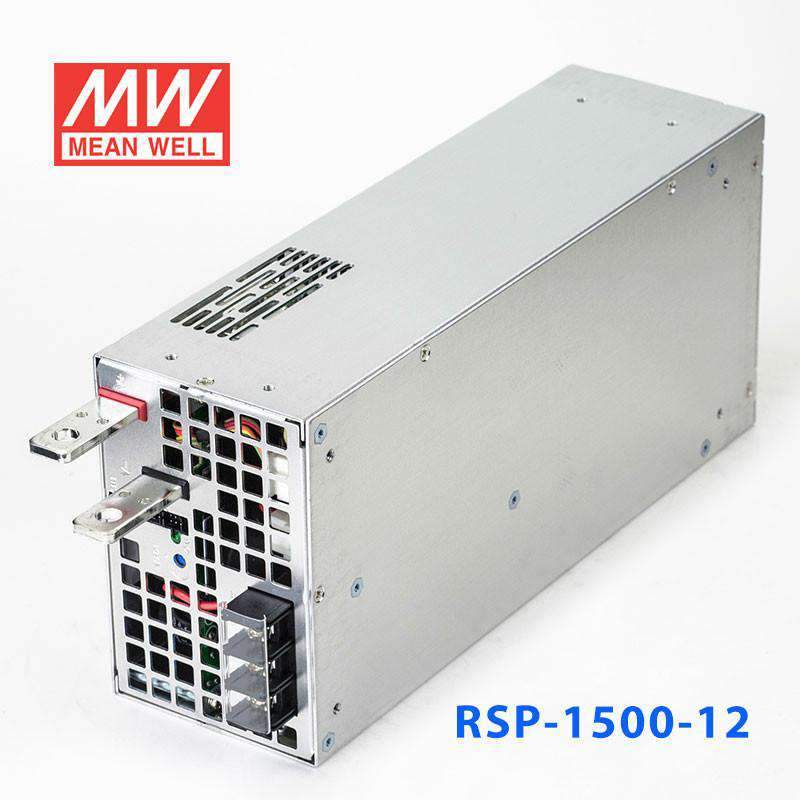

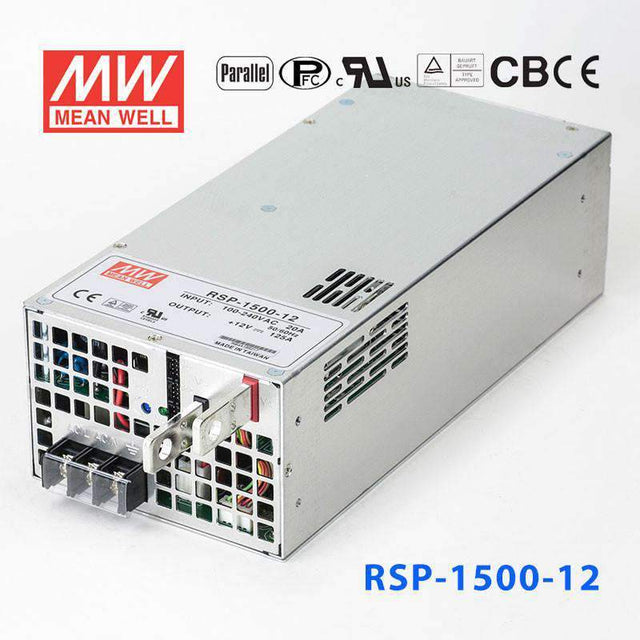

Mean Well RSP-1500-12 Power Supply 1500W 12V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RSP-1500-12 Power Supply 1500W 12V
Description
Description
Features
| Universal AC input / Full range |
| Built-in active PFC function |
| Protections: Short circuit / Overload / Over voltage / Over temperature |

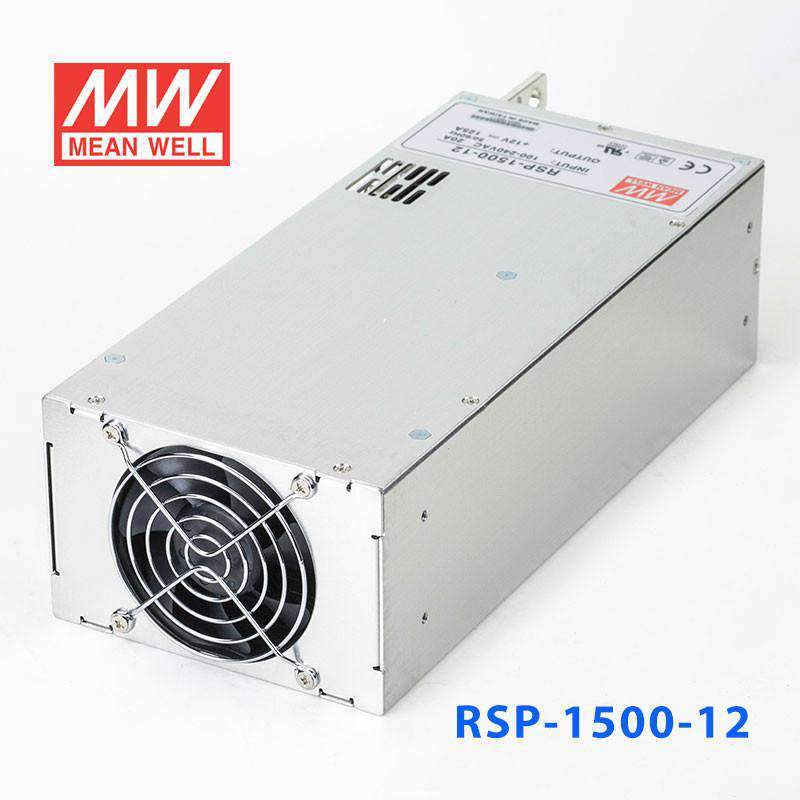

| Forced air cooling by built-in DC fan |
| Vo can be trimmed by external resistor or external control signal |
| Built-in current sharing |
| Built-in remote sense and ON/OFF control |
| Built-in auxiliary power |
| Alarm signal output |
| 5 years warranty |
General Specification
| AC input voltage range | 90~264VAC; 127~370VDC |
| AC inrush current (max.) | Cold start, 60A at 230VAC |
| DC adjustment range | -30%~+10% rated output voltage |
| Overload protection Range | 105%~135% |
| Overload protection Type | Constant current limiting, shut off after 5 sec., re-power on to recover |
| Over voltage protection Range | 115%~140% |
| Over voltage protection Type | Shut down O/P voltage, re-power on to recover |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -20~+70°C |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |

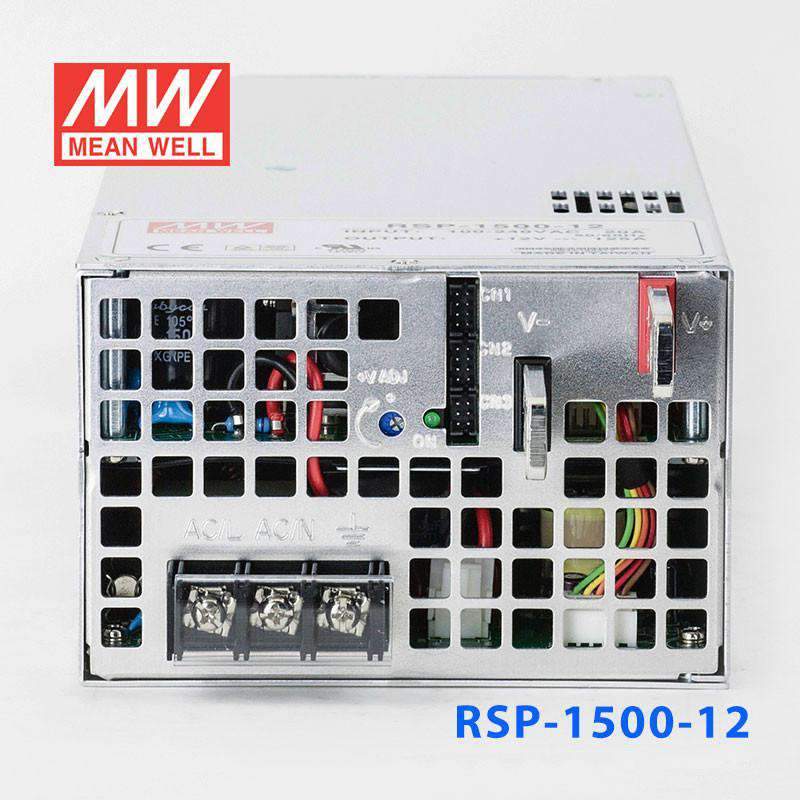

| Connection Input | 3P/13mm pitch terminal block with cover |
| Connection Output | Copper pillars |
| Dimension (LxWxH) | 278x127x83.5 |
| Case No. | 943A |
| Packing | 3.0kg; 4pcs / 13kg / 1.19CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating1500 Watt
-
Output Voltage12 Volt
-
Rated Current125 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty5 Year
-
Length10.94 in
-
Width5 in
-
Height3.29 in
-
Weight6.61 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What heavy-industrial applications can the RSP-1500-12 serve at 1500W?
The RSP-1500-12 delivers 12V at 125A (1500W) and is designed for high-current 12V bus applications such as large automation panels with many actuators, DC motor drive banks, industrial lighting control, and centralized 12V distribution in large machinery. The 90–264VAC input supports worldwide single-phase supplies.
What does the active current sharing (3+1) capability provide for the RSP-1500-12?
Active current sharing (3+1) allows up to three RSP-1500-12 units to operate in parallel with balanced loads, delivering up to 375A at 12V combined. A fourth unit provides N+1 hot-standby redundancy. This is suited for mission-critical 12V bus systems that cannot tolerate a single-point-of-failure in the power supply chain.
How does the RSP-1500-12 compare to the RSP-1000-12 and RSP-1600-12?
The RSP-1000-12 delivers 12V/60A/720W in a 295.0 × 127.0 × 41.0 mm chassis. The RSP-1500-12 delivers 12V/125A/1500W in a 278.0 × 127.0 × 83.5 mm chassis. The RSP-1600-12 delivers 12V/125A/1500W in a 300.0 × 85.0 × 41.0 mm chassis. The RSP-1500-12 and RSP-1600-12 share the same output ratings but differ in physical form factor and the RSP-1600 achieves 93% efficiency versus 91% on the RSP-1500.
What is the operating temperature range of the RSP-1500-12?
The RSP-1500-12 operates from -20°C to +70°C ambient. This upper limit of +70°C matches the smaller RSP-100/150/200 series and is higher than the -20°C to +60°C range of the RSP-1000 series. No IP rating is specified; an appropriate enclosure is required for harsh environments.
What efficiency does the RSP-1500-12 achieve?
The RSP-1500-12 features built-in active PFC and achieves up to 91% efficiency. At the rated 1500W output, this corresponds to approximately 1648W input power and about 148W of heat dissipation, which should be accounted for in enclosure thermal design.
