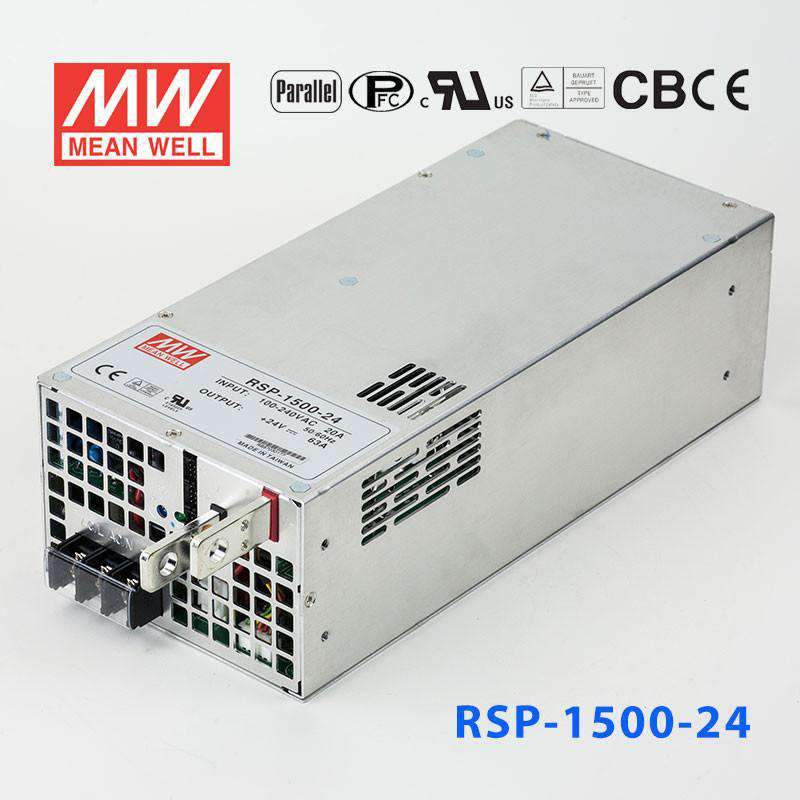

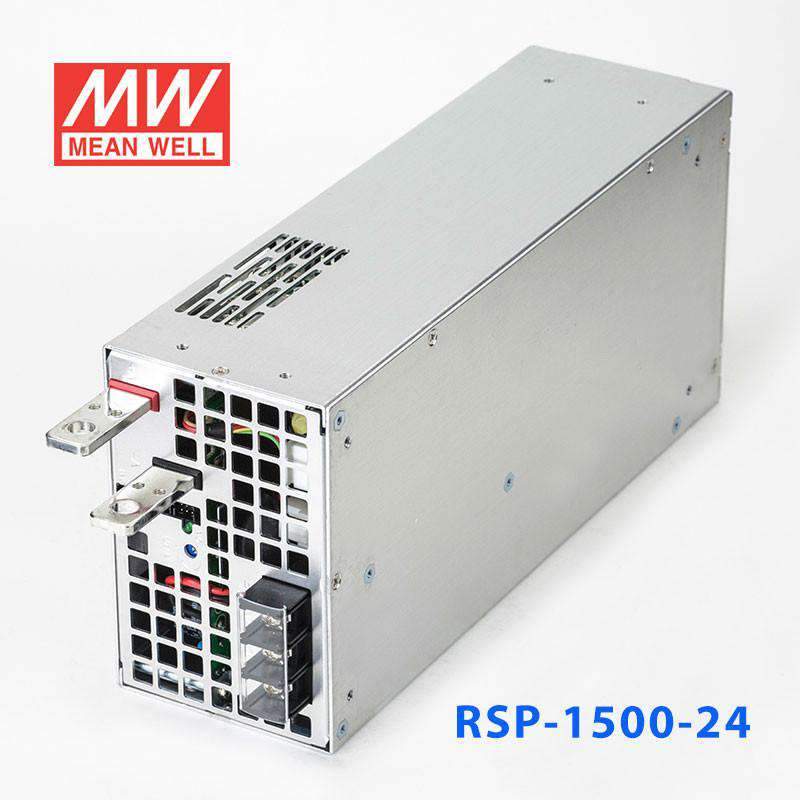

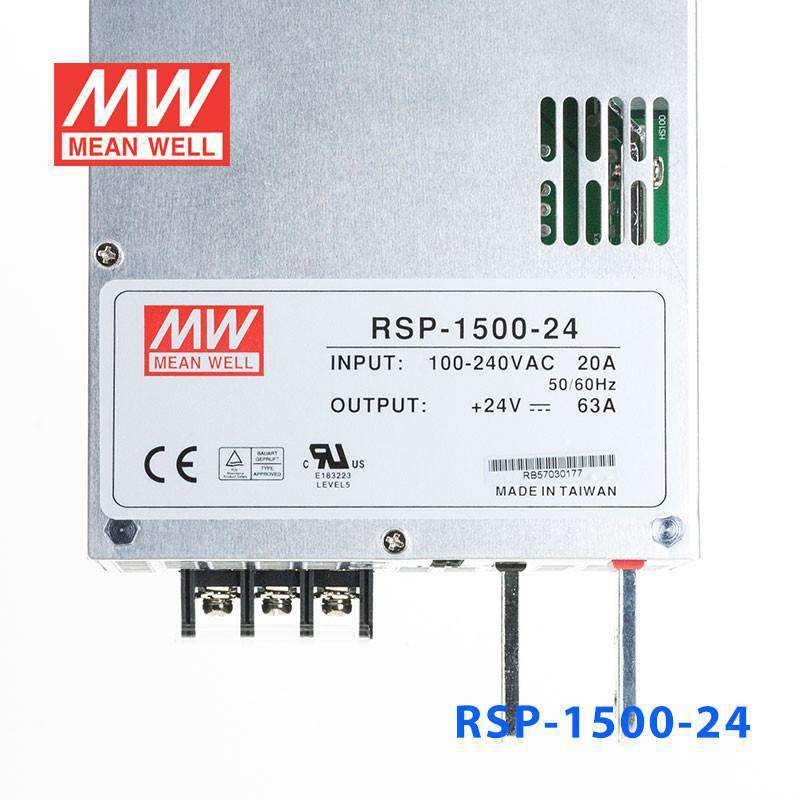

Mean Well RSP-1500-24 Power Supply 1512W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RSP-1500-24 Power Supply 1512W 24V
Description
Description
Features
| Universal AC input / Full range |
| Built-in active PFC function |
| Protections: Short circuit / Overload / Over voltage / Over temperature |

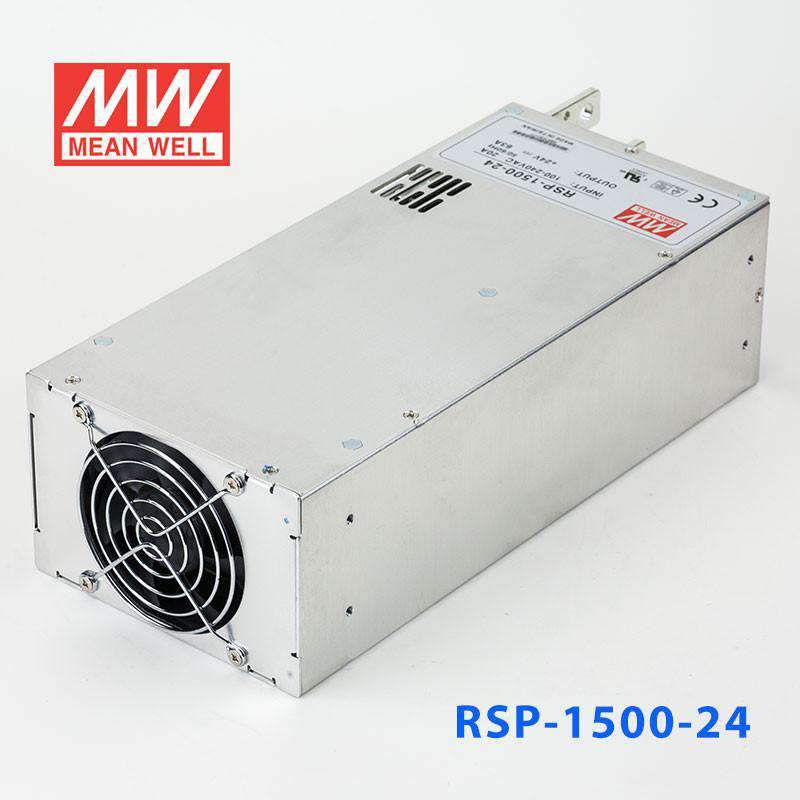

| Forced air cooling by built-in DC fan |
| Vo can be trimmed by external resistor or external control signal |
| Built-in current sharing |
| Built-in remote sense and ON/OFF control |
| Built-in auxiliary power |
| Alarm signal output |
| 5 years warranty |
General Specification
| AC input voltage range | 90~264VAC; 127~370VDC |
| AC inrush current (max.) | Cold start, 60A at 230VAC |
| DC adjustment range | -30%~+10% rated output voltage |
| Overload protection Range | 105%~135% |
| Overload protection Type | Constant current limiting, shut off after 5 sec., re-power on to recover |
| Over voltage protection Range | 115%~140% |
| Over voltage protection Type | Shut down O/P voltage, re-power on to recover |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -20~+70°C |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |

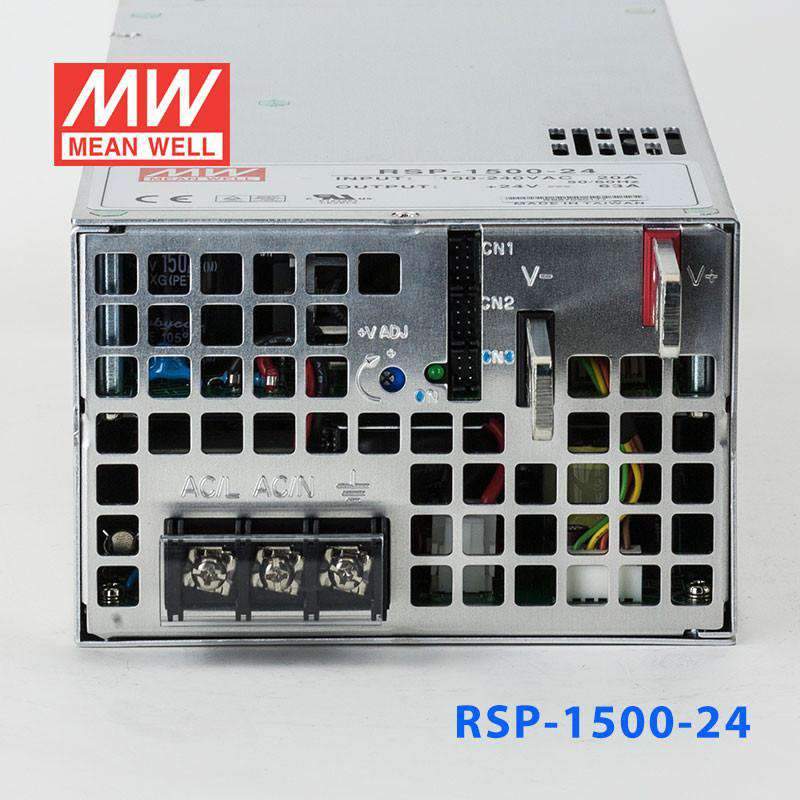

| Connection Input | 3P/13mm pitch terminal block with cover |
| Connection Output | Copper pillars |
| Dimension (LxWxH) | 278x127x83.5 |
| Case No. | 943A |
| Packing | 3.0kg; 4pcs / 13kg / 1.19CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating1512 Watt
-
Output Voltage24 Volt
-
Rated Current63 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty5 Year
-
Length10.94 in
-
Width5 in
-
Height3.29 in
-
Weight6.61 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What large-scale 24V systems can the RSP-1500-24 power?
The RSP-1500-24 delivers 24V at 63A (1512W) and is suited for large 24V DC bus applications including industrial robot control panels, conveyor drive systems, large-scale PLC installations, and facility-wide 24V sensor/actuator networks requiring over 1kW of power. The 90–264VAC input is universally compatible.
Does the RSP-1500-24 support parallel operation for redundancy?
Yes. The RSP-1500-24 supports active current sharing (3+1), allowing up to three units in parallel for 189A at 24V combined, plus a fourth unit in N+1 hot standby. This provides both increased capacity and fault tolerance for critical 24V systems.
How does the RSP-1500-24 compare to the RSP-1000-24?
The RSP-1000-24 delivers 24V/40A/960W in a 295.0 × 127.0 × 41.0 mm chassis with a -20°C to +60°C operating range. The RSP-1500-24 delivers 24V/63A/1512W in a 278.0 × 127.0 × 83.5 mm chassis with a -20°C to +70°C range. The RSP-1500-24 provides 57% more current and a higher temperature ceiling.
What is the operating temperature ceiling for the RSP-1500-24?
The RSP-1500-24 operates from -20°C to +70°C ambient, giving it a 10°C higher upper temperature limit than the RSP-1000-24. No IP rating is specified; the unit must be housed in an appropriately rated enclosure for the installation environment.
What is the efficiency of the RSP-1500-24?
The RSP-1500-24 achieves up to 91% efficiency with built-in active PFC. At the 1512W rated output, input power is approximately 1662W and heat dissipation is approximately 150W, which must be managed by the enclosure cooling system.
