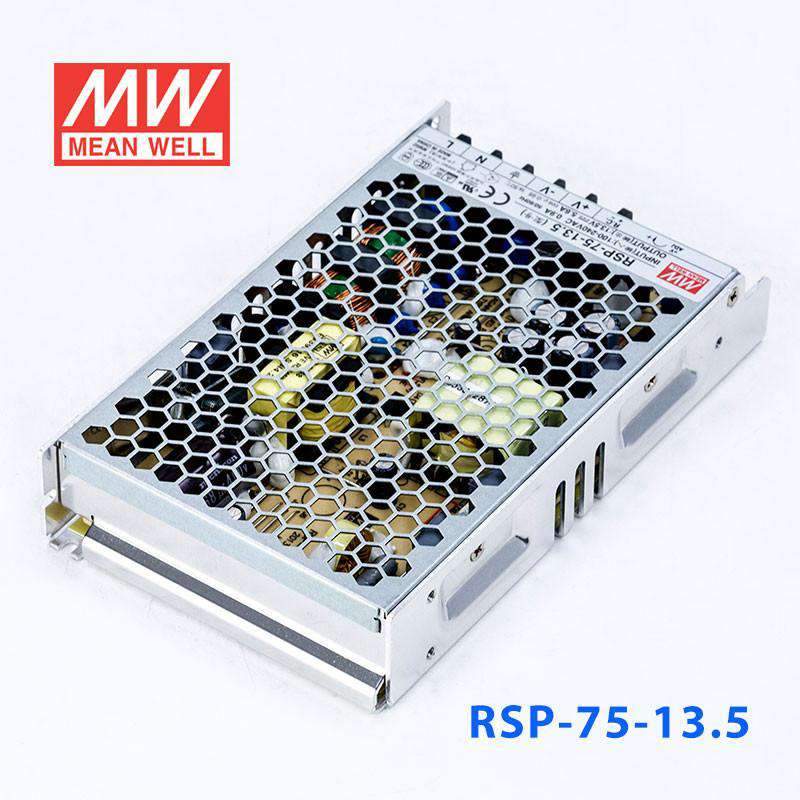

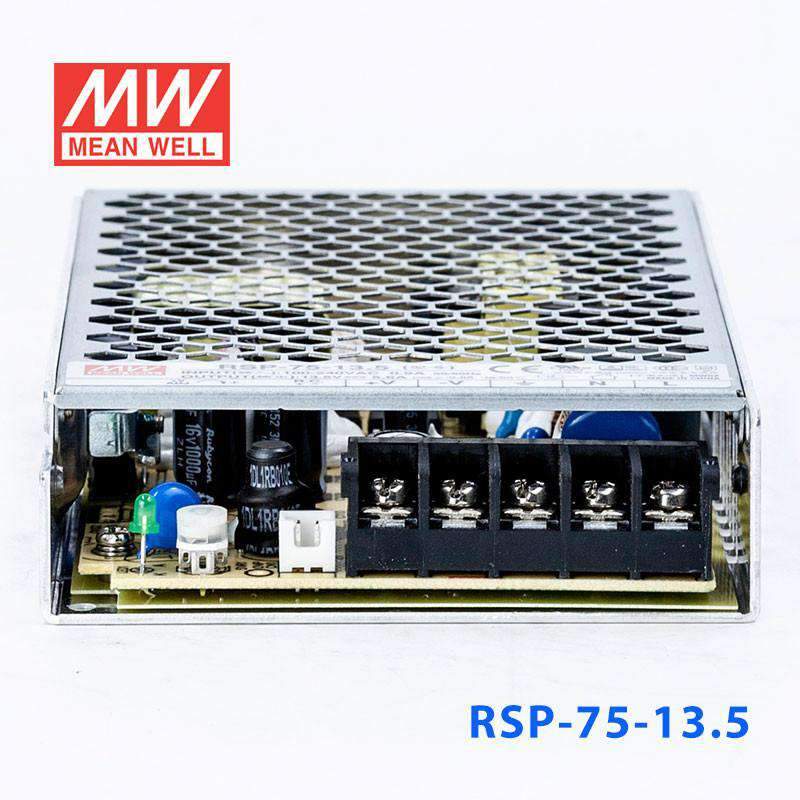

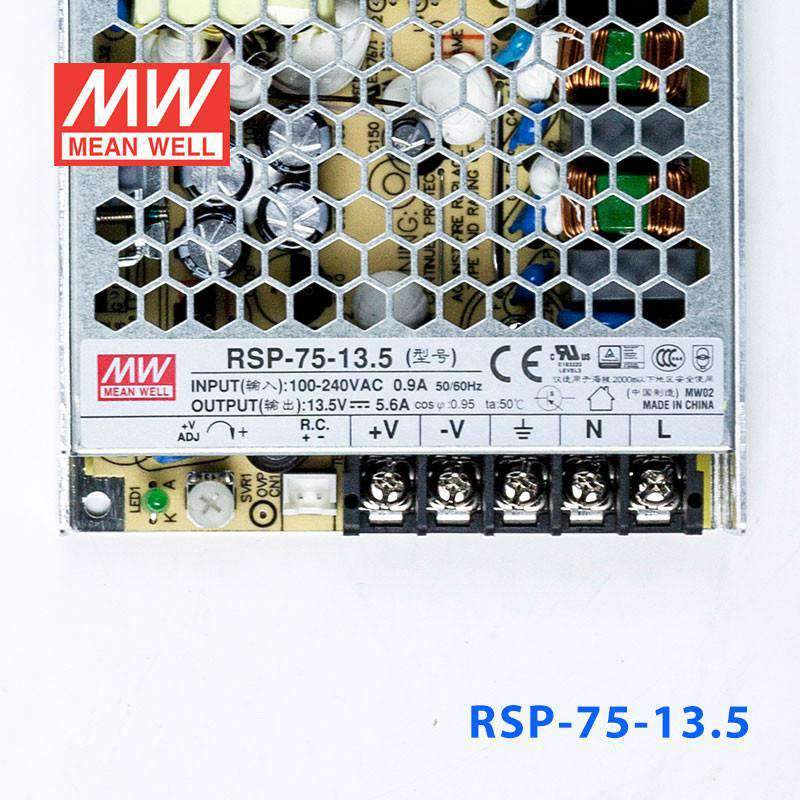

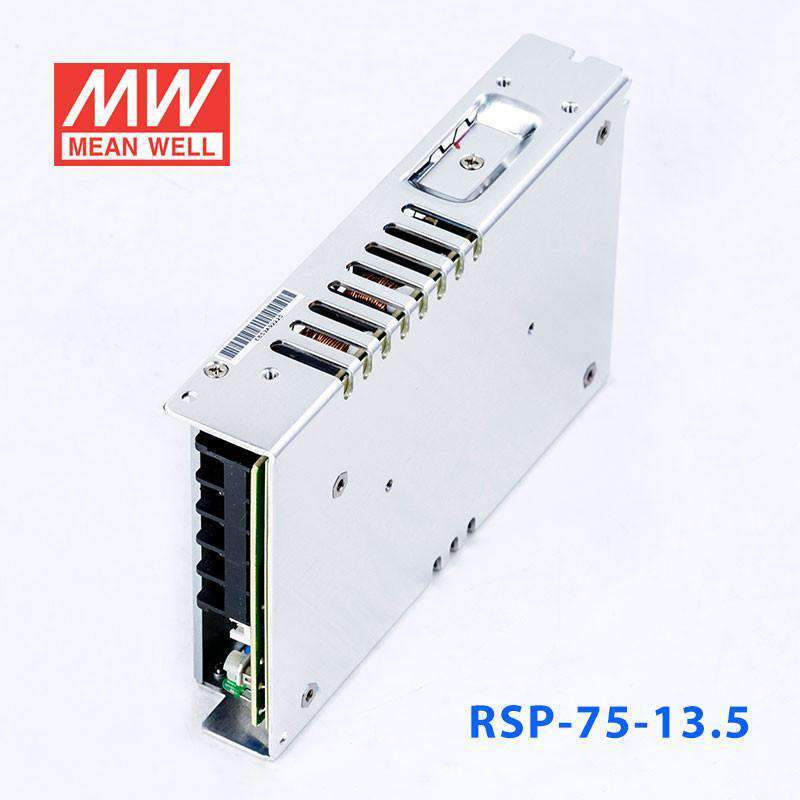

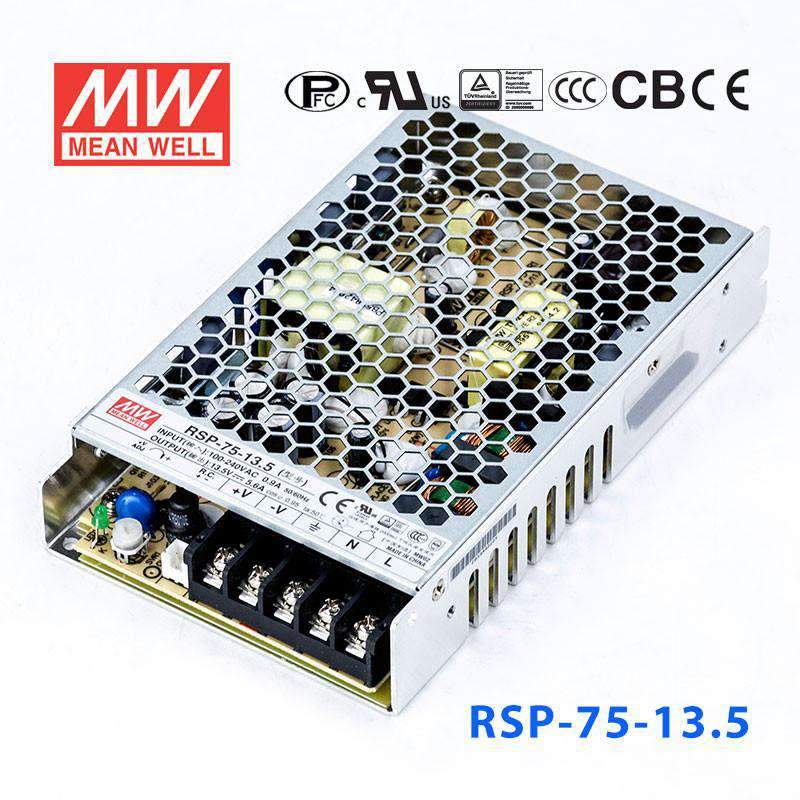

Mean Well RSP-75-13.5 Power Supply 75W 13.5V
EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024
Key Features
- ✓Universal AC input / Full range
- ✓Built-in active PFC function
- ✓Built-in constant current limiting circuit
- ✓Protections:Short circuit/ Overload / Over voltage
- ✓Cooling by free air convection
- ✓1U low profile 30mm
- ✓Remote ON-OFF control
- ✓LED indicator for power on
- ✓100% full load burn-in test
- ✓3 years warranty
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating75.6 Watt
-
Output Voltage13.5 Volt
-
Rated Current5.6 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.18 in
-
Weight0.97 lb
::specification::
Frequently Asked Questions
What is the RSP-75-13.5 commonly used for?
The RSP-75-13.5 provides 13.5V at 5.6A (75.6W), a voltage used to charge 12V lead-acid batteries under float conditions and to power small automotive-grade electronics in enclosed test rigs. Its 159.0 × 97.0 × 30.0 mm form factor suits compact panel installations.
What is the minimum operating temperature of the RSP-75-13.5?
The RSP-75-13.5 operates down to -25°C, with an upper limit of +70°C. It is designed for indoor enclosed use and holds BSMI, CB, CCC, CE, EAC, TÜV, and UL certifications.
How does the RSP-75-13.5 compare to the RSP-75-12 and RSP-75-15?
All three units share the 159.0 × 97.0 × 30.0 mm chassis and 85-264VAC input. The RSP-75-12 delivers 75.6W at 6.3A, the RSP-75-13.5 delivers 75.6W at 5.6A, and the RSP-75-15 delivers 75W at 5A. All three are rated at approximately 75W with current decreasing as voltage increases.
What certifications does the RSP-75-13.5 hold?
The RSP-75-13.5 carries BSMI, CB, CCC, CE, EAC, TÜV, and UL certifications and includes a 3-year warranty. It weighs 0.44 kg.
