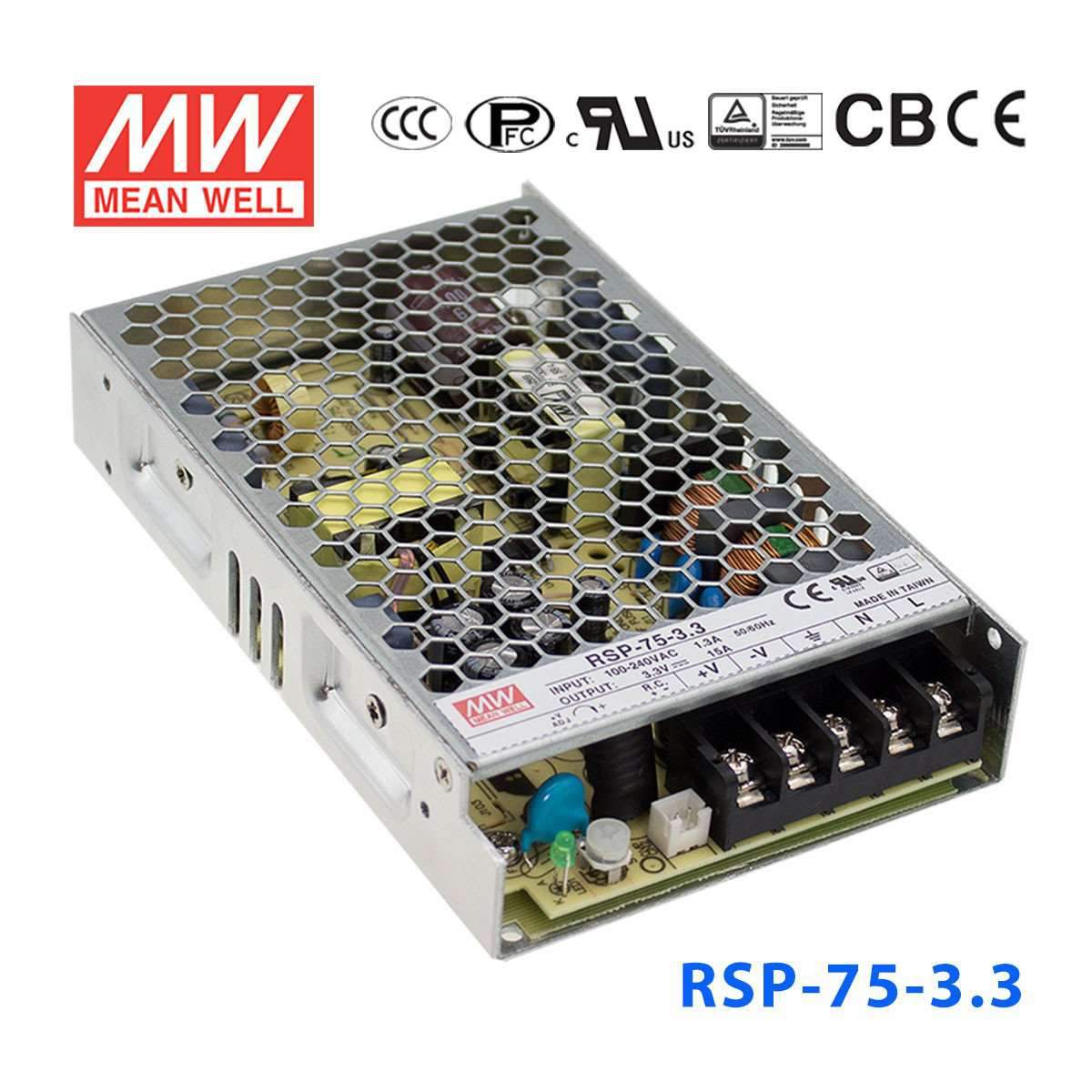

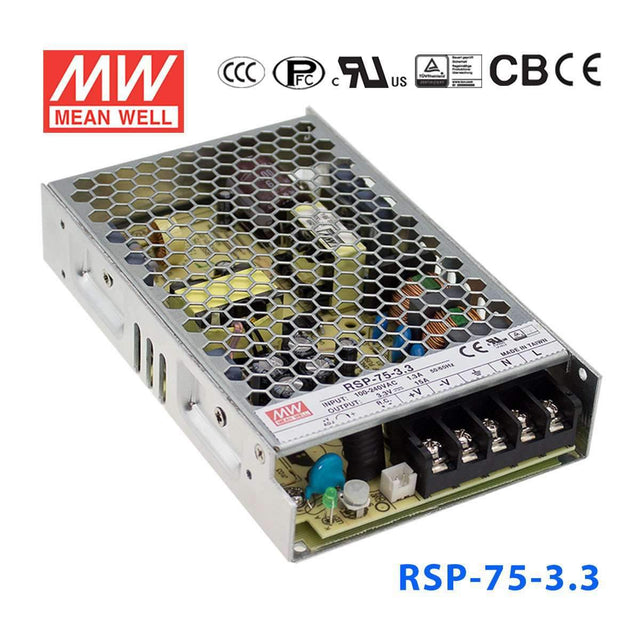

Mean Well RSP-75-3.3 Power Supply 49.5W 3.3V
EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024
Key Features
- ✓Universal AC input / Full range
- ✓Built-in active PFC function
- ✓Built-in constant current limiting circuit
- ✓Protections:Short circuit/ Overload / Over voltage
- ✓Cooling by free air convection
- ✓1U low profile 30mm
- ✓Remote ON-OFF control
- ✓LED indicator for power on
- ✓100% full load burn-in test
- ✓3 years warranty
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating49.5 Watt
-
Output Voltage3.3 Volt
-
Rated Current15 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.18 in
-
Weight0.97 lb
::specification::
Frequently Asked Questions
What applications is a 3.3V, 15A compact supply like the RSP-75-3.3 suited for?
The RSP-75-3.3 provides 3.3V at 15A (49.5W), suitable for powering logic-level subsystems on embedded boards, FPGA I/O banks, and small industrial controllers where a regulated 3.3V rail is required in a confined space. Its 159.0 × 97.0 × 30.0 mm chassis enables use in tight enclosures.
What is the operating temperature range of the RSP-75-3.3?
The RSP-75-3.3 operates from -25°C to +70°C ambient. It carries BSMI, CB, CCC, CE, EAC, TÜV, and UL certifications and is rated for indoor enclosed use.
How does the RSP-75-3.3 compare to the RSP-75-5 and RSP-75-7.5?
All three use the same 159.0 × 97.0 × 30.0 mm chassis and 85-264VAC input. The RSP-75-3.3 provides 49.5W at 15A, the RSP-75-5 provides 75W at 15A, and the RSP-75-7.5 provides 75W at 10A. The RSP-75-3.3 produces the lowest total power of the group because the low output voltage limits wattage at the rated 15A.
What is the actual rated power of the RSP-75-3.3?
The RSP-75-3.3 is rated at 49.5W (3.3V × 15A). Despite the RSP-75 series designation, the low output voltage constrains total output power. It weighs 0.44 kg and includes a 3-year warranty.
