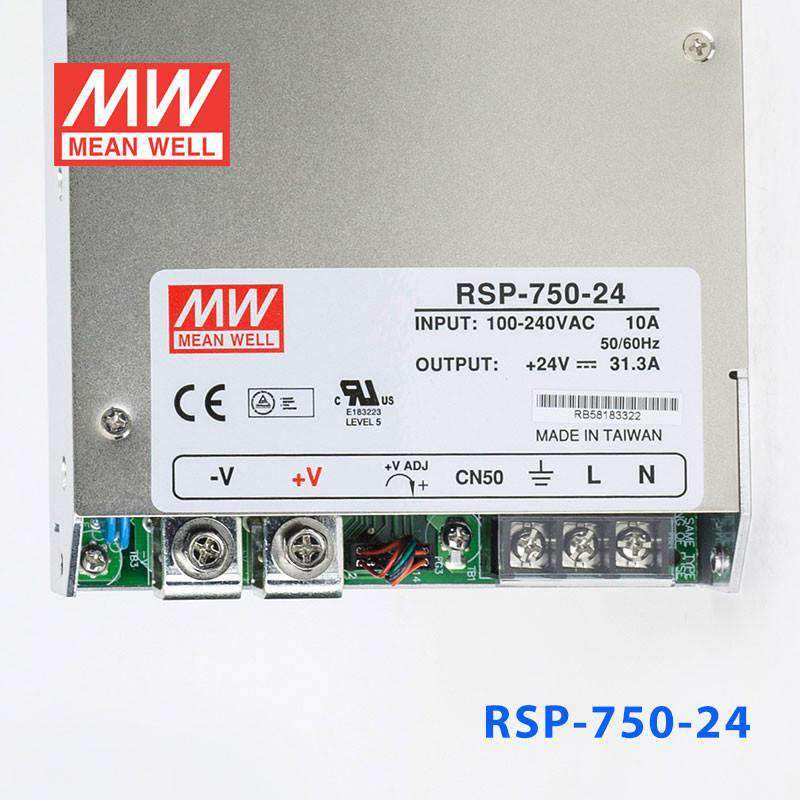

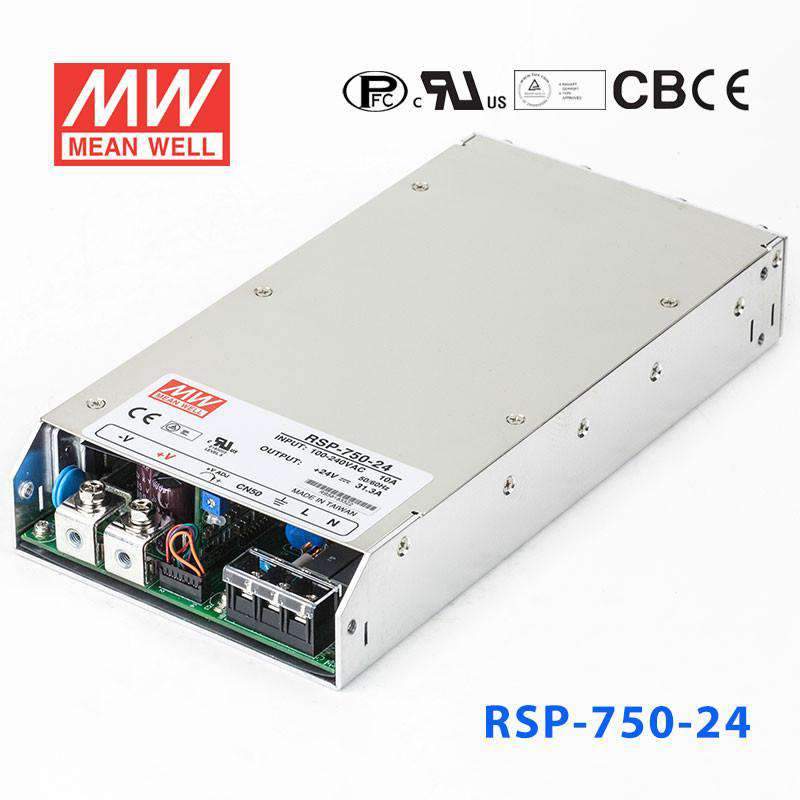

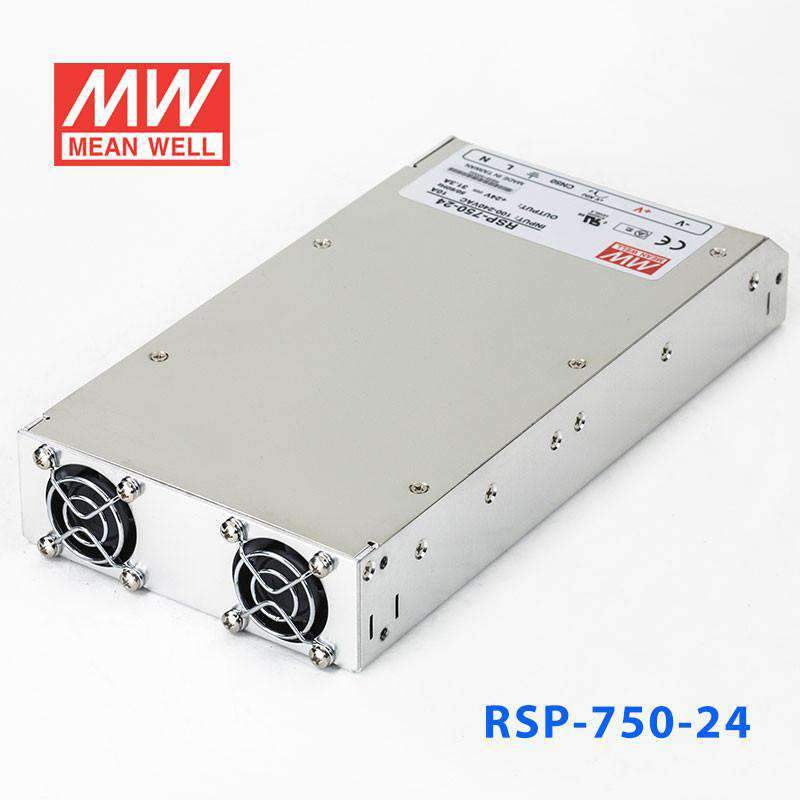

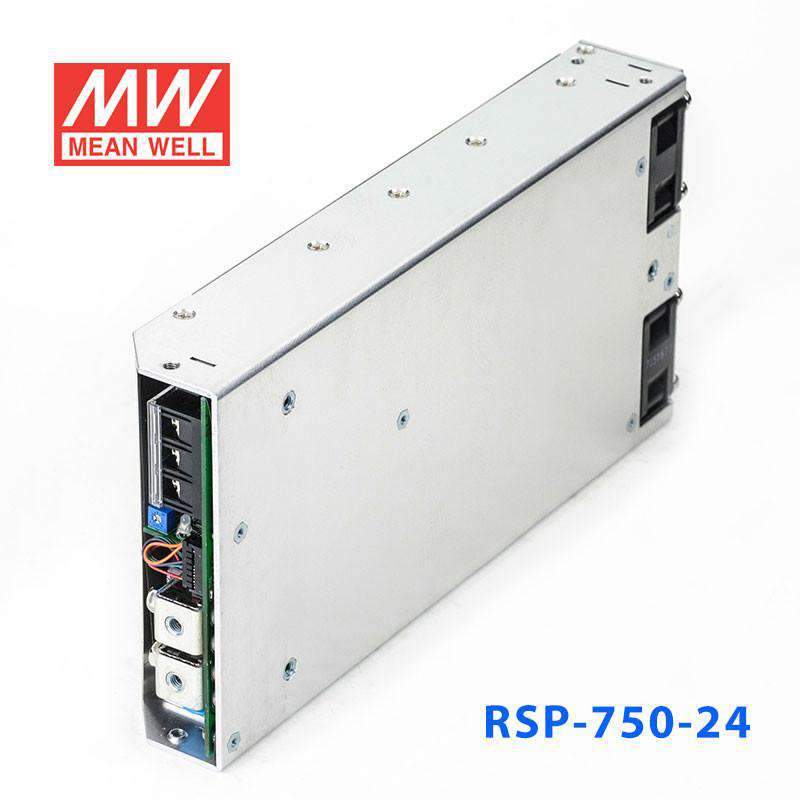

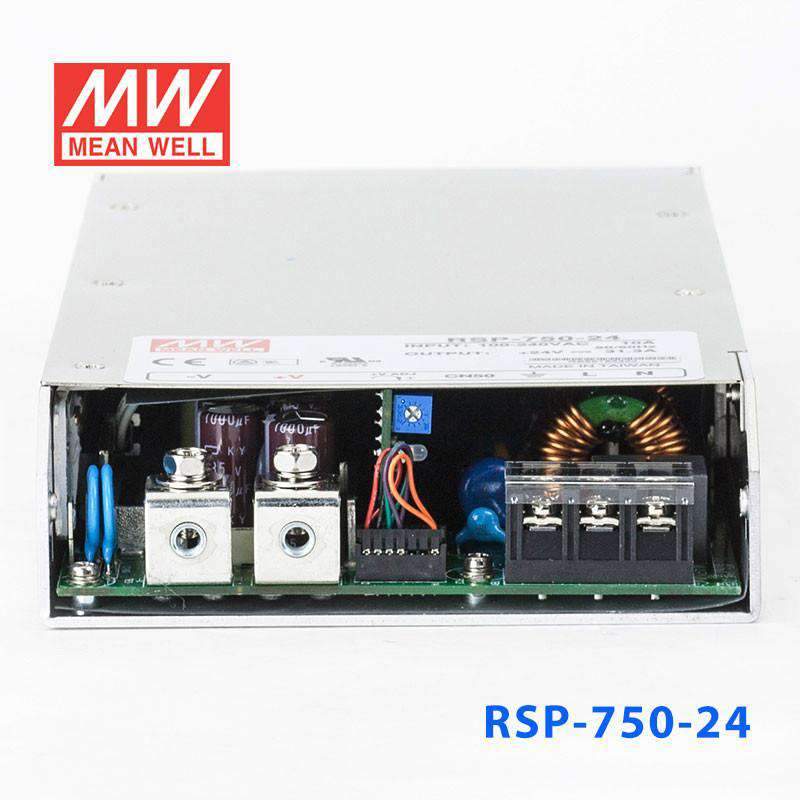

Mean Well RSP-750-24 Power Supply 750W 24V
EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024
Key Features
- ✓Universal AC input / Full range
- ✓Built-in active PFC function
- ✓Built-in constant current limiting circuit
- ✓Protections:Short circuit/ Overload / Over voltage
- ✓Cooling by free air convection
- ✓1U low profile 30mm
- ✓Remote ON-OFF control
- ✓LED indicator for power on
- ✓100% full load burn-in test
- ✓3 years warranty
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating751.2 Watt
-
Output Voltage24 Volt
-
Rated Current31.3 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length9.84 in
-
Width5 in
-
Height1.61 in
-
Weight3.62 lb
::specification::
Frequently Asked Questions
What systems commonly use the RSP-750-24 in industrial automation?
The RSP-750-24 delivers 751.2W at 24V and 31.3A, a strong match for large PLC systems, multi-axis servo controllers, and industrial robots running on a 24V DC bus. Its 1U form factor (250.0 × 127.0 × 41.0 mm) suits rack and panel enclosures.
What is the operating temperature range of the RSP-750-24?
The RSP-750-24 operates from -30°C to +70°C ambient. It is designed for indoor enclosed use and is certified to BSMI, CB, CCC, CE, EAC, TÜV, and UL. A 5-year warranty is included.
How does the RSP-750-24 compare to the RSP-750-27 and RSP-750-48 at higher voltages?
All three share the 250.0 × 127.0 × 41.0 mm chassis and 90-264VAC input. The RSP-750-24 delivers 751.2W at 31.3A, the RSP-750-27 delivers 750.6W at 27.8A, and the RSP-750-48 delivers 753.6W at 15.7A. Total power is nearly identical across the three; current decreases as voltage increases.
Does the RSP-750-24 offer conformal coating?
Yes. The RSP-750-24 is available with optional conformal coating for added environmental protection. It achieves up to 92% efficiency, includes built-in active PFC, and weighs 1.64 kg.
