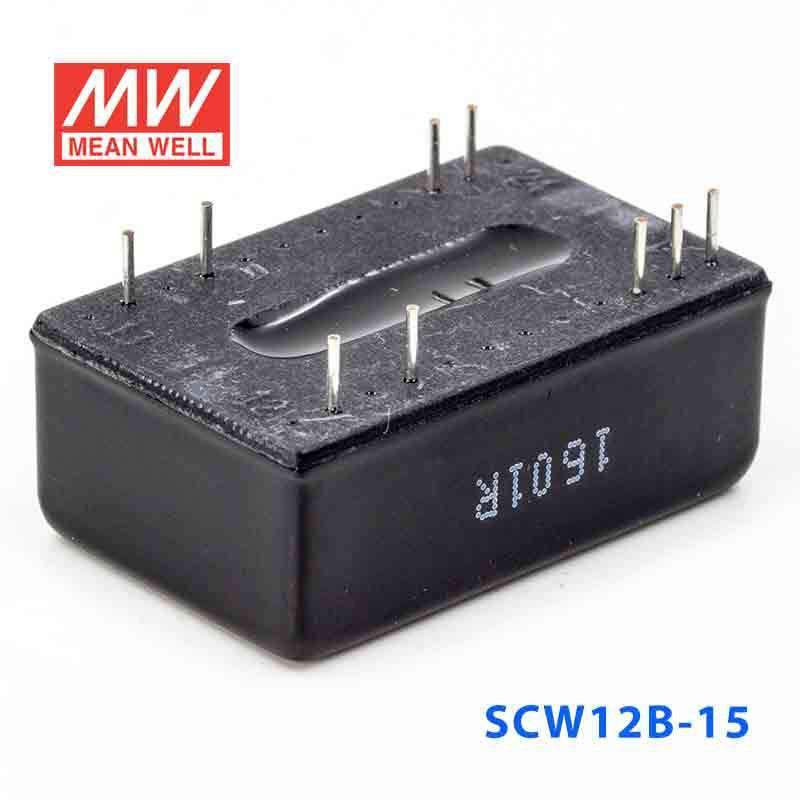

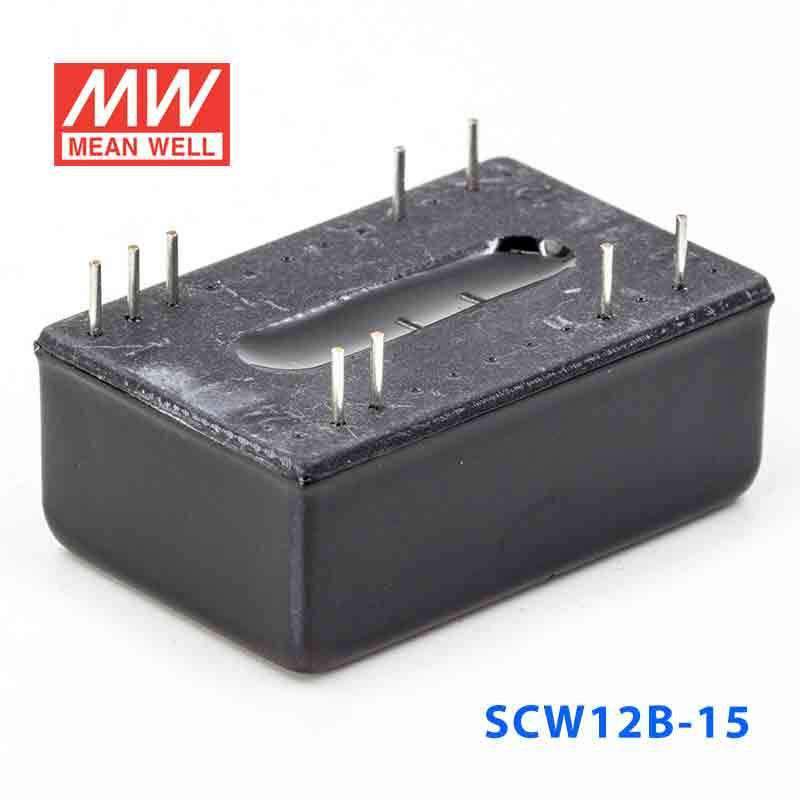

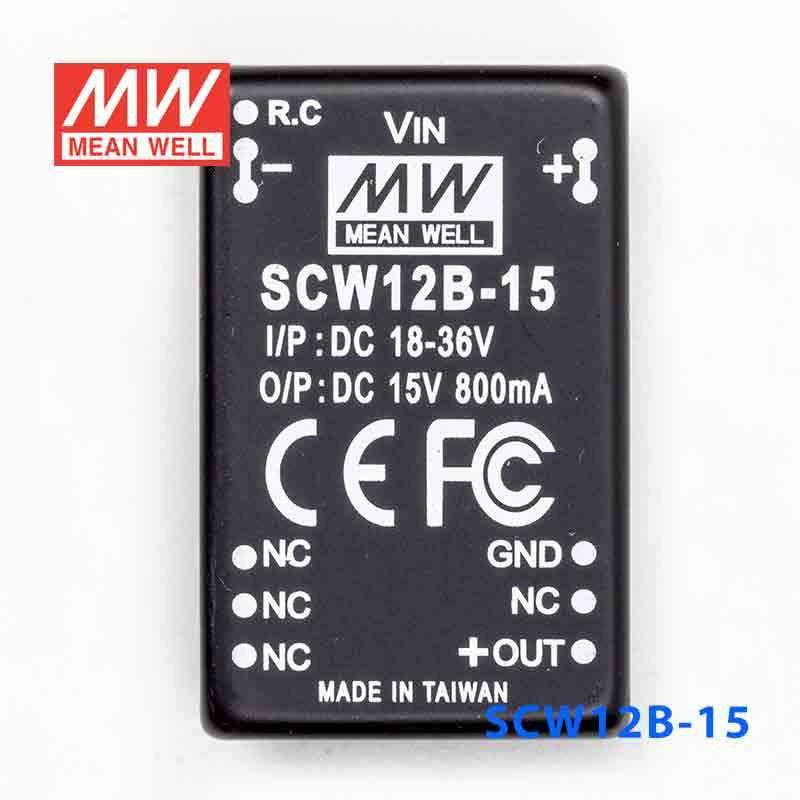

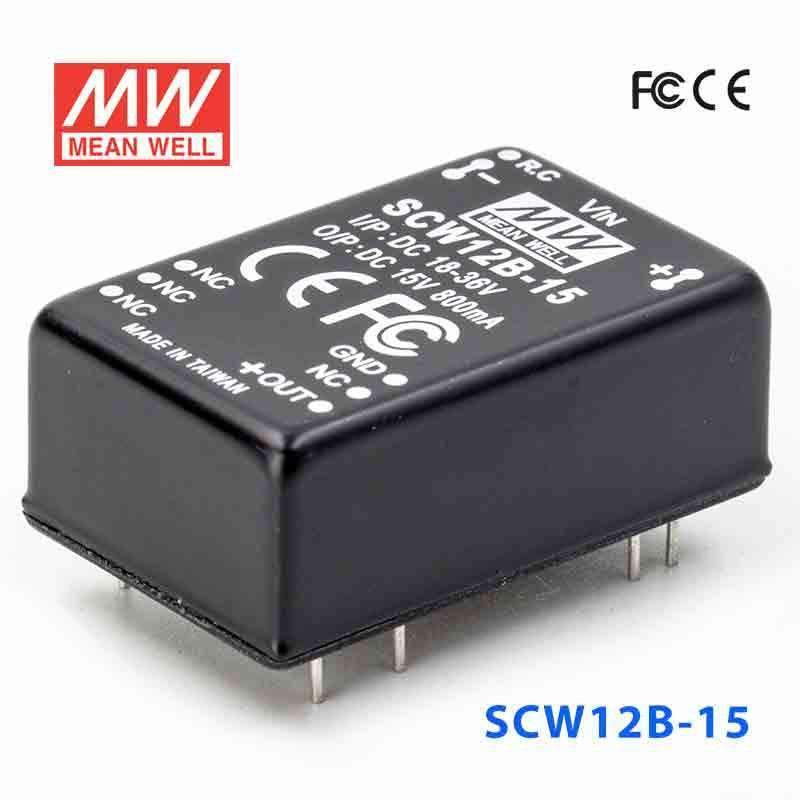

Mean Well SCW12B-15 DC-DC Converter - 12W 18~36V DC in 15V out
The SCW12B is a 12W Mean Well power converter.
Key Features
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSCW Series
-
Power Rating12 Watt
-
Output Voltage15 Volt
-
Rated Current0.8 Ampere
-
Input Voltage18V~36V
-
No of Output1
-
Dimming ControlNone
-
Standards MetEAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~71°C
-
Warranty2 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.48 in
-
Weight0.03 lb
::specification::
Frequently Asked Questions
Can I use the SCW12B-15 to power a 15V industrial sensor or transmitter?
It can fit low-power 15V industrial sensors or transmitters that need constant voltage and stay within 15V, 0.8A, and 12W. Its specified input range is 18-36VAC, so the source side also needs to match that range.
Is the SCW12B-15 suitable for embedded or automation boards that require 15V DC?
This converter is intended for constant-voltage 15V output and can be used where the load stays at or below 0.8A and 12W. That makes it a fit for compact embedded or automation subcircuits that need a regulated 15V rail rather than a higher-power supply.
Can this model be used in a compact industrial control assembly with limited space?
Yes, its body is 31.75 × 20.32 × 12.19 mm and weighs 0.015 kg, so it suits space-constrained control assemblies. The electrical fit still depends on the load requiring 15V constant voltage within 0.8A and 12W.
Which SCW12B model should I choose: 5V, 12V, or 15V?
In the SCW12B series, the SCW12B-05 is 12W with 5V output at 2.4A, the SCW12B-12 is 12W with 12V output at 1A, and the SCW12B-15 is 12W with 15V output at 0.8A. All three are constant-voltage models, so selection depends on the output voltage and current your load requires.
Can the SCW12B-15 be used in harsh temperature conditions or outdoor equipment?
Its specified operating range is -40°C to +71°C, so it is designed for wide-temperature use. No IP rating is listed in the provided specs, so those specs do not confirm outdoor or weather-exposed use.
