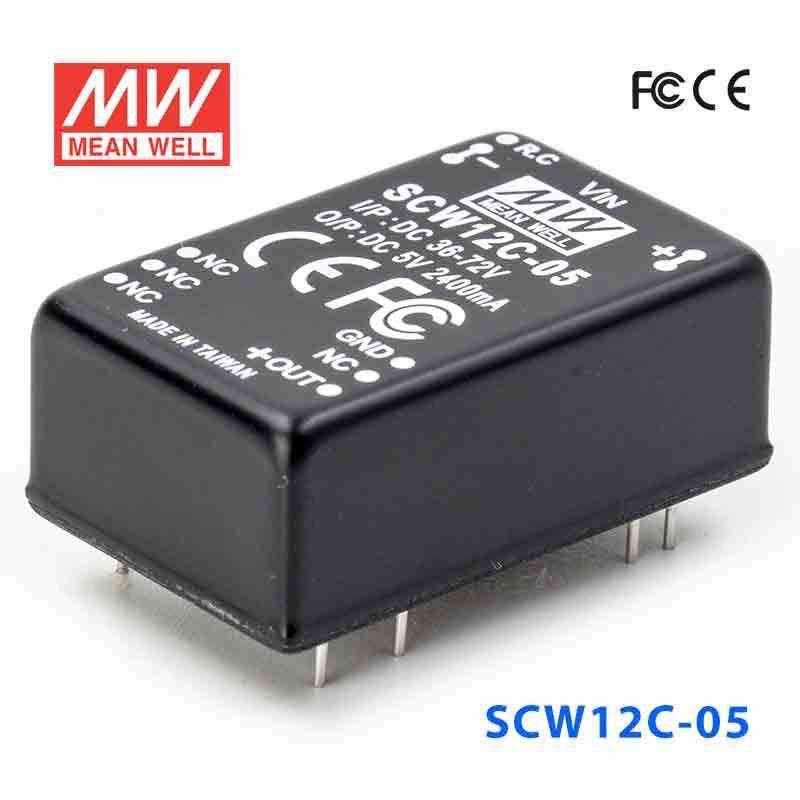

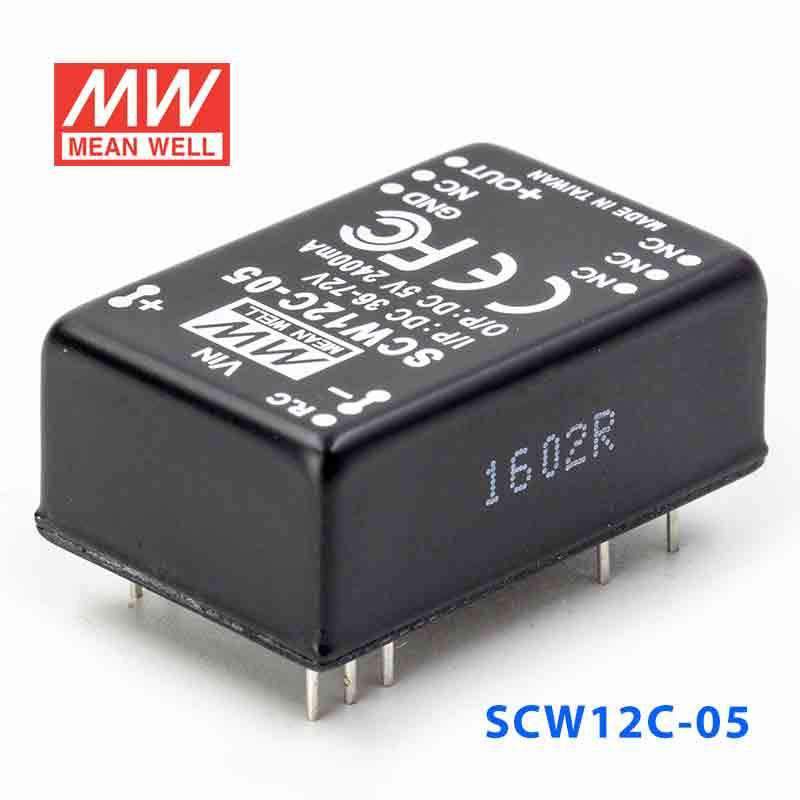

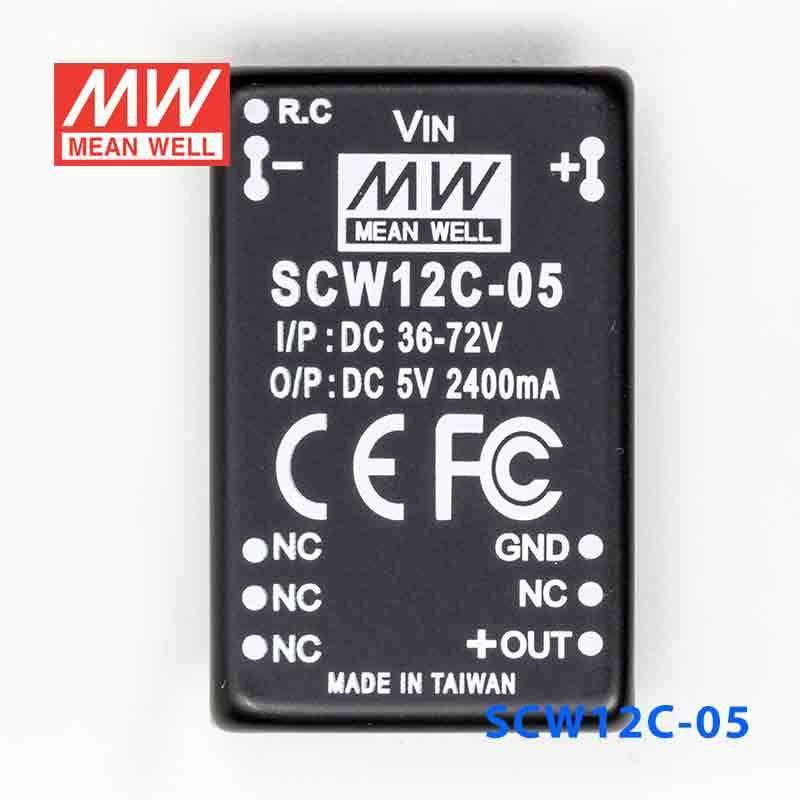

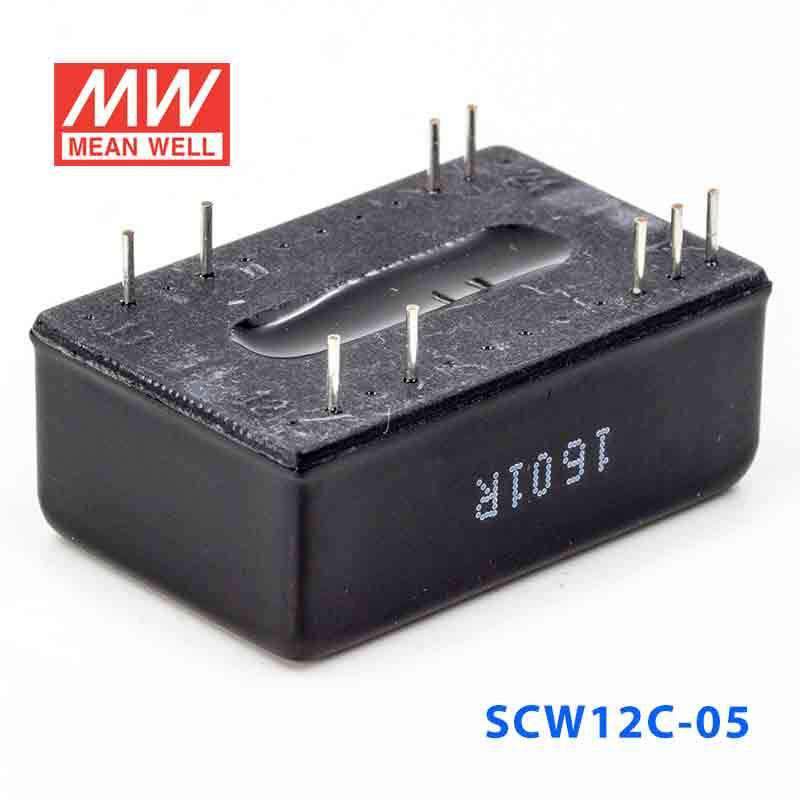

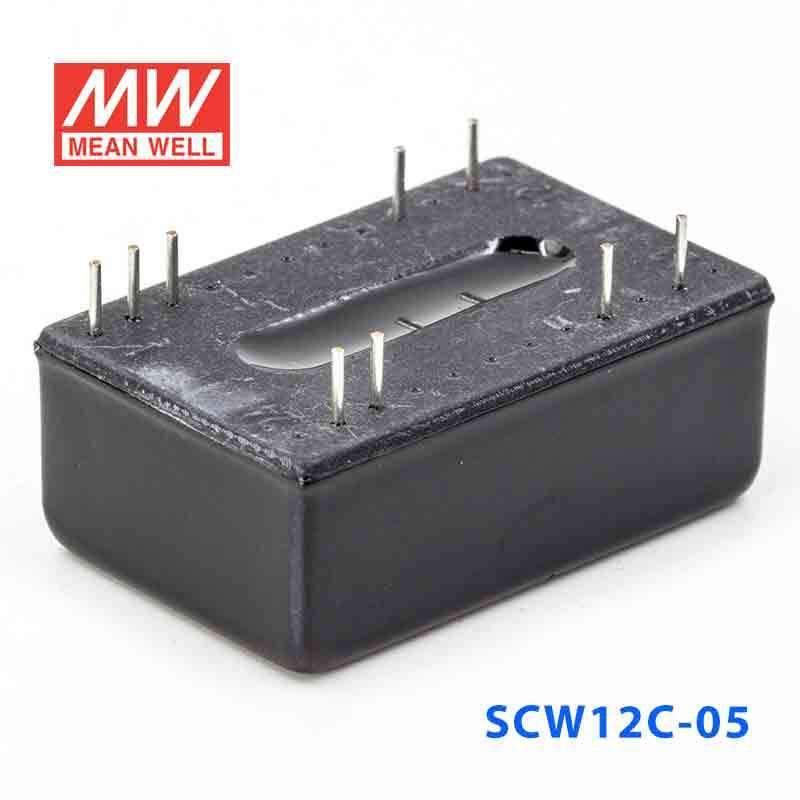

Mean Well SCW12C-05 DC-DC Converter - 12W 36~72V DC in 5V out

SKU:

SCW12C-05

$17.20 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

2: 1 wide input range

1500VDC I / O isolation

Built-in remote ON / OFF control

Modified models available: output 2.5V / 3.3V

Built-in EMI filter

Protection: Short circuit / Overload

Cooling by free air convection

Five-sided shield metal case

100% full load burn-in test

Low cost, high reliability

2 years warranty

General Specification

Voltage set point accuracy	± 2% (max.)
Line regulation	± 0.5% (max.)
Load regulation	± 0.5% (max.) @ 10 ~ 100% load
Overload protection	110% to 180%, auto-recovery
Efficiency	85% (typical)
Short circuit protection	Continuous, auto-recovery
I / O isolation voltage	1500VDC (min.)
I / O isolation resistance	100MQ(min.)@500VDC
Isolation capacitance	80pF (max.)
Working temperature	-40 ~ + 71°C (refer to output derating curve)
Storage temperature	-40°C to + 105°C
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	± 0.03% / ° C (max.)
Dimension (LxWxH) (mm)	1.25 ""x 0.8"" x 0.48 ""
Case material	Five-sided shield metal case

Specifications

Brand

Mean Well
Series

SCW Series
Power Rating

12 Watt
Output Voltage

5 Volt
Rated Current

1 Ampere
Input Voltage

36V~72V
No of Output

1
Dimming Control

None
Standards Met

EAC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~71°C
Warranty

2 Year
Length

1.25 in
Width

0.8 in
Height

0.48 in
Weight

0.03 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SCW12C-05 for a 5V embedded controller in industrial equipment?

Yes, it is a constant-voltage 5V converter for loads up to 1A and 12W. It is best suited to low-power embedded controllers and similar electronics when the available input is within 36-72VAC.

Is the SCW12C-05 suitable for powering 5V logic or interface circuits in automation systems?

It can be used for 5V logic or interface sections that stay within 1A output current and 12W total power. The converter is not meant for loads that need more than its rated 5V, 1A output.

Can this converter support a small 5V monitoring or communications module?

It is appropriate for low-power 5V monitoring or communications modules if the module operates on constant 5V and draws no more than 1A. The source side must also match the specified 36-72VAC input range.

How do I choose between the SCW12C-05, SCW12C-12, and SCW12C-15?

The SCW12C-05 provides 5V at 1A, the SCW12C-12 provides 12V at 0.8A, and the SCW12C-15 provides 15V at 2.4A. All are 12W, constant-voltage models with the same 36-72VAC input range, so the main difference is the required output voltage and available output current.

Is the SCW12C-05 rated for outdoor environments or wide temperature swings?

The operating temperature range is -40°C to +71°C, which supports use across a wide temperature span. No IP rating is provided, so the listed specs do not establish outdoor or washdown suitability.
