Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

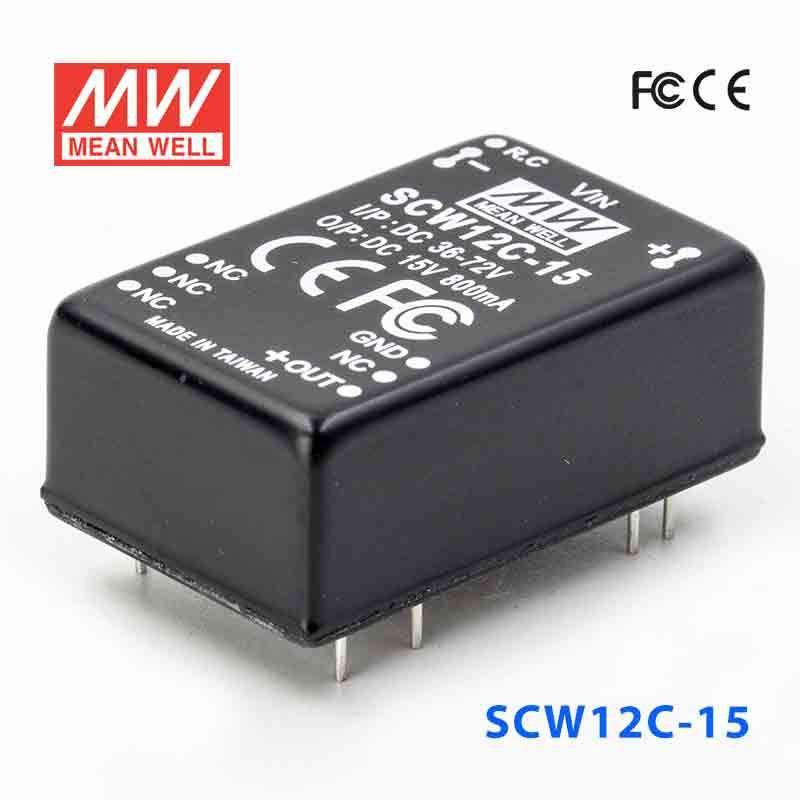

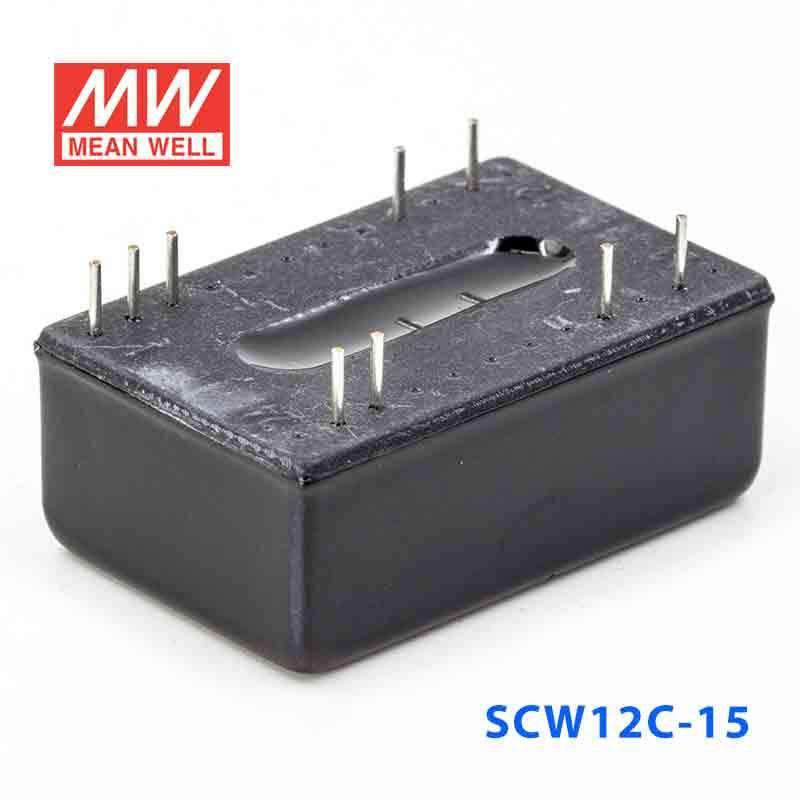

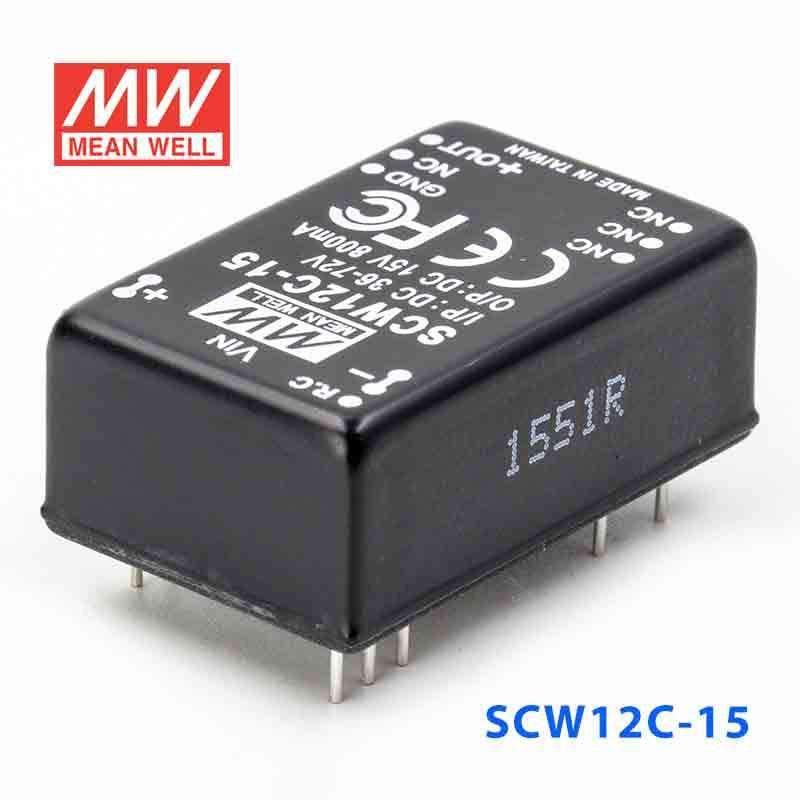

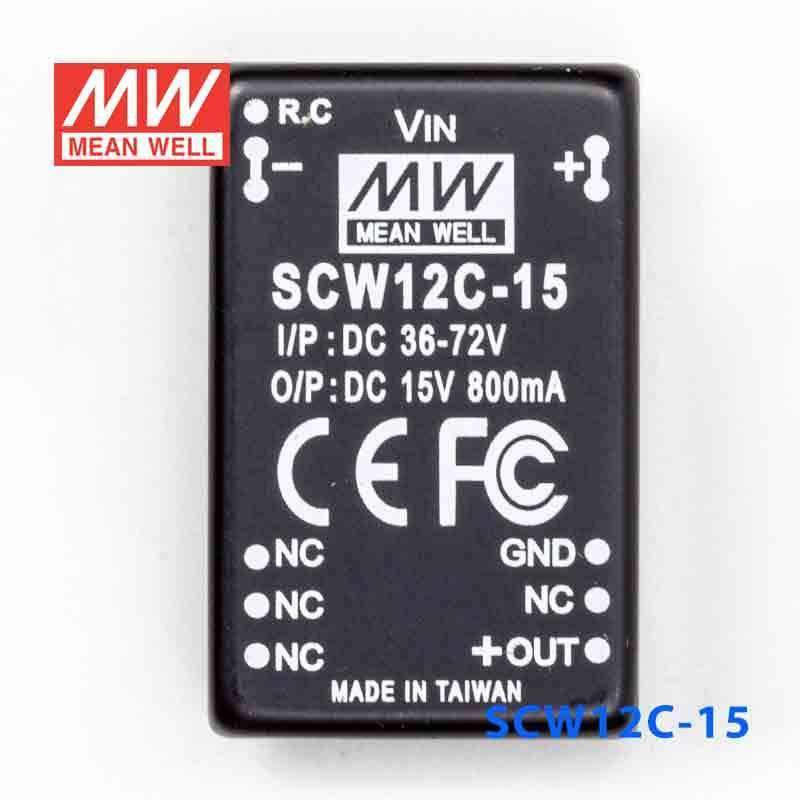

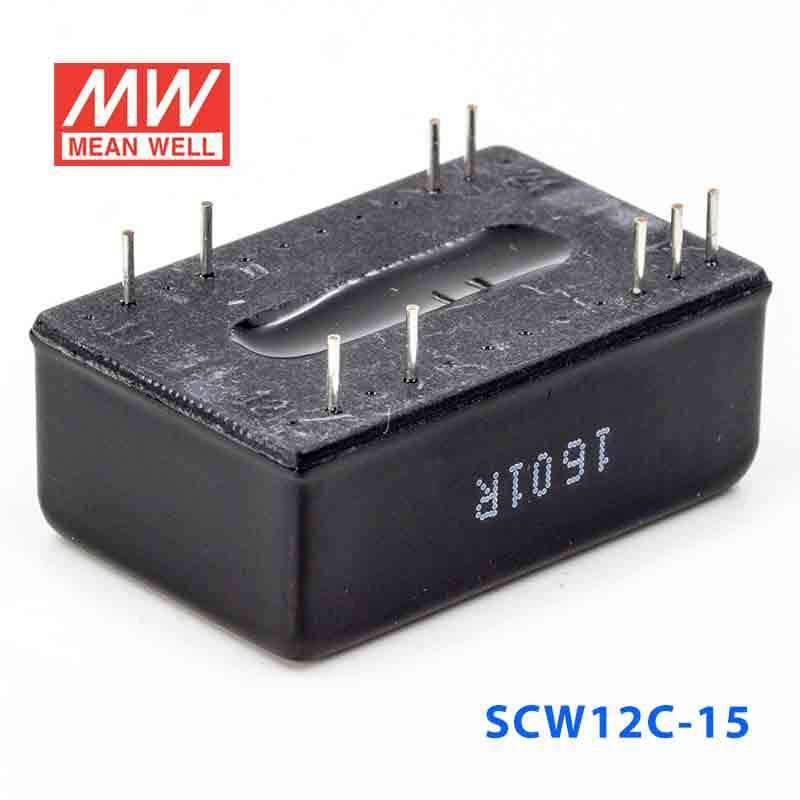

Mean Well SCW12C-15 DC-DC Converter - 12W 36~72V DC in 15V out

SKU:

SCW12C-15

$18.90 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

2: 1 wide input range

1500VDC I / O isolation

Built-in remote ON / OFF control

Modified models available: output 2.5V / 3.3V

Built-in EMI filter

Protection: Short circuit / Overload

Cooling by free air convection

Five-sided shield metal case

100% full load burn-in test

Low cost, high reliability

2 years warranty

General Specification

Voltage set point accuracy	± 2% (max.)
Line regulation	± 0.5% (max.)
Load regulation	± 0.5% (max.) @ 10 ~ 100% load
Overload protection	110% to 180%, auto-recovery
Efficiency	85% (typical)
Short circuit protection	Continuous, auto-recovery
I / O isolation voltage	1500VDC (min.)
I / O isolation resistance	100MQ(min.)@500VDC
Isolation capacitance	80pF (max.)
Working temperature	-40 ~ + 71°C (refer to output derating curve)
Storage temperature	-40°C to + 105°C
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	± 0.03% / ° C (max.)
Dimension (LxWxH) (mm)	1.25 ""x 0.8"" x 0.48 ""
Case material	Five-sided shield metal case

Specifications

Brand

Mean Well
Series

SCW Series
Power Rating

12 Watt
Output Voltage

15 Volt
Rated Current

2.4 Ampere
Input Voltage

36V~72V
No of Output

1
Dimming Control

None
Standards Met

EAC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~71°C
Warranty

2 Year
Length

1.25 in
Width

0.8 in
Height

0.48 in
Weight

0.03 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SCW12C-15 for a 15V industrial control or instrumentation load?

It is designed for constant-voltage 15V output and is specified at 2.4A and 12W. It fits 15V industrial control or instrumentation loads when both the input and output requirements match the listed specs.

Is the SCW12C-15 suitable for a 15V embedded subsystem in a larger machine?

Yes, it can be used for a 15V embedded subsystem when the subsystem needs constant 15V and the overall load stays within the converter's stated 2.4A and 12W ratings. The available source also needs to fall within 36-72VAC.

Can this converter power a compact 15V interface board in an automation cabinet?

Its small size of 31.75 × 20.32 × 12.19 mm and weight of 0.015 kg make it practical for compact assemblies. It is intended for 15V constant-voltage loads and should only be used where the board demand matches the stated 2.4A and 12W limits.

What is the difference between the SCW12C-15 and its sibling models?

The SCW12C-05 is rated at 12W with 5V output at 1A, the SCW12C-12 is 12W with 12V output at 0.8A, and the SCW12C-15 is 12W with 15V output at 2.4A. All three use constant-voltage operation and the same 36-72VAC input range.

Is the SCW12C-15 appropriate for outdoor equipment or temperature-heavy locations?

The operating temperature range is -40°C to +71°C, so it supports wide ambient conditions from a temperature standpoint. No IP rating is given in the product specs, so those specs do not verify outdoor or weather-exposed use.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well SCW12C-12 DC-DC Converter - 12W 36~72V DC in 12V out	12W	12V	0.8A	Indoor	$18.90	View
Mean Well SCW12C-05 DC-DC Converter - 12W 36~72V DC in 5V out	12W	5V	1A	Indoor	$17.20	View
Mean Well SCW12B-15 DC-DC Converter - 12W 18~36V DC in 15V out	12W	15V	0.8A	Indoor	$18.90	View
Mean Well SCW12B-12 DC-DC Converter - 12W 18~36V DC in 12V out	12W	12V	1A	Indoor	$18.90	View
Mean Well SCW12B-05 DC-DC Converter - 12W 18~36V DC in 5V out	12W	5V	2.4A	Indoor	$18.90	View
Mean Well SCW12A-15 DC-DC Converter - 12W 9~18V DC in 15V out	12W	15V	0.8A	Indoor	$18.90	View
Mean Well SCW12A-12 DC-DC Converter - 12W 9~18V DC in 12V out	12W	12V	1A	Indoor	$18.90	View
Mean Well SCW12A-05 DC-DC Converter - 12W 9~18V DC in 5V out	12W	5V	2.4A	Indoor	$18.90	View
