Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

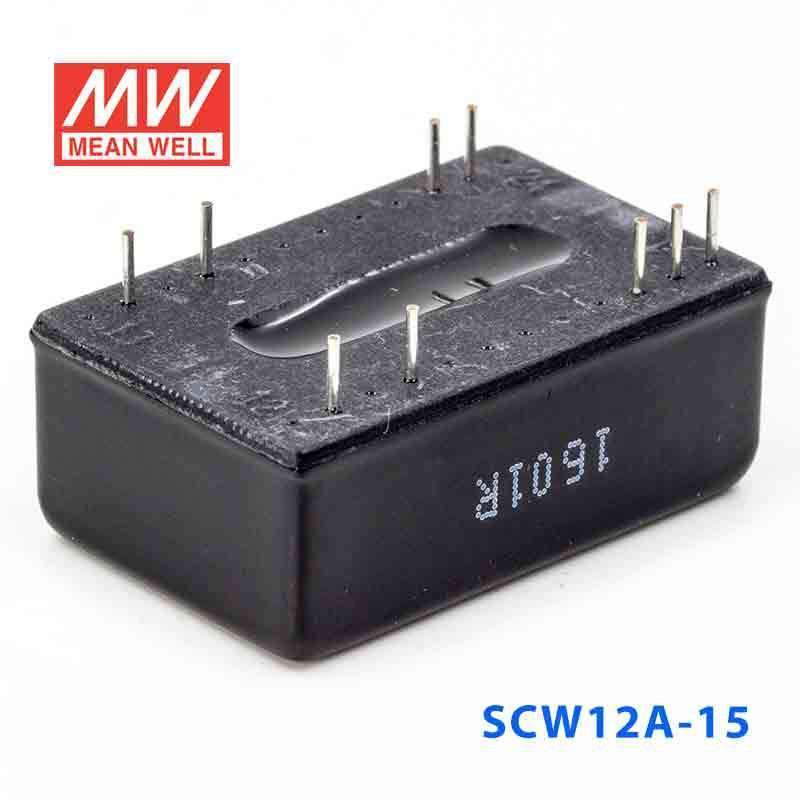

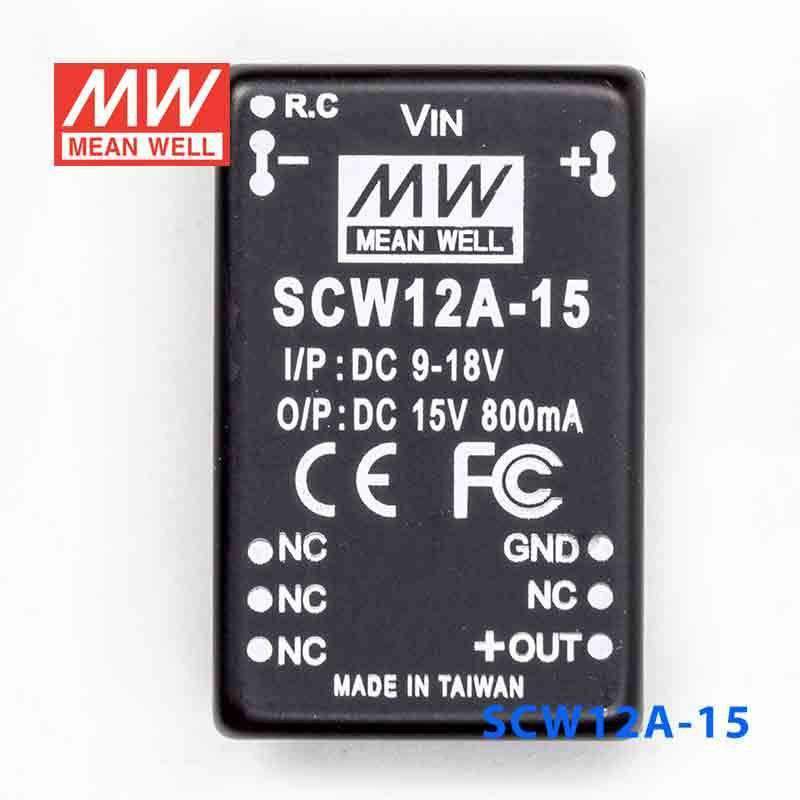

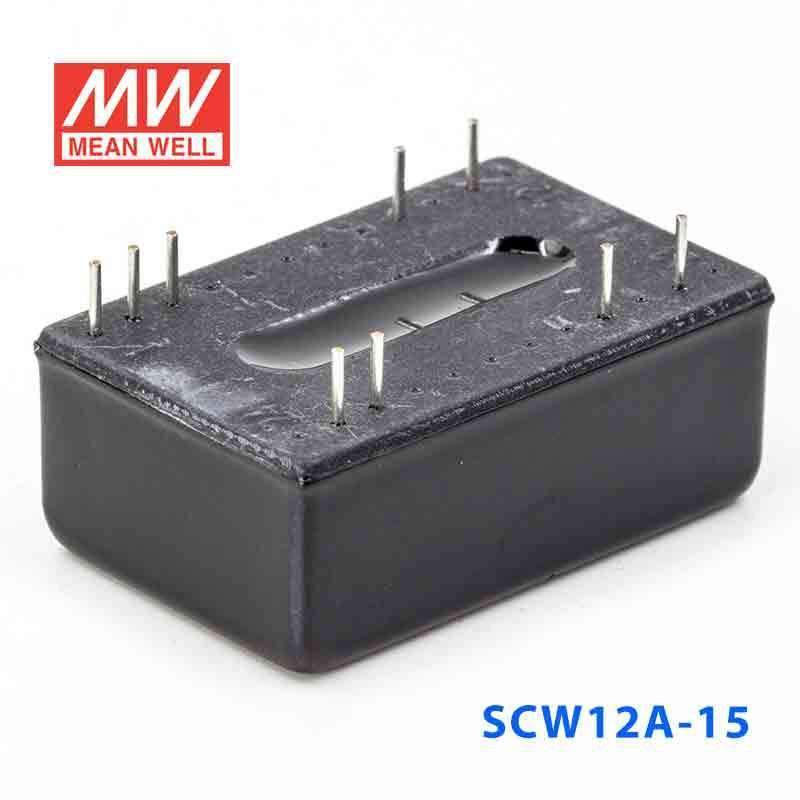

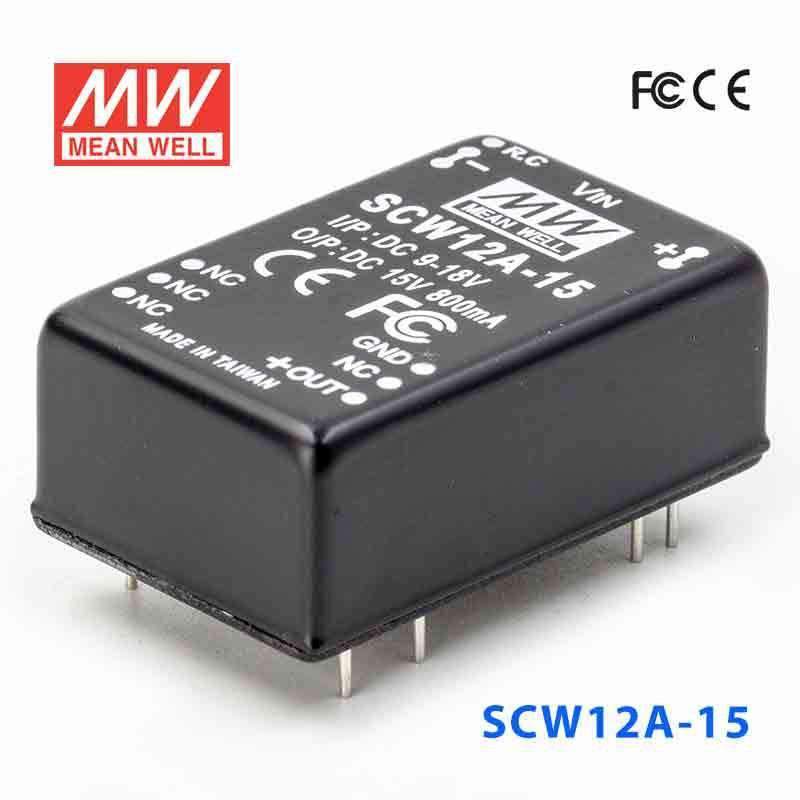

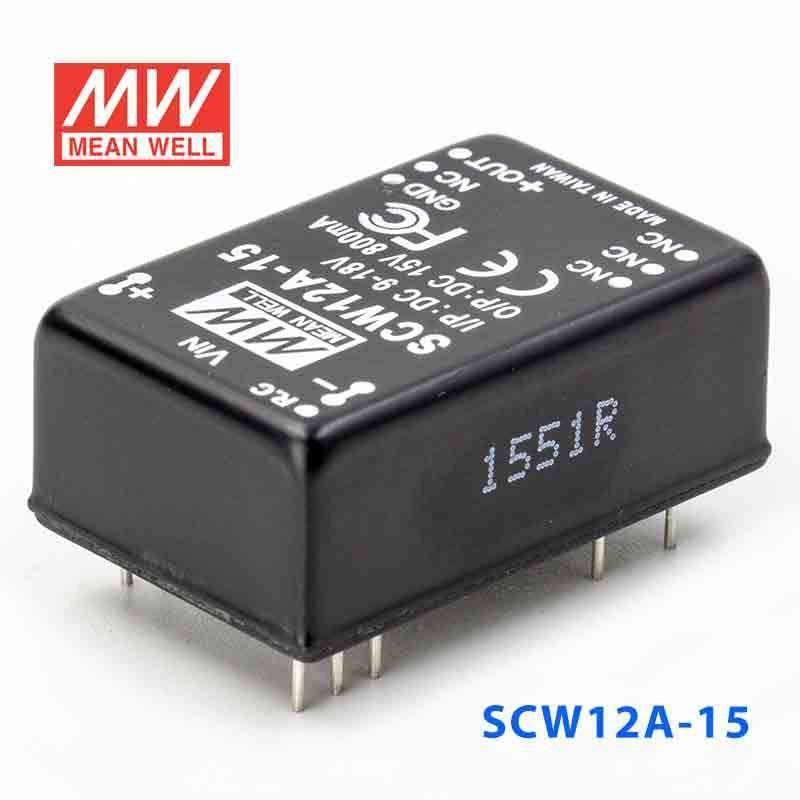

Mean Well SCW12A-15 DC-DC Converter - 12W 9~18V DC in 15V out

SKU:

SCW12A-15

$18.90 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

2: 1 wide input range

1500VDC I / O isolation

Built-in remote ON / OFF control

Modified models available: output 2.5V / 3.3V

Built-in EMI filter

Protection: Short circuit / Overload

Cooling by free air convection

Five-sided shield metal case

100% full load burn-in test

Low cost, high reliability

2 years warranty

General Specification

Voltage set point accuracy	± 2% (max.)
Line regulation	± 0.5% (max.)
Load regulation	± 0.5% (max.) @ 10 ~ 100% load
Overload protection	110% to 180%, auto-recovery
Efficiency	85% (typical)
Short circuit protection	Continuous, auto-recovery
I / O isolation voltage	1500VDC (min.)
I / O isolation resistance	100MQ(min.)@500VDC
Isolation capacitance	80pF (max.)
Working temperature	-40 ~ + 71 ° C (refer to output derating curve)
Storage temperature	-40°C to + 105°C
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	± 0.03% / ° C (max.)
Dimension (LxWxH) (mm)	1.25 ""x 0.8"" x 0.48 ""
Case material	Five-sided shield metal case

Specifications

Brand

Mean Well
Series

SCW Series
Power Rating

12 Watt
Output Voltage

15 Volt
Rated Current

0.8 Ampere
Input Voltage

9V~18V
No of Output

1
Dimming Control

None
Standards Met

EAC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~71°C
Warranty

2 Year
Length

1.25 in
Width

0.8 in
Height

0.48 in
Weight

0.03 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SCW12A-15 for 15V industrial instrumentation or control circuits?

Yes, this model is designed for constant-voltage 15V output applications that stay within 0.8A and 12W. Its 9-18VAC input range makes it suitable where that input window is available and regulated 15V output is required.

Is the SCW12A-15 suitable for 15V analog or embedded system loads?

It can be a fit for 15V embedded, analog, or interface electronics that need constant-voltage power and do not exceed 0.8A. The 12W output limit means it is intended for lower-power circuits rather than larger 15V equipment.

Does the SCW12A-15 make sense for space-constrained automation assemblies?

Yes, the unit is compact at 31.75 × 20.32 × 12.19 mm and weighs 0.015 kg, which helps in dense automation or embedded designs. It is a practical choice when 15V output is needed in a small form factor.

Can the SCW12A-15 be used in wide-temperature industrial environments?

The specified operating temperature range is -40°C to +71°C, so it is rated for both low and high ambient industrial conditions. The product data does not provide an IP rating, so outdoor or exposed-environment suitability is not established by these specs.

How does the SCW12A-15 compare with SCW12A-05 and SCW12A-12?

All three SCW12A models are 12W constant-voltage converters with 9-18VAC input, identical 31.75 × 20.32 × 12.19 mm dimensions, 0.015 kg weight, -40°C to +71°C operating range, EAC certification, and a 2-year warranty. The output differences are SCW12A-05 at 5V 2.4A, SCW12A-12 at 12V 1A, and SCW12A-15 at 15V 0.8A.
