Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

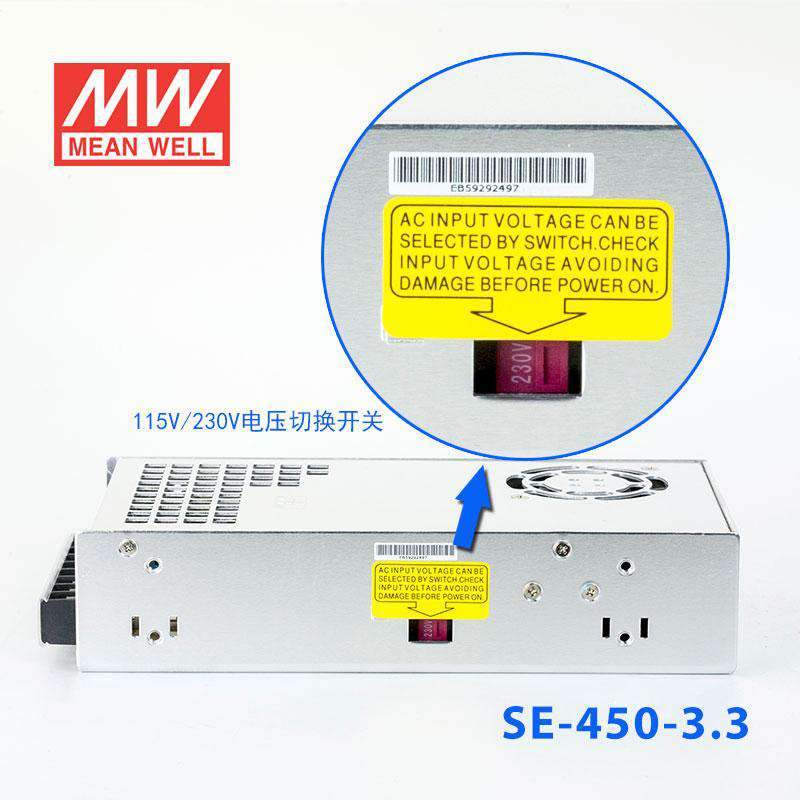

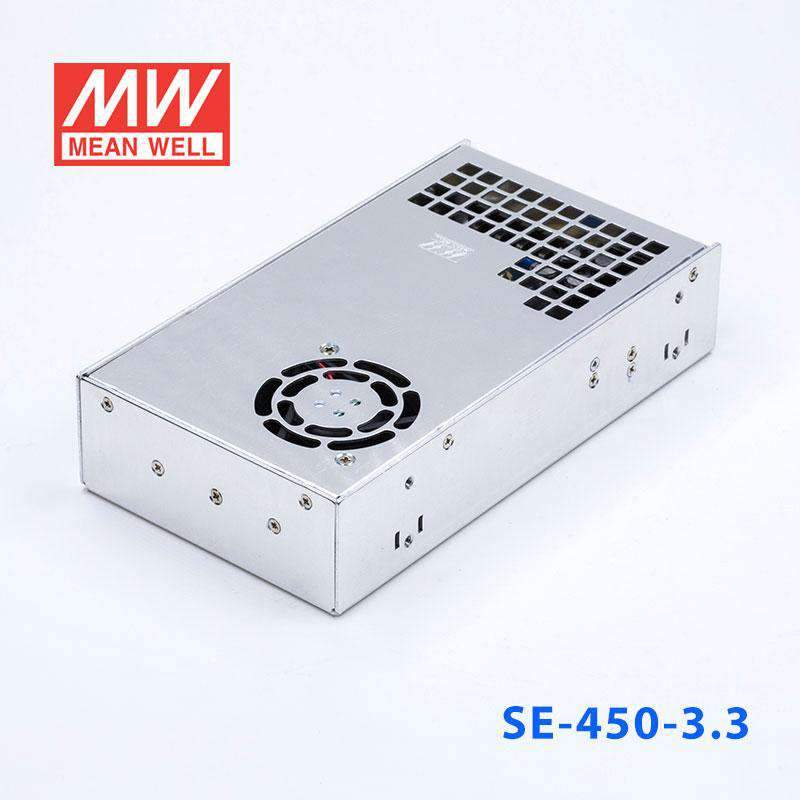

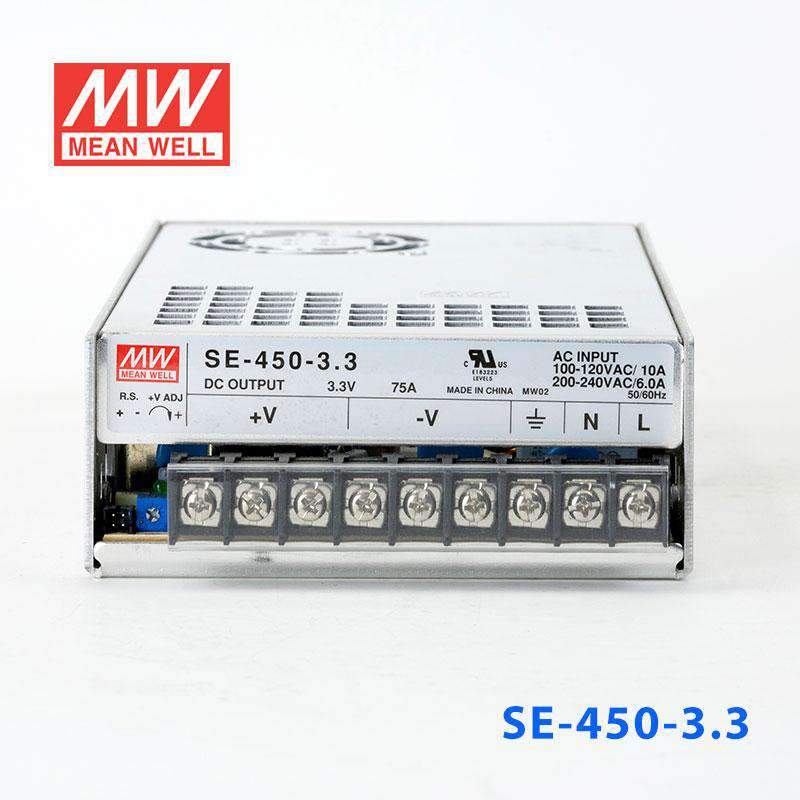

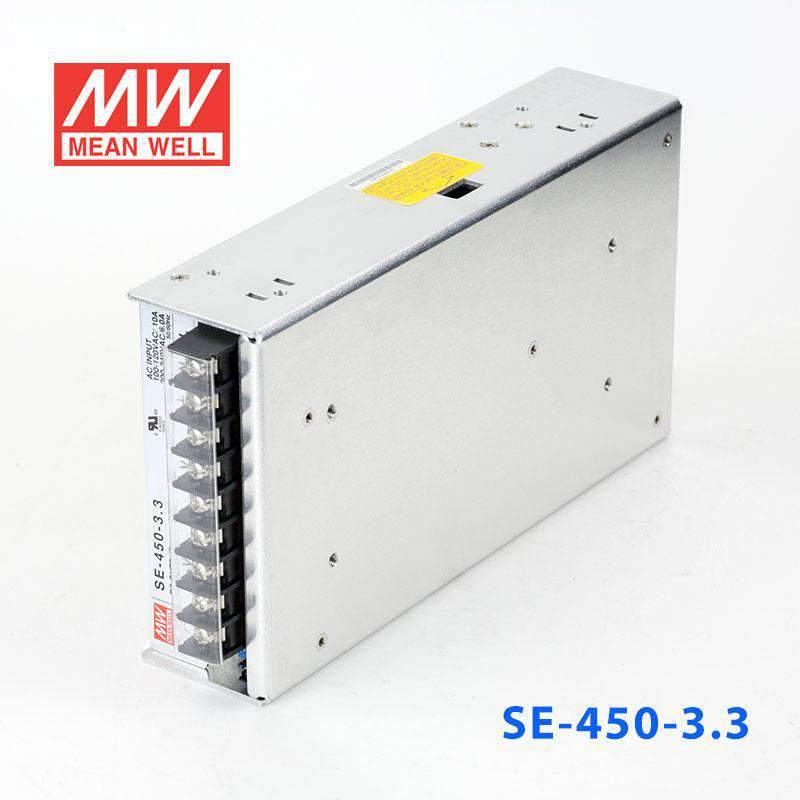

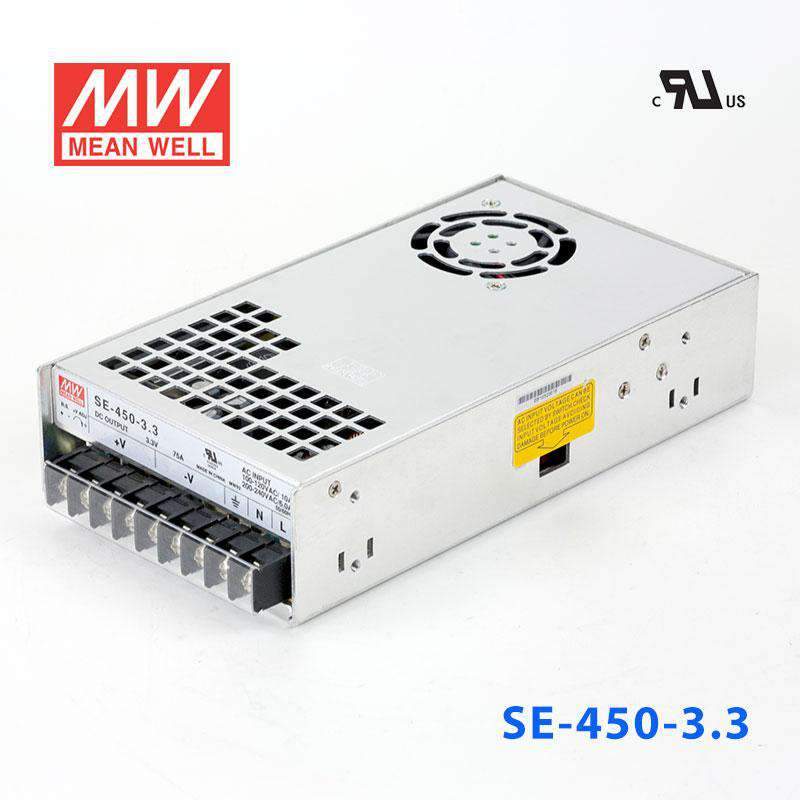

Mean Well SE-450-3.3 Power Supply 247.5W 3.3V 75A
The SE-450 is a 450W Mean Well power converter (input range: 90~132VAC).
Key Features
- ✓ Input voltage range: 90~132VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: UL62368-1, , BSMI CNS14336-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSE Series
-
Power Rating247.5 Watt
-
Output Voltage3.3 Volt
-
Rated Current75 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length8.86 in
-
Width4.88 in
-
Height1.97 in
-
Weight2.76 lb
::specification::
Frequently Asked Questions
Can I use the SE-450-3.3 for a high-current 3.3V embedded system or processor board rack?
Yes, this model provides constant voltage 3.3V output at up to 75A, with a total power rating of 247.5W. It is suited to high-current 3.3V embedded electronics or board-level systems that are designed around a 3.3V rail.
Is the SE-450-3.3 appropriate for 3.3V industrial logic or control electronics?
It can be appropriate when the electronics require a fixed 3.3V DC supply and the load remains within 75A and 247.5W. Its constant voltage operation is intended for equipment expecting regulated 3.3V input.
Can the SE-450-3.3 support a centralized 3.3V bus in a lab or manufacturing test fixture?
Yes, if the fixture distributes 3.3V DC and the combined demand stays under 75A and 247.5W. The wide 90-264VAC input range also helps when the fixture may be used in different facility power environments.
Is the SE-450-3.3 meant for exposed outdoor use?
The specs show an operating temperature range of -10°C to +60°C, but they do not provide an IP rating. Because no IP protection level is listed, it should normally be used indoors or inside a protective enclosure.
How does the SE-450-3.3 differ from the other SE-450 outputs?
The listed SE-450 outputs are 3.3V 75A 247.5W, 5V 75A 375W, 12V 37.5A 450W, 15V 30A 450W, 24V 18.8A 451.2W, 36V 12.5A 450W, and 48V 9.4mA 451.2W. The SE-450-3.3 is the lowest-voltage version and also carries the lowest listed power rating at 247.5W.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other SE-450 Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SE-450-24 Power Supply 450W 24V 18.8A | 451.2W | 24V | 18.8A | Indoor | $71.49 | View |
| Mean Well SE-450-12 Power Supply 450W 12V 37.5A | 450W | 12V | 37.5A | Indoor | $64.77 | View |
| Mean Well SE-450-5 Power Supply 375W 5V 75A | 375W | 5V | 75A | Indoor | $71.59 | View |
| Mean Well SE-450-48 Power Supply 450W 48V 9.4A | 451.2W | 48V | 9.4A | Indoor | $71.49 | View |
| Mean Well SE-450-36 Power Supply 450W 36V 12.5A | 450W | 36V | 12.5A | Indoor | $71.49 | View |
| Mean Well SE-450-15 Power Supply 450W 15V 30A | 450W | 15V | 30A | Indoor | $71.49 | View |
