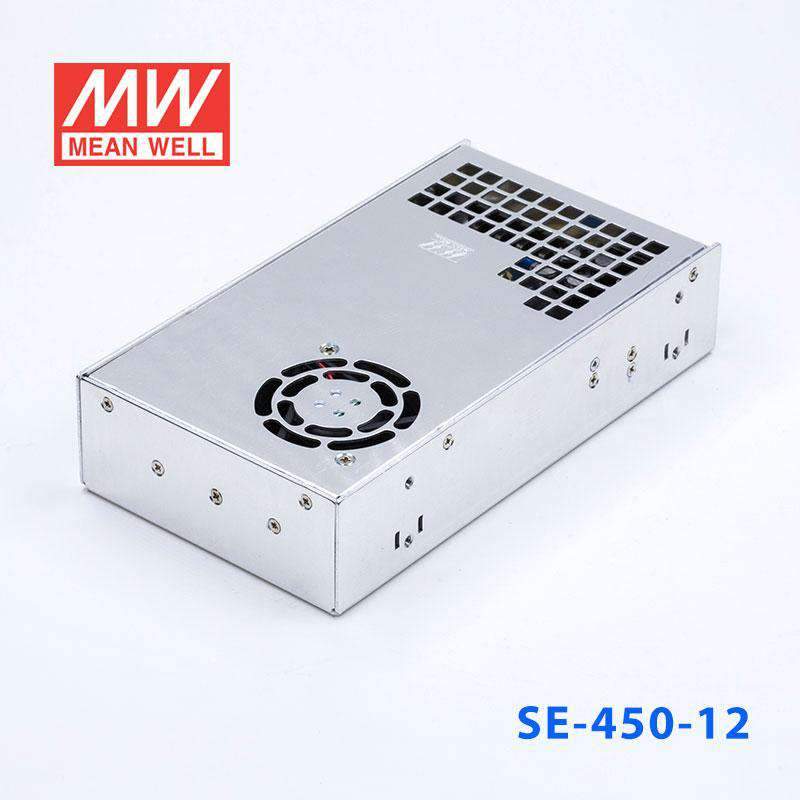

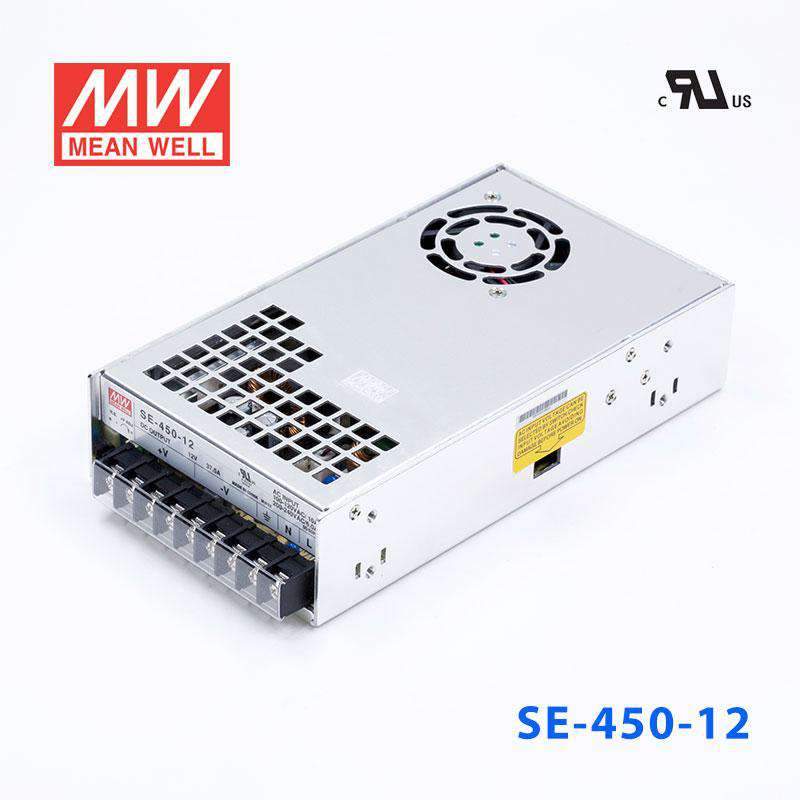

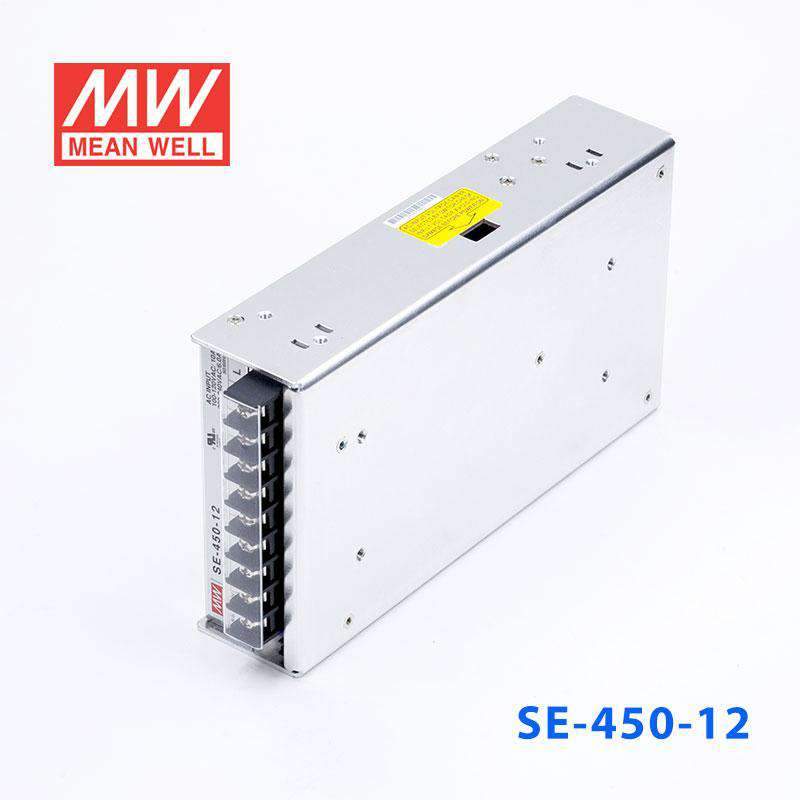

Mean Well SE-450-12 Power Supply 450W 12V

economical model medium to high power(450W~1500W)

SKU:

SE-450-12

Model

450W 12V

$64.77 USD

SKU: SE-450-12

600W 12V

$73.47 USD

SKU: SE-600-12

1000W 12V

$154.98 USD

SKU: SE-1000-12

1500W 12V

$281.83 USD

SKU: SE-1500-12

Product variants

$64.77 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

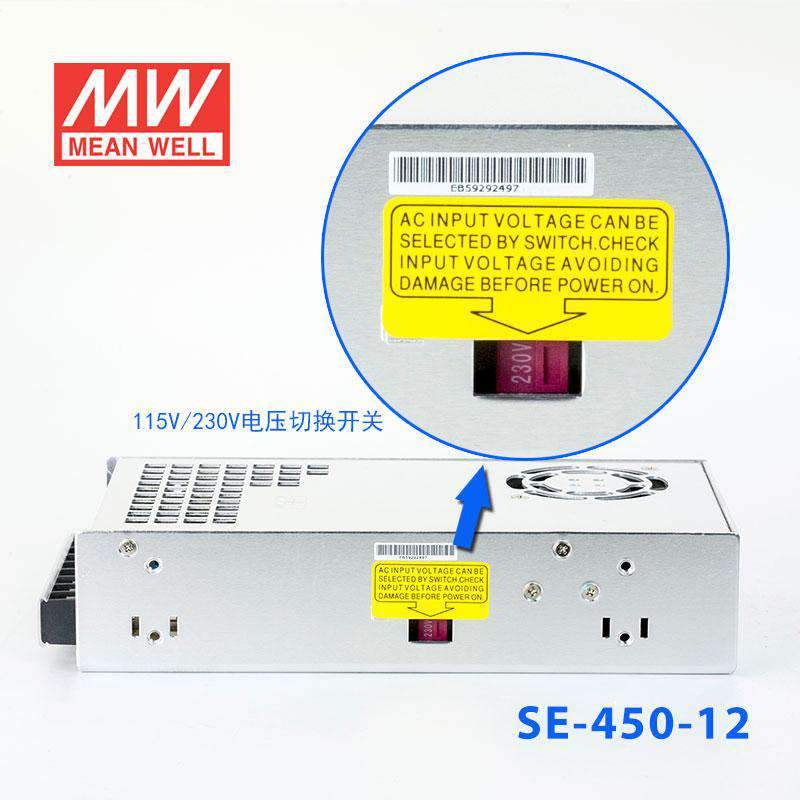

AC input selectable by switch

Withstand 300VAC surge input for 5 seconds

Protections: Short circuit / Overload / Over voltage / Over temperature

100% full load burn-in test

LED indicator for power on

Built-in remote sense function

Forced air cooling by built-in DC fan

2 years warranty

General Specification

AC input voltage range	115/230VAC by switch
AC inrush current (max.)	Cold start, 55A at 230VAC
DC adjustment range	±10% rated output voltage
Overload protection Range	105%~150%
Overload protection Type	Shut down o/p voltage, re-power on to recover
Over voltage protection	115%~145%
Withstand voltage	I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P-FG: 0.5kVAC
Working temperature	-10~+60°C (refer to output derating curve)
Safety standards	UL60950-1
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11,

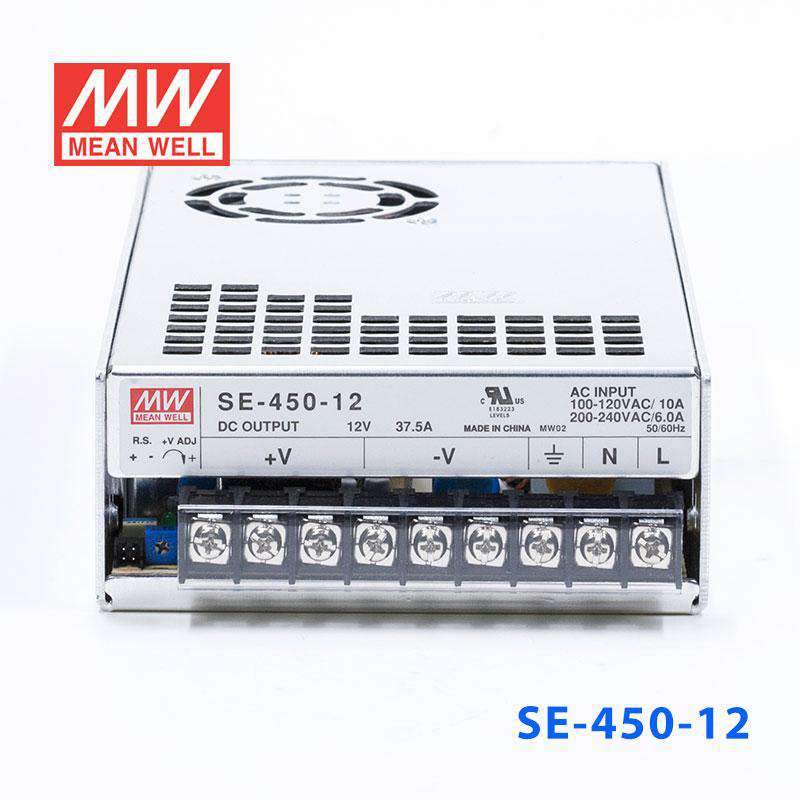

Connection	9P/11mm pitch terminal block with cover
Dimension (LxWxH)	225x 124x 50
Case No.	986A
Packing	12pcs / 16kg

Specifications

Brand

Mean Well
Series

SE Series
Power Rating

450 Watt
Output Voltage

12 Volt
Rated Current

37.5 Ampere
Input Voltage

90V~264V
No of Output

1
Standards Met

BSMI,EAC,UL
Operation Mode

Constant Voltage
Operating Temperature

-10°C~60°C
Warranty

2 Year
Length

8.86 in
Width

4.88 in
Height

1.97 in
Weight

2.76 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SE-450-12 for a 12V industrial control panel with multiple DC loads?

Yes, this model is a constant voltage 12V power supply rated for 37.5A and 450W. That makes it suitable for 12V industrial control panels, automation assemblies, or embedded systems that need a shared 12V DC bus within that output limit.

Is the SE-450-12 a good fit for 12V machine-vision lighting or inspection equipment?

It can be a fit when the lighting or inspection hardware requires regulated 12V DC and the total load stays within 37.5A and 450W. The constant voltage output is intended for equipment designed around a fixed 12V supply rather than constant current operation.

Can I use the SE-450-12 to power a 12V embedded computing or communications cabinet?

Yes, if the cabinet is built for 12V DC input and the combined demand does not exceed 37.5A or 450W. Its 90-264VAC input also supports use in facilities with a wide AC input range.

Is the SE-450-12 suitable for outdoor or harsh-environment use?

The provided specs list an operating temperature of -10°C to +60°C, but no IP rating is stated. Without an IP rating in the product specs, it is better treated as a power supply for indoor or protected enclosures rather than exposed outdoor installation.

How does the SE-450-12 compare with the other SE-450 voltage versions?

Within the SE-450 family, the listed variants are SE-450-3.3 at 3.3V, 75A, 247.5W; SE-450-5 at 5V, 75A, 375W; SE-450-12 at 12V, 37.5A, 450W; SE-450-15 at 15V, 30A, 450W; SE-450-24 at 24V, 18.8A, 451.2W; SE-450-36 at 36V, 12.5A, 450W; and SE-450-48 at 48V, 9.4mA, 451.2W. The main difference between them is the output voltage and corresponding output current/power rating.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well SE-450-24 Power Supply 450W 24V	451.2W	24V	18.8A	Indoor	$63.00	View
Mean Well SE-450-5 Power Supply 375W 5V	375W	5V	75A	Indoor	$71.59	View
Mean Well SE-450-48 Power Supply 450W 48V	451.2W	48V	9.4A	Indoor	$51.31	View
Mean Well SE-450-36 Power Supply 450W 36V	450W	36V	12.5A	Indoor	$71.49	View
Mean Well SE-450-3.3 Power Supply 247.5W 3.3V	247.5W	3.3V	75A	Indoor	$71.59	View
Mean Well SE-450-15 Power Supply 450W 15V	450W	15V	30A	Indoor	$71.49	View
