Description
Description
Features

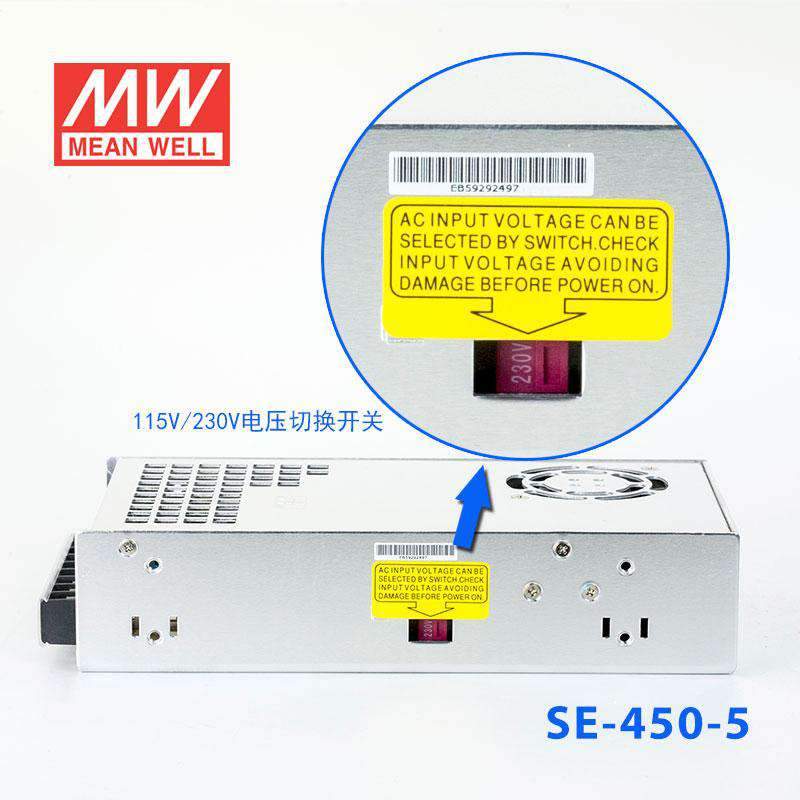

AC input selectable by switch |
Withstand 300VAC surge input for 5 seconds |
Protections: Short circuit / Overload / Over voltage / Over temperature |
100% full load burn-in test |
LED indicator for power on |
Built-in remote sense function |

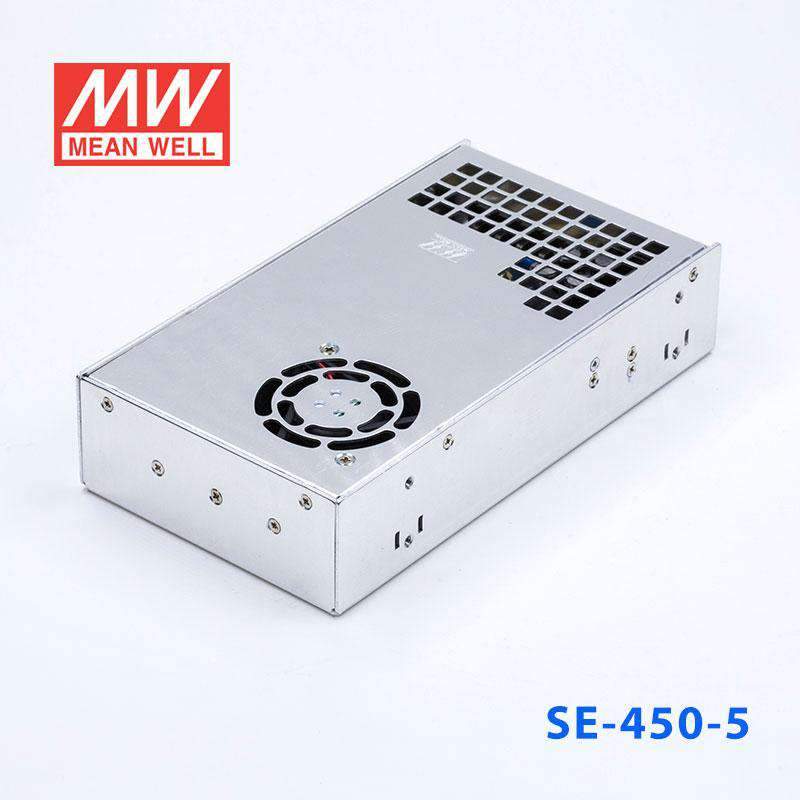

Forced air cooling by built-in DC fan |
2 years warranty |
General Specification
AC input voltage range | 115/230VAC by switch |
AC inrush current (max.) | Cold start, 55A at 230VAC |
DC adjustment range | ±10% rated output voltage |
Overload protection Range | 105%~150% |
Overload protection Type | Shut down o/p voltage, re-power on to recover |
Over voltage protection | 115%~145% |
Withstand voltage | I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P-FG: 0.5kVAC |
Working temperature | -10~+60°C (refer to output derating curve) |
Safety standards | UL60950-1 |
EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, |

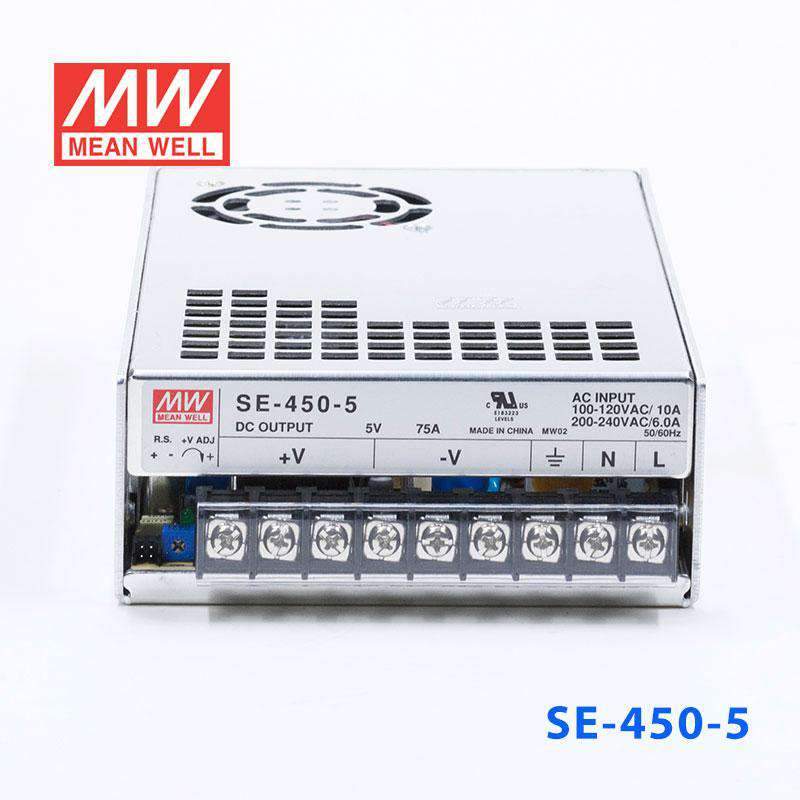

Connection | 9P/11mm pitch terminal block with cover |
Dimension (LxWxH) | 225x 124x 50 |
Case No. | 986A |
Packing | 12pcs / 16kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesSE Series
-
Power Rating375 Watt
-
Output Voltage5 Volt
-
Rated Current75 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length8.86 in
-
Width4.88 in
-
Height1.97 in
-
Weight2.76 lb
