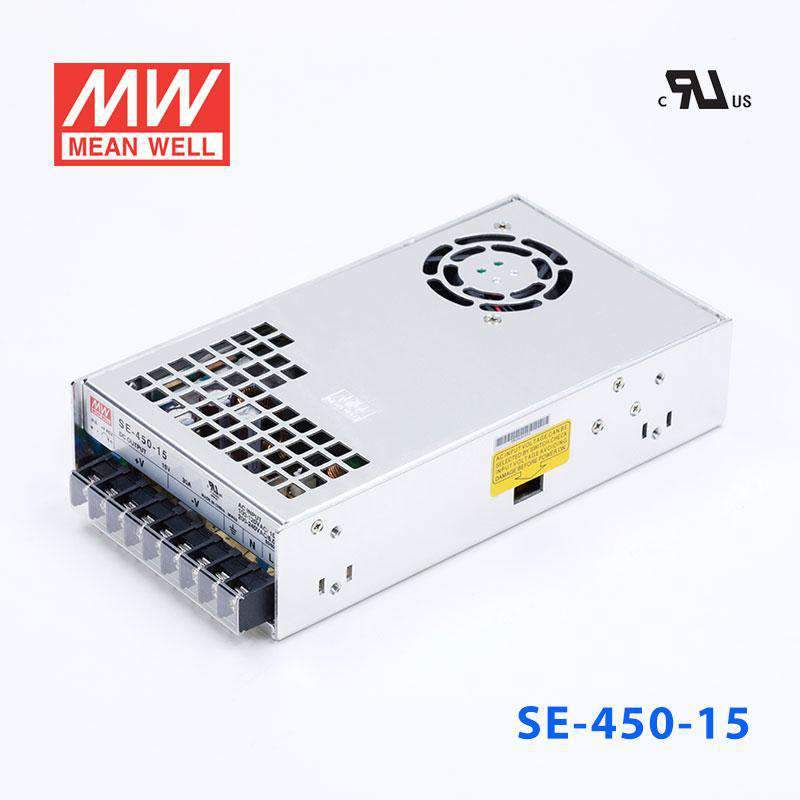

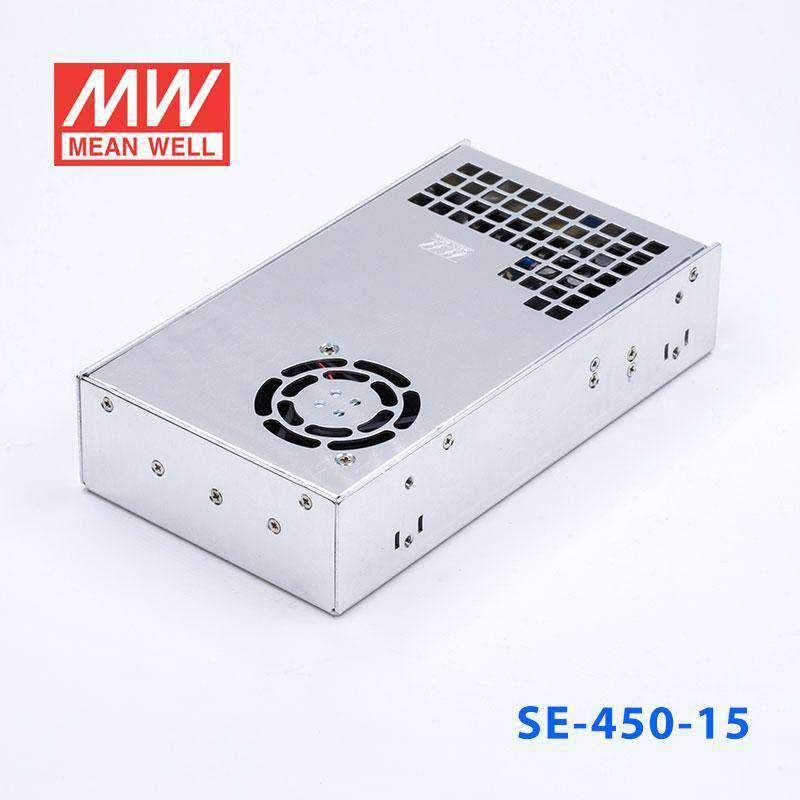

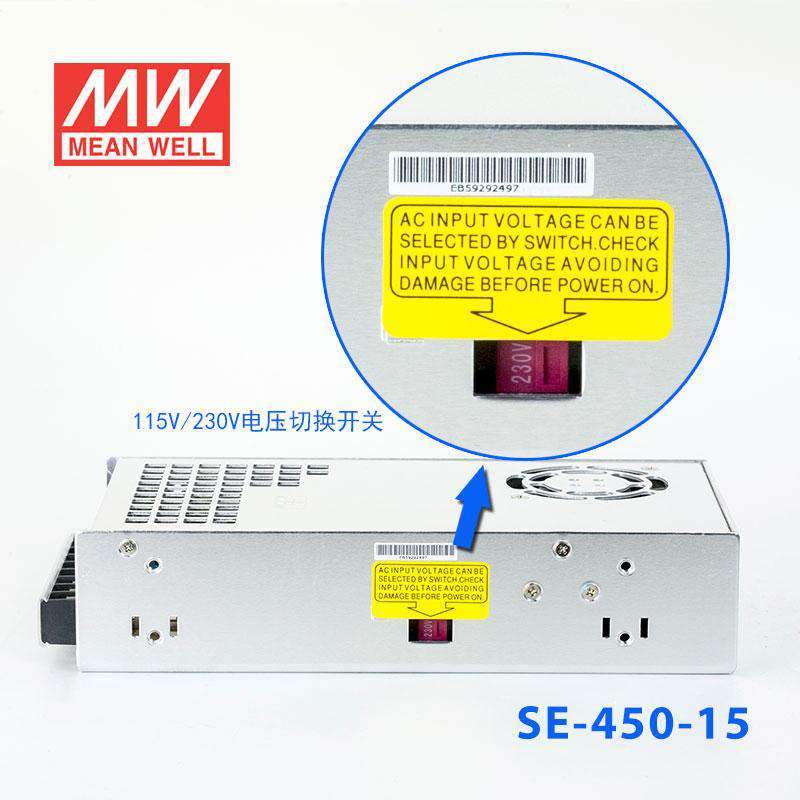

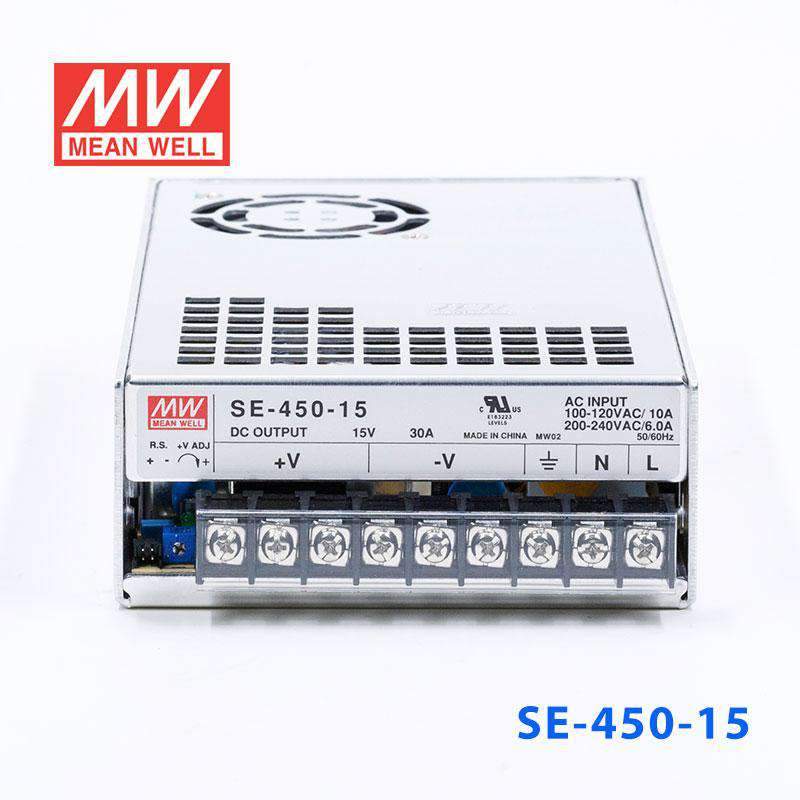

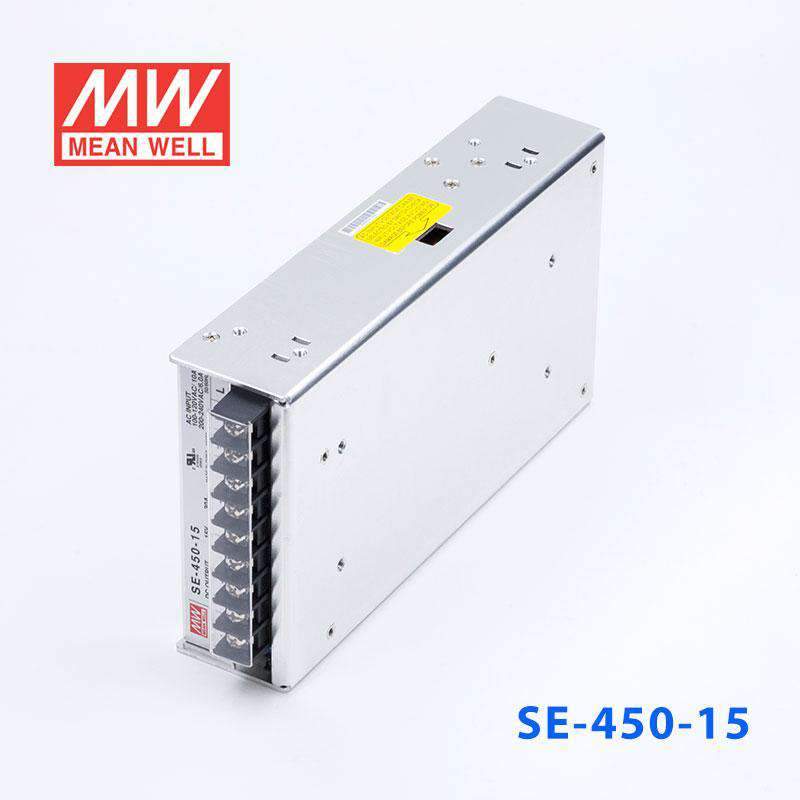

Mean Well SE-450-15 Power Supply 450W 15V
The SE-450 is a 450W Mean Well power converter (input range: 90~132VAC).
Key Features
- ✓ Input voltage range: 90~132VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: UL62368-1, , BSMI CNS14336-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSE Series
-
Power Rating450 Watt
-
Output Voltage15 Volt
-
Rated Current30 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length8.86 in
-
Width4.88 in
-
Height1.97 in
-
Weight2.76 lb
::specification::
Frequently Asked Questions
Can I use the SE-450-15 for a 15V automation or test bench power rail?
Yes, this unit provides constant voltage 15V output rated at 30A and 450W. It is appropriate for automation or bench systems specifically designed for a 15V DC rail within that load range.
Is the SE-450-15 suitable for 15V industrial sensors, controllers, or embedded assemblies?
It can be used where the connected equipment requires regulated 15V DC and the total draw stays within 30A and 450W. Because it is a constant voltage model, it matches systems built around a fixed 15V supply.
Can the SE-450-15 power a centralized 15V DC load in a production machine?
Yes, for machines that distribute a 15V DC bus to multiple subsystems, this model offers up to 30A at 15V. Its 90-264VAC input also makes it suitable for sites with a broad AC input range.
Can the SE-450-15 be used in unconditioned spaces or outdoors?
The operating temperature is specified as -10°C to +60°C, so temperature-wise it is intended for that range. The specs do not list an IP rating, so it should generally be placed in an indoor or protected enclosure rather than exposed outdoor conditions.
What are the differences between the SE-450-15 and the other SE-450 models?
The listed SE-450 variants are 3.3V at 75A and 247.5W, 5V at 75A and 375W, 12V at 37.5A and 450W, 15V at 30A and 450W, 24V at 18.8A and 451.2W, 36V at 12.5A and 450W, and 48V at 9.4mA and 451.2W. The SE-450-15 is the 15V version in that series, with output current set at 30A.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other SE-450 Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SE-450-24 Power Supply 450W 24V | 451.2W | 24V | 18.8A | Indoor | $71.49 | View |
| Mean Well SE-450-12 Power Supply 450W 12V | 450W | 12V | 37.5A | Indoor | $64.77 | View |
| Mean Well SE-450-5 Power Supply 375W 5V | 375W | 5V | 75A | Indoor | $71.59 | View |
| Mean Well SE-450-48 Power Supply 450W 48V | 451.2W | 48V | 9.4A | Indoor | $71.49 | View |
| Mean Well SE-450-36 Power Supply 450W 36V | 450W | 36V | 12.5A | Indoor | $71.49 | View |
| Mean Well SE-450-3.3 Power Supply 247.5W 3.3V | 247.5W | 3.3V | 75A | Indoor | $71.59 | View |
