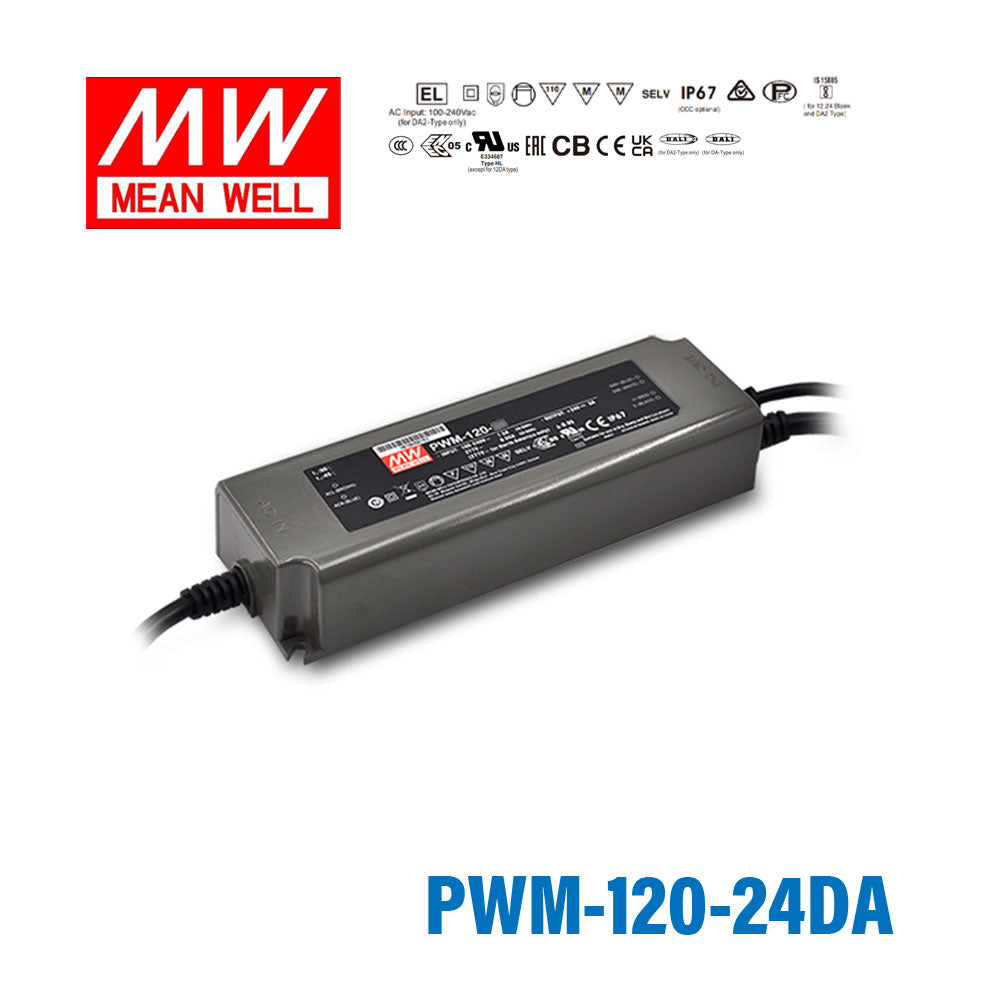

Mean Well PWM-120-24DA Power Supply 120W 24V - DALI 5A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PWM-120-24DA Power Supply 120W 24V - DALI 5A
The PWM-120 is a 120W Mean Well DIN rail power converter with a 191mm profile (input range: 90~305VAC, operating temperature: -40~+80℃).
Key Features
- ✓ 191mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+80℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.5 UL8750( type ”HL” )(except for 12DA type), CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13,EN62384 independent, IP67,BIS IS15885( for PWM-120-12,24 only), EAC TP TC 004,GB19510.1,GB19510.14
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPWM Series
-
Power Rating120 Watt
-
Output Voltage24 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.52 in
-
Width2.48 in
-
Height1.48 in
-
Weight2.14 lb
::specification::
Frequently Asked Questions
Can the PWM-120-24DA be integrated into a DALI building management system for 24V LED lighting?
Yes. The PWM-120-24DA includes a DALI interface, enabling it to be addressed, grouped, and dimmed by any DALI-compliant building management or lighting control system. It outputs 24V at 5A (120W) with a PWM-style waveform compatible with 24V LED strips.
Is the PWM-120-24DA suitable for outdoor or wet-area LED strip lighting installations?
Yes. Its IP67 rating provides full dust protection and resistance to temporary water immersion, making it appropriate for outdoor enclosures and wet indoor applications. The -40°C to +90°C operating range covers extreme outdoor temperatures.
How many meters of 24V LED strip can the PWM-120-24DA support?
The PWM-120-24DA outputs up to 120W at 24V. For a 20W/m strip that supports up to 6 meters (120 ÷ 20); for a 14.4W/m strip, approximately 8.3 meters (120 ÷ 14.4). Always verify your strip's rated power per meter and apply a 20% derating margin.
Can the PWM-120-24DA be used for DALI-controlled 24V LED strips in a hotel lobby or conference room?
Yes. The DALI interface supports scene-based dimming and group control, making it well suited for hospitality and commercial spaces where multiple lighting zones need to be managed from a central DALI controller. The 120W, 24V output can drive the 24V LED strips typical of these environments.
Does the PWM-120-24DA support operation in outdoor installations during winter in cold climates?
Yes. With an operating temperature starting at -40°C, the PWM-120-24DA is rated for harsh winter climates. The IP67 enclosure also provides protection from rain, sleet, and temporary submersion.
How does the PWM-120-24DA compare to the PWM-120-24 and PWM-120-24DA2?
All three deliver 120W at 24V/5A with IP67 protection. The PWM-120-24 uses 3-in-1 dimming (PWM, 0-10V, resistance). The PWM-120-24DA uses the original DALI interface for integration into DALI lighting networks. The PWM-120-24DA2 upgrades to DALI2, adding bidirectional communication and enhanced device-type support.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other PWM-120 Models
9 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well PWM-120-12 Power Supply 120W 12V - Dimmable 10A | 120W | 12V | 10A | IP67 | $47.99 | View |
| Mean Well PWM-120-24DA2 Power Supply 120W 24V DALI2 5A | 120W | 24V | 5A | IP67 | $57.58 | View |
| Mean Well PWM-120-24 Power Supply 120W 24V - Dimmable 5A | 120W | 24V | 5A | IP67 | $47.99 | View |
| Mean Well PWM-120-48DA Power Supply 120W 48V - DALI 2.5A | 120W | 48V | 2.5A | IP67 | $59.94 | View |
| Mean Well PWM-120-48 Power Supply 120W 48V - Dimmable 2.5A | 120W | 48V | 2.5A | IP67 | $46.51 | View |
| Mean Well PWM-120-36DA Power Supply 120W 36V - DALI 3.4A | 120W | 36V | 3.4A | IP67 | $59.94 | View |
| Mean Well PWM-120-36 Power Supply 120W 36V - Dimmable 3.4A | 120W | 36V | 3.4A | IP67 | $51.29 | View |
| Mean Well PWM-120-12DA2 Power Supply 120W 12V DALI2 10A | 12W | 12V | 10A | IP67 | $57.58 | View |
| Mean Well PWM-120-12DA Power Supply 120W 12V - DALI 10A | 120W | 12V | 10A | IP67 | $57.58 | View |
