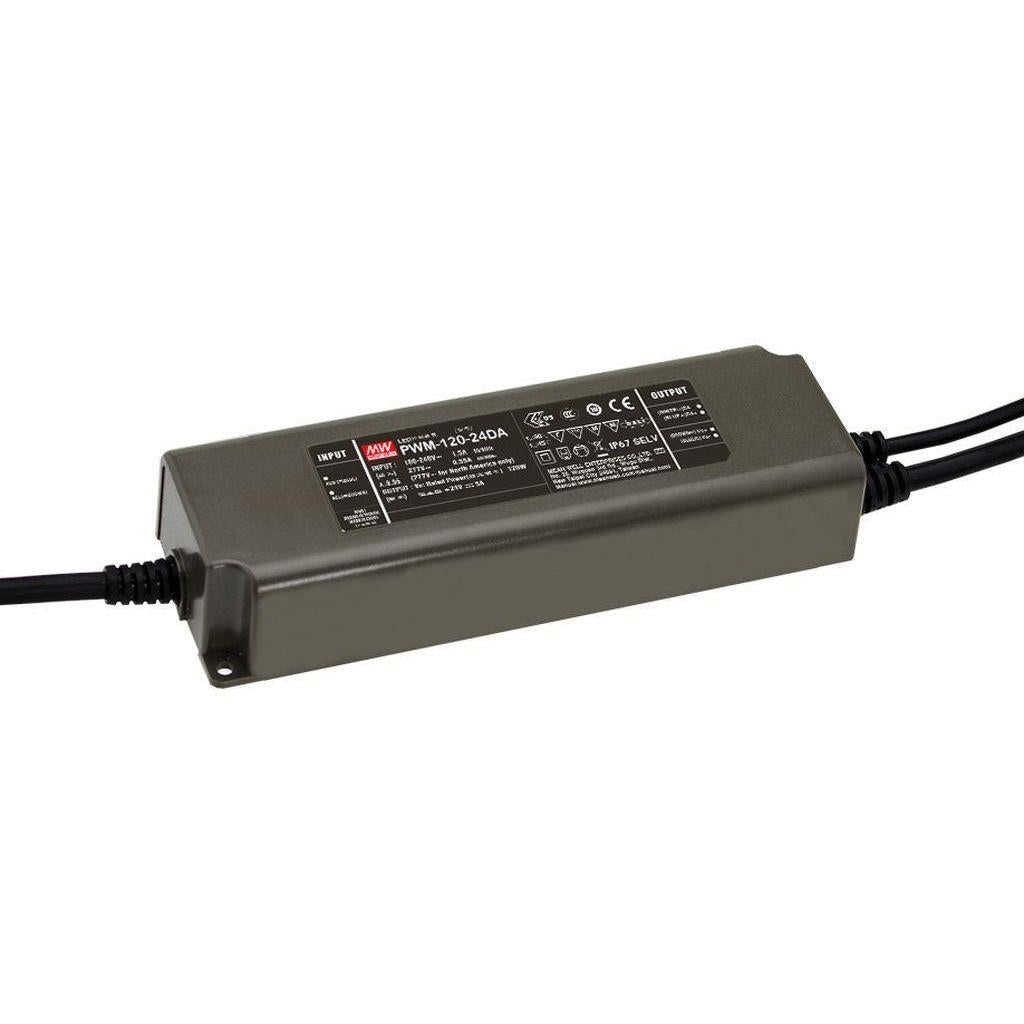

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

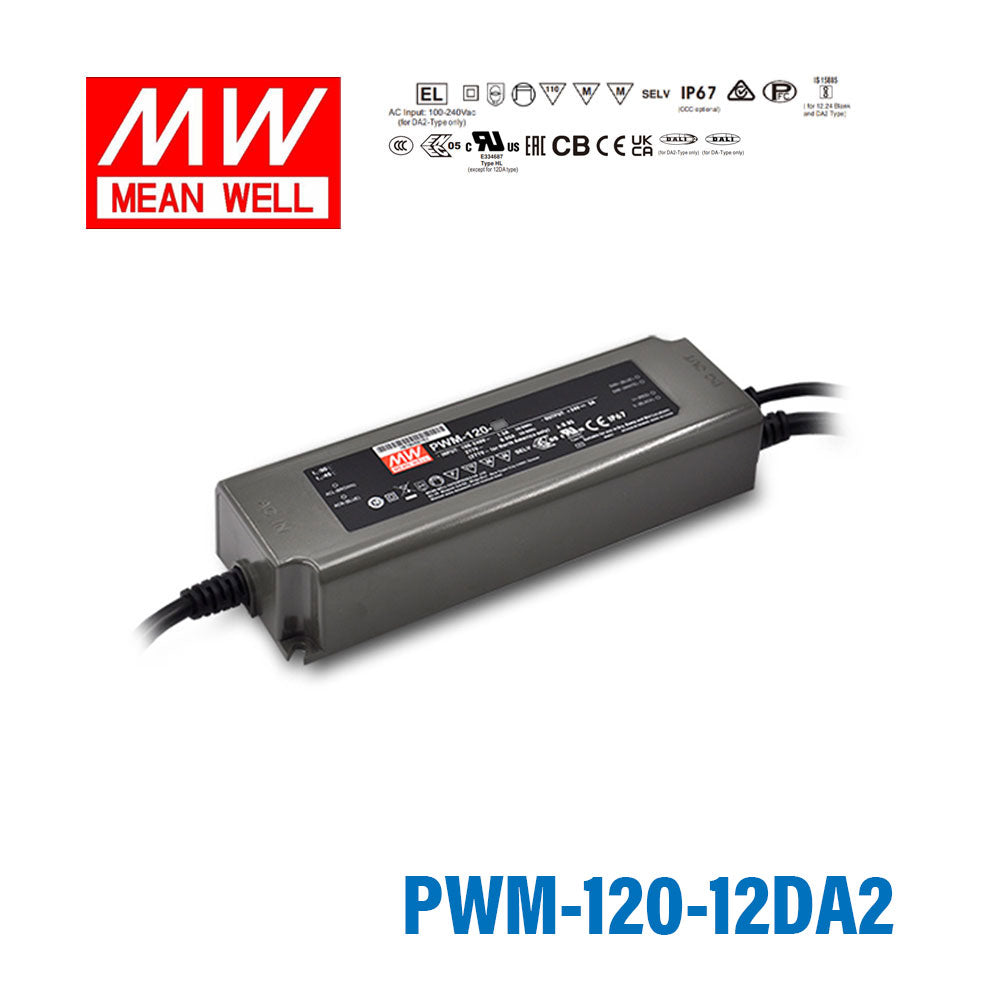

Mean Well PWM-120-12DA2 Power Supply 120W 12V DALI2
PWM style output, fully isolated plastic case, IP67, Class II design without FG, DALI2
SKU:
PWM-120-12DA2
$57.58 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PWM-120-12DA2 Power Supply 120W 12V DALI2
$57.58 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Constant voltage PWM style output |
| Built-in active PFC function |
| High efficiency up to 90.5% |
| No load power consumption <0.5W |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Fully isolated plastic case |
| Fully encapsulated with IP67 level |
| Class 2 power unit |
| Isolation class II, no F.G. |
| Built-in 3 in 1 dimming (dim-to-off);DALI |
| Suitable for dry, damp and wet location |
| Suitable for LED strip lighting |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 60A at 230VAC |
| Overload protection | 108%~120% hiccup mode, auto-recovery |
| Over voltage protection | Shut down o/p voltage, re-power on to recover |
| Over temp. protection | Shut down output voltage, re-power on to recover |
| Setup, rise, hold up time | 500ms, 80ms, 16ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC |
| Working temperature | -40~+90ºC (refer to output derating curve) |
| Safety standards | UL8750, CSA C22.2 No.250.13-12,ENEC EN61347-1, EN61347-2-13 independent, EN62384 approved ; Design refer to EN60335-1 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 |
| Connection Input | UL rated, SJTW 18AWGx3C (30cm) |
| Connection Output | SJTW 14AWG x2C (30cm)+UL24645 18AWG x2C (30cm) |
| Dimension (LxWxH) (mm) | 191x63x 37.5 |
| Packing | 15pcs / 15.6kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesPWM Series
-
Power Rating12 Watt
-
Output Voltage12 Volt
-
Rated Current10 Ampere
-
Input Voltage12V~305V
-
No of Output1
-
Dimming ControlDALI,Push Dimming
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.52 in
-
Width2.48 in
-
Height1.48 in
-
Weight2.14 lb
