Mean Well

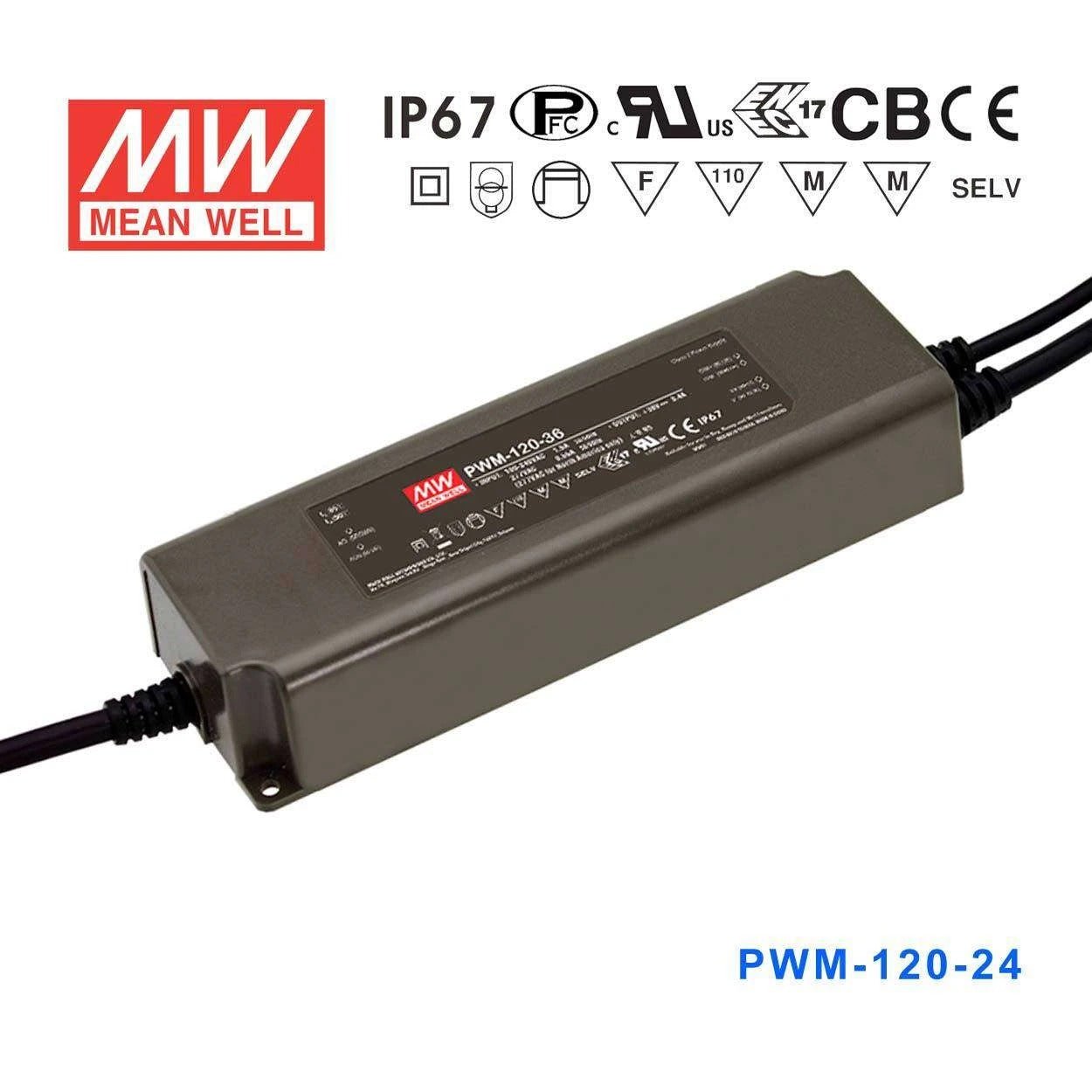

Mean Well PWM-120-24 Power Supply 120W 24V - Dimmable

Name: Mean Well PWM-120-24 Power Supply 120W 24V - Dimmable
Brand: Mean Well
SKU: PWM-120-24
Price: 53.32 USD
Availability: InStock

Mean Well PWM-120-24 Power Supply 120W 24V - Dimmable

2 units in stock

$53.32 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

View full details

AC input voltage range	90~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 60A at 230VAC
Overload protection	108%~120% hiccup mode, auto-recovery
Over voltage protection	Shut down o/p voltage, re-power on to recover
Over temp. protection	Shut down output voltage, re-power on to recover
Setup, rise, hold up time	500ms, 80ms, 16ms at full load and 230VAC
Withstand voltage	I/P-O/P: 3.75kVAC
Working temperature	-40~+90ºC (refer to output derating curve)
Safety standards	UL8750, CSA C22.2 No.250.13-12,ENEC EN61347-1, EN61347-2-13 independent, EN62384 approved ; Design refer to EN60335-1
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input	UL rated, SJTW 18AWGx3C (30cm)
Connection Output	SJTW 14AWG x2C (30cm)+UL24645 18AWG x2C (30cm)
Dimension (LxWxH) (mm)	191x63x 37.5
Packing	15pcs / 15.6kg
