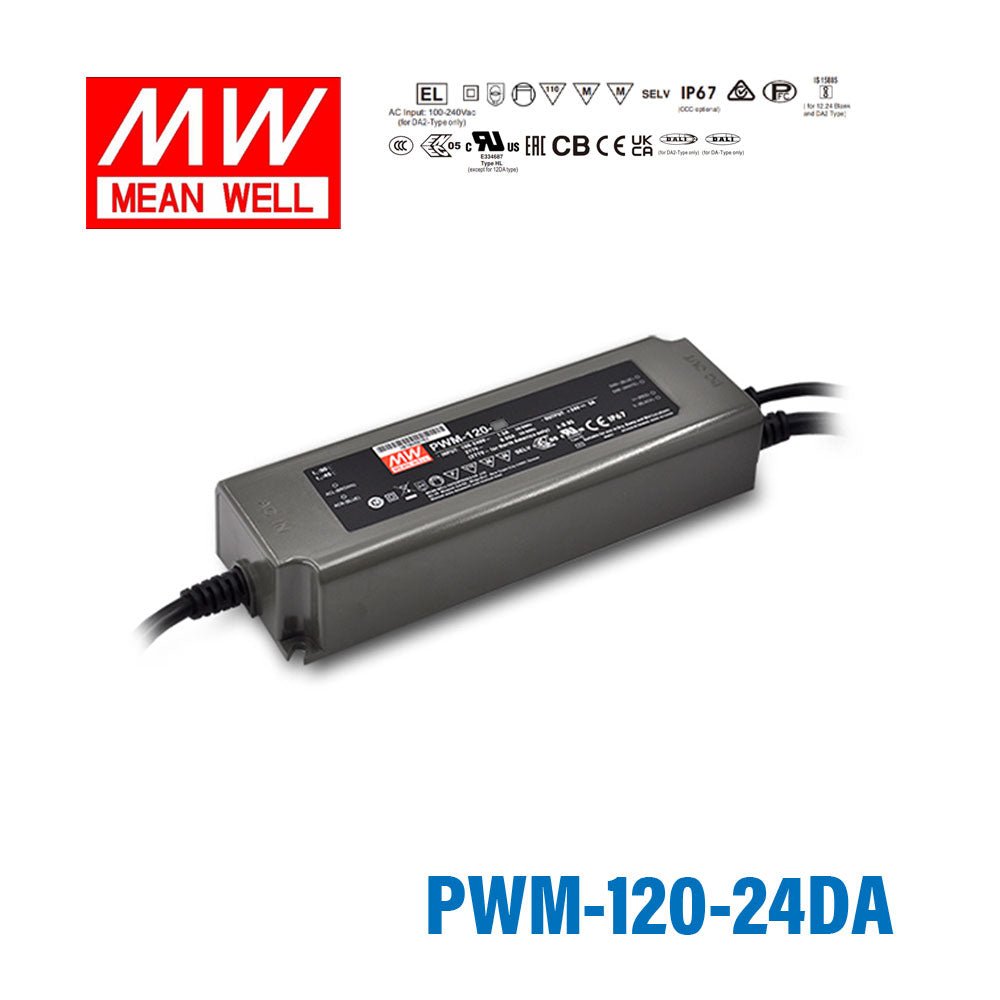

Mean Well PWM-120-24DA Power Supply 120W 24V - DALI
PWM style output, fully isolated plastic case, IP67, Class II design without FG, DALI
SKU:
PWM-120-24DA
$55.85 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Description
Description
Features
Universal AC input (up to 305VAC) / Full range |
Constant voltage PWM style output |
Built-in active PFC function |
High efficiency up to 90.5% |
No load power consumption <0.5W |
Protections: Short circuit / Overload / Over voltage / Over temperature |
Fully isolated plastic case |
Fully encapsulated with IP67 level |
Class 2 power unit |
Isolation class II, no F.G. |
Built-in 3 in 1 dimming (dim-to-off);DALI |
Suitable for dry, damp and wet location |
Suitable for LED strip lighting |
5 years warranty |
General Specification
AC input voltage range | 90~305VAC ; 127~431VDC |
AC inrush current (max.) | Cold start, 60A at 230VAC |
Overload protection | 108%~120% hiccup mode, auto-recovery |
Over voltage protection | Shut down o/p voltage, re-power on to recover |
Over temp. protection | Shut down output voltage, re-power on to recover |
Setup, rise, hold up time | 500ms, 80ms, 16ms at full load and 230VAC |
Withstand voltage | I/P-O/P: 3.75kVAC |
Working temperature | -40~+90ºC (refer to output derating curve) |
Safety standards | UL8750, CSA C22.2 No.250.13-12,ENEC EN61347-1, EN61347-2-13 independent, EN62384 approved ; Design refer to EN60335-1 |
EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 |
Connection Input | UL rated, SJTW 18AWGx3C (30cm) |
Connection Output | SJTW 14AWG x2C (30cm)+UL24645 18AWG x2C (30cm) |
Dimension (LxWxH) (mm) | 191x63x 37.5 |
Packing | 15pcs / 15.6kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesPWM Series
-
Power Rating120 Watt
-
Output Voltage24 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.52 in
-
Width2.48 in
-
Height1.48 in
-
Weight2.14 lb
