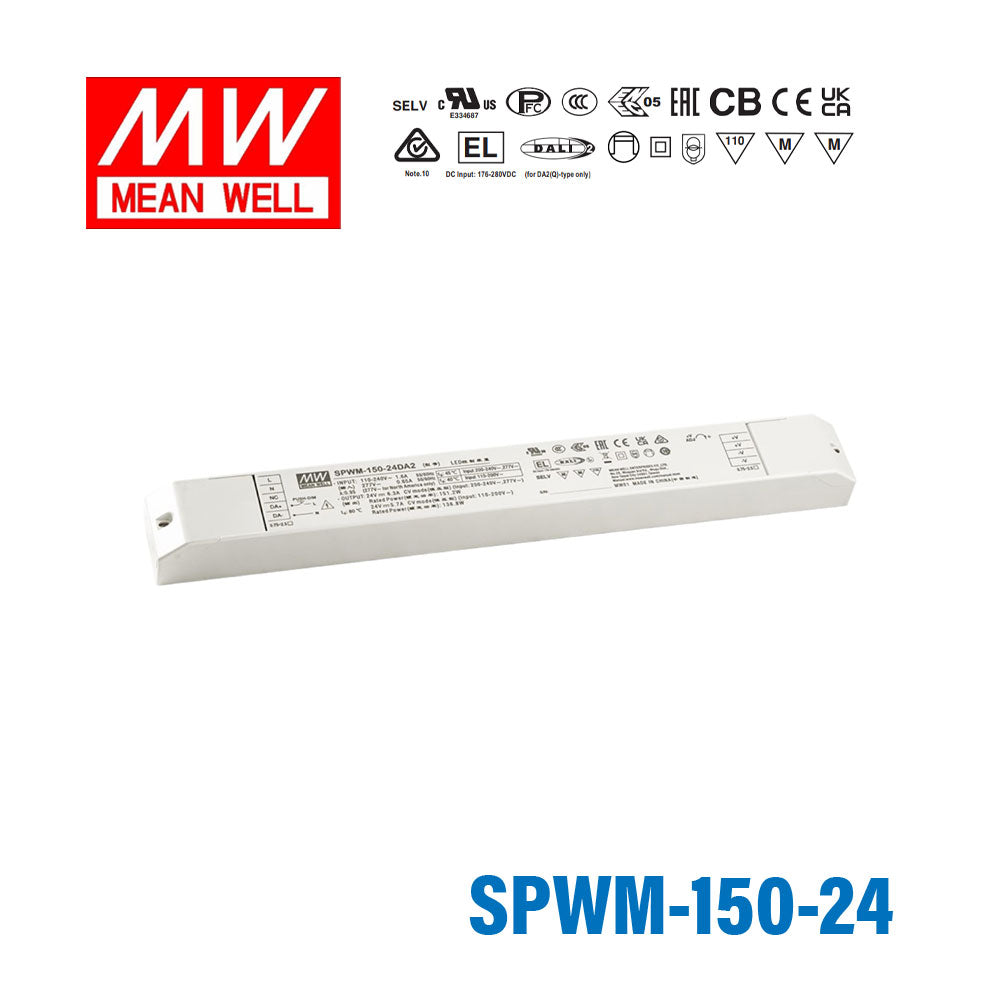

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
MEAN WELL SPWM-150-24 151.2W 24V CV LED Driver 6.3A
Notify me when it's back in stock
Your order will be processed within 24 hours
MEAN WELL SPWM-150-24 151.2W 24V CV LED Driver 6.3A
The SPWM-150 is a 151.2W Mean Well AC-DC constant voltage LED driver (input: 100~305VAC, output: 24V, operating temperature: -40~+80°C).
Key Features
- ✓ Input voltage: 100~305VAC
- ✓ Output voltage: 24V
- ✓ Rated output current: 6.3A
- ✓ 3-in-1 dimming (0–10V / PWM / resistance)
- ✓ Flicker-free output
- ✓ Operating temperature: -40~+80°C
- ✓ Safety certifications: CB, CE, EAC, RCM, UL
- ✓ 5 year warranty
-
BrandMean Well
-
SeriesSPWM Series
-
Power Rating151.2 Watt
-
Output Voltage24 Volt
-
Rated Current6.3 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetCB,CE,EAC,RCM,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length13.39 in
-
Width1.5 in
-
Height1.12 in
-
Weight0.88 lb
::specification::
Frequently Asked Questions
What is the MEAN WELL SPWM-150-24 designed for?
The SPWM-150-24 is a 24V constant voltage LED driver intended for LED strip lighting applications. Its PWM-style output is aimed at maintaining consistent brightness and colour uniformity in lighting systems that need stable 24V DC output.
What are the main electrical ratings of the SPWM-150-24?
This model is rated for 24V DC output at 6.3A, with a total power rating of 151.2W. It is part of the SPWM-150 series and operates from a wide 100-305VAC input range.
What dimming methods does the SPWM-150-24 support?
The SPWM-150-24 supports 0-10V dimming, 10V PWM dimming, and resistance-based dimming control. That makes it suitable for projects that need flexible low-voltage dimming options without changing to a different driver family.
Is the SPWM-150-24 suitable for demanding temperature conditions?
This model is specified for operation from -40 degrees C up to 80 degrees C case temperature. Its fanless free-air convection design supports use in environments where silent operation and thermal reliability are important.
How efficient is the MEAN WELL SPWM-150-24?
The SPWM-150 series is rated for efficiency up to 93 percent and includes active power factor correction. The product description also states flicker-free performance compliant with CE ErP requirements, which is relevant for lighting quality and energy-conscious projects.
Why would a buyer choose the SPWM-150-24 over a lower-power 24V LED driver?
The main reason is output capacity: this model delivers up to 151.2W at 24V and 6.3A, making it better suited to larger 24V LED strip loads than lower-wattage drivers. It also combines dimming support, high efficiency, and a wide AC input range in one unit.
What warranty is offered on the SPWM-150-24?
The SPWM-150-24 comes with a 5-year warranty. For B2B buyers, that can be useful where longer service expectations and lower replacement risk matter in ongoing lighting projects.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other SPWM-150 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| MEAN WELL SPWM-150-24DA2 151.2W 24V CV LED Driver 6.3A | 151.2W | 24V | 6.3A | Indoor | $51.53 | View |
| MEAN WELL SPWM-150-12DA2 150W 12V CV LED Driver 12.5A | 150W | 12V | 12.5A | Indoor | $51.53 | View |
| MEAN WELL SPWM-150-12 150W 12V CV LED Driver 12.5A | 150W | 12V | 12.5A | Indoor | $48.53 | View |
