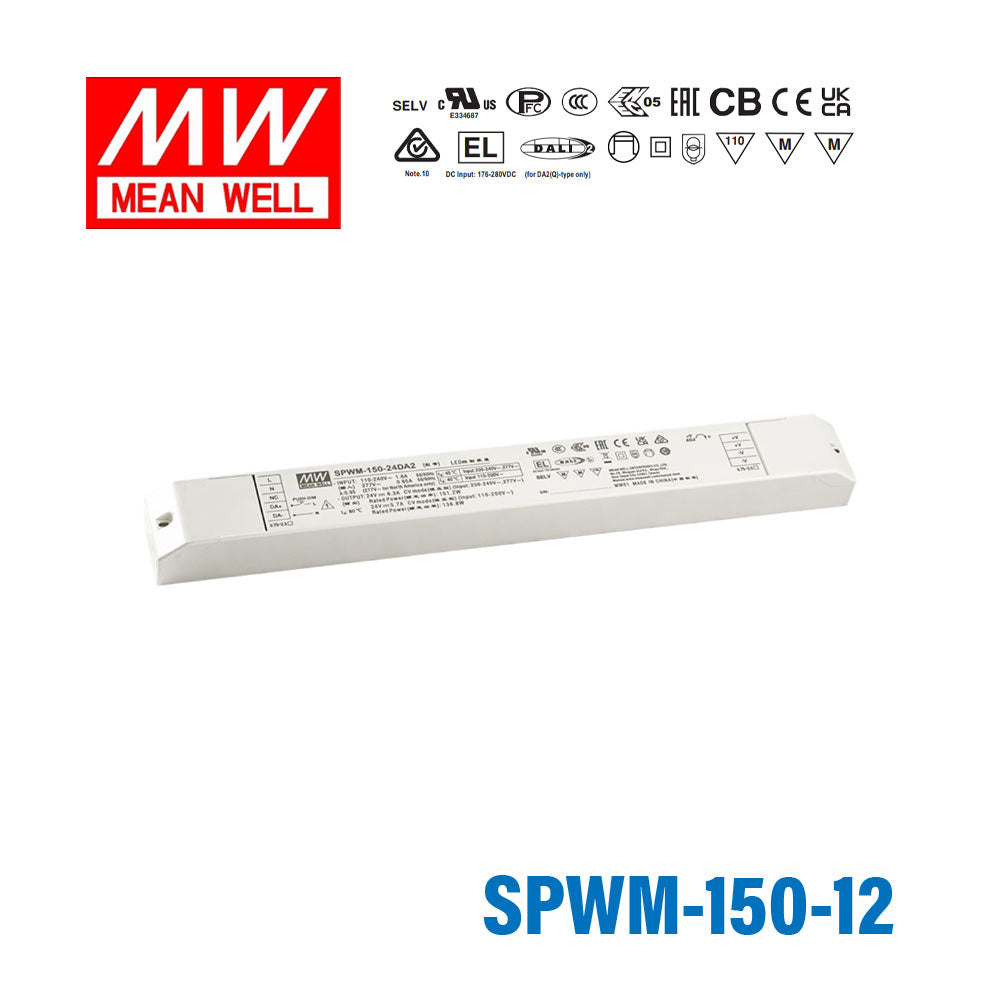

MEAN WELL SPWM-150-12 150W 12V CV LED Driver
Notify me when it's back in stock
Your order will be processed within 24 hours
MEAN WELL SPWM-150-12 150W 12V CV LED Driver
Description
Description
The MEAN WELL SPWM-150 series is a 150W constant voltage AC/DC LED driver with PWM-style output, designed for LED strip lighting applications requiring consistent brightness and colour uniformity. Operating from a wide 100–305VAC input range with built-in active PFC, the SPWM-150 series delivers high efficiency up to 93% and flicker-free performance compliant with CE ErP requirements. The fanless, free-air convection design allows reliable operation at case temperatures from –20°C to +80°C. Supporting 3-in-1 dimming (0–10V, 10V PWM signal, or resistance), the SPWM-150 provides flexible and cost-effective control for architectural, decorative, and residential LED lighting systems.
Key Features
Specifications
Specifications
-
BrandMean Well
-
SeriesSPWM Series
-
Power Rating150 Watt
-
Output Voltage12 Volt
-
Rated Current12.5 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetCB,CE,EAC,RCM,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length13.39 in
-
Width1.5 in
-
Height1.12 in
-
Weight0.88 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of LED applications is the MEAN WELL SPWM-150-12 designed for?
The SPWM-150-12 is a 150W constant voltage LED driver intended for 12V LED strip lighting applications. Its PWM-style output is aimed at maintaining consistent brightness and colour uniformity in lighting systems that require stable 12V DC output.
What are the main electrical ratings of the SPWM-150-12?
This model is rated for 150W output power with a 12V constant voltage output. Its rated output current is 12.5A, making it suitable for higher-power 12V LED lighting loads within that capacity.
What dimming control methods does the SPWM-150-12 support?
The SPWM-150-12 supports 0-10V, 10V PWM, and resistance-based dimming control. That gives buyers flexibility when selecting a compatible dimming approach for commercial or architectural LED strip lighting projects.
Is the SPWM-150-12 suitable for demanding temperature conditions?
This model is specified for operation from -40°C to +80°C. It also uses a fanless free-air convection design, which can be advantageous in environments where low maintenance and silent operation are important.
How does the SPWM-150-12 help with lighting quality and efficiency?
The product description states that the SPWM-150 series is designed for flicker-free performance compliant with CE ErP requirements. It also offers efficiency up to 93%, which can help reduce energy loss in LED lighting applications.
What input range and power-factor features does the SPWM-150-12 offer?
The SPWM-150 series operates from a wide 100-305VAC input range. It also includes active power factor correction (PFC), which is commonly important for commercial and professional lighting applications.
What warranty is offered with the MEAN WELL SPWM-150-12?
The SPWM-150-12 carries a 5-year warranty based on the provided product data. For B2B buyers, that can be a useful indicator of long-term product support for planned lighting installations and maintenance schedules.
Other SPWM-150 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| MEAN WELL SPWM-150-24DA2 151.2W 24V CV LED Driver | 151.2W | 24V | 6.3A | Indoor | $51.53 | View |
| MEAN WELL SPWM-150-24 151.2W 24V CV LED Driver | 151.2W | 24V | 6.3A | Indoor | $48.53 | View |
| MEAN WELL SPWM-150-12DA2 150W 12V CV LED Driver | 150W | 12V | 12.5A | Indoor | $51.53 | View |
