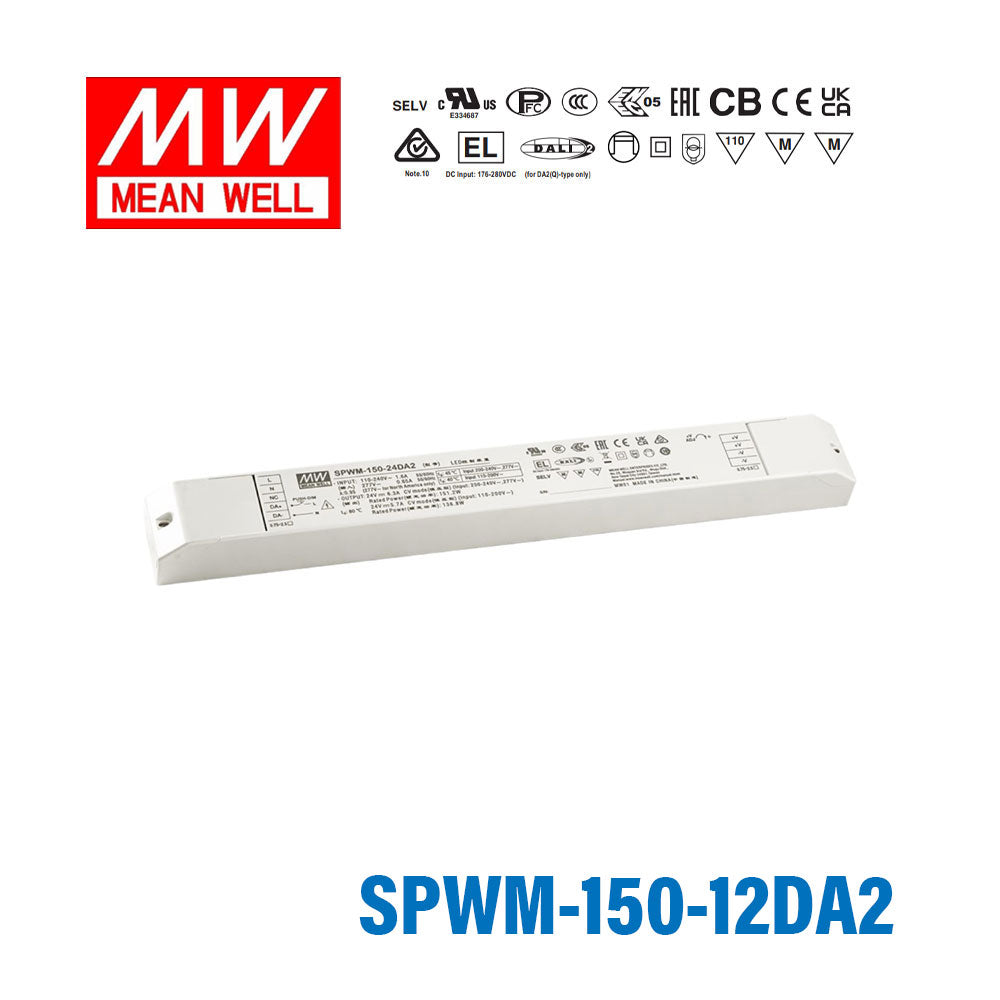

MEAN WELL SPWM-150-12DA2 150W 12V CV LED Driver
Description
Description
The MEAN WELL SPWM-150DA2 series is a 150W constant voltage PWM LED driver featuringDALI-2 DT6 digital dimmingfor precise brightness control in professional lighting systems. In addition to AC input operation, DA2 models support DC input, enabling compatibility with emergency lighting and central battery systems. The driver supports both DALI-2 and PUSH dimming from the primary side, allowing flexible commissioning and local override control. With high efficiency, flicker-free performance, and fanless convection cooling, the SPWM-150DA2 series is well suited for commercial, architectural, and building automation lighting applications.
Key Features
Specifications
Specifications
-
BrandMean Well
-
SeriesSPWM Series
-
Power Rating150 Watt
-
Output Voltage12 Volt
-
Rated Current12.5 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDALI2,Push Dimming
-
Standards MetCB,CE,EAC,RCM,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length13.39 in
-
Width1.5 in
-
Height1.12 in
-
Weight0.88 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What kind of LED applications is the MEAN WELL SPWM-150-12DA2 designed for?
The SPWM-150-12DA2 is a 12V constant voltage LED driver intended for professional lighting systems that need controlled dimming. Its 150W output makes it suitable for higher-power 12V LED loads in commercial or architectural projects.
Does this model support DALI lighting control?
Yes. The SPWM-150-12DA2 supports DALI-2 DT6 digital dimming, which allows precise brightness control in compatible lighting systems. It is aimed at projects where centralized dimming performance and consistent control are important.
Can the SPWM-150-12DA2 be used in emergency lighting or central battery systems?
Yes. In addition to AC input operation, DA2 models support DC input, which makes them compatible with emergency lighting and central battery system applications. This is a key differentiator for projects that require backup-power compatibility.
What are the main electrical ratings of the SPWM-150-12DA2?
This model is rated for 150W output at 12V constant voltage. Its rated output current is 12.5A, making it appropriate for 12V LED systems that need higher current capacity.
Does this LED driver support any dimming methods besides DALI-2?
Yes. The SPWM-150-12DA2 supports both DALI-2 and PUSH dimming. That gives buyers flexibility when a project needs digital building control along with a local dimming override method.
Is the SPWM-150-12DA2 suitable for demanding temperature conditions?
It is specified for operation from -40°C to 80°C. That wide temperature range makes it a strong option for installations exposed to challenging ambient conditions, provided the overall system is designed within the product's rated limits.
What warranty does MEAN WELL provide for the SPWM-150-12DA2?
This model comes with a 5-year warranty. For B2B buyers, that can be an important factor when selecting drivers for long-life lighting projects and maintenance planning.
