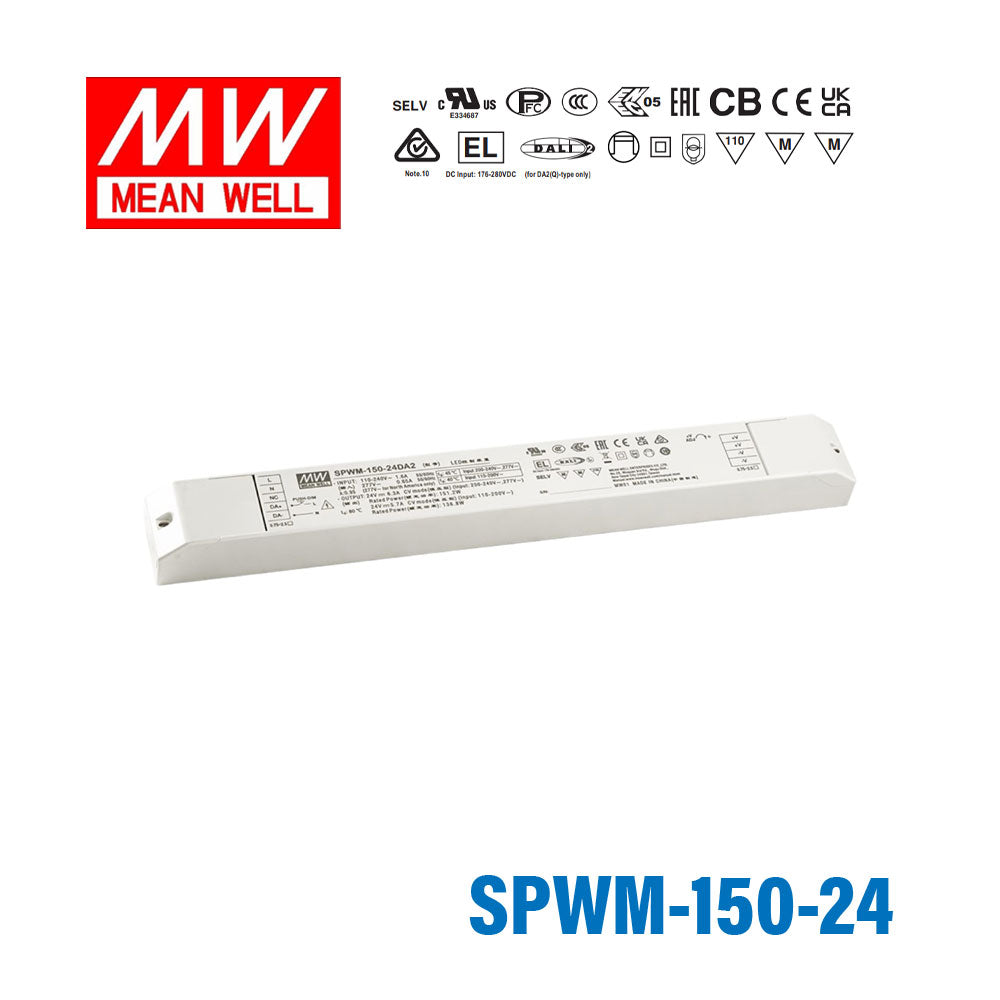

MEAN WELL SPWM-150-24 151.2W 24V CV LED Driver
Notify me when it's back in stock
Your order will be processed within 24 hours
MEAN WELL SPWM-150-24 151.2W 24V CV LED Driver
Description
Description
The MEAN WELL SPWM-150 series is a 150W constant voltage AC/DC LED driver with PWM-style output, designed for LED strip lighting applications requiring consistent brightness and colour uniformity. Operating from a wide 100–305VAC input range with built-in active PFC, the SPWM-150 series delivers high efficiency up to 93% and flicker-free performance compliant with CE ErP requirements. The fanless, free-air convection design allows reliable operation at case temperatures from –20°C to +80°C. Supporting 3-in-1 dimming (0–10V, 10V PWM signal, or resistance), the SPWM-150 provides flexible and cost-effective control for architectural, decorative, and residential LED lighting systems.
Key Features
Specifications
Specifications
-
BrandMean Well
-
SeriesSPWM Series
-
Power Rating151.2 Watt
-
Output Voltage24 Volt
-
Rated Current6.3 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetCB,CE,EAC,RCM,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length13.39 in
-
Width1.5 in
-
Height1.12 in
-
Weight0.88 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the MEAN WELL SPWM-150-24 designed for?
The SPWM-150-24 is a 24V constant voltage LED driver intended for LED strip lighting applications. Its PWM-style output is aimed at maintaining consistent brightness and colour uniformity in lighting systems that need stable 24V DC output.
What are the main electrical ratings of the SPWM-150-24?
This model is rated for 24V DC output at 6.3A, with a total power rating of 151.2W. It is part of the SPWM-150 series and operates from a wide 100-305VAC input range.
What dimming methods does the SPWM-150-24 support?
The SPWM-150-24 supports 0-10V dimming, 10V PWM dimming, and resistance-based dimming control. That makes it suitable for projects that need flexible low-voltage dimming options without changing to a different driver family.
Is the SPWM-150-24 suitable for demanding temperature conditions?
This model is specified for operation from -40 degrees C up to 80 degrees C case temperature. Its fanless free-air convection design supports use in environments where silent operation and thermal reliability are important.
How efficient is the MEAN WELL SPWM-150-24?
The SPWM-150 series is rated for efficiency up to 93 percent and includes active power factor correction. The product description also states flicker-free performance compliant with CE ErP requirements, which is relevant for lighting quality and energy-conscious projects.
Why would a buyer choose the SPWM-150-24 over a lower-power 24V LED driver?
The main reason is output capacity: this model delivers up to 151.2W at 24V and 6.3A, making it better suited to larger 24V LED strip loads than lower-wattage drivers. It also combines dimming support, high efficiency, and a wide AC input range in one unit.
What warranty is offered on the SPWM-150-24?
The SPWM-150-24 comes with a 5-year warranty. For B2B buyers, that can be useful where longer service expectations and lower replacement risk matter in ongoing lighting projects.
Other SPWM-150 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| MEAN WELL SPWM-150-24DA2 151.2W 24V CV LED Driver | 151.2W | 24V | 6.3A | Indoor | $51.53 | View |
| MEAN WELL SPWM-150-12DA2 150W 12V CV LED Driver | 150W | 12V | 12.5A | Indoor | $51.53 | View |
| MEAN WELL SPWM-150-12 150W 12V CV LED Driver | 150W | 12V | 12.5A | Indoor | $48.53 | View |
