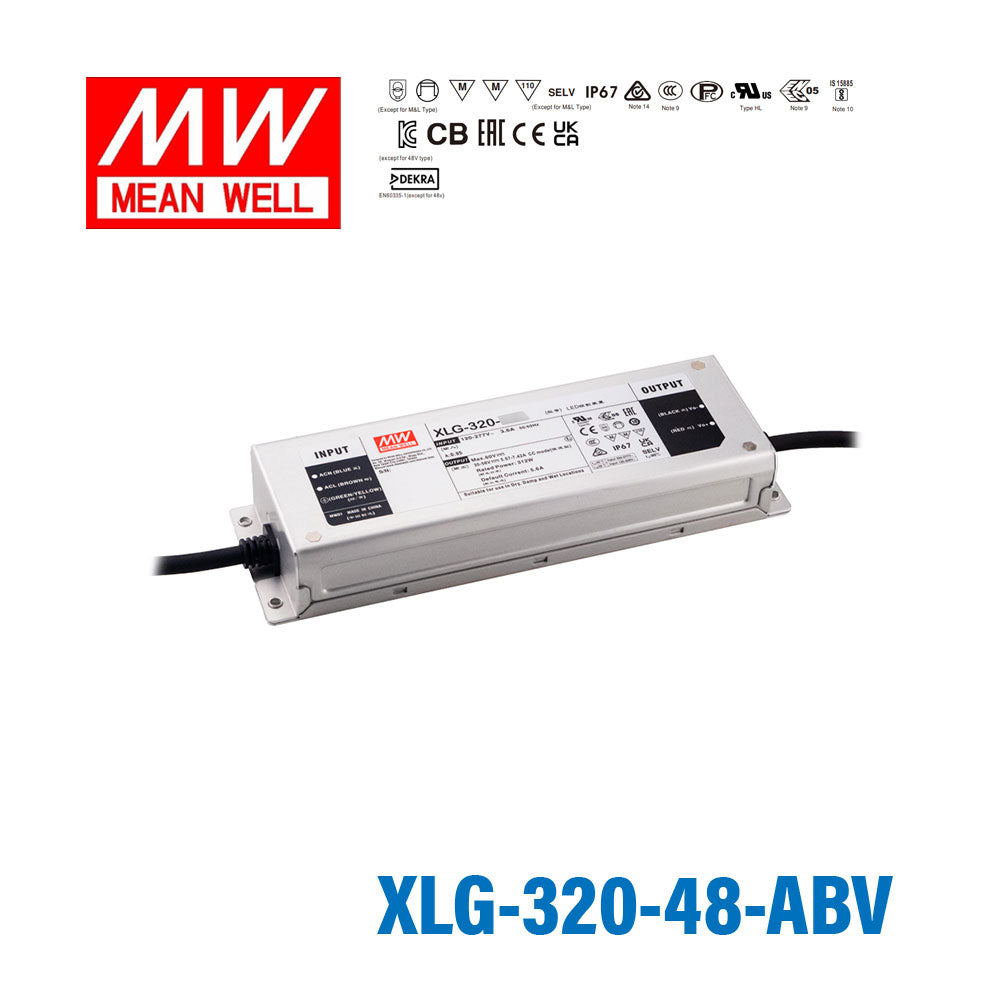

Mean Well XLG-320-48-ABV Power Supply 312W 48V 6.5A

The Mean Well XLG-320-48-ABV is a 312W constant voltage LED driver with a regulated output of 48V DC at up to 6.5A. Housed in an IP67-rated case for damp and outdoor locations with built-in active PFC, it requires no earth connection and is flicker-free to the CE ErP directive.

Accepting 100~305VAC universal input, the XLG-320-48-ABV operates at a case temperature of -20°C to 85°C and carries CB, CCC, CE, EAC, ENEC, RCM, SELV and UL approvals. It supports 0-10V, 10V PWM and resistance dimming. Protected against short circuit and over temperature, and backed by a 5-year warranty.

Key Features

• ✓Wide input range 100~305V AC(Class I)
• ✓Full power output at 75~100% Constant power mode operation
• ✓Metal case with IP67, suitable for outdoor application
• ✓Surge protection with 6KV/4KV
• ✓3-in-1 Dimming (Dim-to-off and Isolation design)
• ✓Protection functions: OLP / SCP / OVP / OTP
• ✓Compliance to EN60335-1 household application
• ✓Lifetime >50,000 hrs
• ✓5 years warranty

• Brand
  Mean Well
• Series
  XLG Series
• Power Rating
  312 Watt
• Output Voltage
  48 Volt
• Rated Current
  6.5 Ampere
• Input Voltage
  100V~305V
• No of Output
  1
• Dimming Control
  0-10V,10V PWM,Resistance
• Standards Met
  CB,CCC,CE,EAC,ENEC,RCM,SELV,UL
• Operation Mode
  Constant Voltage
• Operating Temperature
  -20°C~85°C
• Warranty
  5 Year
• Length
  9.69 in
• Width
  3.03 in
• Height
  1.56 in
• Weight
  3.2 lb
