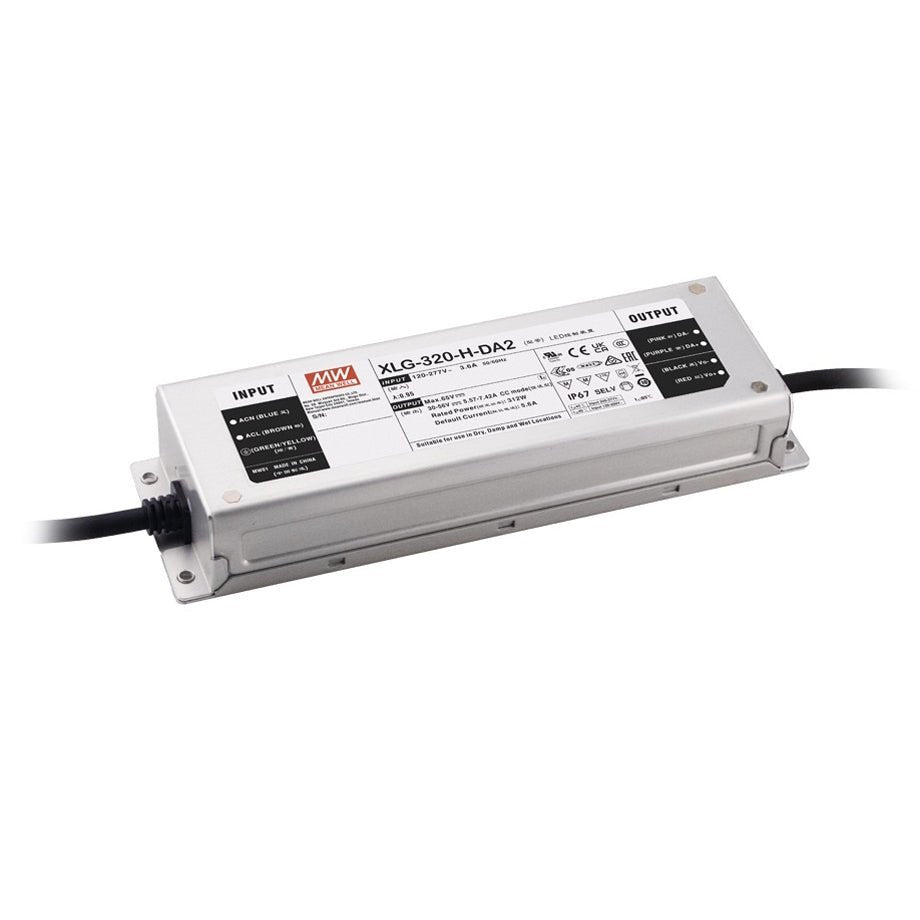

Mean Well XLG-320-M-DA2 Power Supply 310.8W 2800mA - DALI2 Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLG-320-M-DA2 Power Supply 310.8W 2800mA - DALI2 Dimmable
Overview
XLG-320-M-DA2 is the model of this series: rated power 310.8W, typical efficiency 93.5%.
XLG-320-DA2 series is a 320W LED AC/DC driver featuring the constant power mode with DALI-2 dimming function. XLG-320-DA2 operates from 100~305VAC and offers models with different rated current ranging between 1050mA and 7420mA. Thanks to the high efficiency up to 94.5%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. XLG-320-DA2 series comply with the latest version of IEC61347/GB/T19510.1 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation.
Features
- Wide input range 100~305V AC( Class I)
- Full power output at 70~100% Constant power mode operation
- Metal case with IP67, suitable for outdoor application
- Surge protection with 6KV/4KV
- DALI-2 Dimming with minimum level 8%
- 12V/250mA Auxiliary power available(optional)
- India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours(optional)
- Protection functions: SCP/OTP
- Life time >50,000 hrs. and 5 years warranty
Specifications
OUTPUT
- RATED CURRENT(Default)
- 2800mA
- RATED POWER
- 310.8W

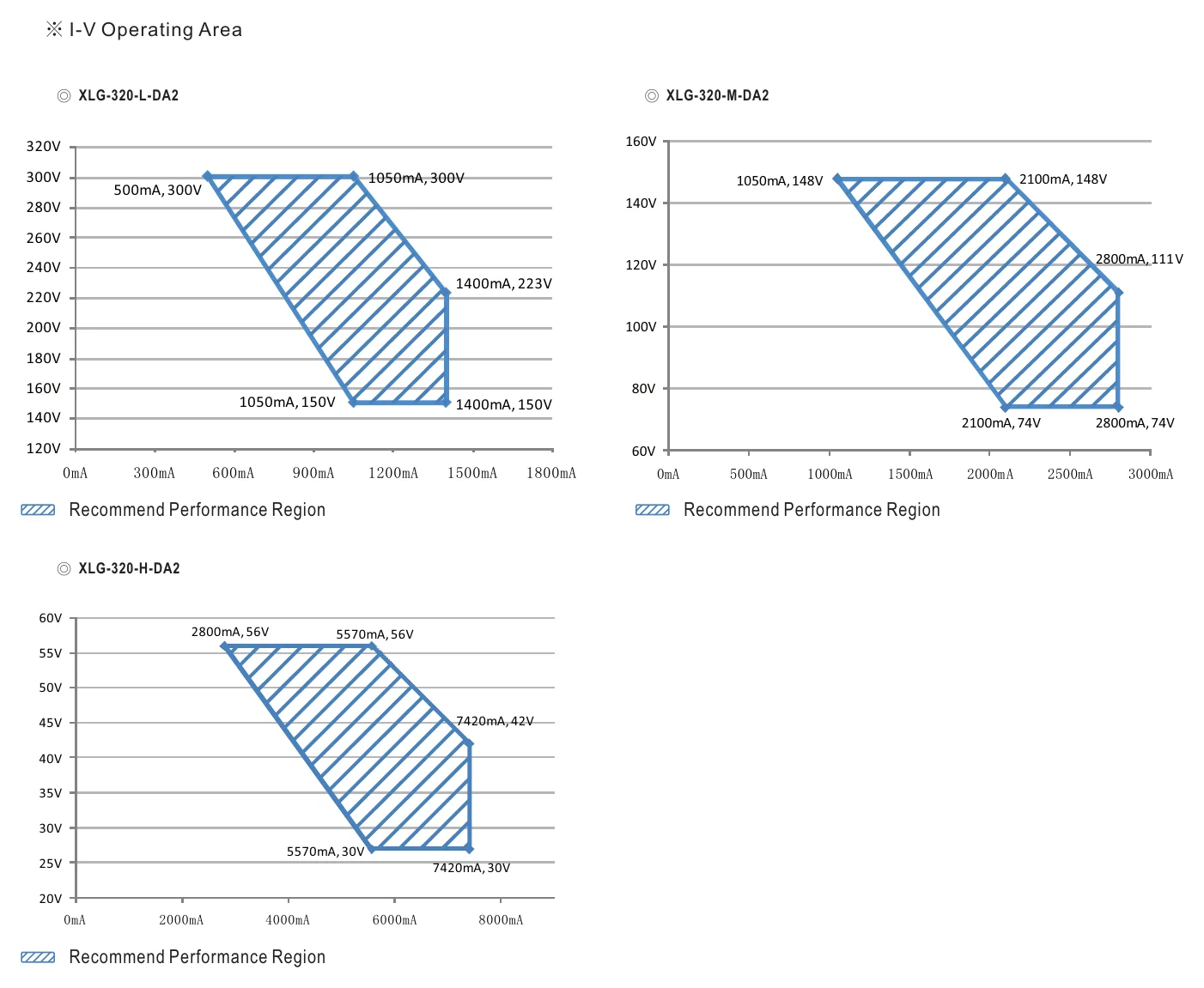

- CONSTANT CURRENT REGIONNote.2
- 74 ~ 148V
- FULL POWER CURRENT RANGE
- 2100~2800mA
- OPEN CIRCUIT VOLTAGE (max.)
- 180V
- CURRENT ADJ. RANGE
- (Via the built-in potentiometer)
- CURRENT ADJ. RANGE
- 1050~2800mA
- CURRENT RIPPLE
- 5.0%(@ full load)
- CURRENT TOLERANCE
- ±5%
- AUXILIARY DC OUTPUT
- 12V@250mA tolerance ±10%, ripple 200mVp-p (only for DA2-A-type)
- SET UP TIMENote.6
- 500ms/230VAC, 1200ms/115VAC
INPUT
- VOLTAGE RANGENote.4
- 100 ~ 305VAC 142VDC ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" ang " DRIVING METHODS OF LED MODULE"section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)

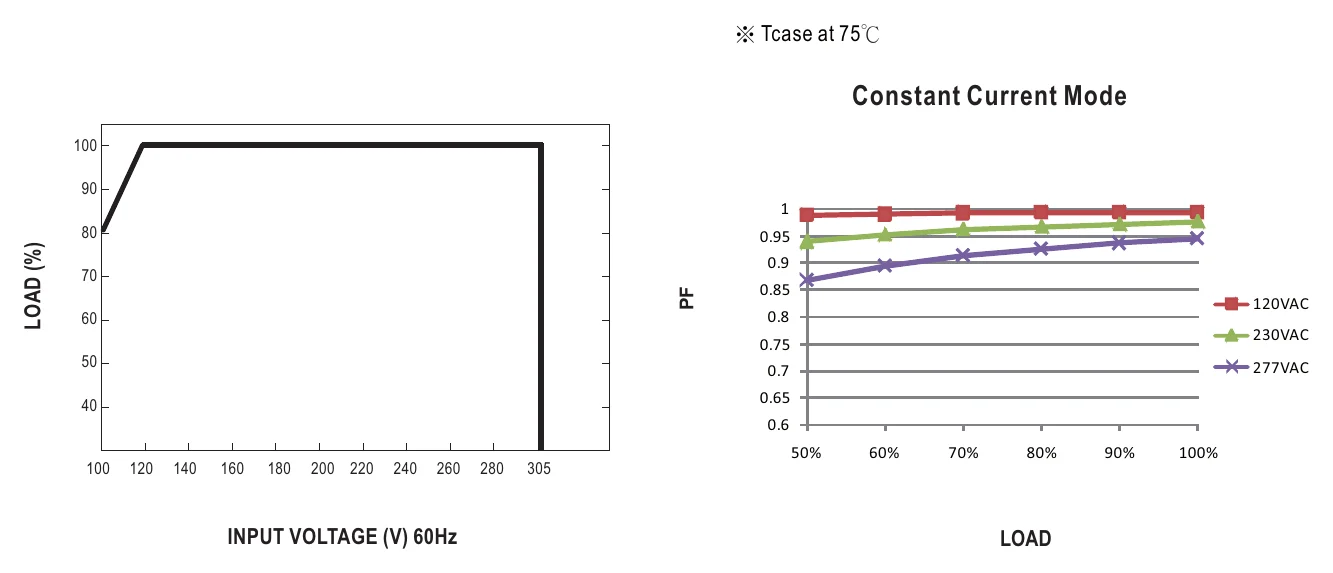

- PF≧0.97 / 115VAC, PF≧0.95 / 230VAC, PF≧0.92 / 277VAC at full load (Please refer to "Power Factor Characteristic" section)

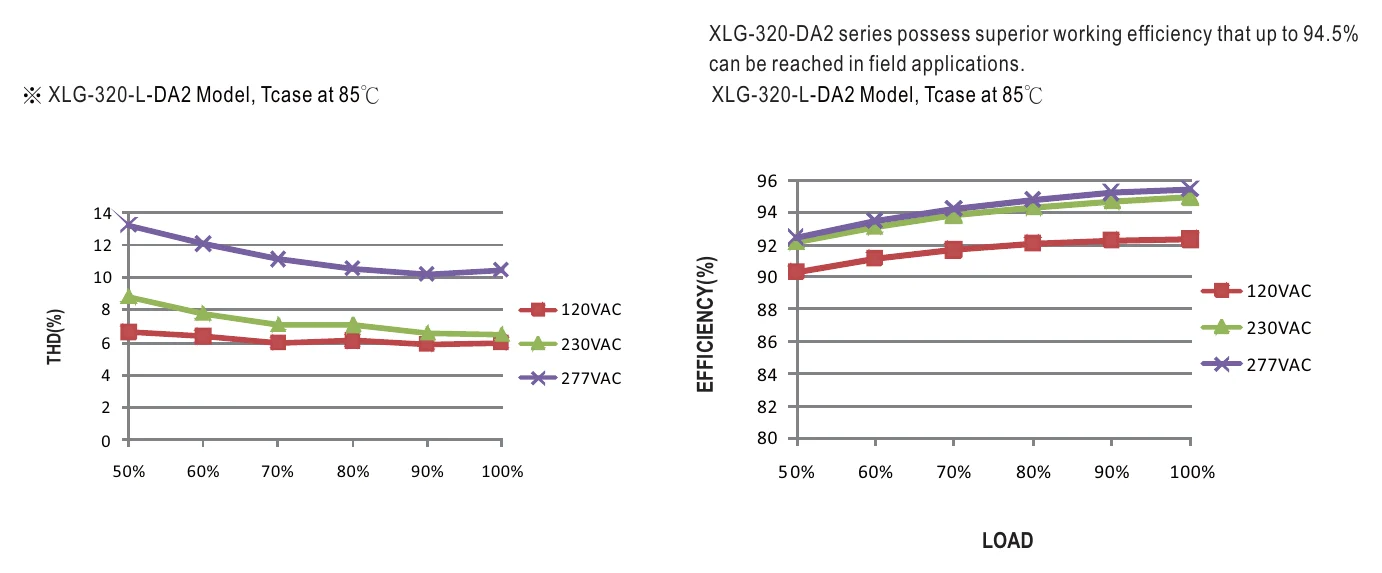

- TOTAL HARMONIC DISTORTION
- THD< 10% @ load≧50% at 115VAC/230VAC ,THD< 15% @load≧75% at 277VAC Please refer to “TOTAL HARMONIC DISTORTION (THD)” section
- EFFICIENCY (Typ.)Note.14
- 93.5%
- AC CURRENT (Typ.)
- 3.2A / 120VAC 1.6A / 230VAC 1.3A/277VAC
- INRUSH CURRENT(Typ.)
- COLD START 45A(twidth=1200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. NO. of PSUs on 16A CIRCUIT BREAKER
- 2 unit(circuit breaker of type B) / 4 units(circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
- STANDBY POWER CONSUMPTION
- Standby power consumption <0.5W (Dimming OFF, Only for standard version DA2-type)
PROTECTION
- SHORT CIRCUIT
- Hiccup mode or Constant current limiting, recovers automatically after fault condition is removed
- INPUT OVER VOLTAGENote.7
- 320 ~ 390VAC (Shut down output voltage when the input voltage exceeds protection voltage,recovers automatically after fault condition is removed) Can survive input voltage stress of 440Vac for 48 hours
- OVER TEMPERATURE
- Stage 1: Derating to 75% loading; stage 2: Derating to 50% loading. recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.

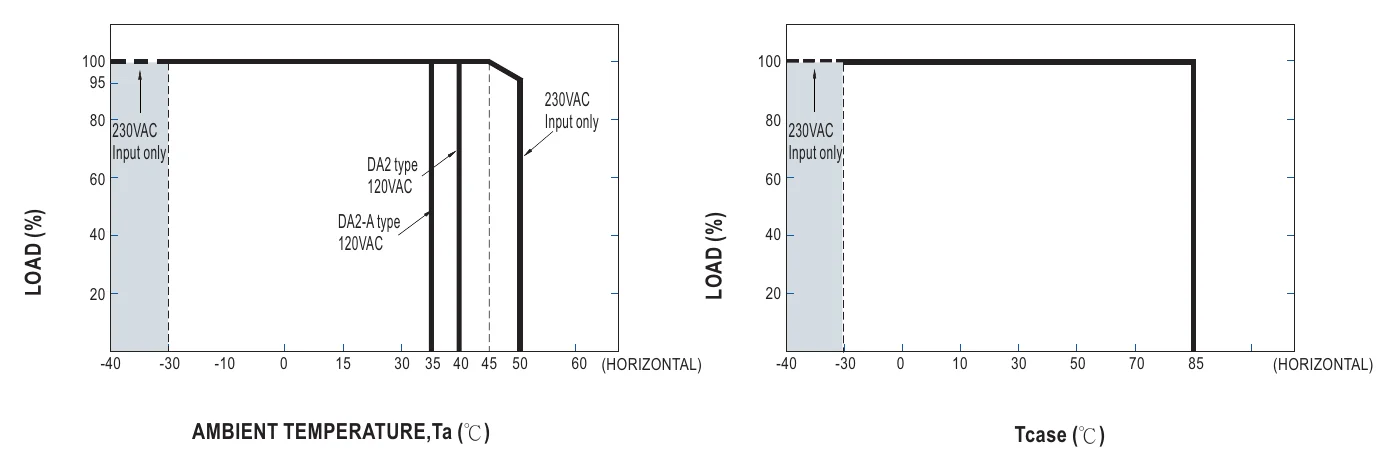

- Tcase=-40 ~ +85℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
- MAX. CASE TEMP.
- Tcase=+85℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.06%/℃ (0 ~ 60℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 (EL) appendix J suitable for emergency installations(DC Input: 176-280Vdc) independent ,GB/T19510.1,GB/T19510.213; EAC TP TC 004; IS 15885(Part2/Sec13)(for XLG-320I-DA2 only); IP67 approved
- DALI STANDARDS
- Comply with IEC62386-101,102,207,251,Device type 6(DT6)
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.8KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted BS EN/EN55015(CISPR15),GB/T 17743 ----- Radiated BS EN/EN55015(CISPR15),GB/T 17743 ----- Harmonic Current BS EN/EN61000-3-2,GB17625.1 Class C @load≥50% Voltage Flicker BS EN/EN61000-3-3 -----; BS EN/EN61547 - EMC IMMUNITY
-
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact Radiated BS EN/EN61000-4-3 Level 2 EFT/Burst BS EN/EN61000-4-4 Level 3 Surge BS EN/EN61000-4-5 4KV/Line-Line 6KV/Line-Earth Conducted BS EN/EN61000-4-6 Level 2 Magnetic Field BS EN/EN61000-4-8 Level 4 Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods
OTHERS
- MTBF
- 1397.7Khrs min. Telcordia SR-332 (Bellcore) ; 145.1Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 246*77*39.5mm (L*W*H)
- PACKING
- 1.45Kg;9pcs/14Kg/0.76CUFT
Test conditions and notes17
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to "DRIVING METHODS OF LED MODULE".
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 5. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
- 6. Based on IEC 62386-101/102 DALI power on timing and interruption regulations,the set up time needs to test with a DALI controller which can support for DALI power on function,otherwise the set up time will be longer than 500ms.
- 7. Input over voltage only for XLG-320 I series,and I series without UL/CSA certificate.
- 8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com

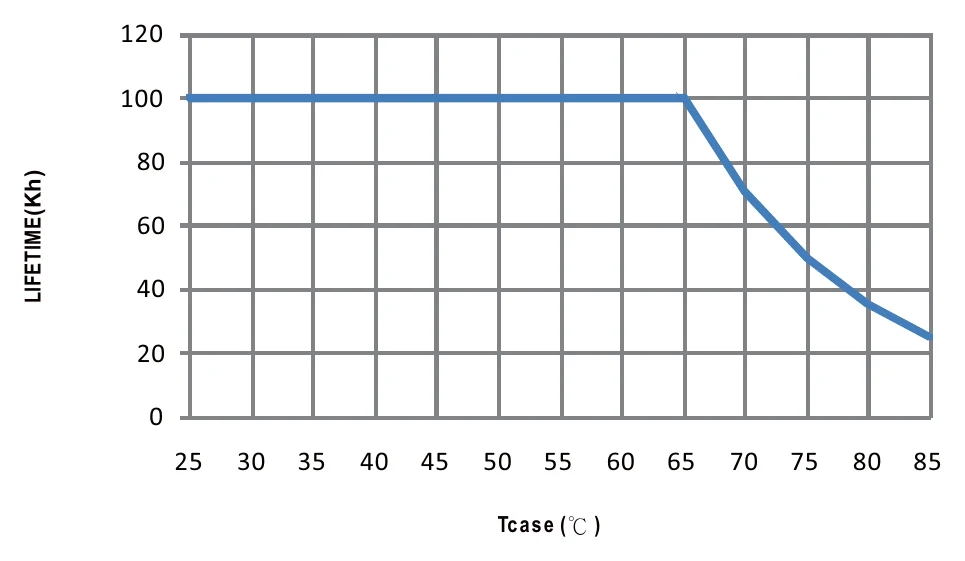

- 11. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
- 12. Products sourced from the Americas regions may not have the CCC/PSE/BIS/KC logo. Please contact your MEAN WELL sales for more information.
- 13. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 14. The efficiency will drop 1% based on auxiliary power version with full load 3W condition.
- 15. H type:RCM is on a voluntary basis. Non IC classification Independent LED control gear is not suitable for residential installations； M/L type:RCM is on a voluntary basis and meets relevant IEC or AS/NZS standards complying with AS/NZS 4417.1
- 16. To fulfill requirements of the latest ErP regulation for lighting fixture, this LED driver can only be used behind a switch without permanently connected to the mains.
- 17. This series need to consider build in using to comply with Type HL application.

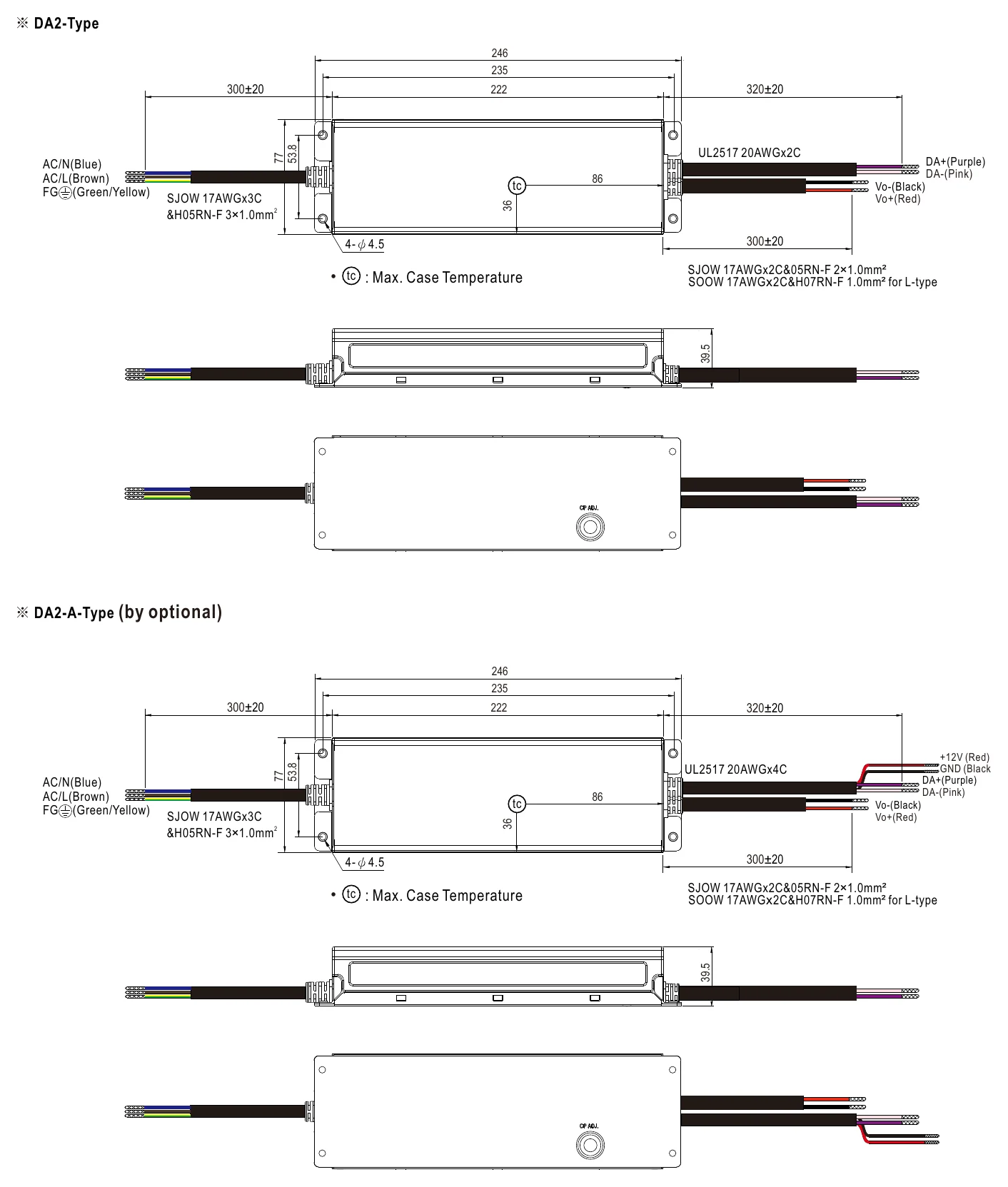

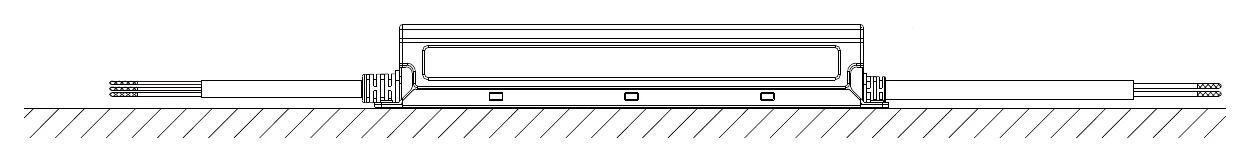

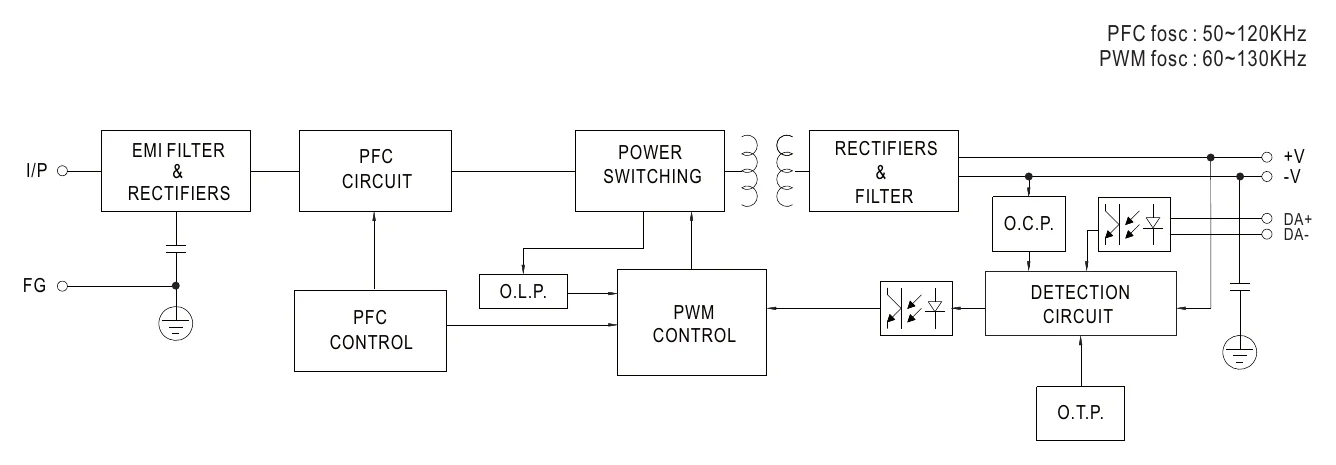

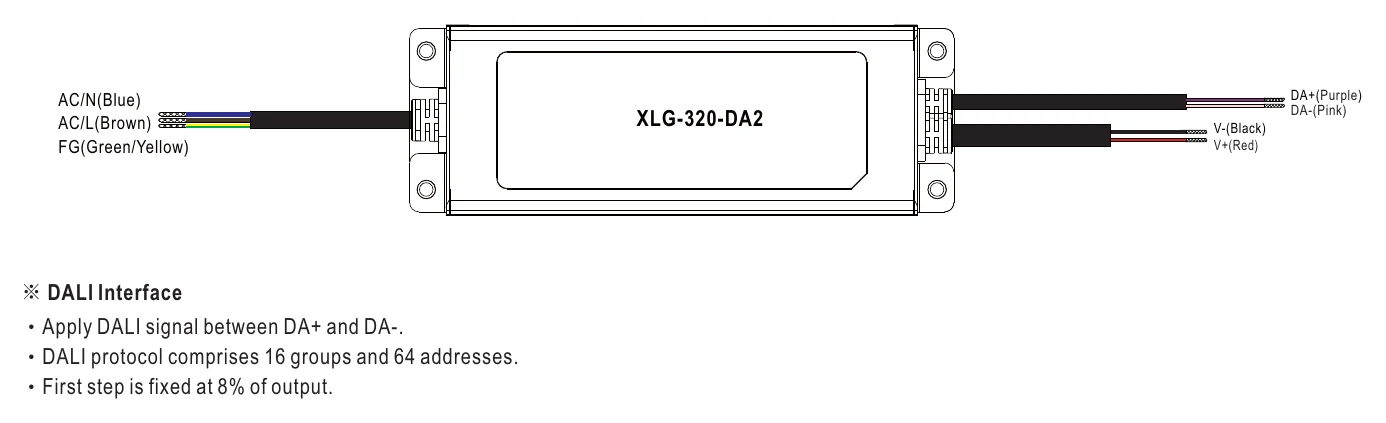

Technical drawings
Typical applications
- Street lighting
- Floodlight Lighting
- Stage lighting
- Fishing lighting
- Horticulture lighting
- Bay lighting
- Type HL for use in class I, Division 2
Downloads
Datasheet1
FAQ
Can I use the XLG-320-M-DA2 to drive LED downlights in a large commercial space?
Yes. The XLG-320-M-DA2 delivers 310.8W at 2800mA constant current with a CC voltage range of 115–230V, making it well suited for powering series strings of high-power LED downlights in commercial installations. The DALI2 interface allows individual dimming control from a building automation system.
Is the XLG-320-M-DA2 suitable for outdoor LED signage cabinets?
Yes. The driver carries an IP67 waterproof rating, so it can be mounted inside outdoor signage enclosures exposed to rain and dust. Its operating temperature range of -40°C to +90°C also covers most outdoor climates.
Can the XLG-320-M-DA2 power an array of large-format LED modules in architectural lighting?
Yes. With 310.8W of output power and an adjustable current range of 1050–2800mA, this driver can support a series array of high-power LED modules within the 115–230V CC voltage range. The exact number of LEDs in the string depends on each LED's forward voltage.
Does the XLG-320-M-DA2 work with DALI2 dimming controllers?
Yes, the driver is designed specifically for DALI2 dimming systems. It supports a minimum dimming level of 8% and integrates directly with DALI2-compliant controllers for smooth, bus-addressed dimming.
How many LEDs can the XLG-320-M-DA2 drive in a series string?
The driver's constant current region spans 115–230V, so the number of LEDs in the string depends on the forward voltage of each individual LED. There is no fixed LED count — select LEDs whose combined forward voltages fall within that 115–230V range at your desired operating current.
Can the XLG-320-M-DA2 be installed in a sealed or wet-location enclosure?
Yes. The IP67 rating means the driver is protected against temporary immersion and continuous water ingress, making it appropriate for sealed enclosures or damp/wet-location installations. The -40°C to +90°C operating temperature range adds further flexibility for environmental extremes.
How does the XLG-320-M-DA2 compare to other 300W-class DALI2 drivers in the XLG series?
Within the 320W DALI2 tier, the XLG-320-H-DA2 outputs 312W at up to 65V/5600mA for lower-voltage, higher-current strings; the XLG-320-L-DA2 outputs 315W at up to 340V/1400mA for long series strings; and the XLG-320-M-DA2 outputs 310.8W at up to 180V/2800mA, occupying the mid-range voltage and current position. All three share the DALI2 interface and IP67 rating.
