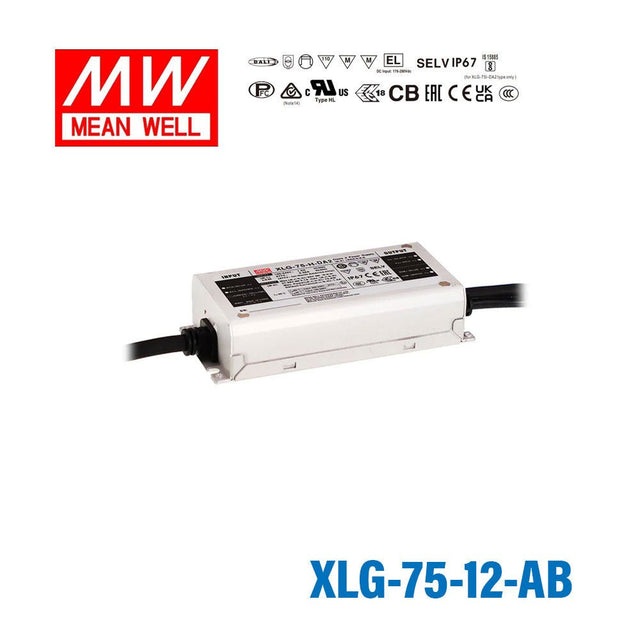

Mean Well XLG-75-12-AB Power Supply 75W 12V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLG-75-12-AB Power Supply 75W 12V - Adjustable and Dimmable
The XLG-75-12 is a 75W Mean Well power converter.
Key Features
- ✓ Cooling by free air convection
- ✓ Protections: Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesXLG Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length5.51 in
-
Width2.48 in
-
Height1.26 in
-
Weight1.28 lb
::specification::
Frequently Asked Questions
Can the XLG-75-12-AB power dimmable 12V LED strip in an outdoor or wet-rated installation?
Yes. The XLG-75-12-AB is IP67-rated for fully sealed dust and water protection and supports external dimming, making it suitable for dimmable 12V LED strip in outdoor sign boxes, exterior architectural lighting, and wet-area feature lighting applications.
How many meters of 12V LED strip will a 60W driver like the XLG-75-12-AB support?
The XLG-75-12-AB outputs 60W at 12V. Using a strip rated at 7.2W/m (common for mid-density 12V strip), the driver supports up to about 8.3 meters at full load, or approximately 6.7 meters derated to 80% for continuous operation. Check your specific strip's watts per meter rating to calculate the exact run length.
Is the XLG-75-12-AB appropriate for use in cold outdoor environments such as northern-climate signage?
Yes. With a rated operating range of -40°C to +90°C, the XLG-75-12-AB handles extreme cold conditions encountered in outdoor northern-climate signage, cold storage facility lighting, and exterior architectural strip installations year-round.
Can I use the XLG-75-12-AB to control brightness levels in a dimmable retail display or exhibition lighting rig?
Yes. The -AB designation indicates this unit includes a dimming interface suitable for adjusting 12V LED strip brightness via an external controller. This makes it a practical choice for dimmable retail display lighting, exhibition stands, or museum accent lighting where light level control is needed alongside IP67 environmental protection.
Can the XLG-75-12-AB be installed in a splash-zone location such as a fountain surround or covered outdoor bar?
Yes. The IP67 rating certifies resistance to complete dust ingress and temporary water immersion, making the XLG-75-12-AB suitable for splash-zone locations such as fountain surrounds, covered outdoor bars, and pool deck accent lighting, provided local electrical codes and enclosure requirements are met.
