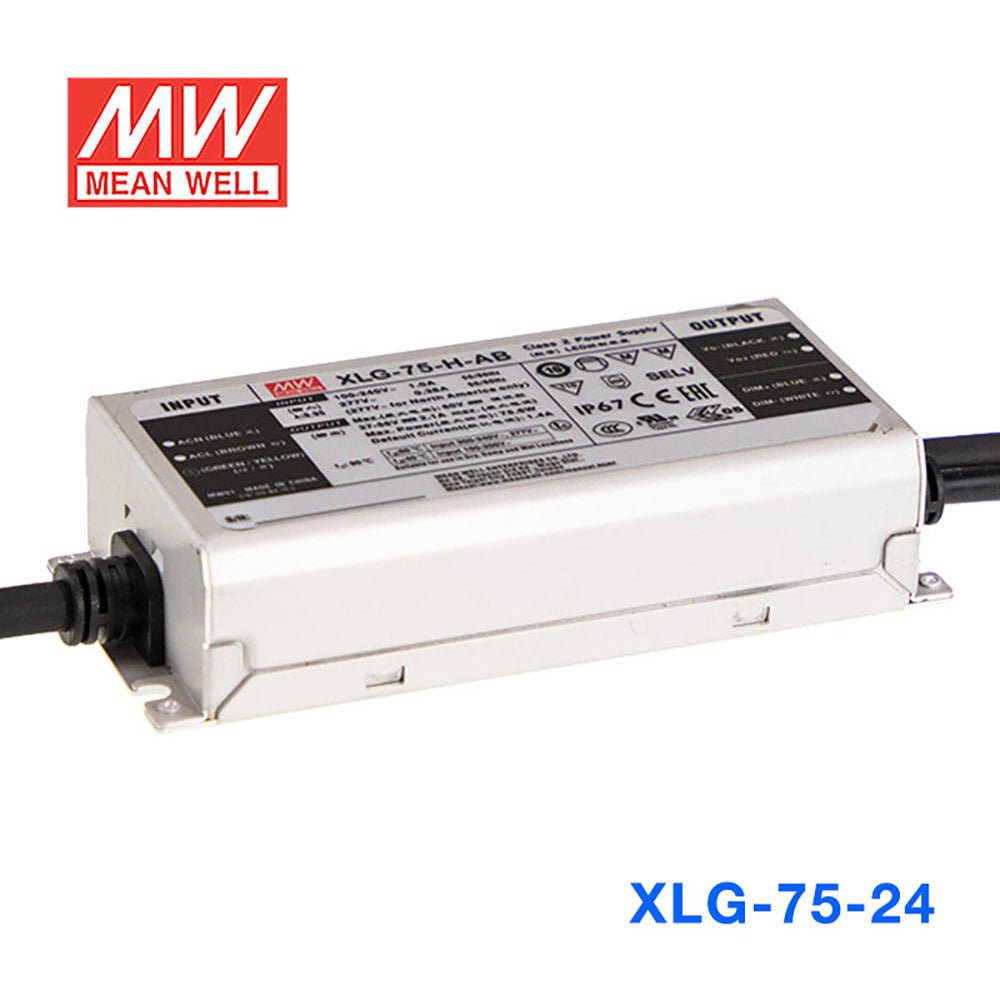

Mean Well XLG-75-24-A Power Supply 75W 24V - Adjustable

metal case, economical, 100~305VAC wide range input, efficiency up to 90%
SKU:
XLG-75-24-A

Model
$22.77 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Features

Wide input range 100~305VAC(Class I)
Full power output at 70~100% constant power mode operation
Metal case with IP67, suitable for outdoor application
Class 2 power unit(except for L type)
Surge protection with 6KV/5KV
3 in 1 dimming function (Dim to off and isolation design)
India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours
Protection functions: OVP/SCP/OCP/OTP
Lifetime > 50,000 hrs. and 5 years warranty

General Specification

AC input voltage range 100~305VAC;142~431VDC
AC inrush current Cold start, 50A at 230VAC
DC adjustment range ±10% rated output voltage
Over-voltage protection 108%~158% rated output voltage
Setup, rise, hold up time 500ms, 100ms, 12ms
Withstand voltage I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature -40~+90°C
Safety standards UL8750 approved; .13-12;ENEC BS EN/EN61347-1; EAC TP TC 004;J61347-1(H29)
EMC standards EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
Dimension (LxWxH) 140x63x32
Packing 24pcs / 15kg

Specifications

  • Brand
    Mean Well
  • Series
    XLG Series
  • Power Rating
    74.4 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    3.1 Ampere
  • Input Voltage
    100V~305V
  • No of Output
    1
  • Dimming Control
    Built-in Potentiometer
  • Standards Met
    CB,CCC,CE,EAC,ENEC,RCM,UL
  • Operation Mode
    Constant Current,Constant Voltage
  • Operating Temperature
    -40°C~90°C
  • Warranty
    5 Year
  • Length
    5.51 in
  • Width
    2.48 in
  • Height
    1.26 in
  • Weight
    1.28 lb

File Downloads

::specification::
