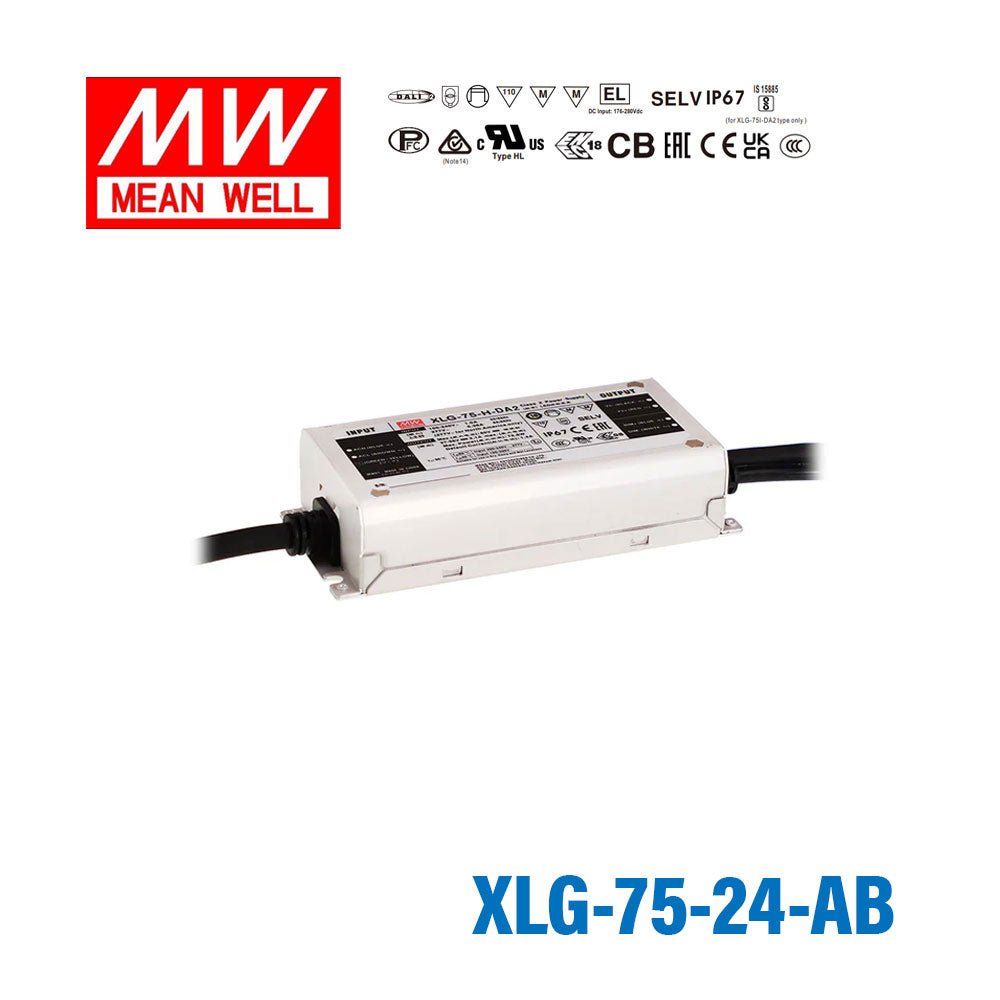

Mean Well XLG-75-24-AB Power Supply 75W 24V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLG-75-24-AB Power Supply 75W 24V - Adjustable and Dimmable
The XLG-75-24 is a 75W Mean Well power converter.
Key Features
- ✓ Cooling by free air convection
- ✓ Protections: Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesXLG Series
-
Power Rating74.4 Watt
-
Output Voltage24 Volt
-
Rated Current3.1 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length5.51 in
-
Width2.48 in
-
Height1.26 in
-
Weight1.28 lb
::specification::
Frequently Asked Questions
Can the XLG-75-24-AB drive dimmable 24V LED strip in an outdoor or wet-rated installation?
Yes. The XLG-75-24-AB is IP67-rated and includes a dimming interface, making it suitable for dimmable 24V LED strip in outdoor sign boxes, exterior cove channels, and wet-location accent lighting where brightness control is required.
How much 24V LED strip can the XLG-75-24-AB support?
The XLG-75-24-AB outputs 74.4W at 24V. For a 24V strip rated at 12W/m, this supports approximately 6.2 meters at full load, or about 5 meters at 80% derating for continuous use. Always check your strip's watts per meter rating and derate to 80% for sustained loads.
Is the XLG-75-24-AB suitable for use in very cold outdoor environments?
Yes. The -40°C to +90°C operating range makes this driver appropriate for outdoor sign lighting and architectural LED strip in cold climates, as well as high-ambient commercial environments. The IP67 rating adds protection against condensation and moisture in all seasons.
Can the XLG-75-24-AB be used in a dimmable hospitality or museum lighting installation?
Yes. The dimming capability of the XLG-75-24-AB makes it suitable for hospitality accent lighting, museum display lighting, and retail feature lighting where 24V LED strip brightness needs to be adjusted dynamically. The IP67 sealing also allows installation in areas subject to cleaning or humidity.
Can I install the XLG-75-24-AB in a covered outdoor bar or pool deck strip lighting system?
Yes. The IP67 certification covers complete dust protection and temporary water immersion, qualifying the XLG-75-24-AB for covered outdoor bars, pool deck lighting channels, and similar wet-environment 24V LED strip applications, subject to local code requirements for enclosure and placement.
