Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

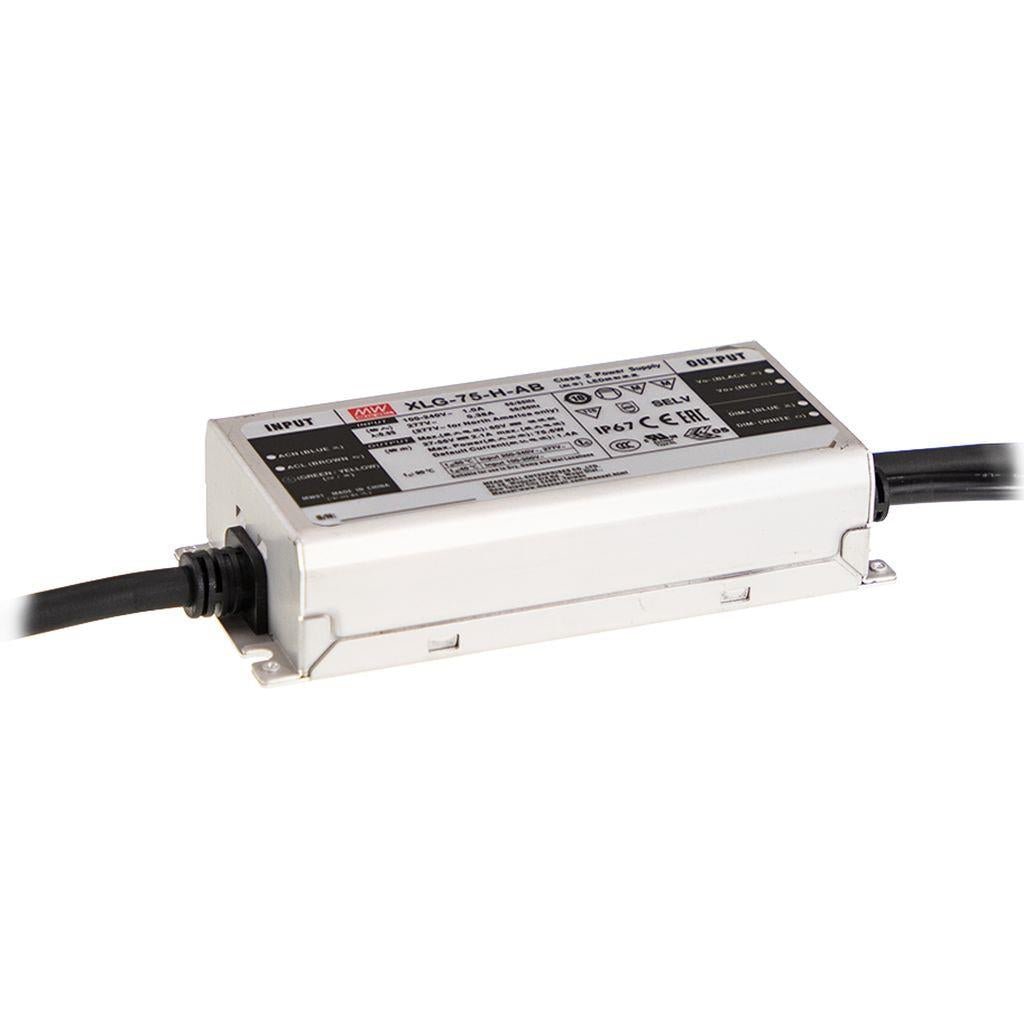

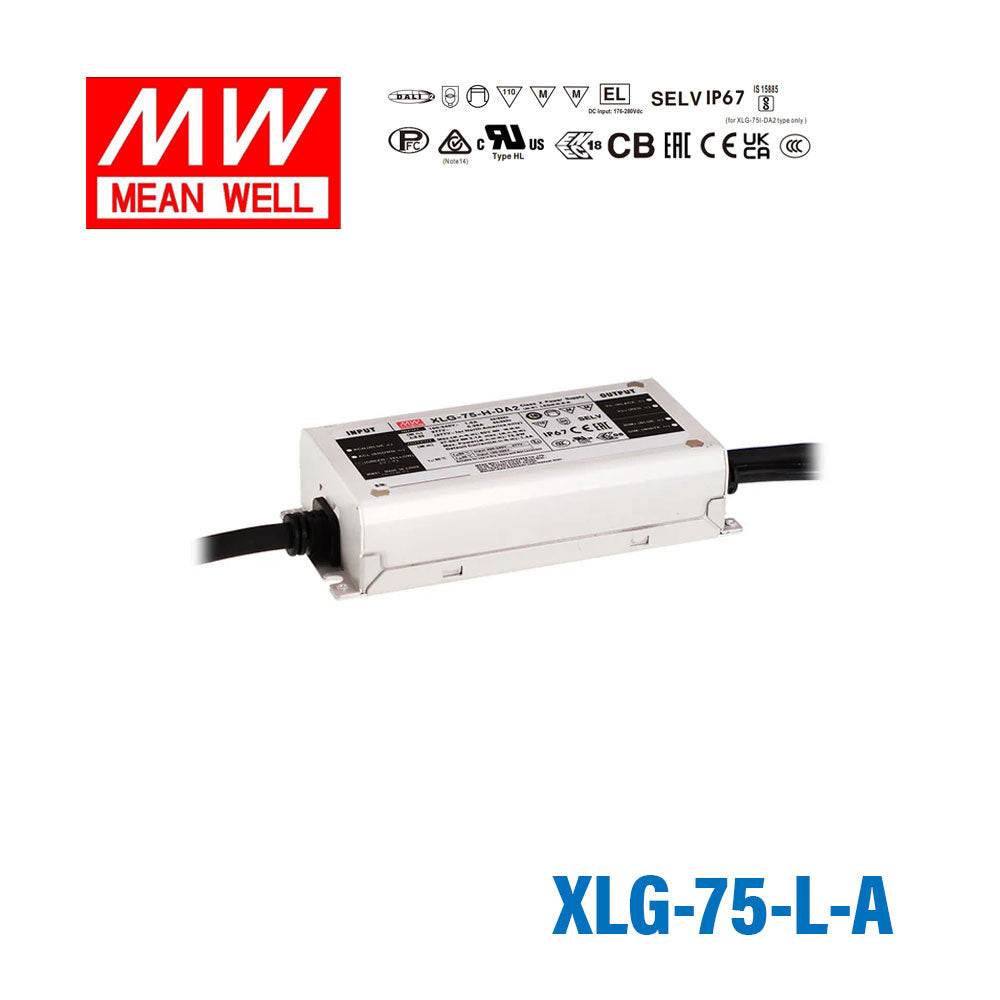

Mean Well XLG-75-L-A AC-DC Single output LED driver Constant Power Mode 75W
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLG-75-L-A AC-DC Single output LED driver Constant Power ...
The XLG-75-L is a 75W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.7 (type”HL”), UL879, CSA C22.2 No. 250.13-12; UL8750 , GB19510.1 GB19510.14 EAC TP TC 004; OM-058-SCFI-2017 (for XLG-75I type only); ; J61347-1(H29), J61347-2-13(H29) (except for Blank type);IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesXLG Series
-
Power Rating75 Watt
-
Output Voltage107 Volt
-
Rated Current1.05 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length5.51 in
-
Width2.48 in
-
Height1.26 in
-
Weight1.28 lb
::specification::
Frequently Asked Questions
Can I use the XLG-75-L-A for a constant-current LED fixture?
Yes, if the fixture is designed for constant-current operation at 1.05A and its forward voltage matches the driver's 107V output range. This model is a 75W constant-current LED driver rather than a low-voltage constant-voltage supply.
Is this driver suitable for outdoor architectural or facade lighting fixtures?
It can be suitable for outdoor LED fixtures that need 1.05A constant current and operate around 107V. The IP67 Waterproof rating and -40°C to +90°C operating temperature range support exposed environments.
Can the XLG-75-L-A be used for sign lighting modules?
It can be used only with sign lighting modules or fixtures that are built for constant-current operation at 1.05A and around 107V. It is not a general low-voltage strip-style power supply, so the LED load has to match the driver's electrical output.
Will this driver work with LED strip lights?
Only if the strip system is specifically designed for constant-current operation at 1.05A and around 107V. This driver delivers up to 75W in constant-current mode, so the strip or fixture must match that operating point.
Is the XLG-75-L-A appropriate for wet or harsh environments?
Yes, the IP67 Waterproof rating makes it suitable for locations where moisture and dust protection are required. Its metal case and operating range of -40°C to +90°C also support demanding conditions.
How does XLG-75-L-A compare with nearby XLG constant-current models?
XLG-75-L-A is rated 75W with 107V output at 1.05A. In nearby constant-current XLG models, XLG-100-L-A is 100W at 142V and 1.05A, XLG-150-L-A is 150W at 214V and 1.05A, and XLG-75-L-DA2 is 74.9W at 115V and 700A.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other XLG-75 Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well XLG-75-12-A Power Supply 75W 12V - Adjustable | 60W | 12V | 5A | IP67 | $27.63 | View |
| Mean Well XLG-75-24-A Power Supply 75W 24V - Adjustable | 74.4W | 24V | 3.1A | IP67 | $27.63 | View |
| Mean Well XLG-75-L-DA2 Power Supply 74.9W 700mA - DALI2 Dimmable | 74.9W | 115V | 0.7A | IP67 | $65.94 | View |
| Mean Well XLG-75-H-DA2 Power Supply 75.6W 1400mA - DALI2 Dimmable | 75.6W | 60V | 1.4A | IP67 | $65.94 | View |
| Mean Well XLG-75-24-AB Power Supply 75W 24V - Adjustable and Dimmable | 74.4W | 24V | 3.1A | IP67 | $32.50 | View |
| Mean Well XLG-75-12-AB Power Supply 75W 12V - Adjustable and Dimmable | 60W | 12V | 5A | IP67 | $32.50 | View |
