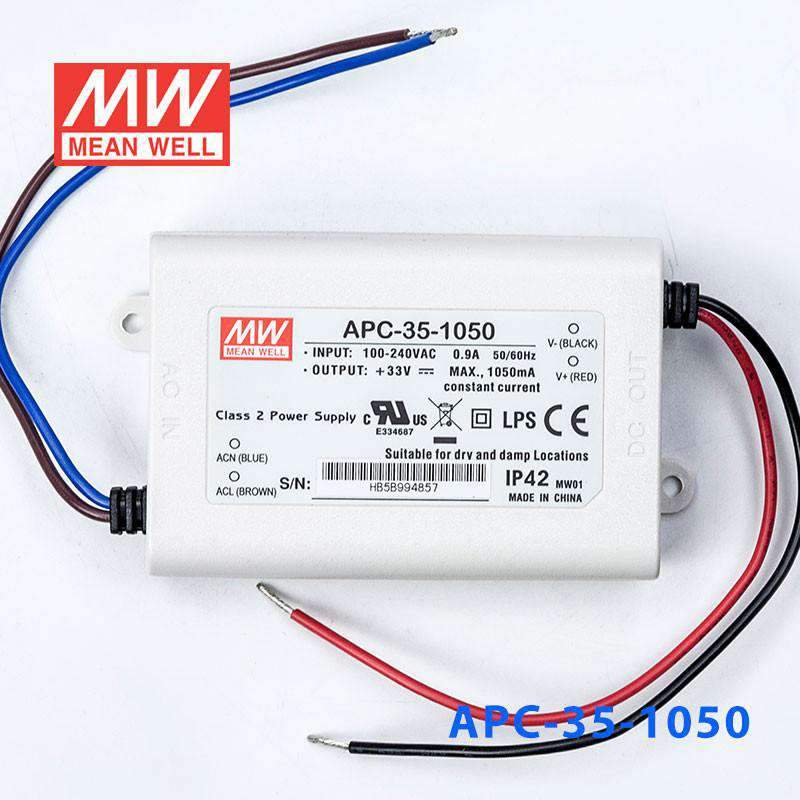

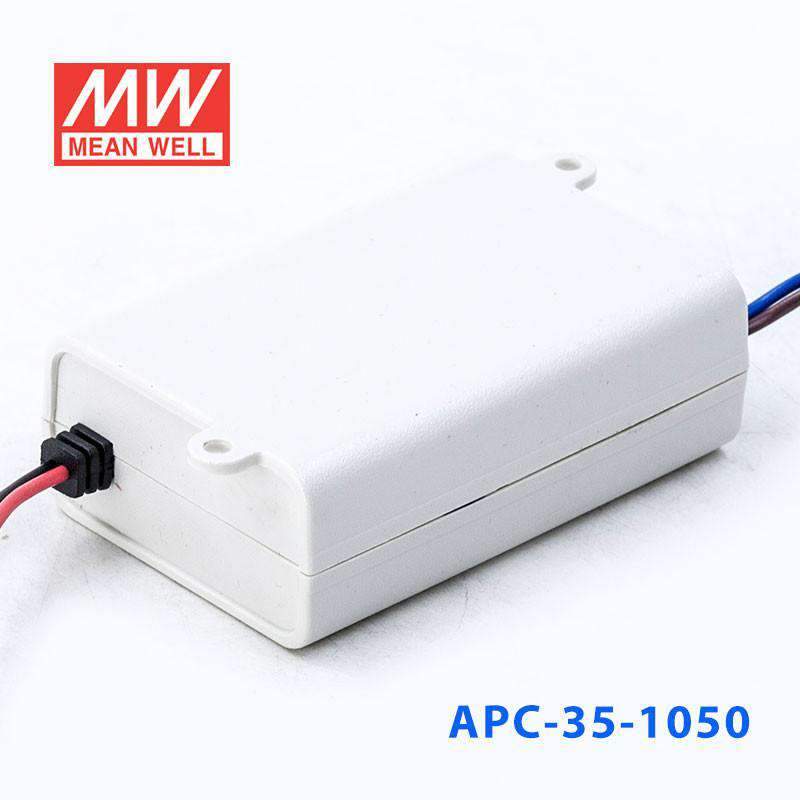

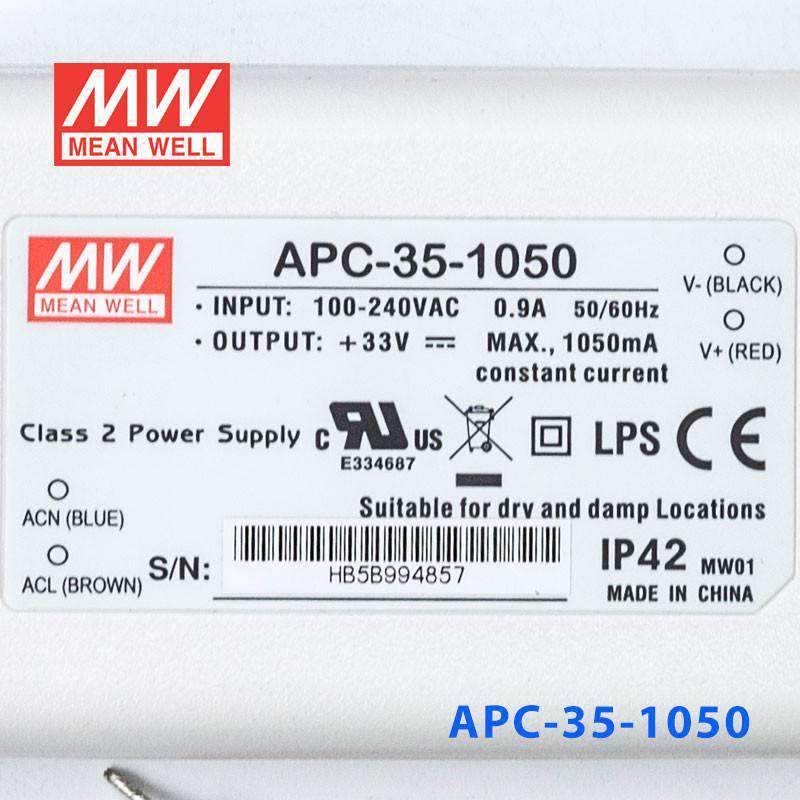

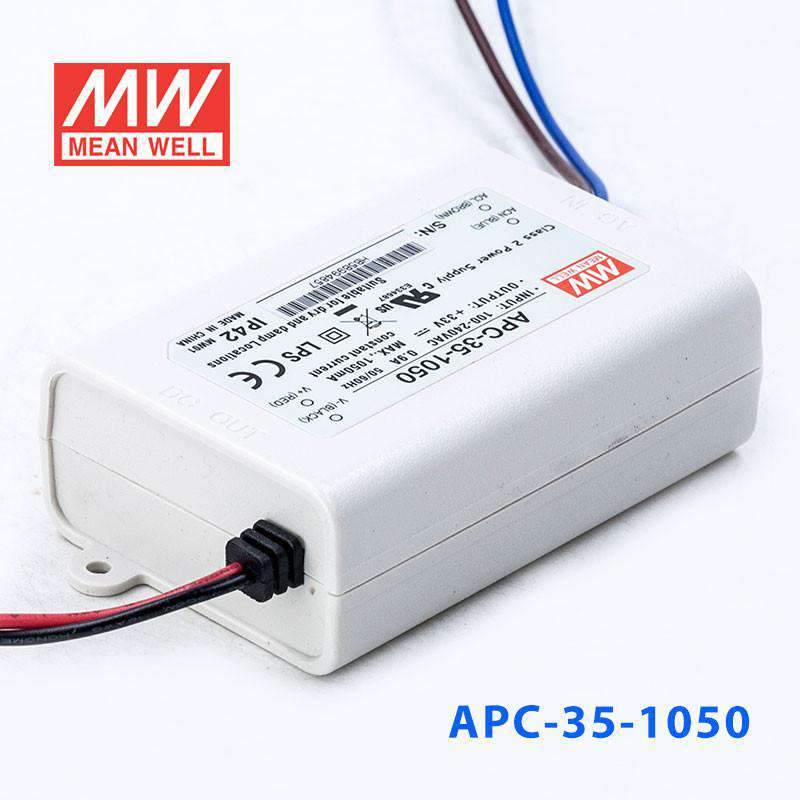

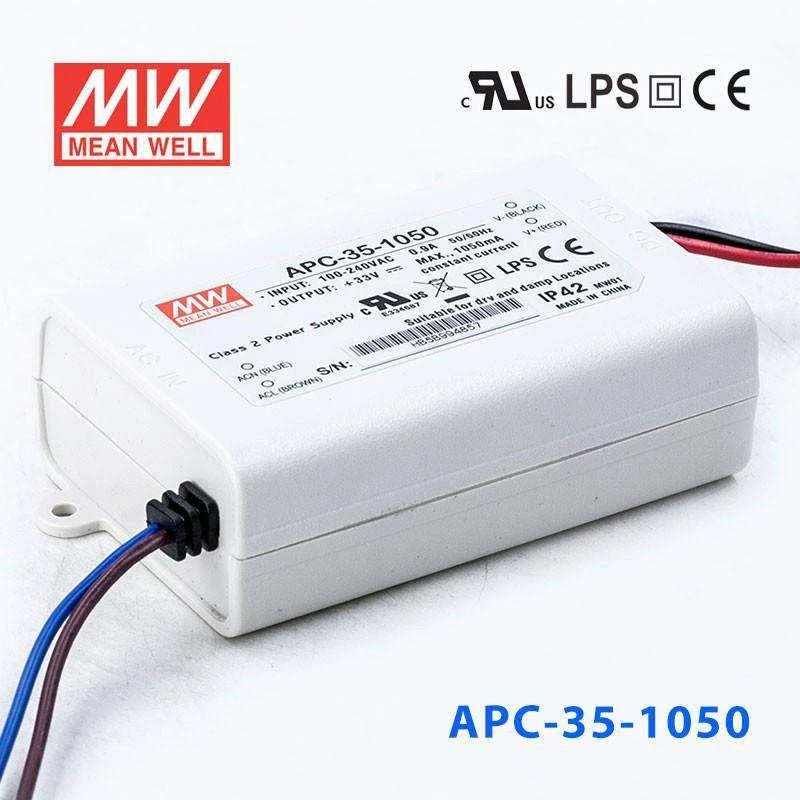

Mean Well APC-35-1050 Power Supply 35W 1050mA
Description
Description
The APC-35 is a 35W Mean Well. power converter. and an input range of 28~100V.
Key Features
- ✓ Input voltage range: 28~100V
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~70℃
- ✓ Protections: Over voltage
- ✓ Safety approvals: UL8750 (only for APC-35-700&1050), CSA-C22.2 No. 250.0-13 (only for APC-35-1050), IP42
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesAPC Series
-
Power Rating34.7 Watt
-
Output Voltage33 Volt
-
Rated Current1.05 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSMI,CE,cUL,EAC
-
Operation ModeConstant Current
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length3.31 in
-
Width2.24 in
-
Height1.16 in
-
Weight0.4 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the APC-35-1050 typically used for?
The Mean Well APC-35-1050 is typically used for constant-current LED lighting and moving sign applications that need a 1050mA drive current. With 34.7W rated power, it is a fit for higher-current LED loads that need more output capacity than the smaller APC-25-1050 model.
Is the APC-35-1050 a good fit for 1050mA LED loads?
Yes. The APC-35-1050 is designed as a constant-current LED driver rated at 1050mA, so it should be matched to LED loads specified for that current level. The connected load also needs to stay within the driver's output capability and rated power.
Can the APC-35-1050 be used for indoor LED lighting or moving sign projects?
Yes. The APC series is positioned for LED lighting and moving sign applications, so the APC-35-1050 is suitable for indoor sign and lighting assemblies that are designed for 1050mA constant-current operation and fit within the driver's electrical rating.
Will the APC-35-1050 operate from common AC mains input?
Yes. The listed AC input range is 90-264VAC, so the APC-35-1050 can operate from common 120V and 240V AC mains systems within that range. That makes it practical for a wide range of standard lighting installations.
Is the APC-35-1050 suitable for exposed outdoor use?
No. The APC-35-1050 has an IP30 design, so it should generally be used indoors or in a protective enclosure rather than in direct outdoor exposure. Its working temperature is listed as -30°C to +70°C, but ingress protection is still limited.
How does the APC-35-1050 compare with other APC models?
The APC-35-1050 provides 34.7W at 1050mA, while the APC-25-1050 provides 25.2W at the same current, and the APC-35-350, APC-35-500, and APC-35-700 serve lower current classes at 350mA, 500mA, and 700mA. The key choice is matching the driver current to the LED load and then selecting the power class that provides enough headroom.
Other APC-35 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well APC-35-500 Power Supply 35W 500mA | 35W | 70V | 0.5A | Indoor | $16.33 | View |
| Mean Well APC-35-700 Power Supply 35W 700mA | 35W | 50V | 0.7A | Indoor | $6.35 | View |
| Mean Well APC-35-350 Power Supply 35W 350mA | 35W | 100V | 0.35A | Indoor | $12.26 | View |
