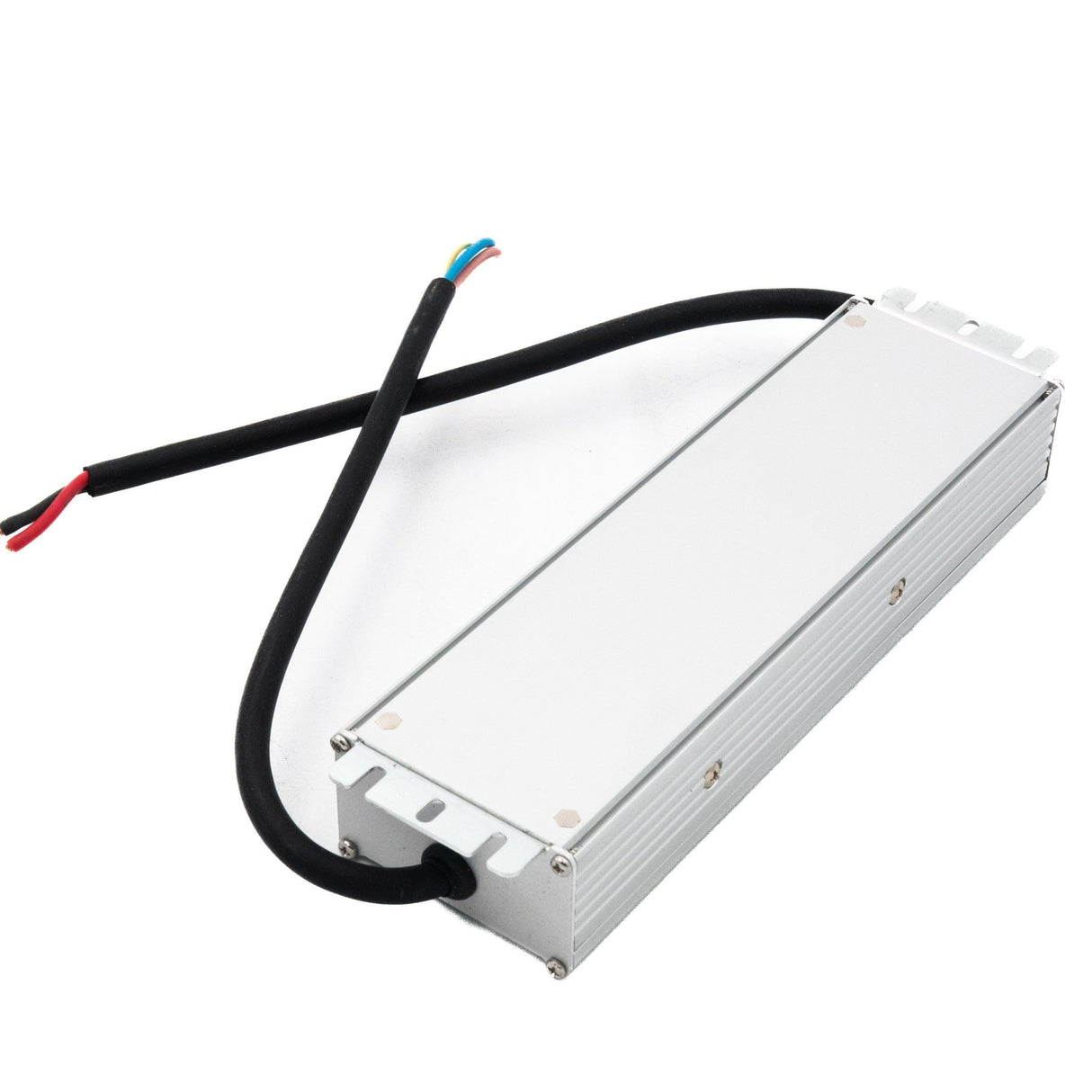

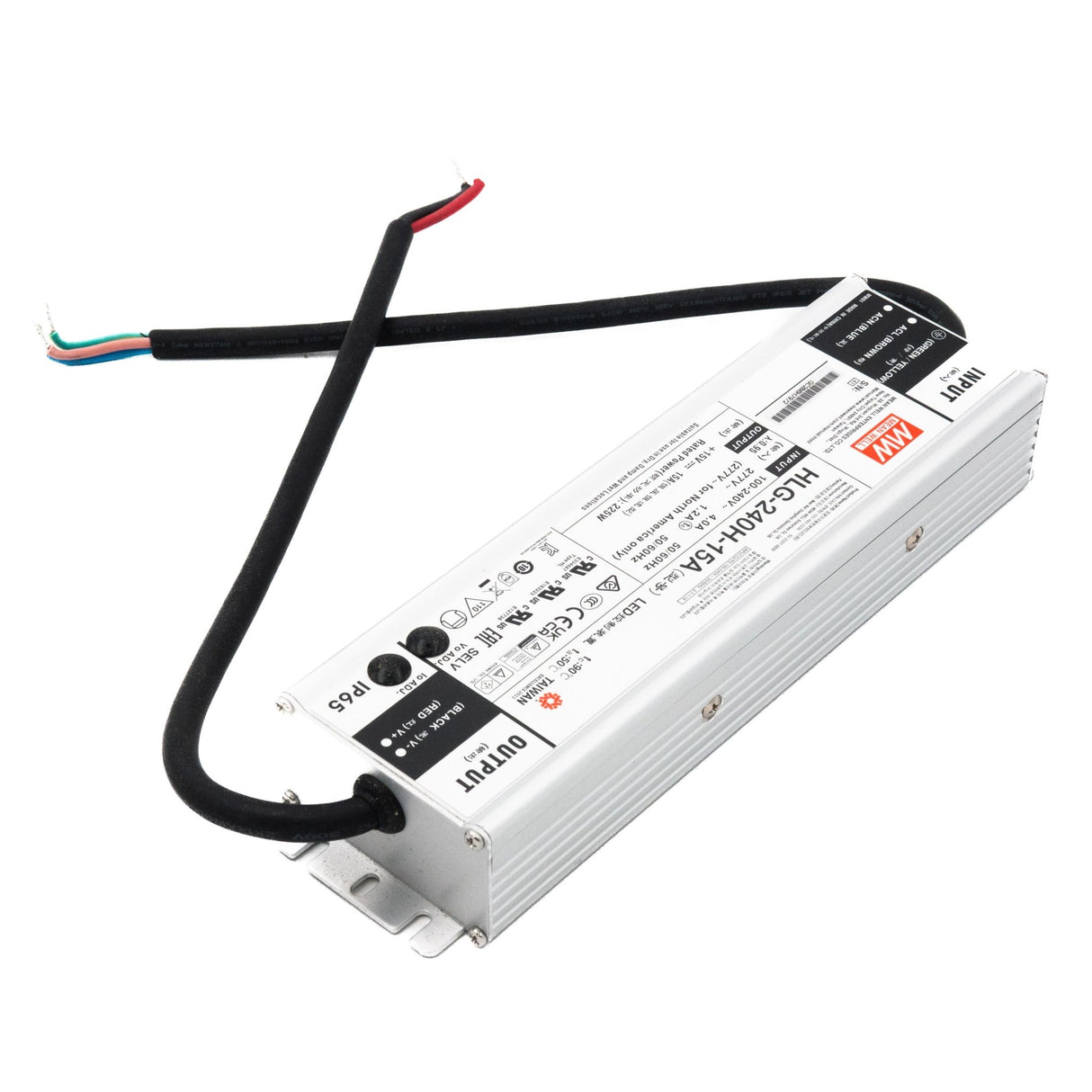

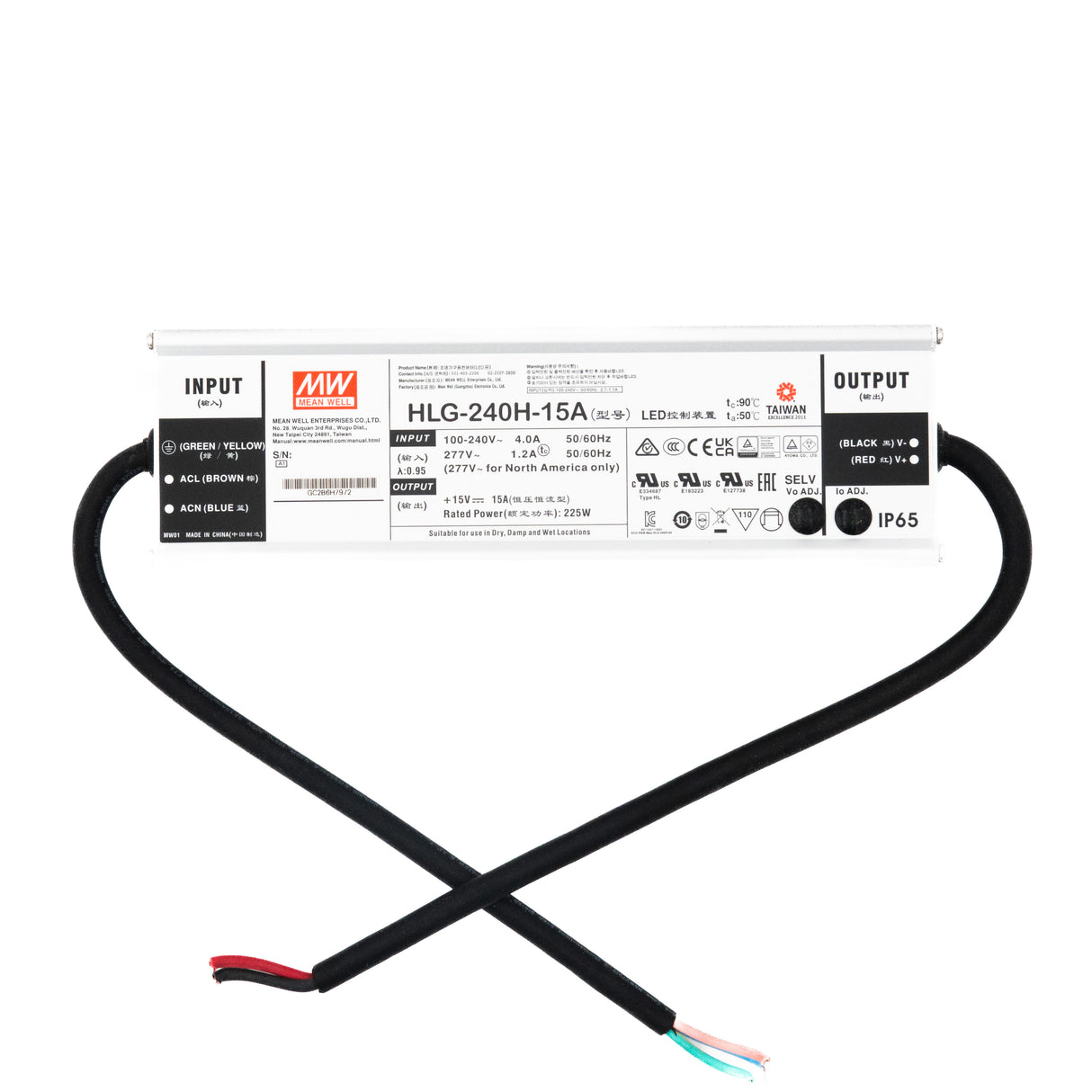

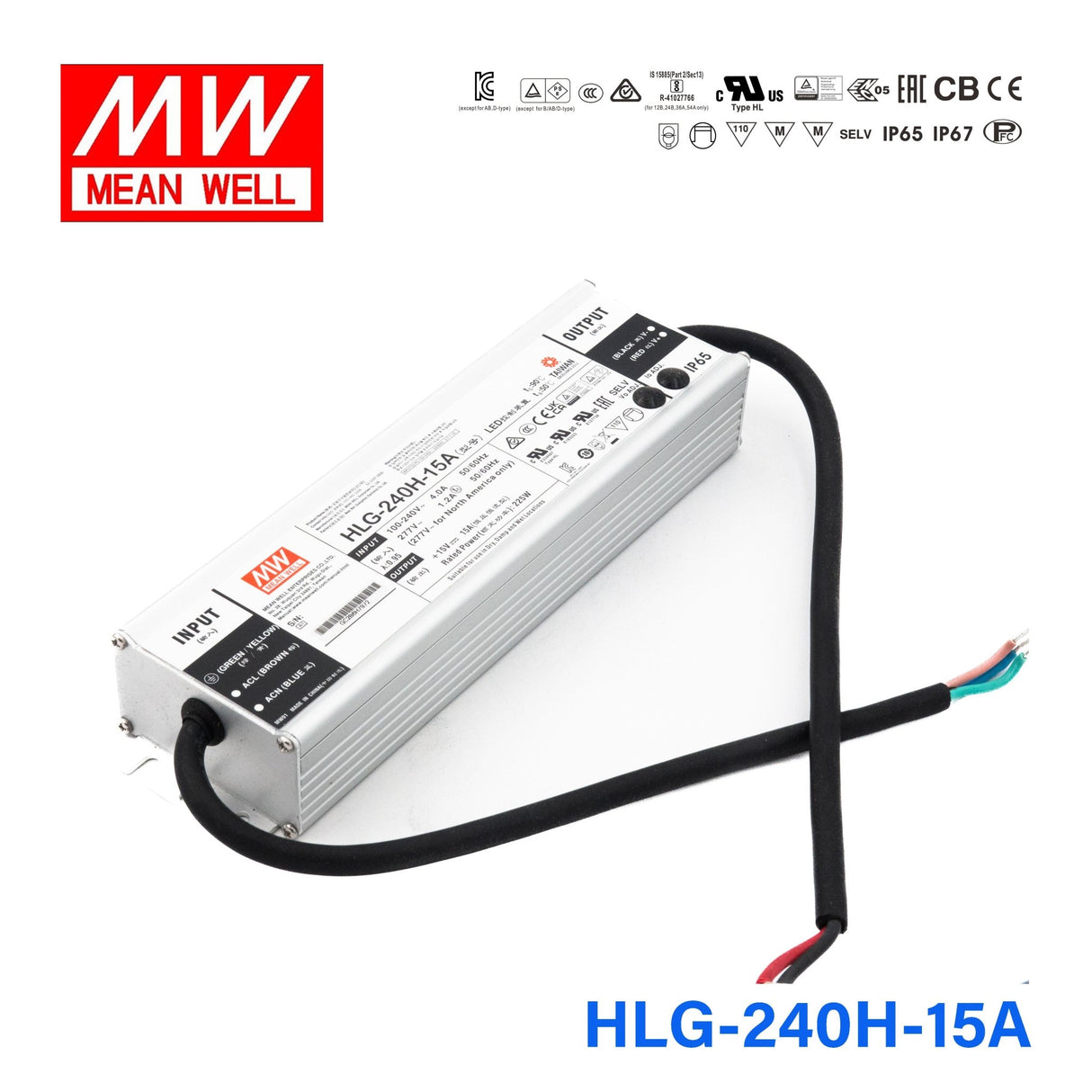

Mean Well HLG-240H-15A Power Supply 225W 15V - Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-240H-15A Power Supply 225W 15V - Adjustable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| High efficiency up to 95% |
| Built-in active PFC function, PF> 0.9 for 60% of load or higher |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| IP67 / IP65 design for indoor or outdoor installations |
| Cooling by free air convection |
| Output current adjustable |
| Suitable for LED lighting and street lighting applications |
| Meet 4kV surge immunity level (IEC61000-4-5) |
| Multiple models for choice: A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) C-Type: Terminal block for I/O connection Blank-Type: IP67 rated. Cable for I/O connection D-Type(option): IP67 rated. Timer dimming function, contact MEAN WELL for details (safety pending for 150~240W) |
| Optional CQC models available (A/Blank-Type) |
| 7 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 75A at 230VAC |
| DC adjustment range | ±6% rated output voltage |
| Current adjustment range | 50%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over voltage protection | 110%~140% rated output voltage |
| Setup, rise, hold up time | 2500ms, 80ms, 15ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 (except for C-Type) approved; UL1012, UL60950-1, TUV EN60950-1 |
| EMC standards | EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 |
| Connection Input | UL rated, SJTW 18AWGx3C (30cm); |
| Connection Output | A/D/Blank-Type: SJTW 14AWGx2C (30cm) ; B-Type: SJTW 14AWGx2C (30cm)+SJTW 18AWGx2C (30cm); C-Type: Terminal block |
| Dimension (LxWxH) (mm) | A/B/D/Blank-Type: 244.2x 68x 38.8 C-Type: 251x 68x 38.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating225 Watt
-
Output Voltage15 Volt
-
Rated Current15 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length9.61 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.87 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLG-240H-15A to power 15V LED strips in a covered outdoor or semi-sheltered area?
Yes. The HLG-240H-15A delivers 225W at 15V with up to 15A and carries an IP65 water-resistant rating. It is protected against low-pressure water jets and dust, making it suitable for covered patios, carports, canopies, and other semi-sheltered outdoor locations.
Is the adjustable output on the HLG-240H-15A helpful for fine-tuning LED brightness?
Yes. The built-in potentiometer lets you adjust both output voltage and current. With a CC voltage range of 7-15V, you can lower the drive level to reduce brightness or match the driver to a specific LED module without needing an external dimmer or controller.
Can the HLG-240H-15A drive 15V LED modules for commercial display or retail applications?
Yes. At 225W and 15V, this driver handles substantial 15V LED loads for display cases, retail shelf lighting, or illuminated signage. The adjustable output is especially useful for matching the driver precisely to your module string voltage, reducing wasted energy as heat.
How many meters of 15V LED strip can the HLG-240H-15A power?
Divide 225W by your strip's rated power per meter. For a strip drawing 10W/m, you could run up to 22.5 meters (225W / 10W per meter). Always check your strip's rated power per meter and keep total load at or below 225W.
Is the HLG-240H-15A protected enough for a damp indoor environment like a parking garage?
Yes. IP65 provides full dust protection and resistance to low-pressure water jets, which is more than sufficient for damp indoor environments such as parking garages, basements, or commercial kitchens. For locations with direct rain exposure or submersion risk, an IP67-rated variant like the HLG-240H-15 would be more appropriate.
