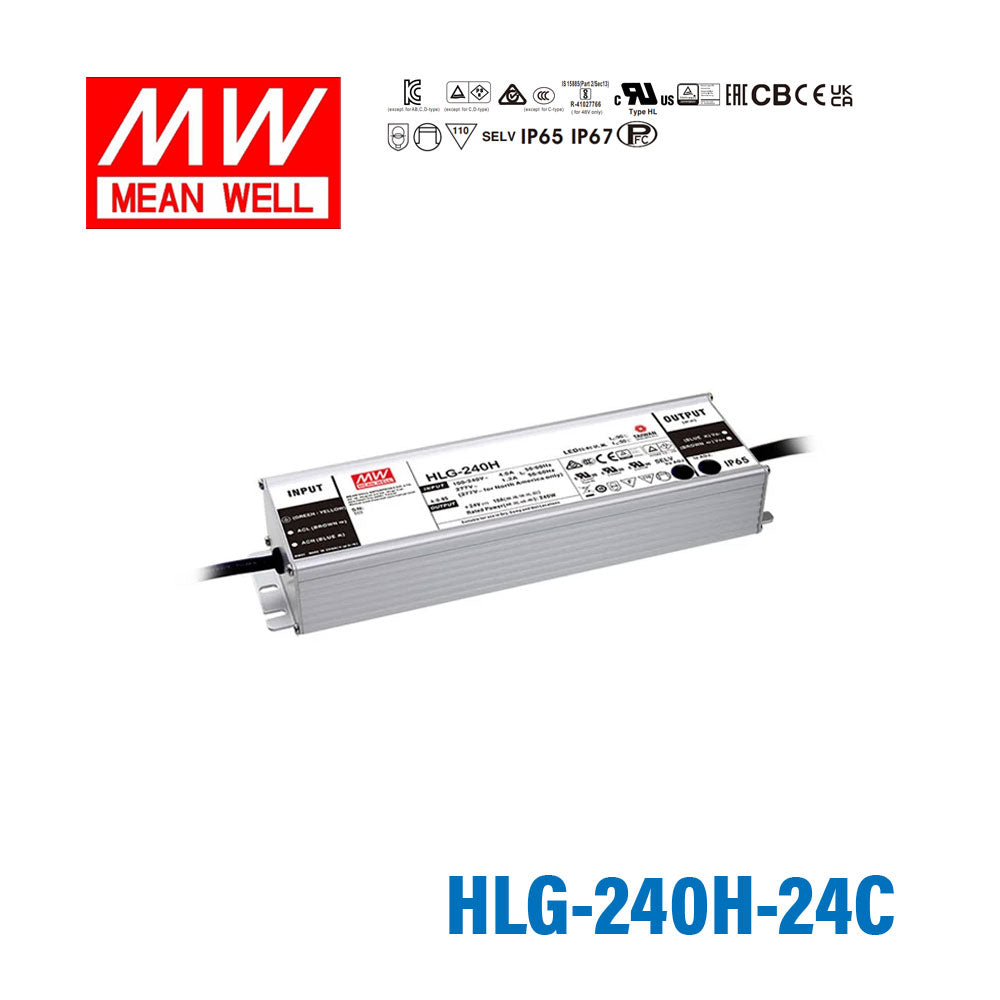

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well HLG-240H-24C AC-DC Single output LED driver Mix mode 240W

premium quality, 7 years warranty, aluminium casing, high efficiency

SKU:

HLG-240H-24C

$71.73 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input (up to 305VAC) / Full range

High efficiency up to 95%

Built-in active PFC function, PF> 0.9 for 60% of load or higher

Protections: Short circuit / Over current / Over voltage / Over temperature

IP67 / IP65 design for indoor or outdoor installations

Cooling by free air convection

Output current adjustable

Suitable for LED lighting and street lighting applications

Meet 4kV surge immunity level (IEC61000-4-5)

Multiple models for choice: A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) C-Type: Terminal block for I/O connection Blank-Type: IP67 rated. Cable for I/O connection D-Type(option): IP67 rated. Timer dimming function, contact MEAN WELL for details (safety pending for 150~240W)

Optional CQC models available (A/Blank-Type)

7 years warranty

General Specification

AC input voltage range	90~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 75A at 230VAC
DC adjustment range	±6% rated output voltage
Current adjustment range	50%~100%
Over current protection	95%~108% constant current limiting, auto-recovery
Over voltage protection	110%~140% rated output voltage
Setup, rise, hold up time	2500ms, 80ms, 15ms at full load and 230VAC
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-40~+70ºC (refer to output derating curve)
Safety standards	UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 (except for C-Type) approved; UL1012, UL60950-1, TUV EN60950-1
EMC standards	EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
Connection Input	UL rated, SJTW 18AWGx3C (30cm);
Connection Output	A/D/Blank-Type: SJTW 14AWGx2C (30cm) ; B-Type: SJTW 14AWGx2C (30cm)+SJTW 18AWGx2C (30cm); C-Type: Terminal block
Dimension (LxWxH) (mm)	A/B/D/Blank-Type: 244.2x 68x 38.8 C-Type: 251x 68x 38.8

Specifications

Brand

Mean Well
Series

HLG Series
Power Rating

240 Watt
Output Voltage

24 Volt
Rated Current

10 Ampere
Input Voltage

100V~305V
No of Output

1
Dimming Control

None
Standards Met

CB,CCC,CE,EAC,ENEC,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

7 Year
Length

9.61 in
Width

2.68 in
Height

1.53 in
Weight

2.87 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HLG-240H-24C to power 24V LED strip installations indoors?

Yes. The HLG-240H-24C provides 240W at 24V (10A), which is ample for extensive 24V LED strip runs in commercial or residential interiors. Note that this model does not carry an IP65 or IP67 rating, so it is best suited for dry indoor environments or enclosed housings.

Is the HLG-240H-24C a good fit for 24V LED retail display or cabinet lighting?

Yes. At 240W and 24V, it can power a significant amount of display case, shelf, or cabinet LED lighting. The wide 100-305VAC input handles various commercial mains supplies, and its aluminium casing dissipates heat efficiently in enclosed fixtures.

Can the HLG-240H-24C drive 24V LED panels for commercial office lighting?

Yes. The 240W output at 24V is sufficient for multiple LED panel fixtures. Its mix-mode constant-current operation ensures stable drive for panels that require a regulated current source. The -40°C to +90°C operating range accommodates ceiling plenums and other warm enclosures.

How many meters of 24V LED strip can the HLG-240H-24C support?

Divide 240W by your strip's wattage per meter. For example, a strip drawing 19.2W/m would allow about 12.5 meters (240W / 19.2W per meter = 12.5m). Always verify your strip's rated power per meter and keep total consumption at or below 240W.

Does the HLG-240H-24C need to be installed in a dry location?

The HLG-240H-24C does not list an IP65 or IP67 waterproof rating, unlike the other HLG-240H-24 variants. It should be installed in a dry indoor location or inside a weatherproof enclosure if used outdoors. Its operating temperature range is -40°C to +90°C.

How does the HLG-240H-24C differ from the HLG-240H-24 and HLG-240H-24B?

All three deliver 240W at 24V / 10A. The base HLG-240H-24 has fixed output with IP67 waterproof rating. The -24B adds a dimming input while retaining IP67. The -24C is a mix-mode variant without a listed IP rating and carries ENEC certification instead of PSE/RCM/TUV, so it is best suited for indoor or enclosed installations.
