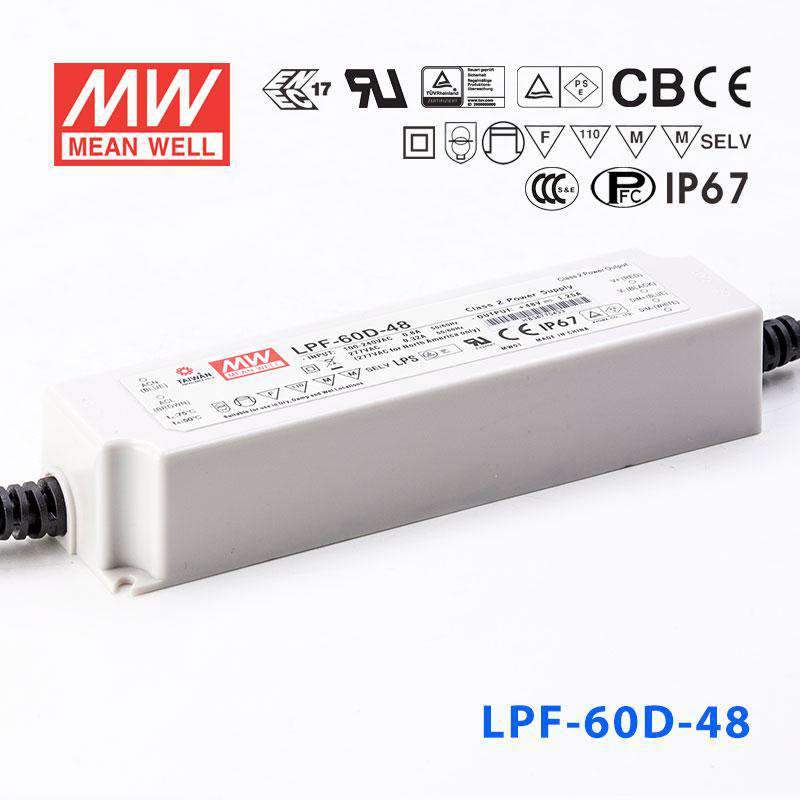

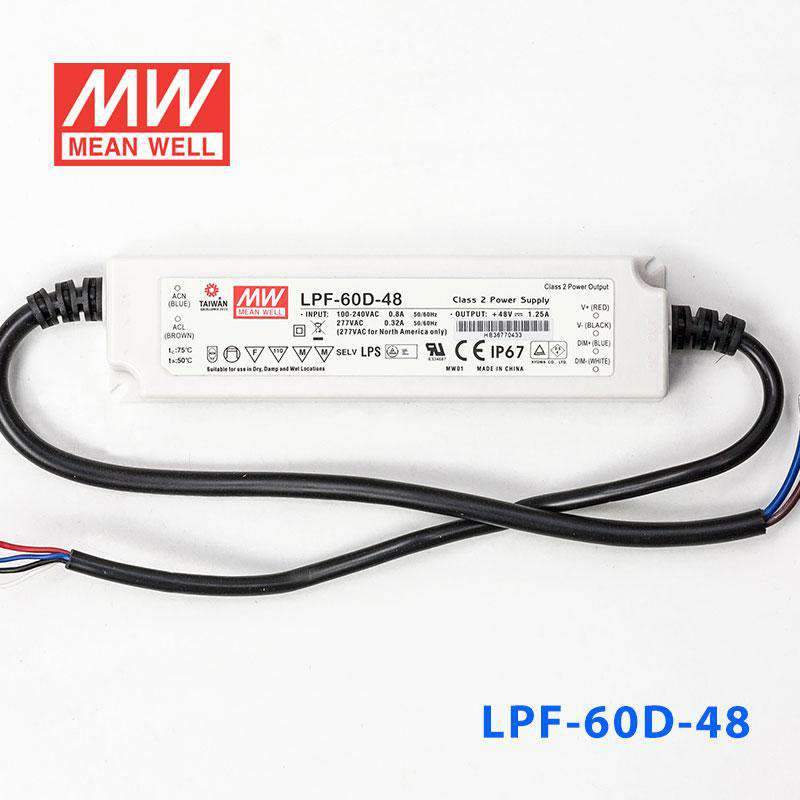

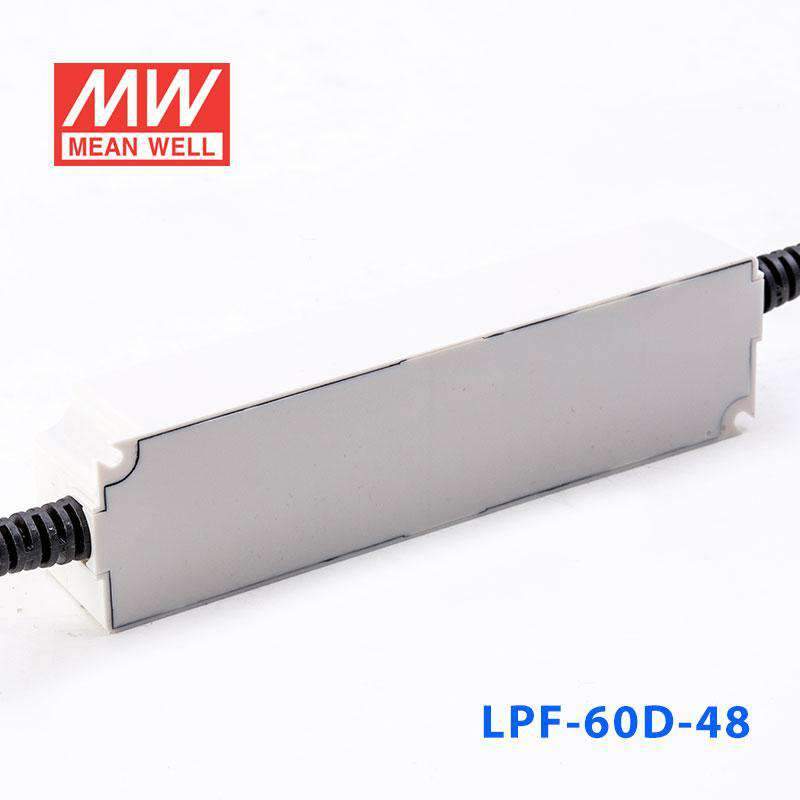

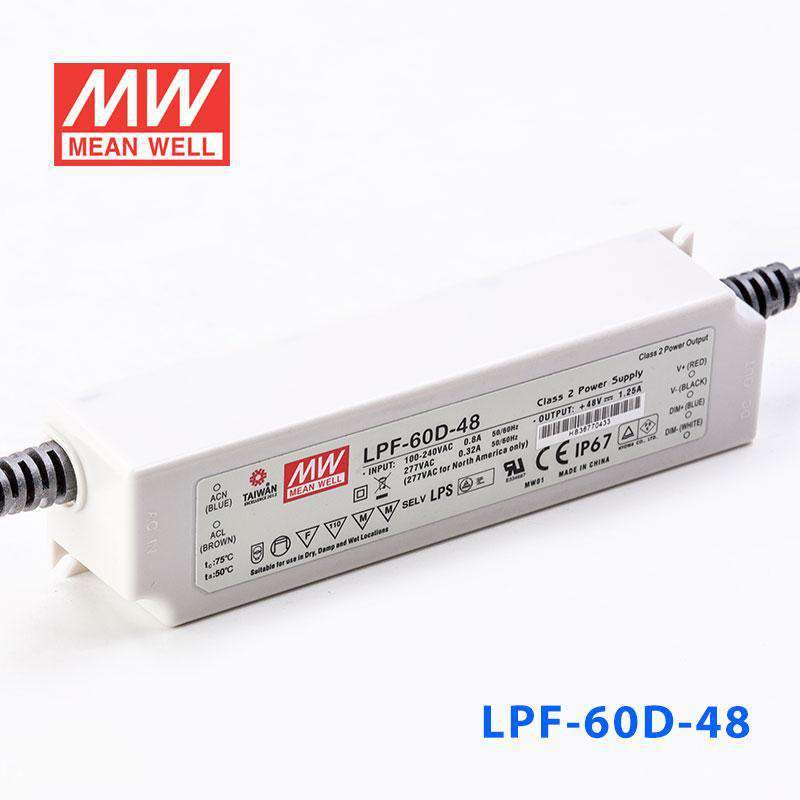

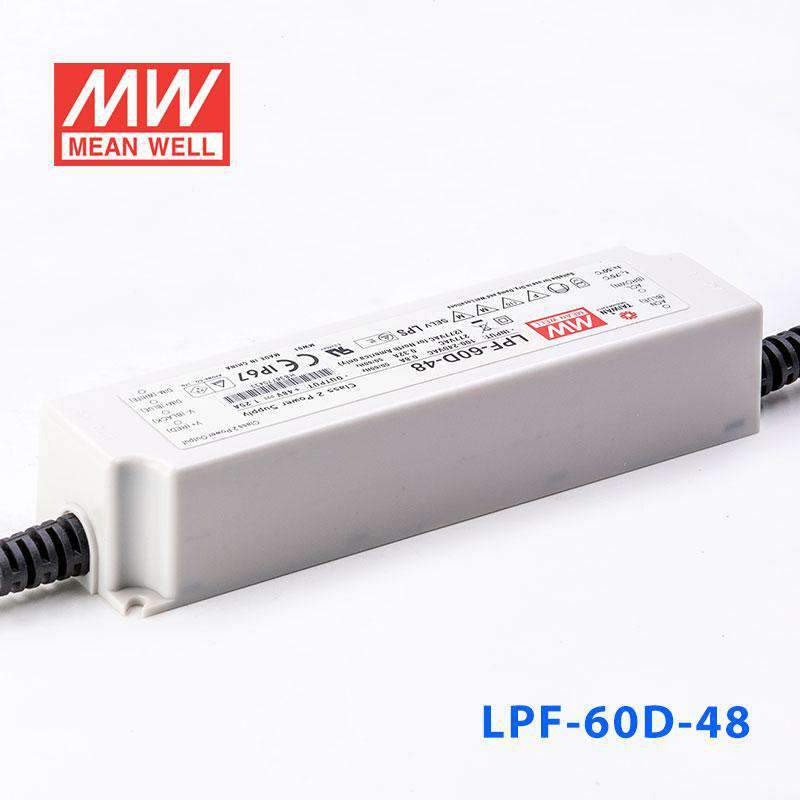

Mean Well LPF-60D-48 Power Supply 60W 48V - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LPF-60D-48 Power Supply 60W 48V - Dimmable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Built-in active PFC function |
| Fully isolated plastic case |
| Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance) for D type |
| Fully encapsulated with IP67 level |
| Class 2 power unit / Pass LPS |
| Isolation class II, no F.G. |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Suitable for LED lighting and moving sign applications |
| Suitable for dry, damp, and wet location |
| Cooling by free air convection |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 55A |
| Over current protection | 95% ~108% constant current, auto-recovery |
| Over voltage protection | 110%~150% rated output voltage |
| Withstand voltage | I/P - O/P: 3.75kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, PSE J61347-1, J61347-2-13 approved for LPF-16(D)/25(D); UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved for LPF-40(D)/60(D)/90(D) |
| EMC standards | EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 |
| Connection Input | UL rated, SJTW 18AWGx2C (30cm) |
| Connection Output | 18AWGx2C(30cm)+22AWGx2C (30cm) |
| Dimension (LxWxH)(mm) | 162.5x 43x 32 |
Specifications
Specifications
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating60 Watt
-
Output Voltage48 Volt
-
Rated Current1.25 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CE,EAC,ENEC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length6.4 in
-
Width1.69 in
-
Height1.26 in
-
Weight0.99 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPF-60D-48 for a 48V linear LED or constant current strip system?
Yes, if the LED product is specified for constant current operation within 28-48V and up to 1.25A. It should not be used with a 48V constant voltage strip or fixture.
Is this driver suitable for outdoor 48V signage or display lighting?
It can be used for outdoor signage or display lighting when the load is a constant current 48V LED product within the 28-48V range and 1.25A limit. The IP67 waterproof enclosure supports outdoor and wet-location use of the driver housing.
Can the LPF-60D-48 power a higher-voltage architectural or commercial LED fixture?
Yes, it is designed for constant current LED fixtures up to 60W with output up to 48V at 1.25A. That makes it suitable for higher-voltage LED assemblies that match the 28-48V operating range.
How much 48V LED strip or linear product can this driver handle?
The driver is rated for 60W maximum, which is also 48V × 1.25A = 60W. To estimate supported length, divide 60W by your strip's rated watts per meter, and check your strip rated power per meter and whether the product requires constant current rather than constant voltage.
Can this driver be used outside in rain, dust, or washdown areas?
Yes. The LPF-60D-48 has an IP67 waterproof rating and an operating temperature range of -40°C to +80°C, so the driver housing is intended for outdoor and wet environments. The connected lighting load still needs to match the same application conditions.
How does the LPF-60D-48 compare with the other dimmable LPF-60D 60W outputs?
The LPF-60D dimmable 60W lineup includes LPF-60D-12 at 60W 12V 5A, LPF-60D-15 at 60W 15V 4A, LPF-60D-20 at 60W 20V 3A, LPF-60D-24 at 60W 24V 2.5A, LPF-60D-30 at 60W 30V 2A, LPF-60D-36 at 60.12W 36V 1.67A, LPF-60D-42 at 60.06W 42V 1.43A, LPF-60D-48 at 60W 48V 1.25A, and LPF-60D-54 at 60.48W 54V 1.12A. The 48V model is one of the higher-voltage options in that range, with lower current than the lower-voltage versions.
Other LPF-60D Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPF-60D-36 Power Supply 60W 36V - Dimmable | 60.12W | 36V | 1.67A | IP67 | $31.37 | View |
| Mean Well LPF-60D-54 Power Supply 60W 54V - Dimmable | 60.48W | 54V | 1.12A | IP67 | $31.37 | View |
| Mean Well LPF-60D-42 Power Supply 60W 42V - Dimmable | 60.06W | 42V | 1.43A | IP67 | $28.04 | View |
| Mean Well LPF-60D-30 Power Supply 60W 30V - Dimmable | 60W | 30V | 2A | IP67 | $31.37 | View |
| Mean Well LPF-60D-24 Power Supply 60W 24V - Dimmable | 60W | 24V | 2.5A | IP67 | $29.60 | View |
| Mean Well LPF-60D-20 Power Supply 60W 20V - Dimmable | 60W | 20V | 3A | IP67 | $33.71 | View |
| Mean Well LPF-60D-15 Power Supply 60W 15V - Dimmable | 60W | 15V | 4A | IP67 | $33.71 | View |
| Mean Well LPF-60D-12 Power Supply 60W 12V - Dimmable | 60W | 12V | 5A | IP67 | $31.37 | View |
